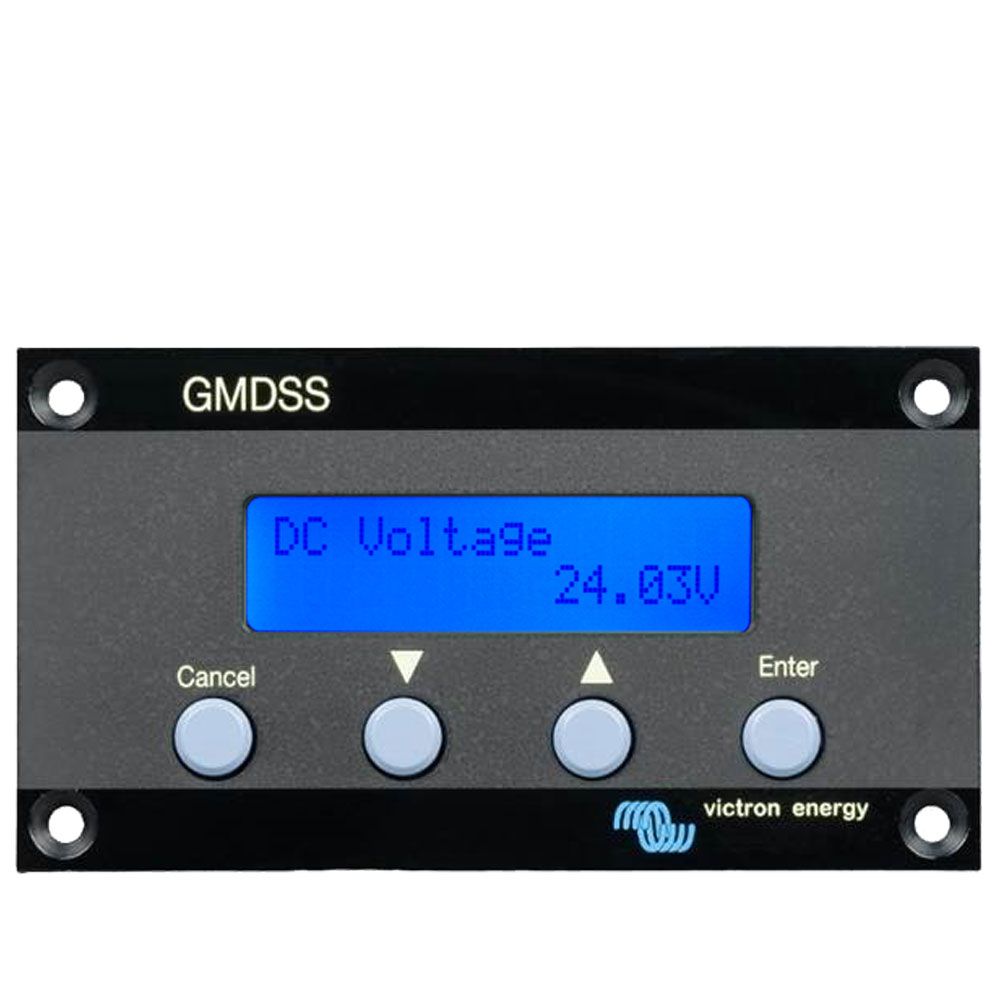

VE.Net GMDSS panel

The VE.Net GMDSS panel is designed to provide remote visibility and alarm control for your GMDSS charger (typically a Skylla-TG GMDSS unit). It displays battery voltage, current, and state of charge, and supports alarm conditions such as low voltage, high voltage, charger failure, and more.

It is powered from 9 to 35 V DC, so it can draw supply from the VE.Net cable itself, simplifying wiring. The built-in relay is normally closed under normal conditions, and opens when any alarm is active, allowing it to drive external alarms or indicators.

Settings like display contrast, backlight, and alarm thresholds can be adjusted via the menu. The panel supports configuration access levels (user vs install mode) to prevent inadvertent setting changes.

Mount it in a standard panel cut-out, connect with a UTP (straight) cable to the GMDSS charger, and the display and monitoring commence automatically.

With a front panel size of about 120 × 65 mm, and body behind of ~108 × 53 mm, it integrates neatly into standard installations.

This panel is a key component in meeting GMDSS marine system standards by providing battery and charger oversight, alarms, and integration into your Victron monitoring network.
