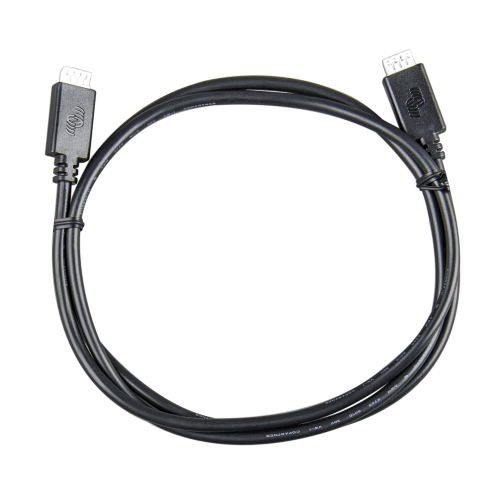

VE.Direct Cable 3m
VE.Direct Cable 3m
SKU:ASS030530230
Brand: Victron
Low stock: 6 left
Couldn't load pickup availability
Product Details
Product Details
The Victron VE.Direct Cable, 3 metre (SKU ASS030530230) is a reliable communication lead designed to connect VE.Direct-equipped devices such as MPPT charge controllers, battery monitors (BMV), inverters and GX system displays. With its 3‑metre length, it gives you the flexibility to link components that are spaced apart without needing extensions or third-party adapters.
This cable supports a voltage range from 6.5 V up to 95 V DC, making it compatible with a wide variety of battery-powered Victron systems. The connectors are straight-to-straight VE.Direct, ensuring a secure, low-resistance data path and consistent throughput.
Built to professional standards, the cable features rugged insulation so it can withstand the conditions often found in off-grid, marine or vehicle installations. It weighs approximately 0.13 kg, so handling and installation are straightforward. It is ideal for installations where stable remote monitoring is critical, such as for linking BlueSolar or SmartSolar MPPT controllers to VE.Direct-enabled control panels, or integrating BMV monitors with GX or Color Control GX displays.
Using this cable ensures that your system remains clean and well-organised with minimal signal loss and reliable data communications. For trade installers, it supports system commissioning, diagnostics and long-term monitoring, all with a cost-effective and proven Victron-brand accessory.
Product Specifications
Product Specifications
Technical Specifications
- SKU / Part Number: ASS030530230
- Cable Length: 3.0 meters (300 cm)
- Connector Style: Straight to straight (both ends feature straight connectors, not right-angle)
- Primary Purpose: Digital data and system communications (carries data, not operating power)
- Official Product Family: Victron VE.Direct Cable Family
- Warranty: Backed by Victron Energy’s standard 5-year warranty
Typical Applications & Compatibility Designed to connect compatible VE.Direct-equipped Victron devices to a GX communication center (such as the Cerbo GX, Ekrano GX, or Color Control GX) to expose performance data to the system. Supported hardware includes:
- SmartSolar and BlueSolar MPPT solar charge controllers
- BMV-700 Series Battery Monitors and SmartShunt
- VE.Direct-compatible Phoenix Inverters
- Peak Power Pack Batteries
- Orion XS DC-DC Battery Chargers
Supported Data Transmission (by Connected Device) The exact telemetry and configuration data transmitted depends entirely on the specific hardware being connected:
- From an MPPT Solar Charger: PV voltage, PV current, PV power, battery voltage, charging current, charging state, accumulated solar yield, charger status, historical/operational logs, and configuration settings.
- From a BMV / SmartShunt Battery Monitor: Battery voltage, current, state of charge, consumed Amp-hours, remaining runtime, instantaneous power, historical data, and active alarm/status notifications.
- From a VE.Direct Inverter: DC voltage, DC current, output power, inverter state, active alarms, and basic operating information.
Important Installation & Compatibility Notes
- Straight vs. Right-Angle: This is the straight-connector version. If your installation is in a cramped cabinet or space is highly restricted, you may require the right-angle version (part number ASS030531230) to prevent the cable from sticking straight out from the device port.
- Not a Generic Cable: VE.Direct is a proprietary digital communications interface. Although the plugs look similar to standard modular telephone or network cables, they are not electrically compatible; standard network or telephone cables must not be used.
- No Integrated Bluetooth: This is a passive digital cable. It does not add Bluetooth capabilities. To add Bluetooth to compatible older VE.Direct products, you will need the VE.Direct Smart Dongle.
- Device-to-Device Constraints: Having a VE.Direct port on two devices does not guarantee direct communication between them (for example, connecting an MPPT directly to an inverter with this cable will not allow the devices to exchange system information).
- Computer Connectivity: To connect a VE.Direct device directly to a PC or laptop for configuration, you must use a dedicated VE.Direct-to-USB Interface (ASS030530010) or VE.Direct-to-USB-C Interface (ASS030530030) rather than this cable.
Quality & Standards
- Manufacturing Quality: Produced in ISO 9001 certified manufacturing facilities
- Compliance: Meets official Declarations of Conformity standards for Victron cabling
