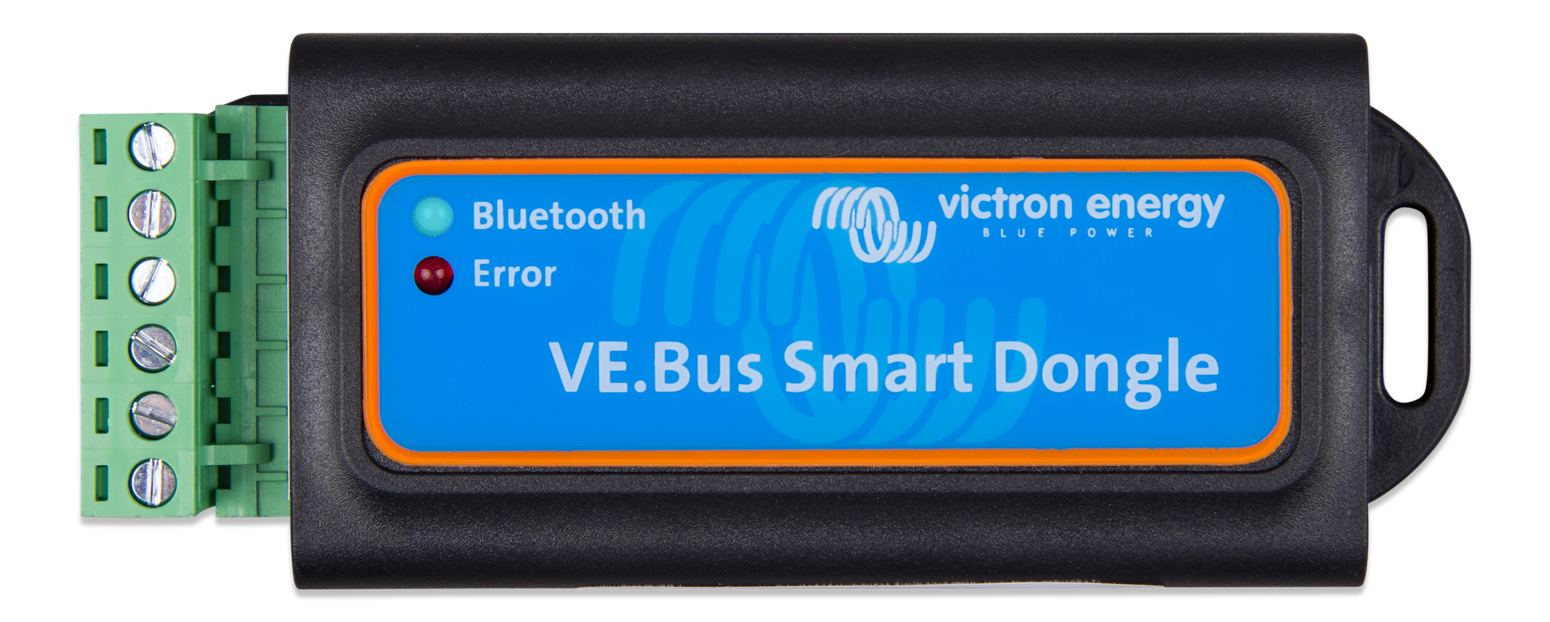

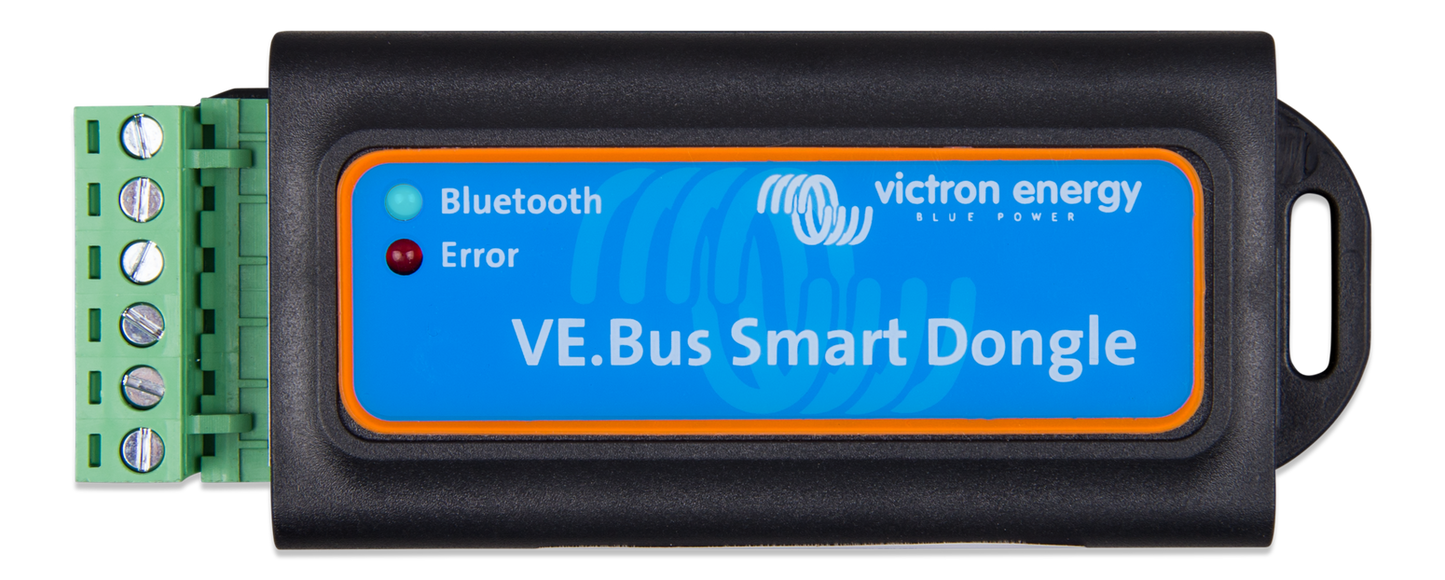

VE.Bus Smart dongle
VE.Bus Smart dongle
SKU:ASS030537010
Brand: Victron
Low stock: 2 left
Couldn't load pickup availability
Product Details
Product Details
The Victron VE.Bus Smart Dongle is an essential accessory for users seeking to enhance the functionality of their Victron inverter/chargers. Compatible with Multi, MultiPlus, MultiPlus-II, MultiGrid, MultiGrid-II, Quattro, and Phoenix Inverters featuring a VE.Bus port, this dongle enables wireless communication via Bluetooth.
Using the VictronConnect app, users can monitor real-time data, including battery status, voltage, and temperature. The app also allows for remote control, enabling adjustments to settings such as input current limit and operational modes (Off, On, Charger-only). The Instant Readout feature provides at-a-glance diagnostics, displaying key data without requiring a direct connection to the device.
Installation is straightforward, with the dongle connecting to the inverter/charger via an RJ45 UTP cable (sold separately) and wiring to the battery terminals. The device also measures battery voltage and temperature, ensuring optimal charging and system performance.
Product Specifications
Product Specifications
Key Features
- Integrated Sensing: Features internal temperature measurement capabilities, allowing the dongle itself to be mounted directly on the battery for accurate readings.
- VE.Smart Networking: Supports VE.Smart Networking, enabling wireless communication of temperature and voltage data between Victron devices to optimize the charging process.
- VRM Integration: Provides temperature data reporting to the VRM (Victron Remote Management) portal when connected to a system with internet monitoring.
- External Probe Support: Includes dedicated terminals for connecting an optional external temperature probe if the dongle cannot be mounted directly on the battery.
Technical Specifications
- Victron Part Number: ASS030537010
- Supported Products: All VE.Bus devices (including MultiPlus and Quattro inverter/chargers).
- Communication: Bluetooth Smart.
- Temperature on VRM: Yes.
- VE.Smart Networking: Yes.
- External Probe Compatibility: Requires probe part number ASS000100000 for external sensing.
Installation & Usage
- Mounting: Can be mounted directly on a battery for internal sensing or remotely if an external probe is used.
- System Benefit: Specifically engineered to provide sense information that improves the charging efficiency and longevity of the battery bank.
