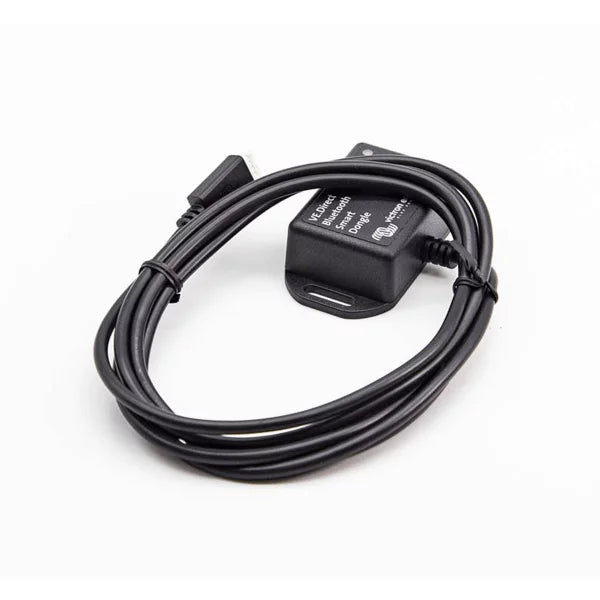

Victron Energy VE.Direct to Bluetooth Smart Dongle – ASS030536011
Enhanced Monitoring with VE.Direct to Bluetooth Smart Dongle:
The Victron Energy VE.Direct to Bluetooth Smart Dongle adds smart functionality to any Victron Energy product with a VE.Direct port, offering comprehensive monitoring and control features.
Seamless Integration for Non-Smart Products:
Connect the dongle to Victron products lacking built-in smart functionality, enabling real-time monitoring through the VictronConnect app. Set programmable alarms and cut-offs effortlessly for optimal system setup.
Universal Compatibility:
The dongle reads data from all products with a VE.Direct port and is commonly used with the 250W-1200W Phoenix inverter range, providing smart capabilities to products that don't inherently possess them.
Live Status Updates and Configuration:
Utilize the VE.Direct to Bluetooth Smart Dongle to access live status information, view historical values, and configure product settings conveniently via the VictronConnect app.
Smart System Integration:

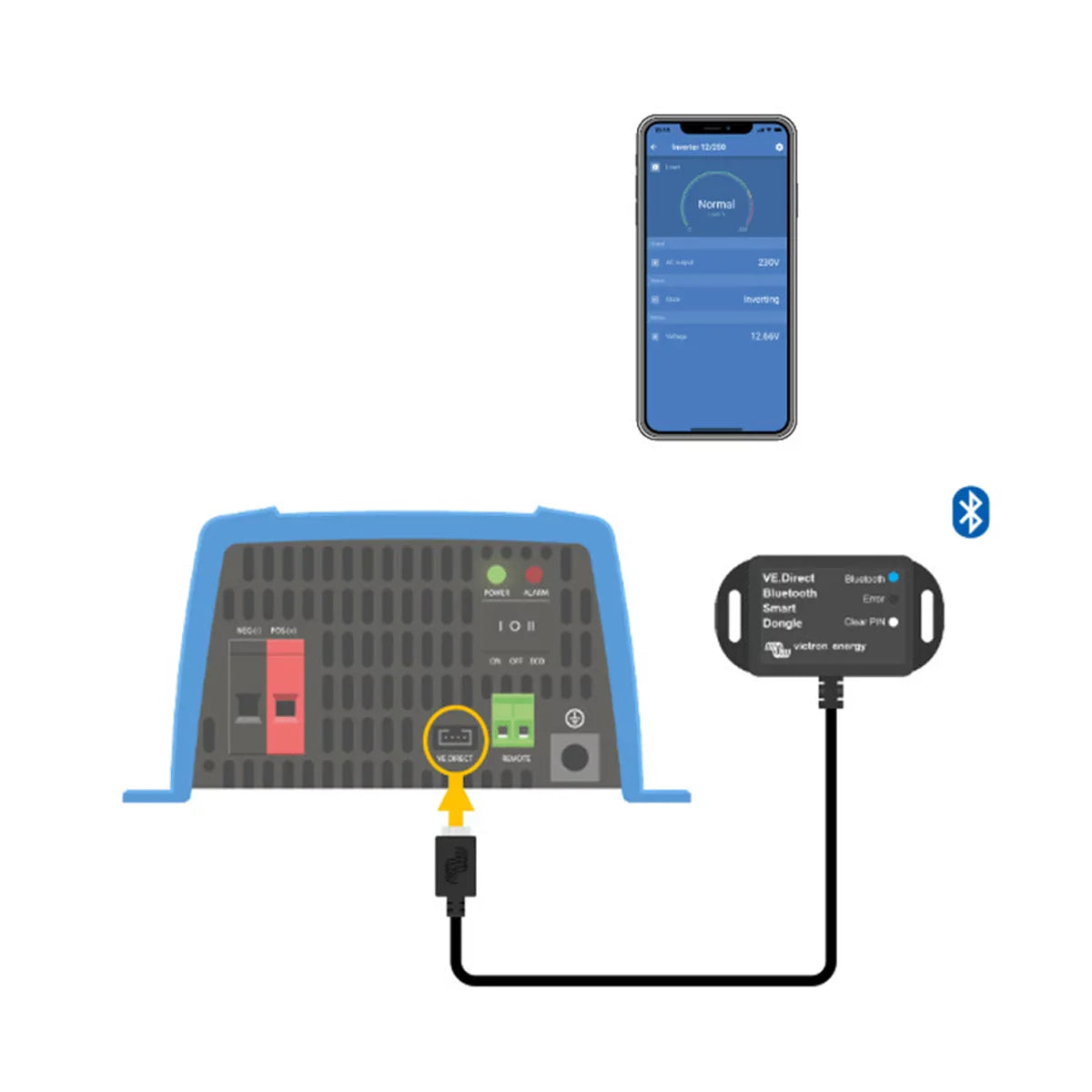

In a fully smart system, pair the dongle with products like the Victron Phoenix inverter to monitor power usage, loads, and set up alarms and cut-offs using the VictronConnect app, ensuring a fully optimized and responsive system.
Product Specifications
Product Specifications
Technical Specifications
- SKU: ASS030536011
- Current Draw (Not Connected): 1mA
- Current Draw (Connected): 2.5mA

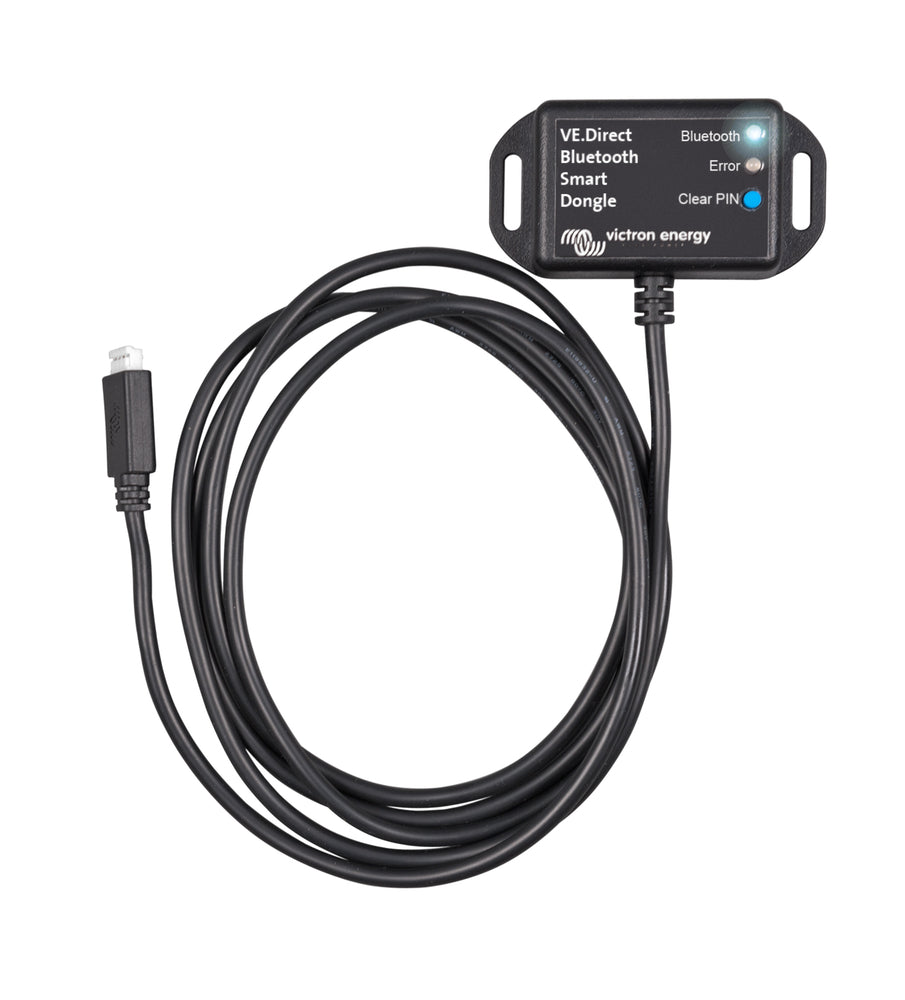

- Cable Length: 1.5m (Note: This cable cannot be extended)
- Interface: VE.Direct to Bluetooth Low Energy (Smart)

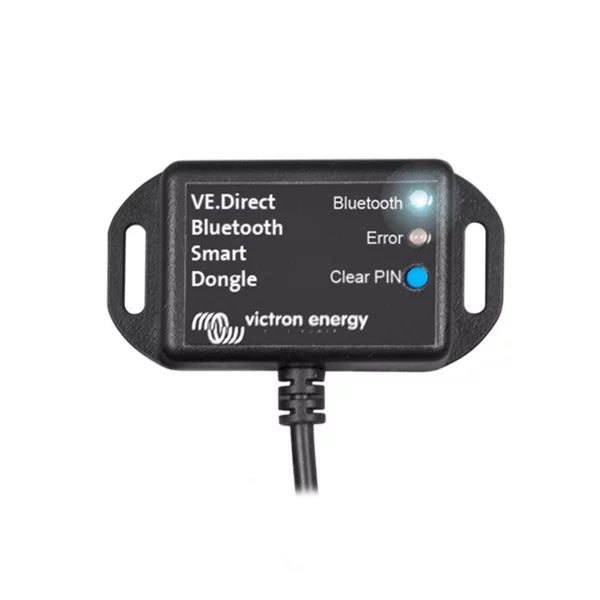

- Status Indicators: Dual LED (Blue for Bluetooth status, Red for Errors)
- Physical Controls: Integrated "Clear PIN code" button
Compatible Victron Products: The dongle is compatible with almost all products featuring a built-in VE.Direct port, including:
- Battery Monitors: BMV-700 and BMV-702 series.
- Inverters: Phoenix Inverters with VE.Direct ports.
- Solar Controllers: BlueSolar MPPT Solar Charge Controllers.
- Note: This dongle is NOT compatible with GX devices or GlobalLink devices.
Physical & Installation Data
- Dimensions: 67.3mm (L) x 35mm (W) x 20.5mm (D)
- Mounting Hole Centers: 57.8mm
- Installation: Direct plug-and-play into the VE.Direct port of the powered Victron device.
- Wireless Range: Up to approximately 20 meters in open space.
Warranty & Compliance
- Warranty: 5-year standard limited warranty covering defects in materials and workmanship.
- Quality Standards: Manufactured in accordance with ISO9001 standards.
