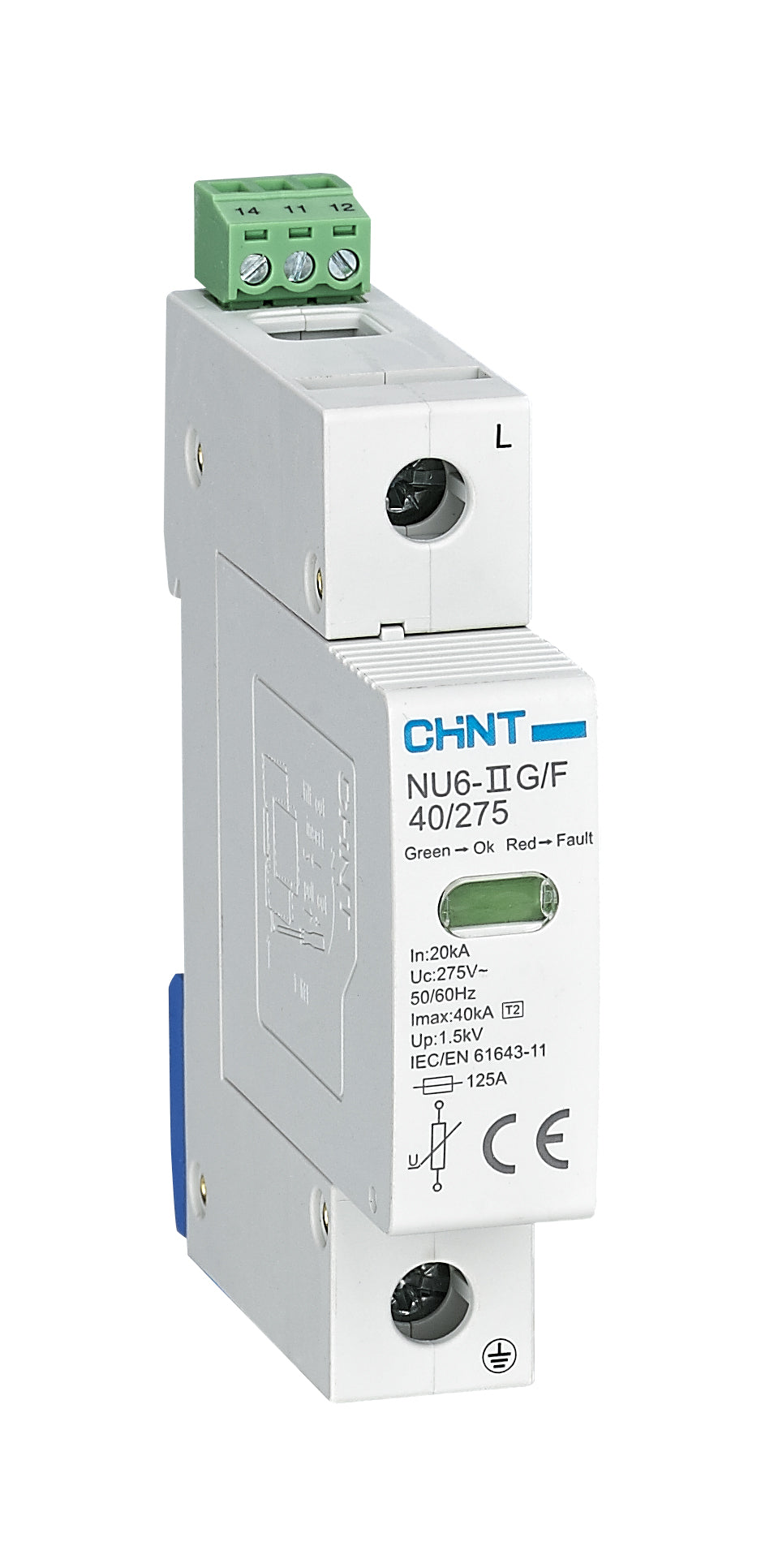

Type 2 20kA 275V 1P Surge Protective Device with Aux contact (NU6-II-G/F-1P)
Type 2 20kA 275V 1P Surge Protective Device with Aux contact (NU6-II-G/F-1P)
SKU:NU6-11-G/F-1P
Brand: CHINT
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
Protect your electrical systems with the Type 2 20kA 275V 1P+N Surge Protective Device (SPD) with Aux contact, model NU6-II-G/F, from CHINT. Designed for modern residential, commercial, and light industrial installations, this surge protector guards against damaging voltage spikes caused by lightning strikes and transient overvoltage events. It is engineered to deliver dependable performance while helping extend the life of connected equipment.
This SPD provides a 20kA nominal discharge capacity, making it suitable for use in distribution boards and electrical panels operating at 275V AC. Its single-phase plus neutral (1P+N) configuration is compact and ideal for installations where space is limited. The unit mounts on a standard 35mm DIN rail and integrates easily with existing electrical systems.
A key feature of the NU6-II-G/F is the auxiliary contact. This allows remote signalling of the device status, so you can monitor whether the SPD remains operational or requires attention without opening the panel. This improves safety and makes maintenance easier, especially in automated or hard-to-reach installations.
The device is housed in a durable, flame-resistant enclosure and includes a clear visual fault indicator. This lets you quickly see when the surge module needs replacing. Its modular design supports straightforward maintenance without disconnecting the main circuit, helping reduce downtime and labour costs. The SPD is suitable for TN and TT earthing systems, making it a reliable choice for protecting consumer units, sensitive electronics, and essential appliances.
Whether you are installing a new electrical system or upgrading existing surge protection, the NU6-II-G/F SPD delivers dependable performance backed by CHINT quality and CE compliance.
Product Specifications
Product Specifications
Electrical Specifications
- SPD Class: Type 2
- Configuration: 1P (Single Pole)
- Nominal Discharge Current (In): 20kA
- Max Discharge Current (Imax): 40kA
- Max Continuous Operating Voltage (Uc): 275V AC
- Voltage Protection Level (Up): ≤ 1.8kV
- Rated Frequency: 50/60Hz
- Auxiliary Contact (Aux): Integrated (for remote status monitoring)
Mechanical & Installation Data
- Mounting Method: Fixed (DIN Rail)
- Installation Location: Indoor
- Number of Ports: One
- Max Operating Temperature: 70°C
- Operating Altitude: Evaluated for use up to 3,000m above sea level
Standards & Compliance
- Testing Standard: EN 61643-11/A11:2007
- Directives: Low Voltage Directive 2006/95/EC
- Certifications: CE Approved, TÜV SÜD Product Service Certified, Intertek Verified
Key Features
- Remote Monitoring: Features a built-in auxiliary contact ("/F" variant) allowing for remote indication of the SPD status, ideal for integration into building management systems.
- Reliable Surge Handling: Specifically engineered as a Type 2 surge arrestor to protect against secondary surges and atmospheric overvoltages in residential and commercial environments.
- High Performance: Provides a robust nominal discharge capacity of 20kA to ensure long-term protection for connected downstream electronics.
- Safe Termination: Designed for fixed installation with high-quality terminals to maintain consistent performance even under high-temperature conditions.
