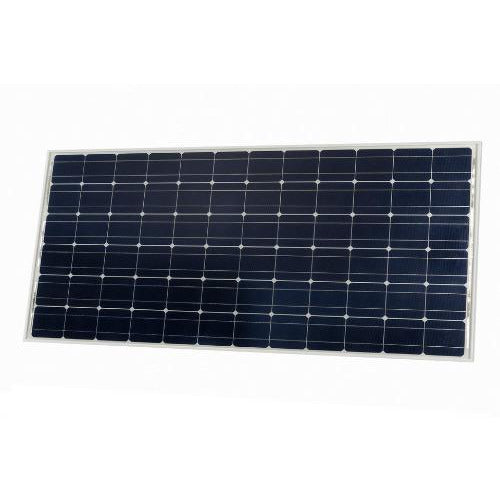

Victron Energy 305W Solar Panel 20V Mono 1658x1002x35mm series 4b
Victron Energy 305W Solar Panel 20V Mono 1658x1002x35mm series 4b
SKU:SPM043052002
Brand: Victron
47 in stock
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy 305W Solar Panel 20V Mono 1658x1002x35mm Series 4b is engineered for high-efficiency energy generation in commercial, industrial, and off-grid applications. This monocrystalline panel offers robust performance and durability, making it an ideal choice for demanding installations.
Key Features:
- High Efficiency: Monocrystalline technology ensures optimal energy conversion, delivering 305W of power output.
- Durable Construction: Built with a sturdy anodised aluminium frame, the panel is designed to withstand harsh environmental conditions.
- Compact Dimensions: Measuring 1658x1002x35mm, it is suitable for various installation spaces.
- Long-Term Reliability: Backed by a 25-year limited warranty on power output and performance, and a 5-year limited warranty on materials and workmanship.
- Advanced Encapsulation: Features a triple-layer back sheet and advanced EVA encapsulation for enhanced safety and performance.
Designed for professional installations, this panel is ideal for commercial rooftops, industrial sites, and off-grid energy systems. Its high efficiency and durability ensure reliable energy generation, even in challenging conditions.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: SPM043052002
Allowable Hail Load Speed: 23 m/s
Allowable Hail Load Weight: 7.53 g
Cell Type: Polycrystalline
Depth: 35 mm
Frame Material: Aluminium
Height: 1,658 mm
Junction Box Type: PV-JB002
Max Power Current: 9.38 A
Max Power Voltage: 32.5 V
Max System Voltage: 1,000 V
Nominal Power: 305 W
Number Of Cells In Series: 60
Number Of Panels Per Pallet: 42
Open Circuit Voltage: 39.7 V
P VCable Length: 900 mm
P VOutput Tolerance: 3 %
Product Warranty: 5 y
Short Circuit Current: 10.27 A
Smallest Packaging Unit: 1
Warranty80Output: 10 y
Warranty90Output: 10 y
Weight: 19 kg
Width: 1,002 mm
Source: Victron
Technical Specifications
Technical Specifications
| Solar Wattage | 305 |
|---|
