Victron SmartSolar Pluggable Display

Victron SmartSolar Pluggable Display

SCC900650010

Brand: Victron

Simple plug-in installation: Fits directly into compatible SmartSolar MPPT controllers with no wiring or tools required. Clear on-site data display: Shows real-time voltage, current, power, and charge status for immediate system diagnostics. System configuration control: Adjust charging parameters, battery settings, and load management directly from the display. Durable professional design: Built to Victron’s high standards with robust construction and backed by a 5-year warranty. Versatile trade use: Ideal for solar installers, marine engineers, and off-grid specialists needing local monitoring capability. Dimensions: 116 × 50 × 25mm Weight: 0.37kg

Low stock: 9 left

£31.00 GBP
£31.00 GBP
Sale Sold out

Product Details

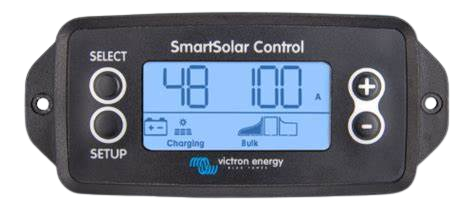

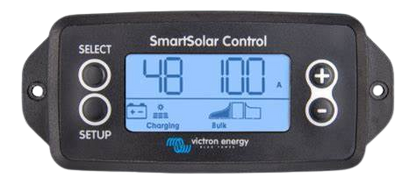

The Victron SmartSolar Pluggable Display (SKU SCC900650010) offers trade professionals an efficient way to upgrade a Victron SmartSolar MPPT charge controller with local real-time monitoring and control. The compact LCD display simply plugs into the front of the controller, behind the “display option” cover, enabling live readings of battery voltage, solar panel current and power, charging stage and temperature. Because installation is straightforward, it can be used either permanently or as a temporary diagnostic aid.

Once fitted, the display delivers immediate insight into system performance, offering both live and historic data (such as 30-day yield, maximum panel voltage, minimum battery voltage and cumulative energy). This means you can quickly diagnose system issues, optimise load settings or verify performance without relying on remote apps alone. Additionally, it supports programming of customised parameters (where the controller permits) so you can fine-tune absorption, float, temperature compensation or load management directly from the screen.

Its small footprint makes it suitable for installation in cabinets, switch-rooms, marine panels or built into vehicle systems. Suitable for installers servicing off-grid solar systems, caravans, boats or hybrid backups, the display enhances the control and feedback available to trade technicians and end-users alike. With compatibility across Victron’s SmartSolar MPPT range and a standard 5-year warranty, it’s a reliable accessory that adds measurable value to any premium Victron solar controller installation.

Compatibility & Use Notes:

  • Compatible with Victron SmartSolar / BlueSolar MPPT controllers equipped with a display port.
  • The display can be used either as a permanent or a temporary monitoring tool.
  • For controllers without a display port, a plastic cover usually marks where the display can be added.

Product Specifications

Compatibility: Suitable for the Victron Energy 150V and 250V BlueSolar and SmartSolar MPPT solar charger range equipped with a display port, including:

  • SmartSolar MPPT: 150/45 up to 250/100
  • SmartSolar MPPT VE.Can: 150/70 up to 250/100
  • BlueSolar MPPT VE.Can: 150/70 up to 250/100

Monitoring & Data Display

  • Live PV Data: Solar power (W), yield (kWh), voltage (V), and current (A).
  • Battery Status: Voltage, charge current, and current charge stage (Bulk, Absorption, Float, or Off).
  • Temperature: Battery temperature and solar charger internal temperature.
  • Load Output: State and current (only for chargers equipped with a load output).
  • History: 30-day historical values including daily yield, max/min battery voltages, maximum PV power, and time spent in each charge stage.
  • Cumulative Data: Total yield since the last history reset.

Configuration & Setup Features

  • Charge Algorithm: Selection of preset algorithms or fully customizable user-defined settings.
  • Voltage Settings: Adjust absorption, float, and equalization voltages.
  • Equalization: Initiate manual equalization or set automatic equalization intervals.
  • Relay & Load Modes: Program relay functions (High PV voltage, Low battery, etc.) and load control algorithms (including BatteryLife).
  • System Settings: Set system voltage (12/24/36/48V), toggle BMS presence, and manage password locks.
  • Interface Customization: Adjust backlight intensity, backlight timeout, scroll speed, and temperature units (°C/°F).

Mechanical Specifications

  • Installation Type: Inserts into the display port on the front face of the solar charger.

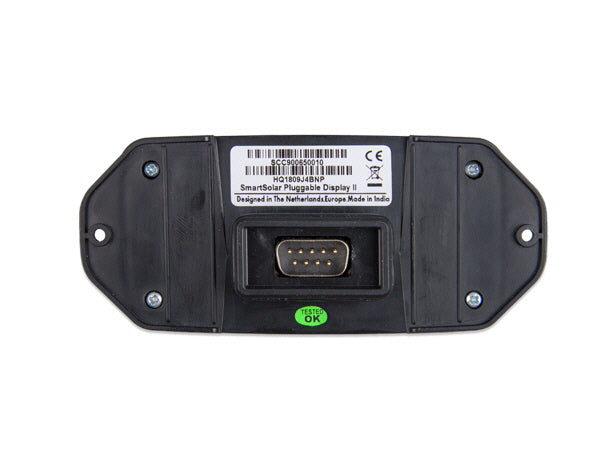

  • Display Port Connector: RS232 9-pin pinout.
  • Hot-Swappable: Can be plugged in or removed while the solar charger is operating.
  • Dimensions (W x L x H): 116 x 50 x 25 mm
  • Weight: 66 g

Environmental & Support

  • LCD Performance: Segments may become faint if ambient temperatures drop below -10°C (14°F) and invisible below -20°C (-4°F), returning to normal visibility as the unit warms up during charging.
  • Warranty: 5-year limited warranty covering defects in materials and workmanship.
