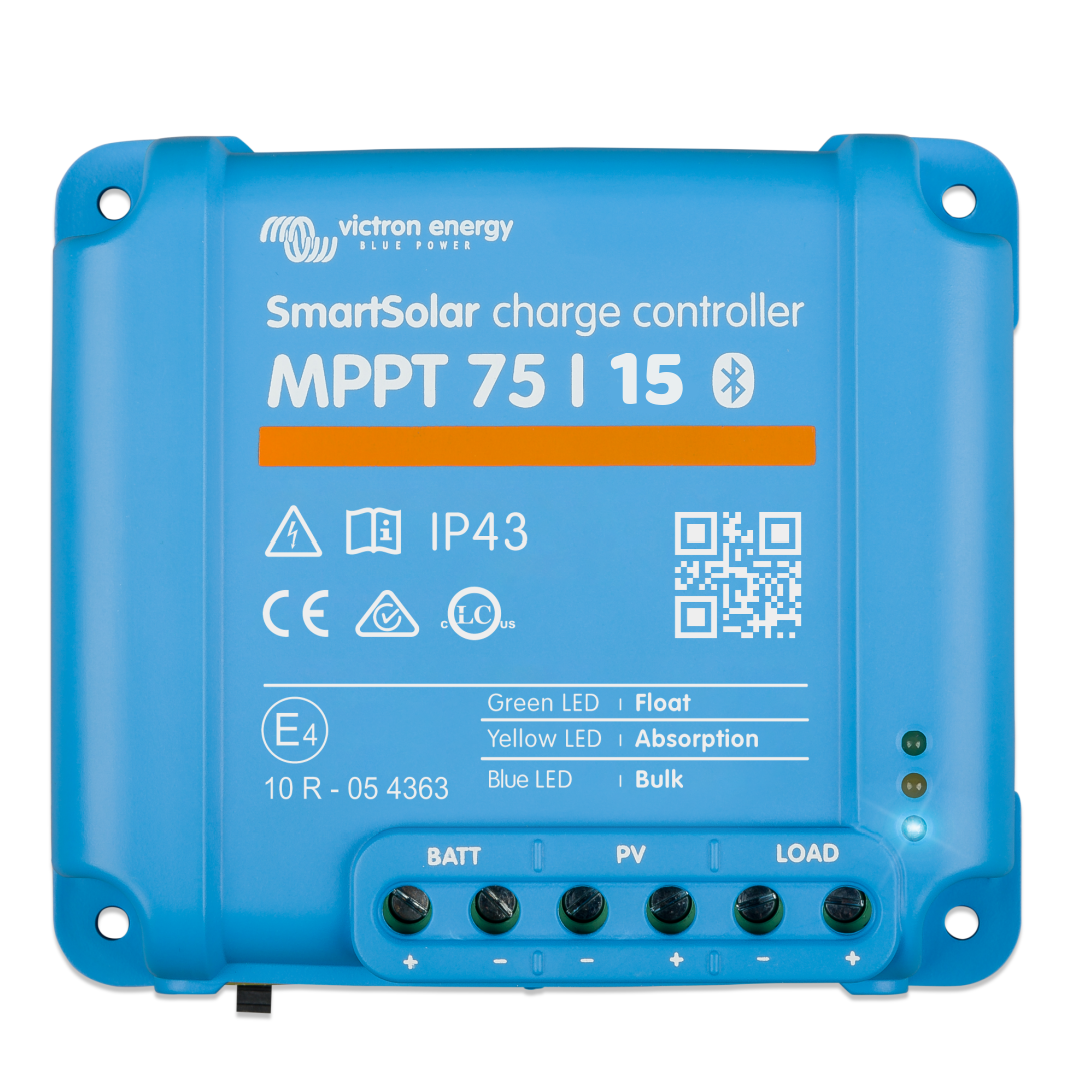

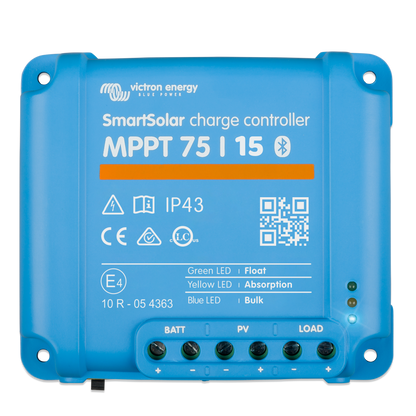

Victron MPPT 75/15 - SmartSolar Charge Controller
Victron MPPT 75/15 - SmartSolar Charge Controller
SKU:SCC075015060R
Brand: Victron
Maximum Power Point Tracking (MPPT): Ensures optimal energy harvest from your solar panels
Bluetooth Connectivity: Monitor and configure settings remotely using the VictronConnect app.
Automatic Battery Voltage Selection: Compatible with 12V and 24V battery systems.
Intelligent Load Output: Protects your battery from excessive discharge with programmable load output.
Compact and Robust Design: Built to withstand harsh environmental conditions.
Dimensions: 100 x 113 x 40mm
Weight: 0.5kg
60 in stock
Regular price
£61.00 GBP
Regular price
Sale price
£61.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron MPPT 75/15 SmartSolar Charge Controller is engineered to efficiently convert solar energy into usable power for your 12V or 24V battery systems. With a maximum charging current of 15A, it utilises advanced MPPT technology to ensure maximum energy harvest, even under challenging conditions such as partial shading or cloud cover.
Efficient Solar Power Harvesting:
The Victron MPPT 75/15 SmartSolar charge controller optimally harvests power from solar panels, intelligently charging your leisure batteries and preventing overcharging for enhanced battery protection.
The Victron MPPT 75/15 SmartSolar charge controller optimally harvests power from solar panels, intelligently charging your leisure batteries and preventing overcharging for enhanced battery protection.
SmartSolar Functionality for Control:

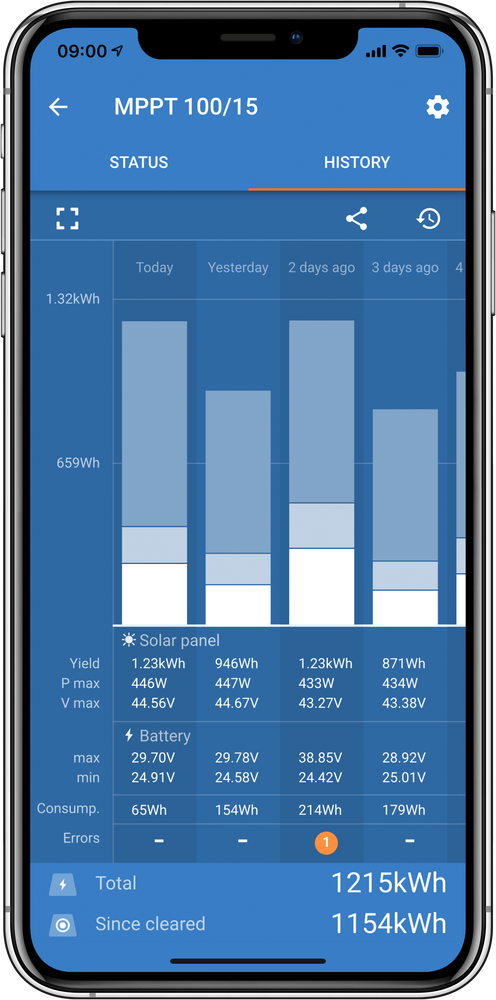

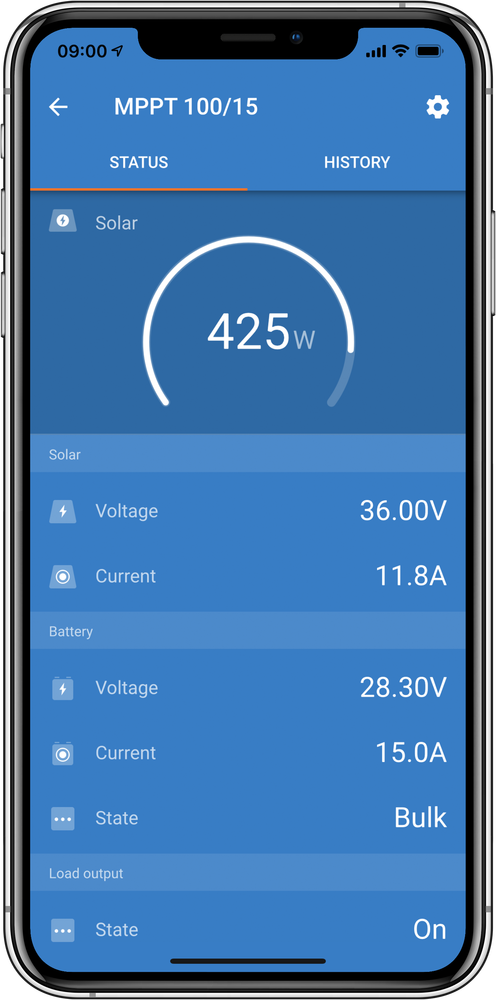

Benefit from SmartSolar functionality, enabling wireless connectivity to the Victron Connect app via Bluetooth. Adjust settings and monitor performance conveniently over time for a seamlessly controlled solar charging experience.
Fast and Intelligent Charging Technology:
Using the latest MPPT technology, the charge controller maximizes solar energy harvest, achieving a full charge in the shortest possible time. It also maintains battery health, extending overall battery life. The MPPT 75/15 model handles a maximum input voltage of 175V and a maximum input current of 15A.
MPPT Technology Advantage:
MPPT technology constantly monitors solar panel voltage and current output, efficiently extracting maximum power even in partially clouded or changing light conditions. Recommended for applications like campervans, boats, and off-grid tiny houses due to superior efficiency compared to PWM charge controllers.
Intelligent Load Output and Battery Maintenance:
The intelligent load output function prevents battery damage from excessive draining, with configurable voltage settings. The innovative BatteryLife feature ensures a 100% recharge attempt daily, adjusting disconnect voltage during poor weather to maintain battery health and extend its lifespan.
Convenient Connection Points:

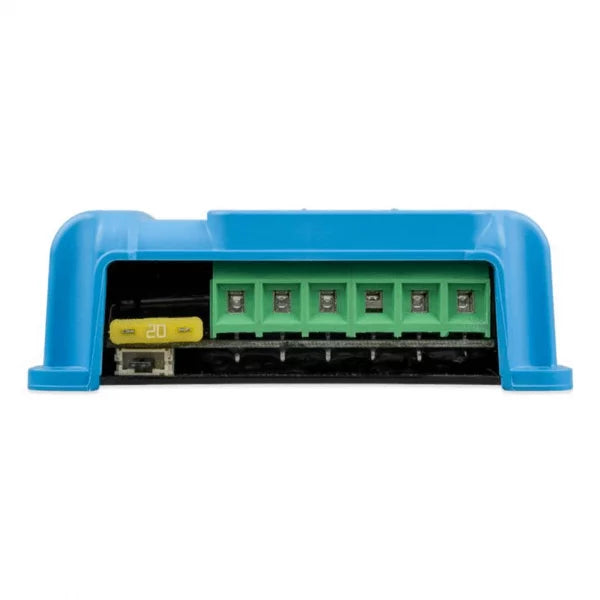

Equipped with Tr screw terminal connection points, the charge controller simplifies the connection process. Strip input and output wires and fix them securely to the screwed terminal for a reliable and user-friendly setup.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24 V (Auto Select)
- Rated Charge Current: 15 A
- Maximum PV Open Circuit Voltage: 75 V
- Max. PV Short Circuit Current: 15 A
- Peak Efficiency: 98%
- Self-Consumption (Load On): 12 V: 19 mA / 24 V: 16 mA
- Self-Consumption (Load Off): 12 V: 10 mA / 24 V: 8 mA
- Nominal PV Power (12 V): 220 W
- Nominal PV Power (24 V): 440 W
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive (Programmable)
- Absorption Voltage (Default): 14.4 V / 28.8 V (Adjustable)
- Float Voltage (Default): 13.8 V / 27.6 V (Adjustable)
- Temperature Compensation: -16 mV / °C (12 V) / -32 mV / °C (24 V)
- Battery Recovery Function: Can initiate charging even if the battery has been discharged to zero volts and can reconnect to fully discharged Li-ion batteries with integrated disconnect functions.
Load Output Specifications
- Max. Continuous Load Current: 15 A
- Low Voltage Load Disconnect: 11.1 V / 22.2 V or 11.8 V / 23.6 V or Battery Life algorithm
- Low Voltage Load Reconnect: 13.1 V / 26.2 V or 14 V / 28 V or Battery Life algorithm
- Protection: Output short circuit and over-temperature protection.
Mechanical & Enclosure
- Dimensions (H x W x D): 100 x 113 x 40 mm
- Weight: 0.5 kg
- Power Terminals: 6 mm² / AWG10
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Enclosure Color: Blue (RAL 5012)
Features & Connectivity
- Bluetooth Smart Built-in: Wireless solution to set up, monitor, update, and synchronize SmartSolar Charge Controllers.
- VE.Direct Port: For a wired data connection to GX products (e.g., Cerbo GX), PCs, or other devices.
- Battery Life Management: Intelligent algorithm that monitors the state of charge and, if needed, adjusts load disconnect levels daily to ensure a nearly 100% recharge is achieved weekly.
- Internal Temperature Sensor: Automatically compensates absorption and float charge voltages for temperature.
- Optional External Sensing: Supports Smart Battery Sense or a BMV-712 Smart Battery Monitor via Bluetooth for precise battery voltage and temperature communication.
- Stored Trends: Stores up to 46 days of historical data, including battery voltage, current, temperature, load output current, PV voltage, and PV current.
Environmental & Standards
- Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
Technical Specifications
Technical Specifications
| MPPT Amps | 15 |
|---|
