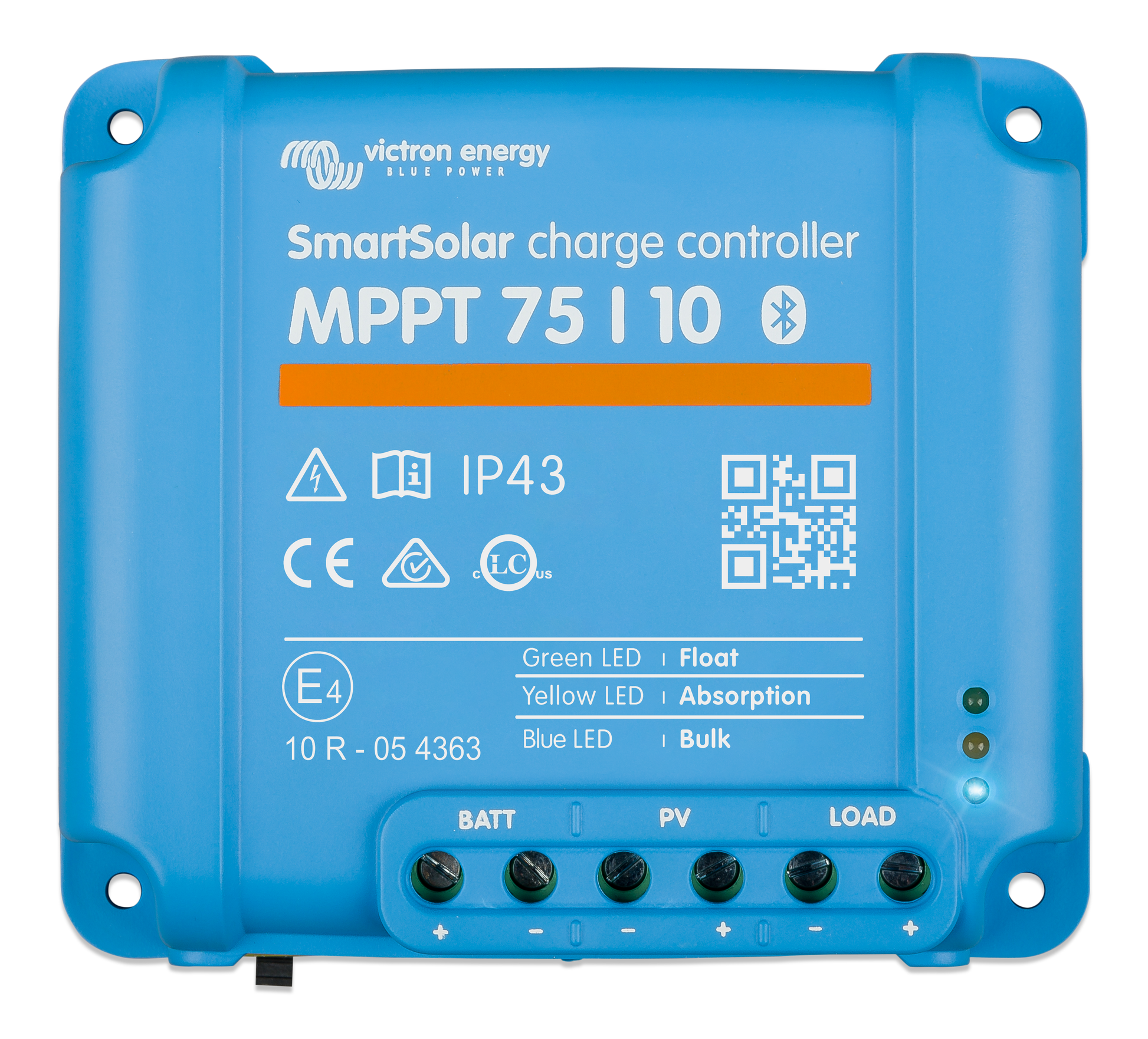

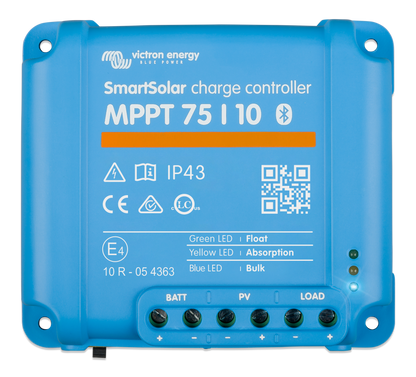

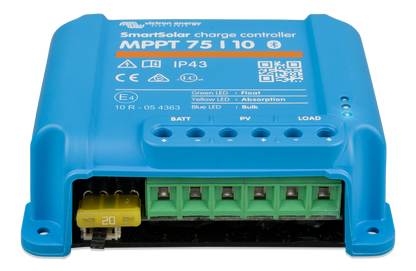

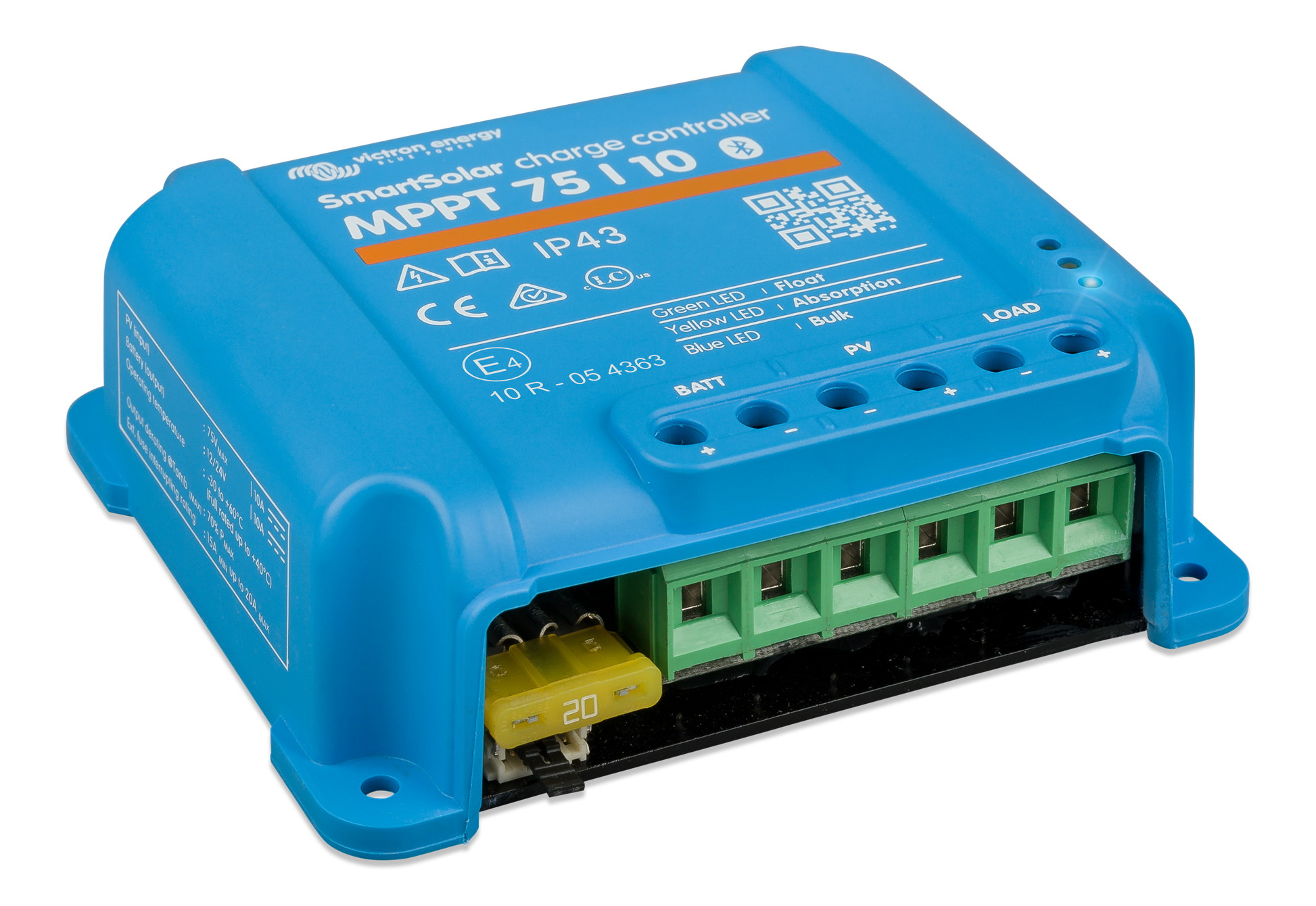

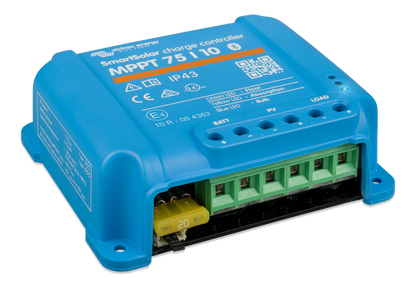

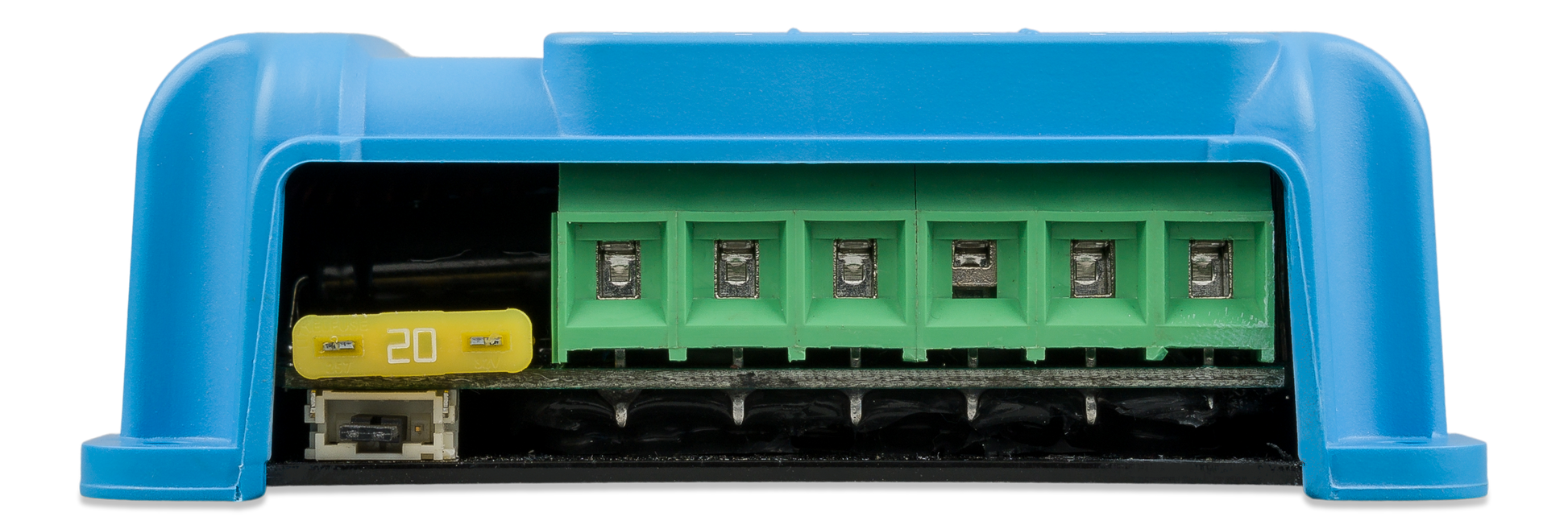

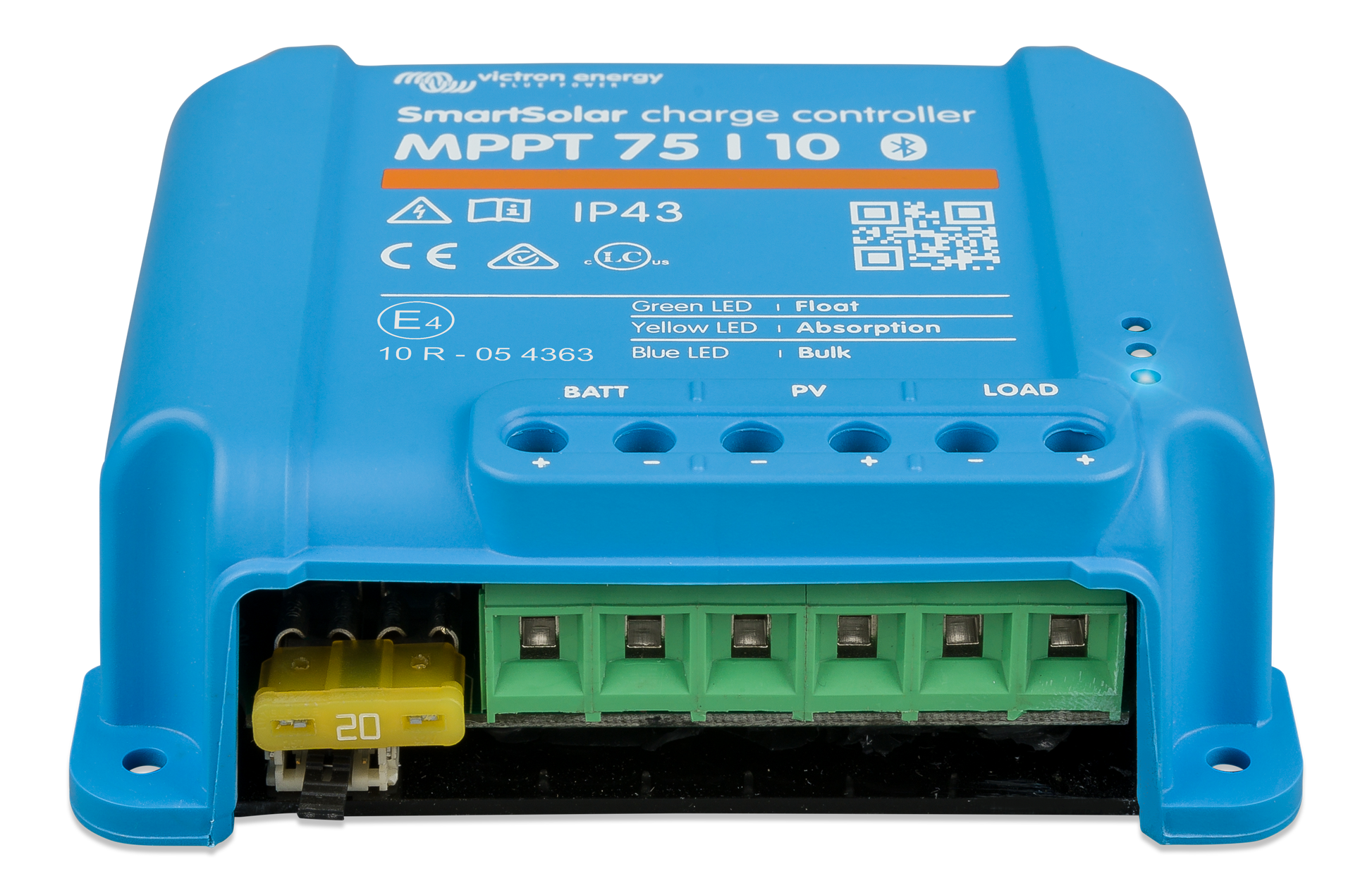

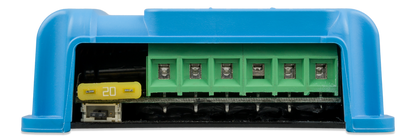

SmartSolar MPPT 75/10
Solar charge controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control

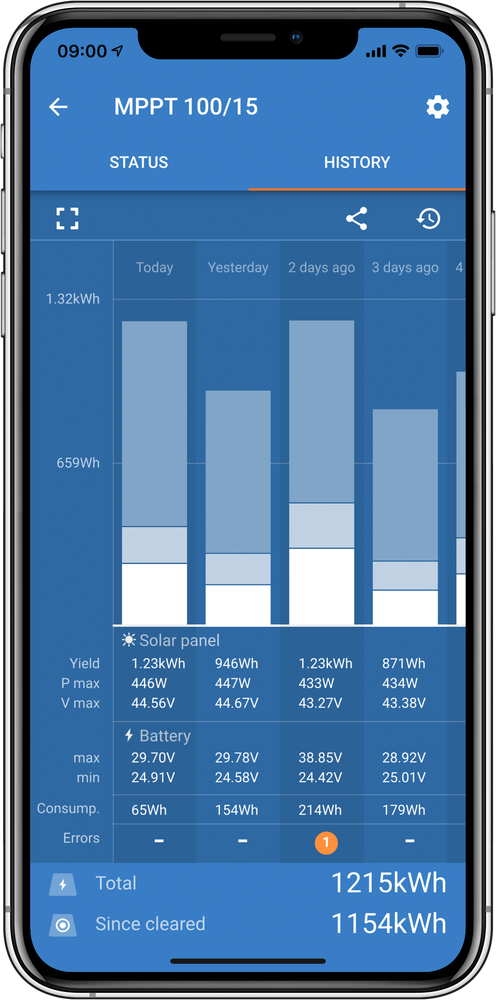

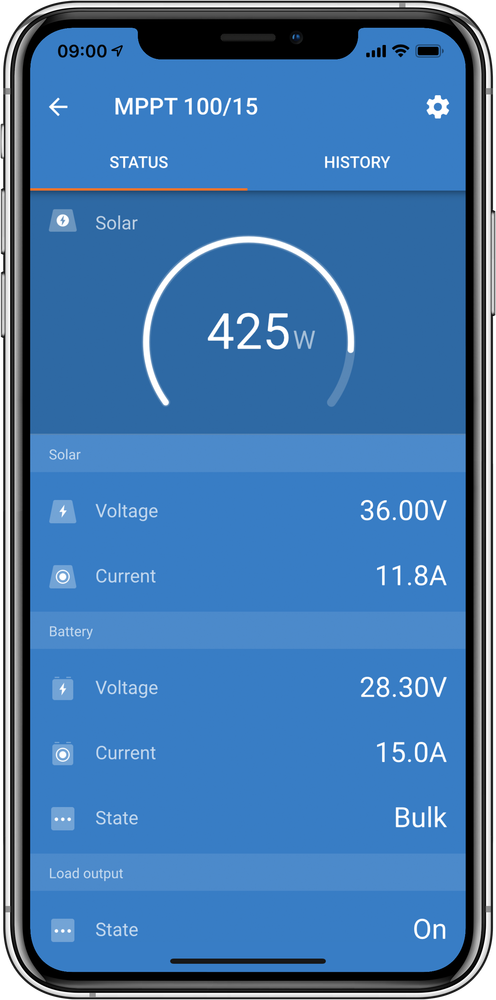

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN(long-range wide area network) device, available optionally.
Load output
The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.
UD11-23
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: SCC075010060R
Battery Voltage Auto Select: 12V / 24V (
Charge Algorithm: Multi-stage adaptive (adjustable)
Charge Voltage Absorption: 14.4V / 28.8V (adjustable)
Charge Voltage Float: 13.8V / 27.6V (adjustable)
Colour: Blue (RAL 5012)
Data Retention Period: 46 d
Depth: 40 mm
Height: 100 mm
Low Voltage Load Disconnect: 11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm
Low Voltage Load Reconnect: 13.1V / 26.2V or 14V / 28V or Battery Life algorithm
Max Continuous Load Current12: 15 A
Max Continuous Load Current24: 15 A
Max Efficiency: 98 %
Max Humidity: 95 %
Max PVOpen Circuit Voltage: 75 V
Max PVShort Circuit Current: 13 A
Nominal PVpower12V: 145 W
Nominal PVpower24V: 290 W
Number Of Trackers: 1
Protection Category: IP22 (connection area),IP43 (electronic components)
Protections: Automatic load disconnect,Excessive temperature,Output short-circuit,PV reverse polarity
Rated Charge Current: 10 A
Safety: CSA C22.2,UL 1741,EN-IEC 62109-1
Selfconsumption Load Off: 12V: 10 mA / 24V: 8 mA
Selfconsumption Load On: 12V: 19 mA / 24V: 16 mA
Start Up PVDCVoltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
Temperature Sensor: Optional (Smart Battery Sense)
Weight: 0.5 kg
Width: 113 mm
