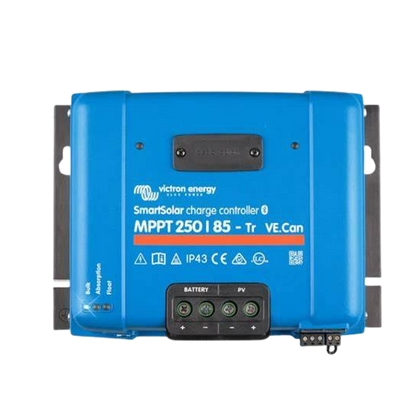

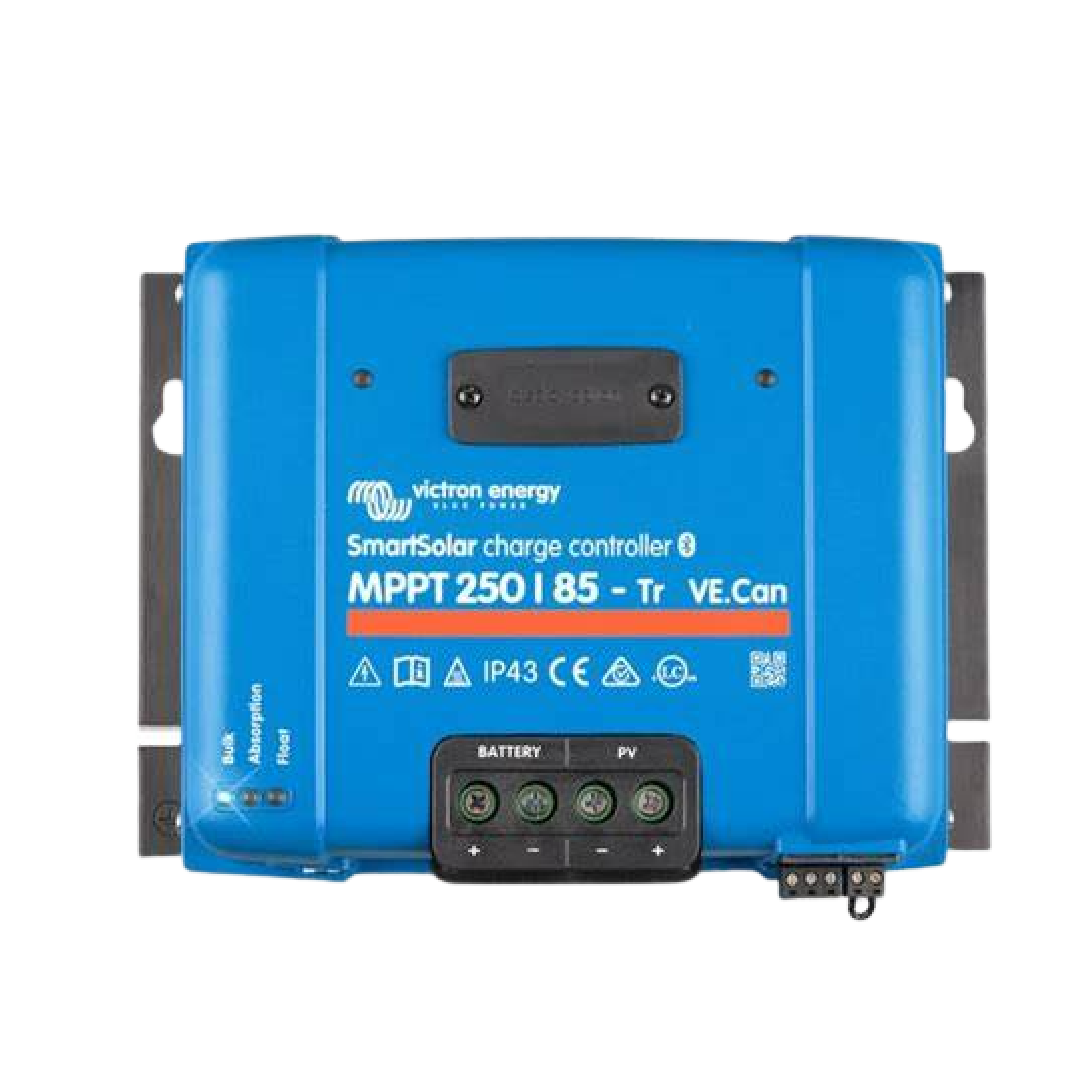

Victron SmartSolar MPPT 250/85-Tr VE. Can
Victron SmartSolar MPPT 250/85-Tr VE. Can
SKU:SCC125085411
Brand: Victron
Low stock: 3 left
Couldn't load pickup availability
Product Details
Product Details
The Victron SmartSolar MPPT 250/85 Tr VE.Can (Model SCC125085411) is a high performance solar charge controller designed for serious off grid, marine or large solar system installations where reliability and efficiency matter. It supports 12, 24 or 48 volt battery banks with 36 volt selectable manually and delivers up to 85 amps of charge current, making it ideal for systems that demand significant power handling.
With a maximum photovoltaic open circuit voltage of 250 volts, it accommodates larger solar arrays and helps optimise energy harvest even in poor light. Its internal algorithm is highly responsive and advanced, capable of continually tracking the maximum power point under partial shading or rapidly changing conditions. This helps provide stronger yields compared to traditional controllers.

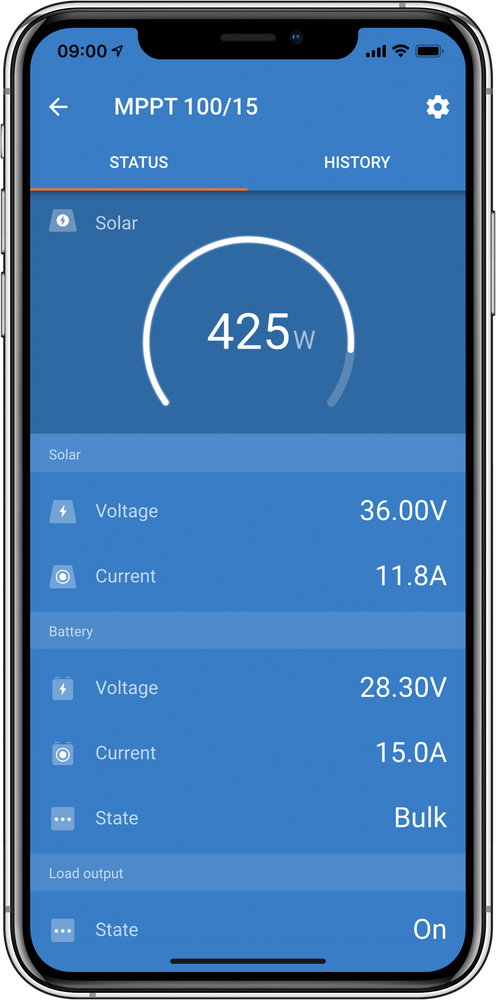

Efficiency is a key strength. The controller maintains conversion efficiency above 99 percent without requiring a cooling fan. It includes built in Bluetooth Smart connectivity for setup, monitoring, firmware updates and synchronisation with other SmartSolar devices. The charge profile is fully programmable, with eight pre set charging algorithms and the option to customise via rotary switch, display, VE.Direct or Bluetooth.
Designed for reliable, long term use, the controller provides an extensive range of electronic protections including over temperature derating, PV short circuit protection, reverse polarity protection and reverse current protection. It is also compatible with smart battery sensors for increased monitoring accuracy. The rugged enclosure is rated IP43 around the electronics and IP22 at the connection area, and the unit operates reliably from minus 30 degrees Celsius to plus 60 degrees Celsius with full rated output up to 40 degrees Celsius.
Whether powering a solar installation for a boat, off grid cabin or standby power system, the Victron SmartSolar MPPT 250/85 Tr VE.Can offers advanced features, strong construction and excellent efficiency to get the most from your solar investment.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24/48 V Auto Select (36 V: manual)
- Rated Charge Current: 85 A
- Nominal PV Power (12 V): 1200 W
- Nominal PV Power (24 V): 2400 W
- Nominal PV Power (36 V): 3600 W
- Nominal PV Power (48 V): 4900 W
- Max. PV Short Circuit Current: 70 A
- Maximum PV Open Circuit Voltage: 250 V (absolute maximum coldest conditions), 245 V (start-up and operating maximum)
- Maximum Efficiency: 99%
- Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
- Charge Voltage 'Absorption' (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
- Charge Voltage 'Float' (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
- Charge Voltage 'Equalization' (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
- Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
- Advanced Tracking: Locks to the optimum maximum power point (MPP) even in cases of partial shading or multiple power peaks.
- Battery Recovery Function: Can initiate charging even if the battery has been discharged to zero volts; reconnects to fully discharged Li-ion batteries with integrated disconnect functions.
Connectivity & Features
- Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
- VE.Can Interface: Daisy-chain up to 25 units for synchronized parallel charging and individual monitoring via GX devices.
- Bluetooth Synchronization: Synchronized parallel charging for up to 10 units.
- External Sensing: Optional battery voltage, temperature, and current sensing via Bluetooth (requires Smart Battery Sense, BMV-712, or SmartShunt).
- Remote On-Off: Yes (2-pole connector)
- Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC).
- Display: Optional SmartSolar pluggable LCD display (not included).

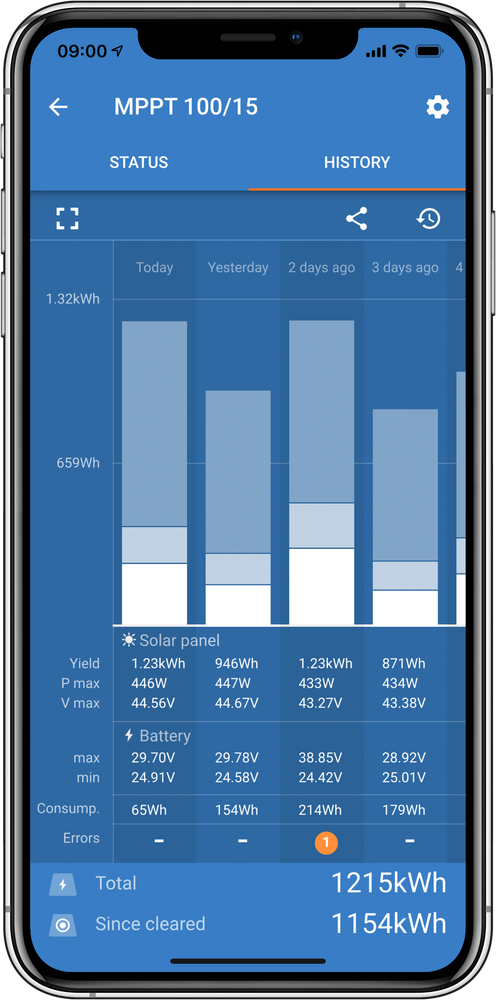

- Data Logging: Internal storage for 46 days of history trends.
Mechanical & Enclosure
- PV Terminals (Tr model): 35 mm² / AWG2 screw terminals
- Battery Terminals: 35 mm² / AWG2 screw terminals
- Dimensions (H x W x D): 216 x 295 x 103 mm
- Weight: 4.5 kg
- Enclosure Colour: Blue (RAL 5012)
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Cooling: Natural convection (no cooling fan)
Environmental & Standards
- Operating Temperature Range: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Maximum Altitude: 5000 m (Full rated output up to 2000 m)
- Electronic Protections: PV reverse polarity, Output short circuit, and Over-temperature protection with power derating.
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
Technical Specifications
Technical Specifications
| MPPT Amps | 85 |
|---|
