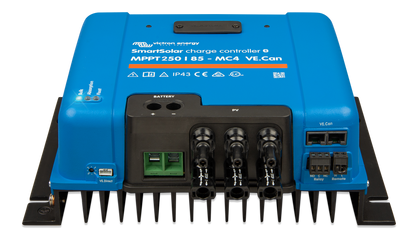

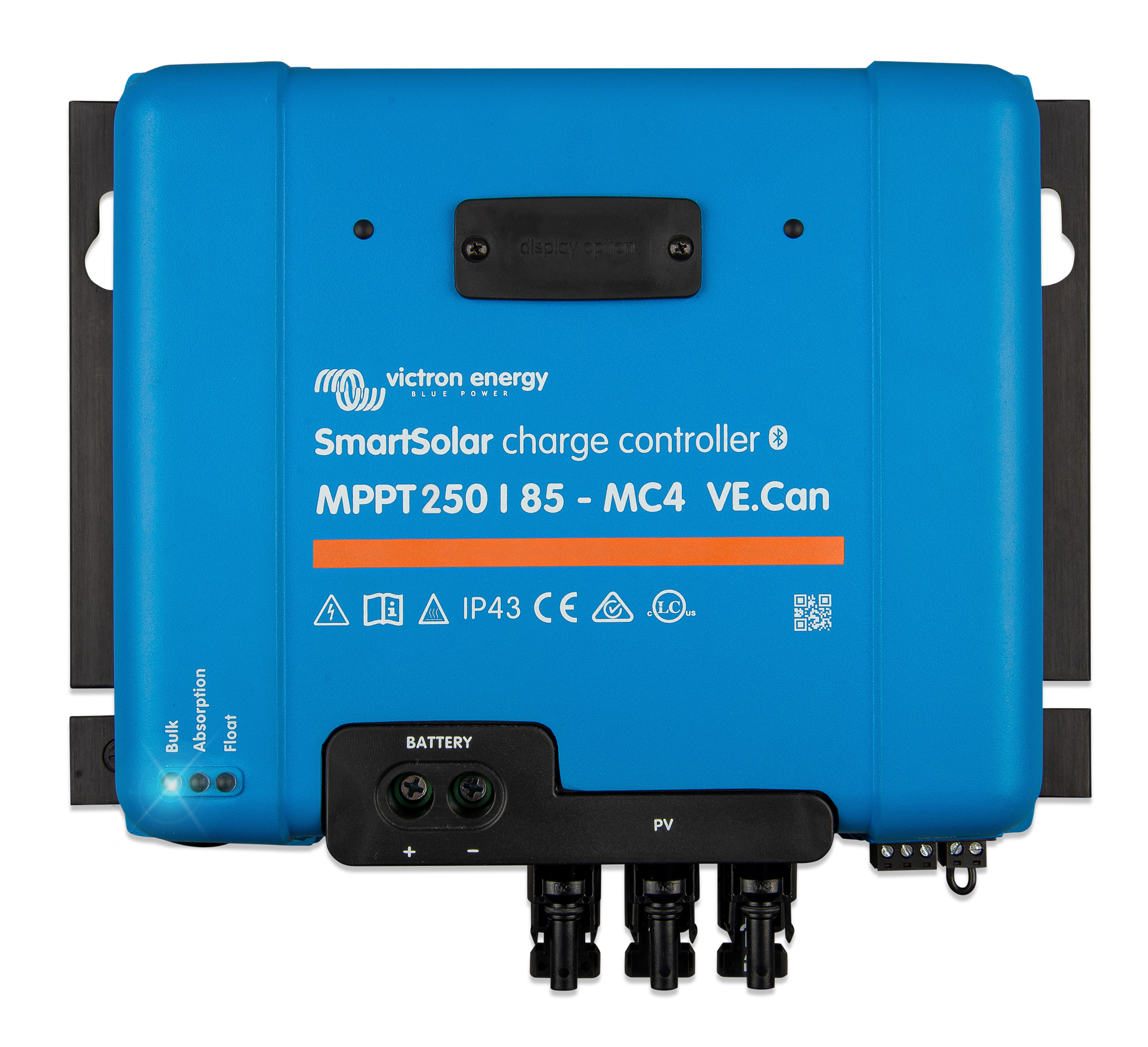

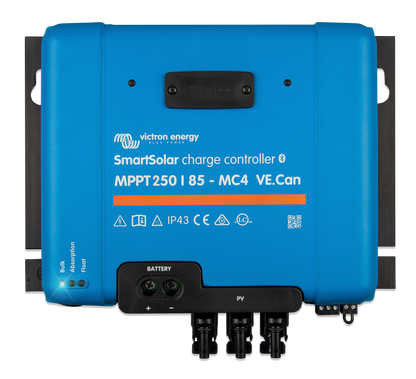

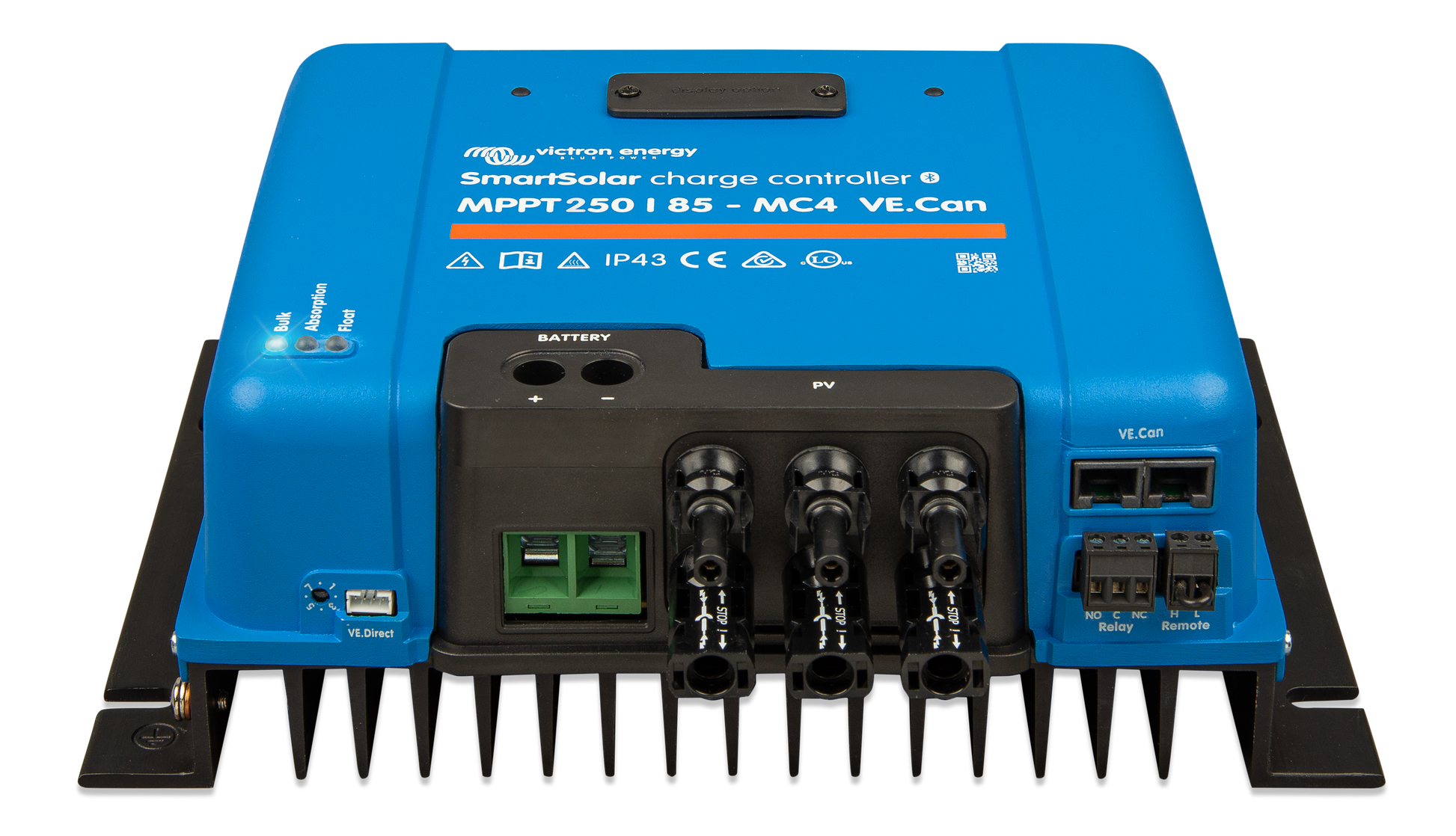

SmartSolar MPPT 250/85-MC4 VE.Can
SmartSolar MPPT 250/85-MC4 VE.Can
SKU:SCC125085511
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron SmartSolar MPPT 250/85 MC4 VE.Can is a high performance MPPT solar charge controller designed for demanding trade and commercial energy systems. Built to support larger off grid, marine, vehicle based and remote power setups, this controller delivers up to 85 A of charge current and works with 12 V, 24 V and 48 V battery banks, with 36 V available through manual selection. It accepts PV arrays up to 250 V open circuit and works with a maximum operational PV voltage of 245 V. When paired with a 48 V battery system, it can manage up to 4900 W of solar input, making it suitable for multi panel and high yield installations.
The unit features a durable blue enclosure (colour code RAL 5012) with a compact footprint of 216 x 295 x 103 mm and a weight of 4.5 kg. Protection ratings include IP43 for the electronic section and IP22 for the connection area, helping ensure longevity in harsh or mobile environments. Standard MC4 connectors make integration straightforward for professional installers.
Using ultra fast Maximum Power Point Tracking technology, the controller continually optimises energy harvest, particularly when light levels vary or partial shading occurs. Built in Bluetooth provides quick setup and system monitoring through the Victron Connect app, while VE.Can and VE.Direct ports support advanced communication and system expansion. Up to 25 units can be connected via VE.Can, allowing synchronised charging and centralised monitoring through a GX device or the Victron Remote Management portal.
The SmartSolar 250/85 MC4 VE.Can offers proven protection features including PV reverse polarity protection, over temperature protection, short circuit protection and reverse current protection. Eight pre programmed charging profiles are available, including support for lithium batteries, with the option to create custom profiles for specialised applications. The controller can also recover batteries that have been deeply discharged, provided the cells are not permanently damaged.
This model is ideal for trade installers working on larger off grid systems, professional marine electrical setups, commercial vehicles, high demand camper and caravan builds, and remote site or cabin energy systems. With strong communication options, reliable protection and high charging capacity, it provides a dependable solution for expanding solar installations.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Battery Voltage: 12 / 24 / 48 V Auto Select (36 V manual selection required)
- Rated Charge Current: 85 A
- Nominal PV Power (12V): 1200 W
- Nominal PV Power (24V): 2400 W
- Nominal PV Power (36V): 3600 W
- Nominal PV Power (48V): 4900 W
- Max PV Short Circuit Current: 70 A (maximum 30 A per MC4 connector pair)
- Maximum PV Open Circuit Voltage: 250 V absolute maximum coldest conditions; 245 V start-up and operating maximum
- Maximum Efficiency: 99%
- Self-consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge Characteristics & Algorithms
- Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
- Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (adjustable)
- Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (adjustable)
- Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (adjustable)
- Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
- Low Voltage Battery Recovery: Can initiate charging even if the battery is discharged to zero volts
Connectivity & Monitoring
- Bluetooth Smart Built-in: Wireless solution to set up, monitor, update, and synchronize controllers via the VictronConnect app.
- VE.Can Interface: Allows for daisy-chaining up to 25 units for synchronized parallel charging and connection to GX devices (e.g., Color Control GX).
- VE.Direct Port: Wired data connection for GX devices, PC, or other accessories.
- Remote On-Off: Dedicated 2-pole connector for remote control (e.g., connection to a BMS).
- Programmable Relay: DPST relay; AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC.
- Data Storage: Stores up to 46 days of historical trend data (battery voltage, current, temperature, PV voltage, and PV current).
Physical & Mechanical Specifications
- PV Terminals: Three pairs of MC4 connectors (connected in parallel to one MPPT tracker)
- Battery Terminals: 35 mm² / AWG2
- Enclosure Color: Blue (RAL 5012)
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Dimensions (h x w x d): 246 x 295 x 103 mm
- Weight: 4.5 kg
Environmental Data
- Operating Temperature Range: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Maximum Altitude: 5000 m (Full rated output up to 2000 m)
Standards & Compliance
- Safety: EN/IEC 62109-1, UL 1741, CSA C22.2
