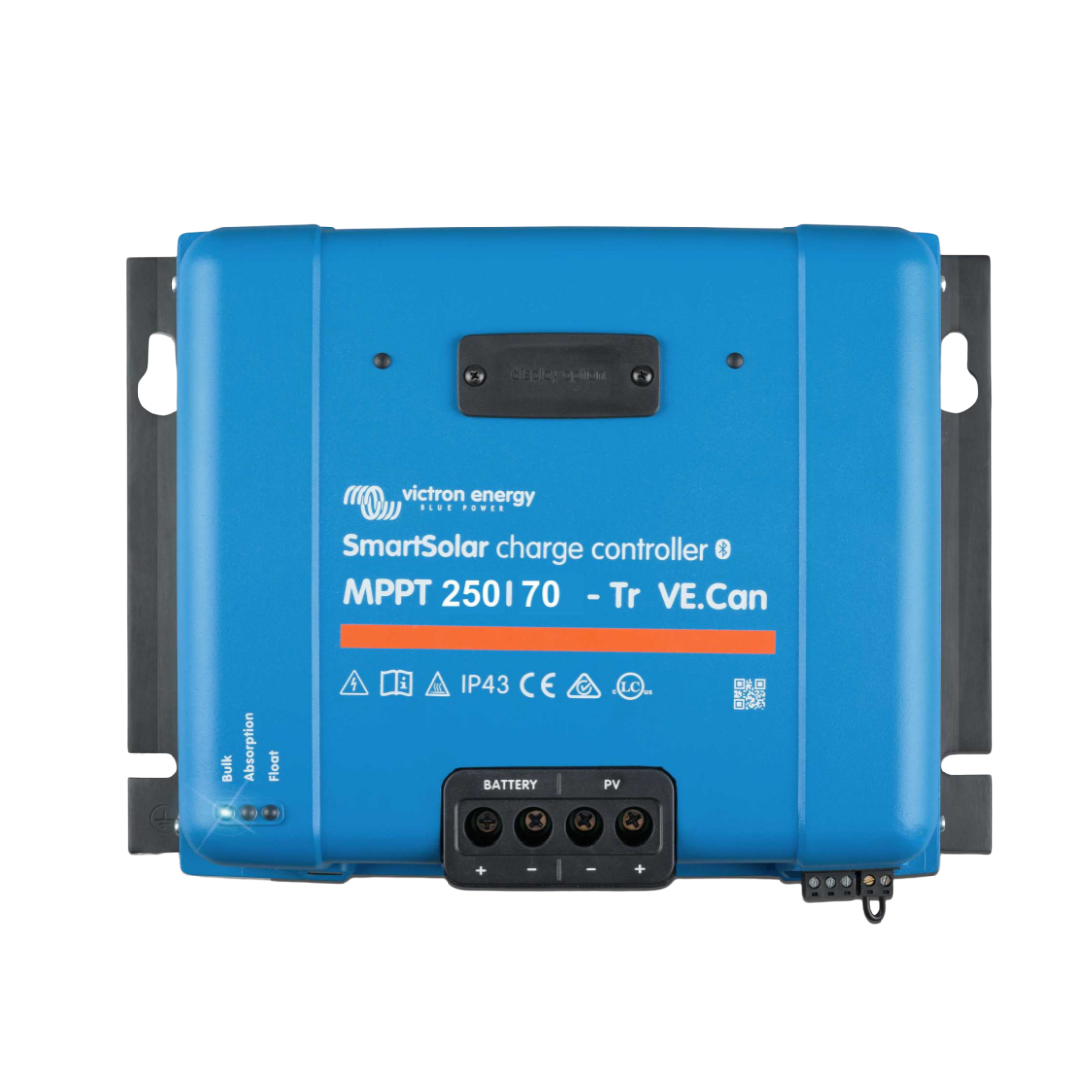

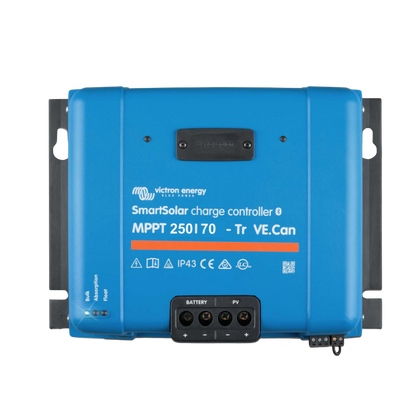

Victron MPPT 250/70 SmartSolar VE.Can Charge Controller – 70A Power for Professional Off-Grid Systems
For professionals, integrators, and serious off-grid users, the Victron SmartSolar MPPT 250/70 VE.Can Charge Controller is the essential component for maximising solar performance and safeguarding your battery assets. Engineered for high-capacity systems, this 70 Amp unit seamlessly combines Victron's renowned durability with cutting-edge Ultra-Fast Maximum Power Point Tracking (MPPT) technology.
This advanced MPPT algorithm constantly monitors your solar array’s output, ensuring that even in low-light, cloudy, or partially shaded conditions, every possible drop of energy is harvested. Field tests prove it can deliver up to 30 per cent more energy compared to traditional Pulse Width Modulation (PWM) controllers, and up to 10 per cent more than slower MPPT models. This is not just a marginal gain; it’s a fundamental increase in your system’s efficiency and return on investment, ensuring you get the fastest possible return on your solar panel investment.
Unrivalled System Control and Scalability

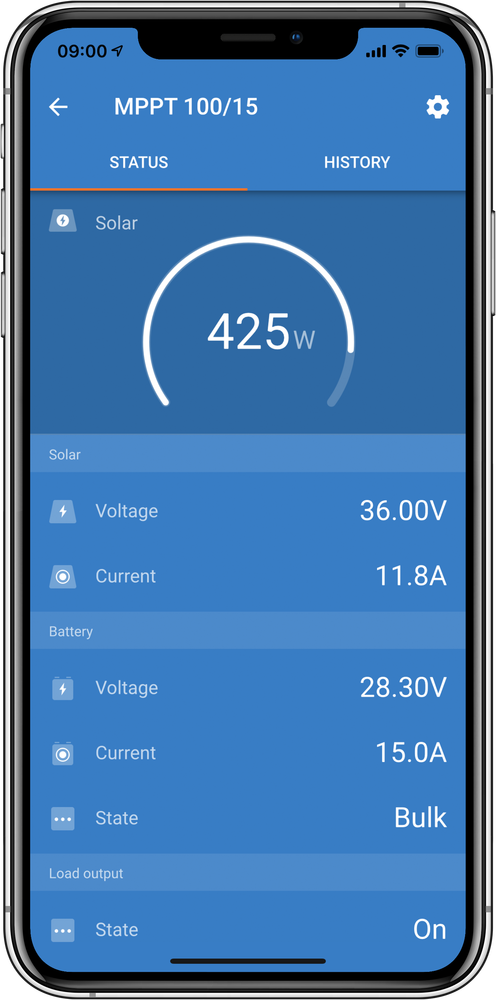

The 250/70 model is specifically designed for complex, professional setups. It provides two key layers of control. Firstly, the built-in Bluetooth Smart functionality allows you to set up, monitor, and update your unit directly from your smartphone or tablet using the intuitive VictronConnect App. You get real-time performance data and historical logs without needing external accessories.
Secondly, the integrated VE.Can port unlocks true scalability. This communication bus allows for simple 'daisy chaining' of up to 25 SmartSolar MPPT units, enabling them to communicate and synchronise their charging stages, effectively acting as one large, unified solar charger. When connected to a GX communication device, this entire array can be monitored and managed remotely from anywhere in the world via the Victron Remote Management (VRM) Portal. For fleet operators or remote installations, this level of oversight is invaluable and essential for operational efficiency.
Intelligent Battery Care for Extended Life
Compatibility and longevity are paramount. The SmartSolar 250/70 automatically handles 12V, 24V, and 48V battery banks and uses a sophisticated, adaptive multi-stage charge algorithm. This ensures batteries are charged efficiently and correctly, regardless of their type—including Lithium, Gel, AGM, or Flooded lead-acid. For added peace of mind, the controller incorporates SafetyShield+ protection features against PV short-circuit, reverse polarity, and over-temperature. Furthermore, its ability to revive severely depleted batteries (down to 0 Volts) means a dead battery does not necessarily mean a lost battery.
With a robust 250V open circuit voltage capacity and high-quality Tr screw terminals for secure, reliable wiring, the Victron MPPT 250/70 VE.Can (SCC125070421) is engineered to be the dependable heart of your next off-grid project, whether it is a remote telecoms station or a high-end marine vessel. Invest in the gold standard for solar charging and ensure your power is always optimised
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24/48 V Auto Select (36 V: Manual)
- Rated Charge Current: 70 A
- Maximum Efficiency: Greater than 99%
- Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
- Maximum PV Open Circuit Voltage: 250 V (absolute maximum coldest conditions), 245 V (start-up and operating maximum)
- Max. PV Short Circuit Current: 35 A
- Nominal PV Power (12 V): 1000 W
- Nominal PV Power (24 V): 2000 W
- Nominal PV Power (36 V): 3000 W
- Nominal PV Power (48 V): 4000 W
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
- Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
- Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
- Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
- Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
- Battery Recovery Function: Can initiate charging even if the battery has been discharged to zero volts and can reconnect to discharged Li-ion batteries with integrated disconnect functions.
Connectivity & Features
- Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
- Parallel Operation: Synchronized charging with up to 25 units (VE.Can) or 10 units (Bluetooth)
- Advanced Tracking: Innovative algorithm locks to the optimum maximum power point (MPP) even in cases of partial shading.
- Remote On/Off: Yes (2-pole connector)
- Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC)

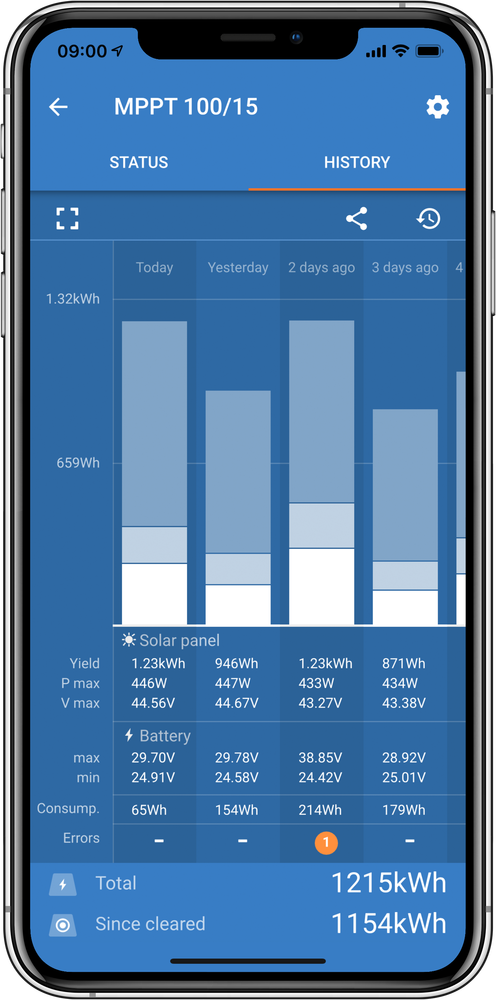

- Data Storage: 46-day trend history for battery voltage, current, temperature, PV voltage, and PV current.
- Optional Display: SmartSolar pluggable LCD display (not included).
Mechanical & Enclosure

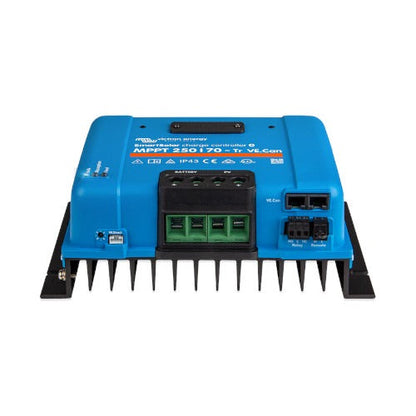

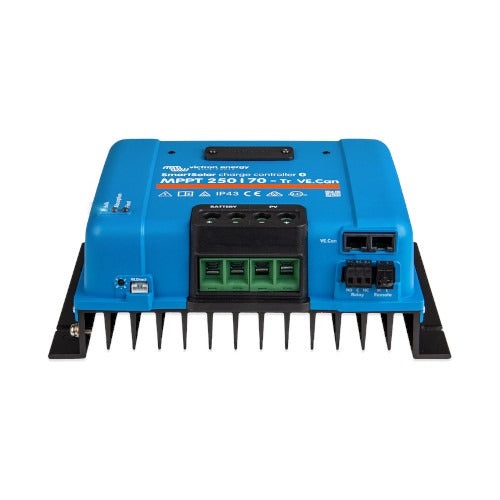

- PV Terminals: 35 mm² / AWG2 (Tr screw terminals)
- Battery Terminals: 35 mm² / AWG2
- Dimensions (H x W x D): 185 x 250 x 95 mm
- Weight: 3 kg
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Color: Blue (RAL 5012)
Environmental & Standards
- Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Maximum Altitude: 5000m (Full rated output up to 2000m)
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
- Electronic Protections: PV reverse polarity, Output short circuit, Over-temperature, and PV reverse current protection.
Technical Specifications
Technical Specifications
| MPPT Amps | 70 |
|---|
