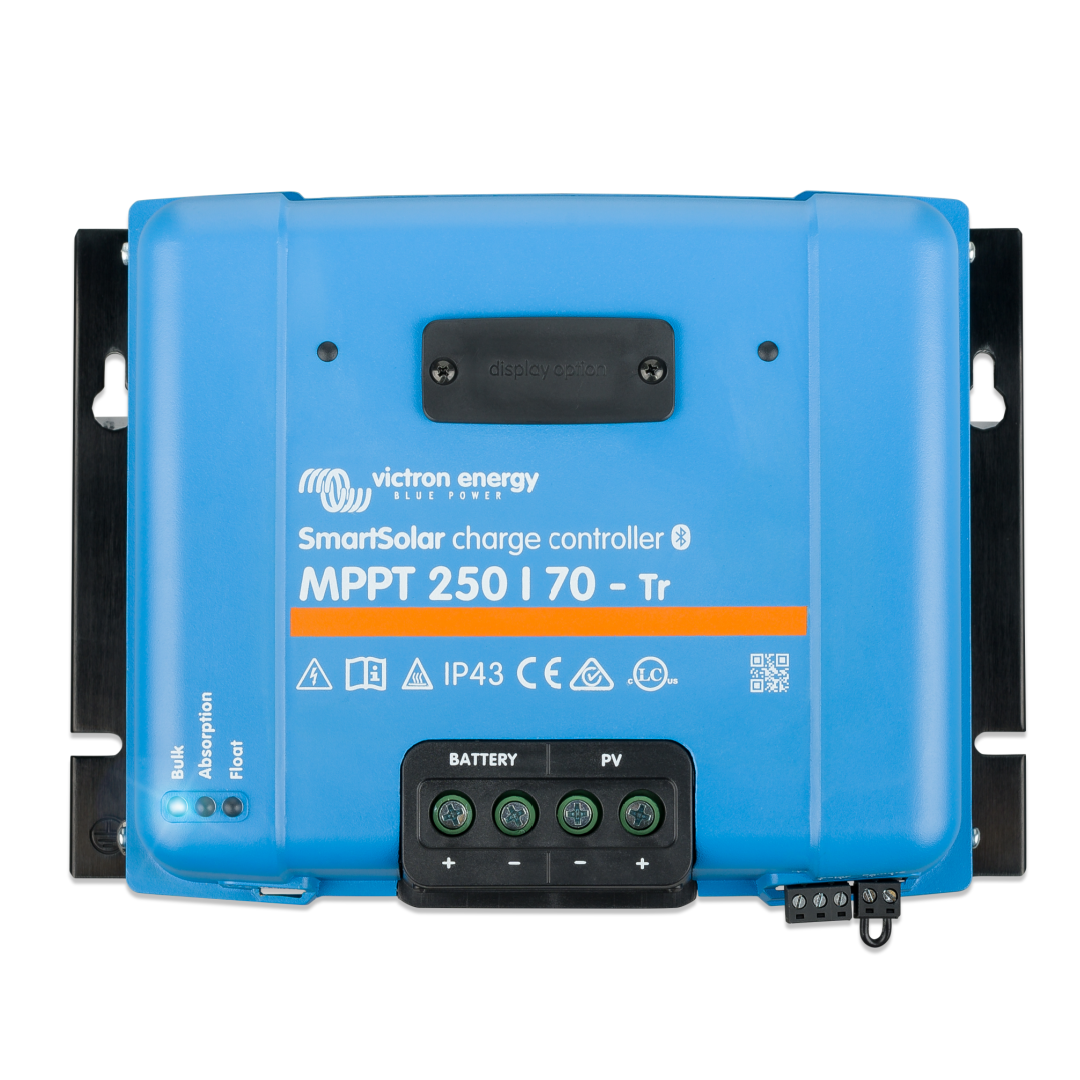

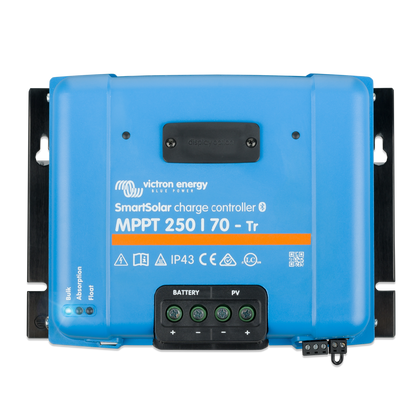

Victron SmartSolar MPPT 250/70-Tr – SCC125070221
Efficient Solar Power Harvesting:
The SmartSolar MPPT 250/70-Tr solar charge controller by Victron is designed to intelligently collect solar energy, converting it into power for your electrical system. With cutting-edge MPPT technology, this controller optimizes energy harvest, achieving a full charge in the shortest time possible, while also maintaining battery health to extend battery life.
Key Features:
- Advanced MPPT Technology: Constant monitoring of solar panel voltage and current output ensures maximum power extraction, especially beneficial in partially clouded or changing light conditions. Efficiency surpasses traditional PWM charge controllers, making it ideal for various off-grid applications.
- Maximum Input Voltage and Current: The MPPT 250/70 model boasts a maximum input voltage of 250V and a maximum input current of 70A, providing robust capabilities for solar power systems.

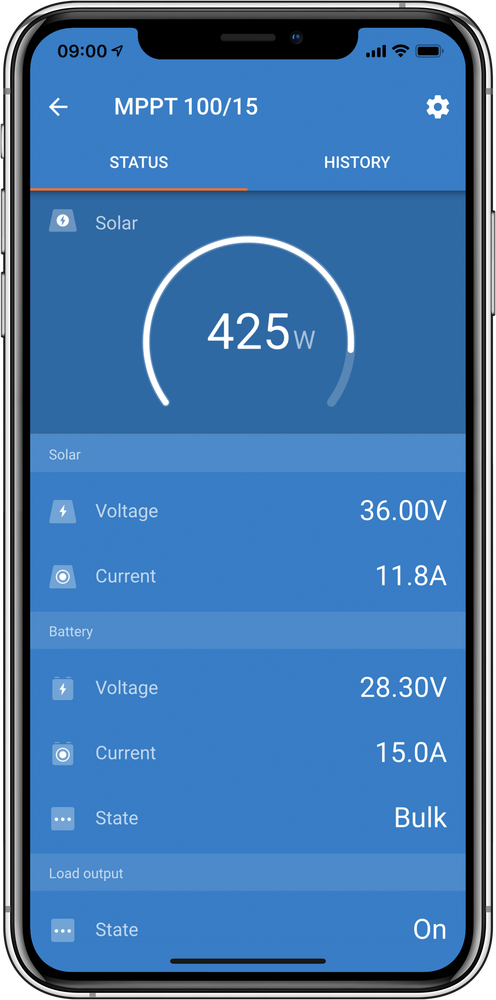

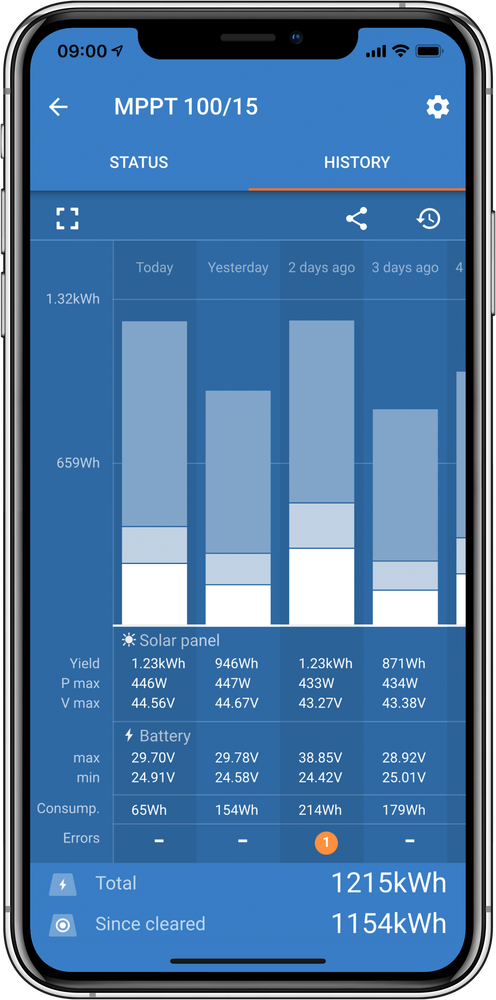

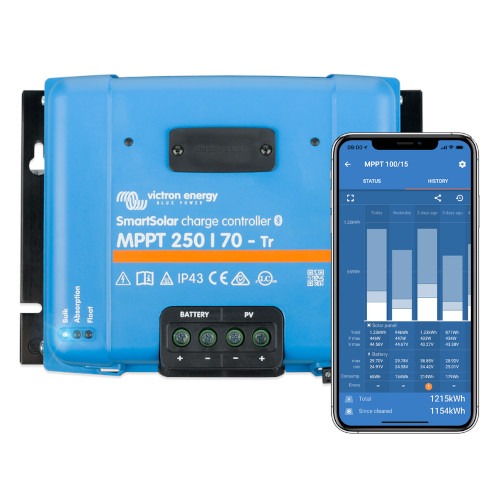

- Smart Functionality: Equipped with Bluetooth connectivity, the SmartSolar MPPT 250/70 enables wireless monitoring of solar charge status via the VictronConnect App. Compatible with Android and iOS devices, keeping you informed anytime, anywhere.
- Intelligent Load Output: Prevents battery damage by disconnecting loads when the configured voltage is reached, preventing excessive drain on batteries. The controller attempts a 100% recharge daily, adjusting the disconnect voltage during poor weather, a feature known as BatteryLife, enhancing battery health and longevity.
- Connection Points: Features Tr screw terminal connection points for secure and reliable wire connections. Requires stripping input and output wires for proper attachment to the screwed terminal.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: SCC125070221
Bluetooth: Yes
Charge Algorithm: Multi-stage adaptive (adjustable)
Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)
Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)
Colour: Blue (RAL 5012)
Data Retention Period: 46 d
Data Stored: Battery voltage,Battery current,Battery temperature,PV voltage,PV current
Depth: 95 mm
Environmental Condition: Indoor, unconditioned
Height: 185 mm
Max Altitude: 5,000
Max Efficiency: 99 %
Max Humidity: 95 %
Max PVOpen Circuit Voltage: 250 V
Max PVShort Circuit Current: 35 A
Nominal PVpower12V: 1,000 W
Nominal PVpower24V: 2,000 W
Nominal PVpower36V: 3,000 W
Nominal PVpower48V: 4,000 W
Number Of Sync Parallel Operating Units BT: 10
Number Of Trackers: 1
Pollution Degree: PD3
Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Protection Category: IP43 (electronic components),IP22 (connection area)
Rated Charge Current: 70 A
Relay Terminal Connection1: Screw terminal 3-pole
Remote On Off Terminal: Yes
Remote On Off Terminal Connection: Screw terminal two pole
Safety: CSA C22.2,EN-IEC 62109-1,UL 1741
Self Consumption: Less than 35mA @ 12V / 20mA @ 48V
Start Up PVDCVoltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
Temperature Sensor: Optional (Smart Battery Sense)
Weight: 3 kg
Width: 250 mm
Source: Victron
