Victron MPPT 250/60 – SmartSolar Charge Controller – Tr

Victron MPPT 250/60 – SmartSolar Charge Controller – Tr

SCC125060221

Brand: Victron

Max-power harvest and efficiency – Delivers > 99 % conversion efficiency and ultra-fast MPPT tracking to maximise solar yield, even in variable light. Flexible system integration – Auto-recognises 12/24/48 V battery banks and supports large PV arrays (up to approx. 3440 W at 48 V) for diverse installation types. Remote monitoring & management – Built-in Bluetooth and VictronConnect app plus VRM portal compatibility let you monitor, configure and manage the controller from anywhere. Comprehensive battery care & protection – Sophisticated charge algorithms and full internal protection ensure longer battery life and installation reliability. Trade-friendly build and warranty – Compact, robust housing with professional terminal connectivity, backed by a 5-year warranty and global support from Victron. Dimensions: 185 x 250 x 95mm Weight: 3kg

Low stock: 8 left

£400.00 GBP
£400.00 GBP
Sale Sold out

Product Details

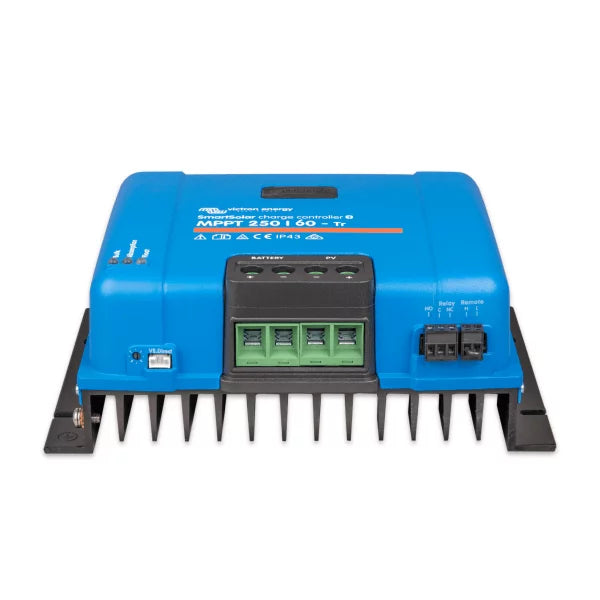

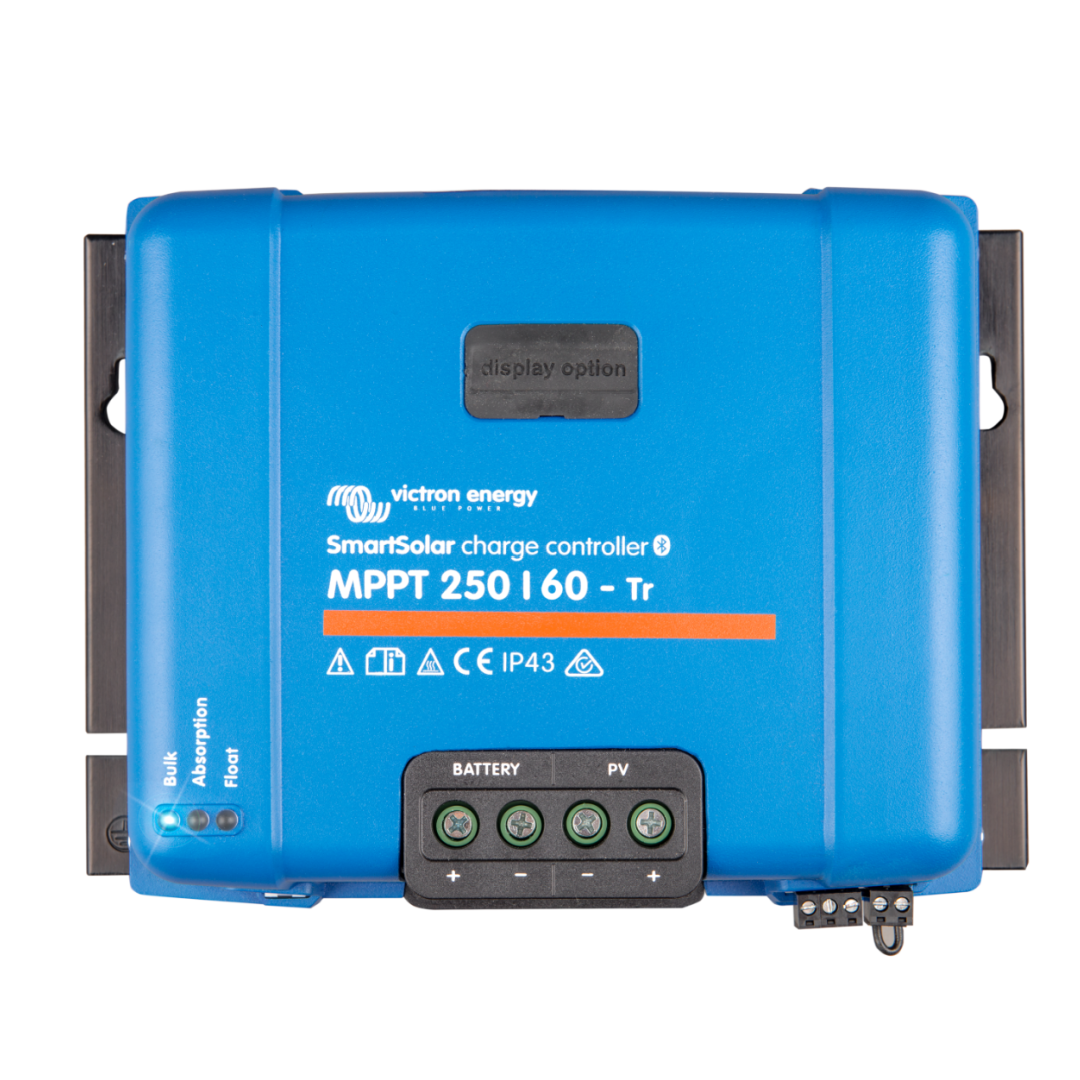

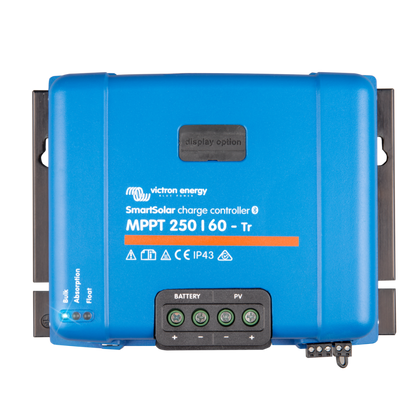

The Victron MPPT 250/60 SmartSolar Charge Controller (Tr version, SKU SCC125060221) offers high-performance solar regulation tailored for professional installers and trade resellers. Engineered to extract maximum energy from your PV array, it supports 12 V, 24 V and 48 V battery systems with automatic recognition and adapts to changing conditions with ultra-fast MPPT algorithms.

With a 250 V open-circuit PV input maximum and 60 A charge current rating, it handles sizeable solar arrays while maintaining an efficiency exceeding 99 %, ensuring minimal losses. Its rugged blue enclosure (185 × 250 × 95 mm, ~3 kg) and IP43 classification make it suitable for a range of environments. The unit features robust 35 mm² screw-terminals and is designed for ease of integration.

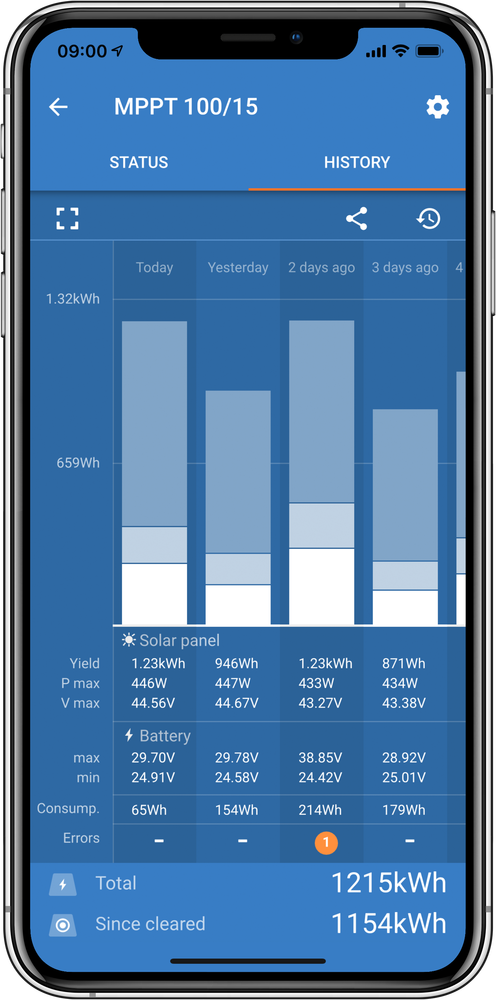

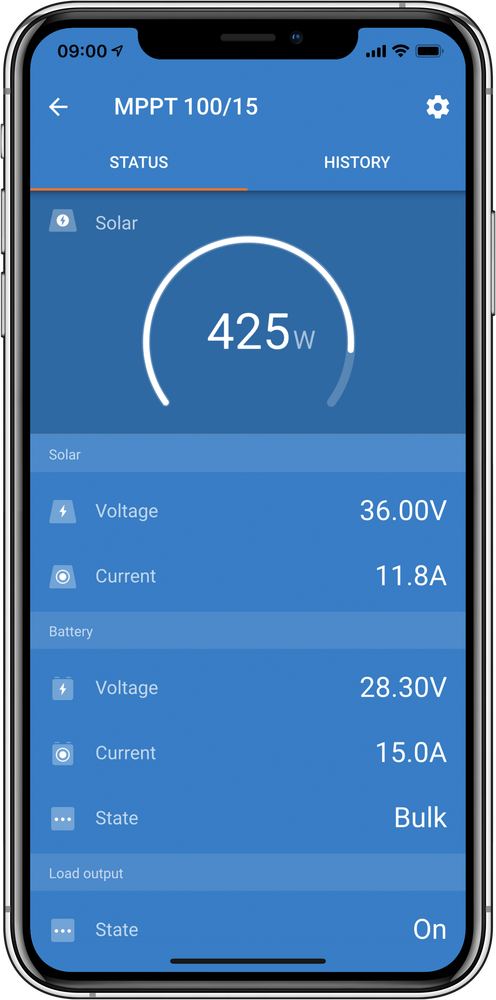

Bluetooth connectivity via the VictronConnect app enables remote monitoring and set-up, while optional networking through the VRM portal offers full system oversight. The SmartSolar charge controller includes advanced battery-care features and full protection: over-temperature derating, reverse polarity, short-circuit and reverse-current safeguards. Trade customers will appreciate the dual-voltage compatibility and flexible charge algorithm that supports lithium, AGM, gel and flooded battery types.

Ideal for commercial solar installations, off-grid builds, marine systems or caravan/vehicle applications, this unit is built to deliver reliable performance and long battery life. Backed by a 5-year manufacturer’s warranty, it delivers the quality and support expected by professionals.


Product Specifications

Electrical Specifications

  • Battery Voltage: 12 / 24 / 48 V Auto Select (36 V requires software tool)
  • Rated Charge Current: 60 A
  • Nominal PV Power (12 V): 860 W
  • Nominal PV Power (24 V): 1720 W
  • Nominal PV Power (36 V): 2580 W
  • Nominal PV Power (48 V): 3440 W
  • Maximum PV Open Circuit Voltage: 250 V (absolute maximum coldest conditions), 245 V (start-up and operating maximum)
  • Max. PV Short Circuit Current: 35 A
  • Maximum Efficiency: Exceeds 99%
  • Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V

Charge Settings & Algorithm

  • Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
  • Charge Voltage 'Absorption' (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
  • Charge Voltage 'Float' (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
  • Charge Voltage 'Equalization' (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
  • Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
  • Internal Temperature Sensor: Included
  • Battery Recovery Function: Can initiate charging even if the battery has been discharged to zero volts; reconnects to fully discharged Li-ion batteries with integrated disconnect functions.

Connectivity & Features

  • Bluetooth Smart Built-in: Wireless solution for setup, monitoring, updates, and synchronizing multiple controllers.
  • VE.Direct Port: For a wired data connection to GX products (e.g., Color Control GX), PC, or other devices.
  • Synchronized Parallel Charging: Up to 10 units can be synchronized via Bluetooth.
  • Remote On-Off: Yes (2-pole connector)
  • Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC).
  • External Sensing Option: Compatible with Smart Battery Sense, BMV-712, or SmartShunt via Bluetooth to communicate battery voltage, temperature, and current.
  • Optional Display: Compatible with the SmartSolar pluggable LCD display (not included).
  • Data Logging: Internal storage for 46 days of historical trends.

Mechanical & Enclosure

  • PV Terminals (Tr model): 35 mm² / AWG2 screw terminals
  • Battery Terminals: 35 mm² / AWG2 screw terminals
  • Dimensions (H x W x D): 185 x 250 x 95 mm
  • Weight: 3 kg
  • Enclosure Colour: Blue (RAL 5012)
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Cooling: Natural convection (no cooling fan)

Environmental & Standards

  • Operating Temperature Range: -30 to +60 °C (Full rated output up to 40 °C)
  • Humidity: 95%, non-condensing
  • Maximum Altitude: 5000 m (Full rated output up to 2000 m)
  • Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
  • Integrated Protections: PV reverse polarity, Output short circuit, and Over-temperature protection with power derating.

Victron MPPT 250/60 – SmartSolar Charge Controller – Tr – Manual

Victron MPPT 250/60 – SmartSolar Charge Controller – Tr – Data Sheet

MPPT Amps 60
