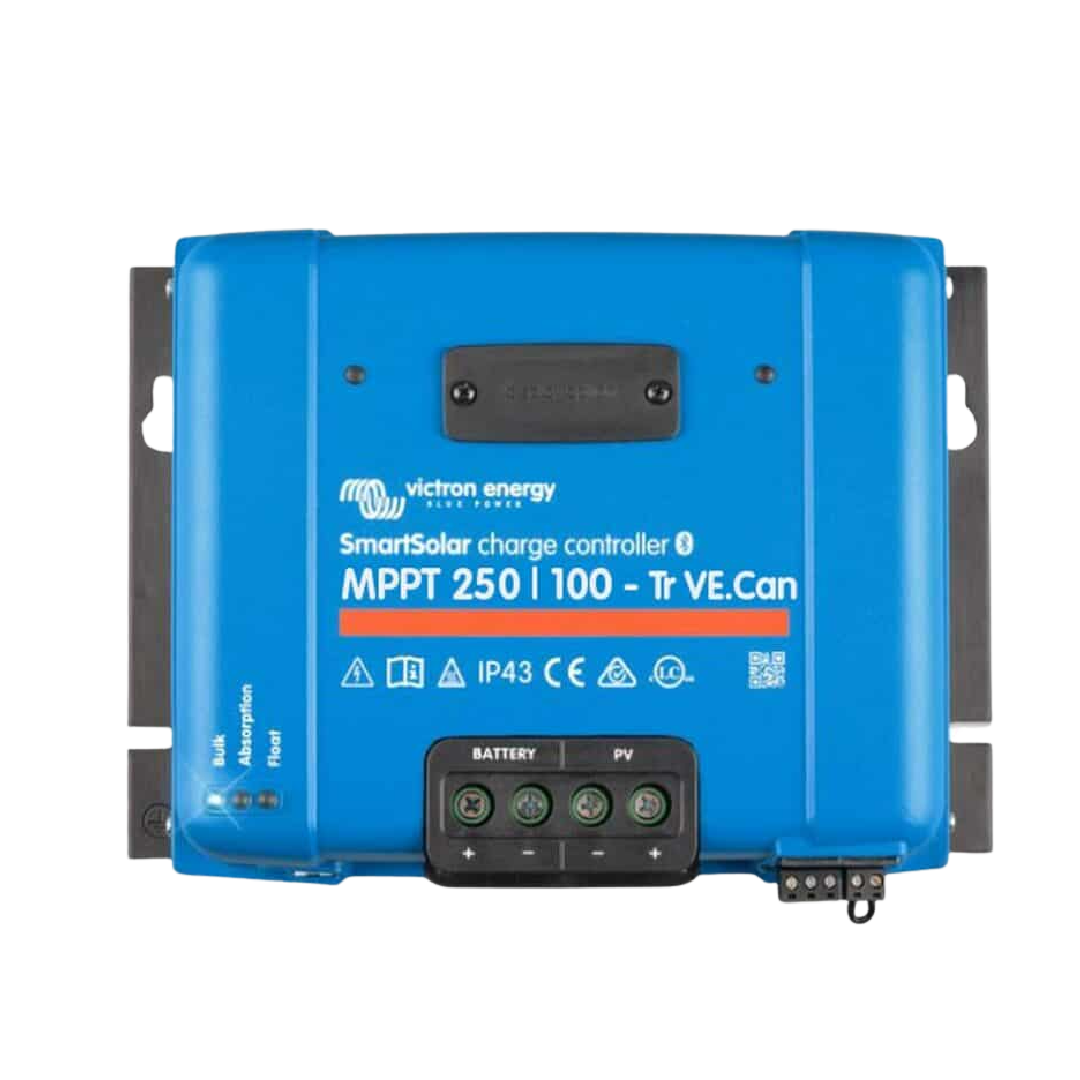

Victron SmartSolar MPPT 250/100-Tr VE.Can
Victron SmartSolar MPPT 250/100-Tr VE.Can
SKU:SCC125110412
Brand: Victron
Low stock: 10 left
Couldn't load pickup availability
Product Details
Product Details
The Victron SmartSolar MPPT 250/100-Tr VE.Can (SKU SCC125110412) is a high-capacity solar charge controller built for demanding off-grid, marine and mobile power systems. Its ultra-fast maximum power point tracking improves energy harvest in variable light, allowing you to get more usable power from your solar array throughout the day. This model supports 12, 24 and 48 volt systems, with a manual option for 36 volts, and delivers up to 100 amps of charging current. It can accept a maximum solar open-circuit voltage of 250 volts and handle up to 5800 watts of solar input at 48 volts, making it suitable for large installations.

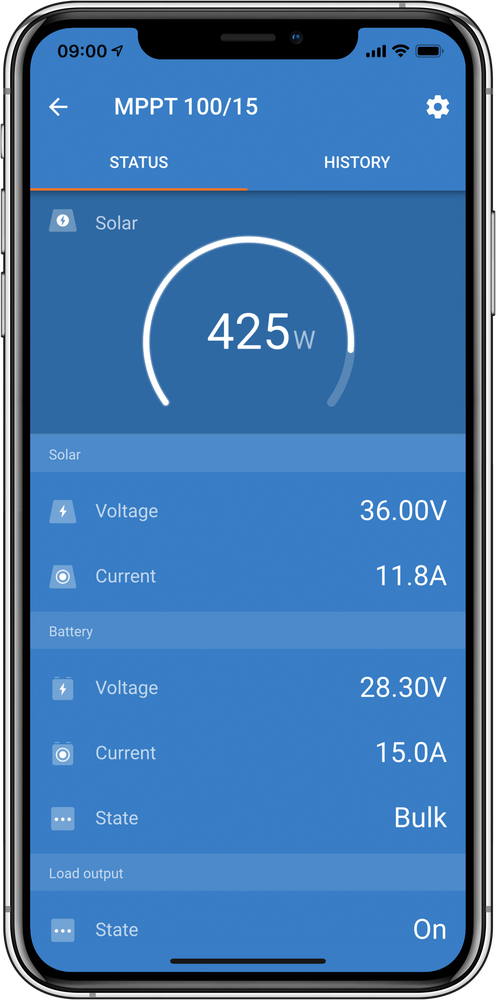

The device features adaptive multi-stage charging with eight pre-set algorithms and user-defined options to suit a wide range of battery types. Temperature compensation and automatic voltage selection help protect battery health and extend lifespan. Built-in Bluetooth allows you to configure settings and monitor performance using a mobile device, while VE.Can and VE.Direct ports offer advanced integration with other Victron equipment. Multiple units can be synchronised in parallel for increased system capacity.
Efficiency exceeds 99 percent, and the unit operates without a cooling fan, reducing noise and maintenance. Comprehensive protection includes PV short circuit, reverse polarity, reverse current and temperature-based current limiting. The electronics are housed in an enclosure with an IP43 rating, while the connection area is rated IP22. It operates reliably in temperatures from minus 30 to plus 60 degrees Celsius.
Finished in Victron blue and built to last, the SmartSolar MPPT 250/100-Tr VE.Can is an ideal choice for larger motorhomes, off-grid cabins, sailing vessels and industrial solar systems. It provides detailed monitoring, reliable charging control and flexible connectivity so you get the most out of every watt of sunlight.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24/48 V Auto Select (36 V: manual)
- Rated Charge Current: 100 A
- Nominal PV Power (12 V): 1450 W
- Nominal PV Power (24 V): 2900 W
- Nominal PV Power (36 V): 4350 W
- Nominal PV Power (48 V): 5800 W
- Maximum PV Open Circuit Voltage: 250 V (absolute maximum coldest conditions), 245 V (start-up and operating maximum)
- Max. PV Short Circuit Current: 70 A
- Maximum Efficiency: Exceeds 99%
- Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
- Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
- Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
- Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
- Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
- Advanced Tracking: Innovative algorithm maximizes energy harvest by locking to the optimum maximum power point even during partial shading conditions.
- Battery Recovery Function: Can initiate charging even if the battery has been discharged to zero volts; will reconnect to fully discharged Li-ion batteries with integrated disconnect functions.
Connectivity & Features
- Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
- VE.Can Interface: Allows for daisy-chaining up to 25 units for synchronized parallel charging and individual monitoring via GX devices.
- Bluetooth Synchronization: Synchronized parallel charging for up to 10 units via Bluetooth.
- Remote On/Off: Yes (2-pole connector)
- Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC)

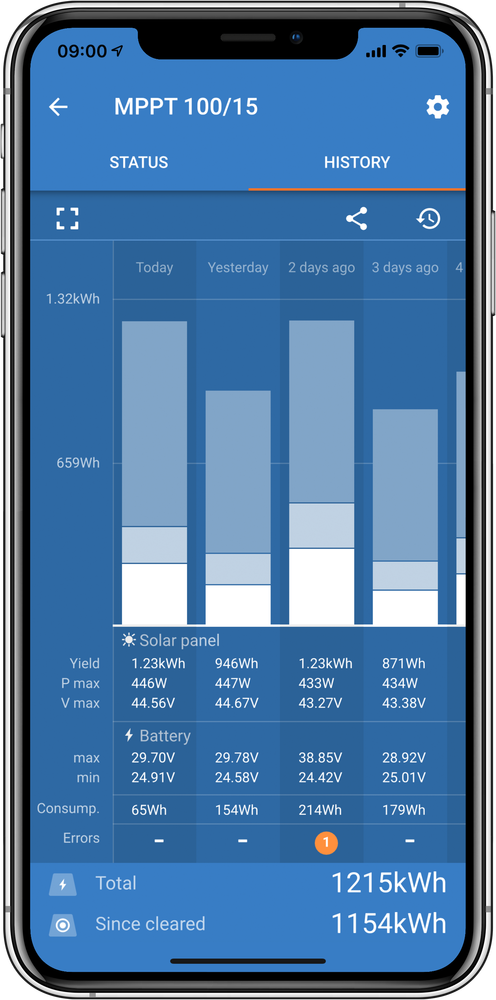

- Data Logging: 46-day trend history for battery voltage, current, temperature, PV voltage, and PV current.
- External Sensing: Compatible with Smart Battery Sense, BMV-712, or SmartShunt for battery voltage, temperature, and current sensing via Bluetooth.
- Optional Display: Compatible with the SmartSolar pluggable LCD display (not included).

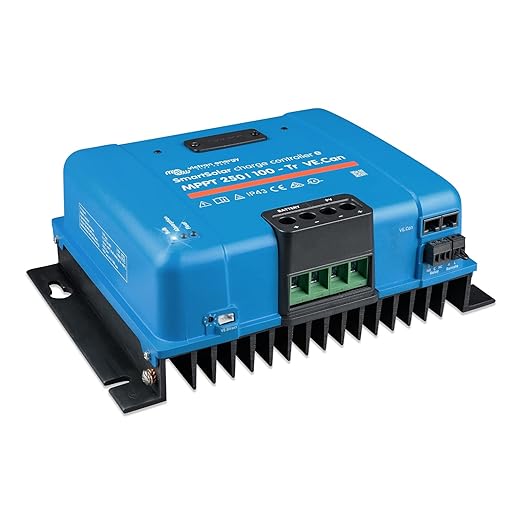

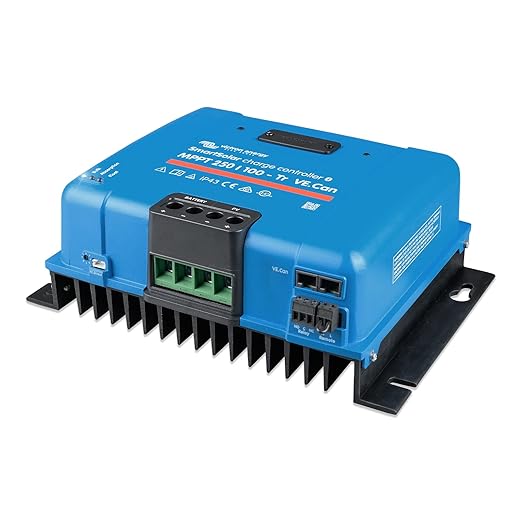

Mechanical & Enclosure
- PV Terminals (Tr model): 35 mm² / AWG2 screw terminals
- Battery Terminals: 35 mm² / AWG2 screw terminals
- Dimensions (H x W x D): 216 x 295 x 103 mm
- Weight: 4.5 kg
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Enclosure Colour: Blue (RAL 5012)
- Cooling: Natural convection (no cooling fan)
Environmental & Standards
- Operating Temperature Range: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Maximum Altitude: 5000 m (Full rated output up to 2000 m)
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
- Electronic Protections: PV reverse polarity, Output short circuit, PV reverse current, and Over-temperature protection with power derating.
Technical Specifications
Technical Specifications
| MPPT Amps | 100 |
|---|
