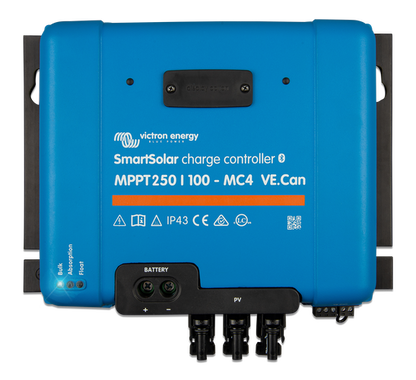

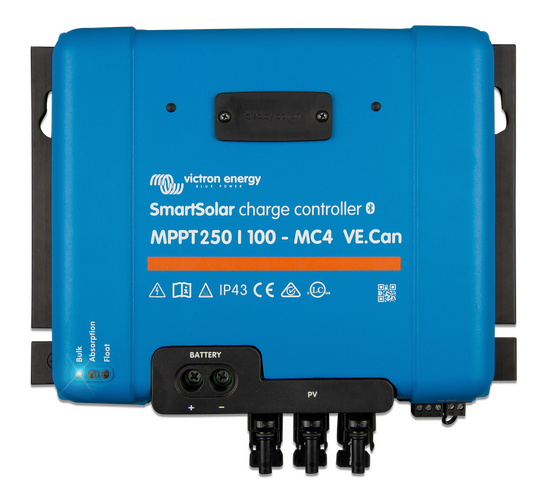

The Victron MPPT 250/100 VE.Can SmartSolar Charge Controller is designed for large solar arrays and high-demand battery systems. It provides precise Maximum Power Point Tracking to ensure the highest possible energy harvest, even in challenging conditions. With a rated charge current of 100 A, it is suitable for 12 V, 24 V and 48 V battery banks, with 36 V supported through manual configuration.
The controller accepts a maximum PV open-circuit voltage of 250 V and offers substantial PV power capability. It supports up to 1,450 W at 12 V, 2,900 W at 24 V and 5,800 W at 48 V. The unit is fitted with three pairs of MC4 connectors, each rated to 30 A, to provide secure and efficient integration with modern solar modules.

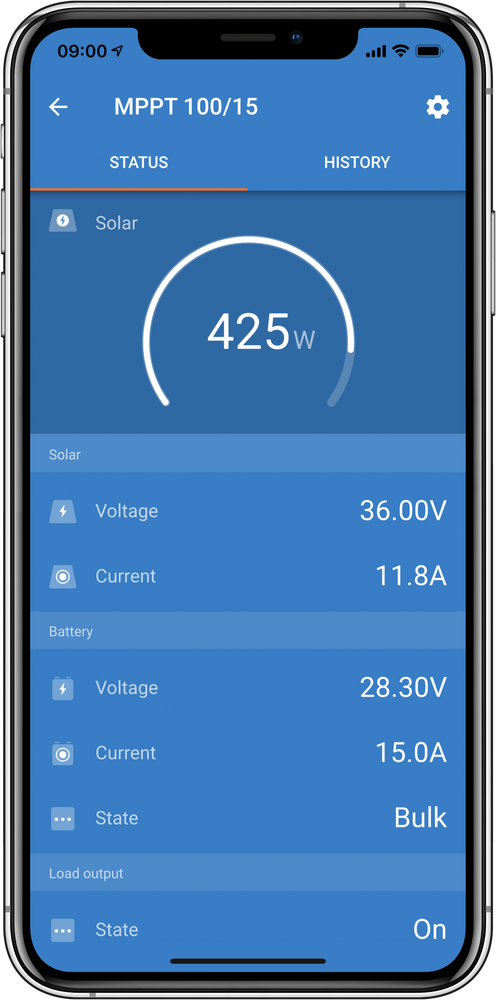

Communication and system expansion are key strengths. VE.Can networking allows up to 25 SmartSolar units to work together in large or modular installations. All charging data can be viewed on a GX device for centralised system control. Bluetooth Smart is included as standard, providing fast access to settings, firmware updates and live performance information via the VictronConnect app.
The charge algorithm is fully programmable, offering eight pre-set profiles and custom voltage settings for absorption, float and equalisation. Configuration is accessible through Bluetooth, VE.Direct or an external display module. A built-in load output protects batteries from excessive discharge by disconnecting loads when necessary.
The SmartSolar 250/100 is built for durability, with IP43 protection for electronics and IP22 for the connection area. The design maintains high efficiency, reaching up to 99 percent conversion efficiency with exceptionally low self-consumption. The unit also includes remote on or off control, a programmable relay and full compatibility with parallel operation when part of a larger system.
With a robust 4.5 kg enclosure and compact dimensions of 295 x 246 x 103 mm, this controller is ideal for commercial solar installations, off-grid power systems, marine applications and industrial energy storage solutions. It provides professional installers with reliable performance, strong communication options and proven Victron engineering.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24/48 V Auto Select (36 V: Manual)
- Rated Charge Current: 100 A
- Nominal PV Power (12 V): 1450 W
- Nominal PV Power (24 V): 2900 W
- Nominal PV Power (36 V): 4350 W
- Nominal PV Power (48 V): 5800 W
- Maximum PV Open Circuit Voltage: 250 V (absolute maximum coldest conditions), 245 V (start-up and operating maximum)
- Max. PV Short Circuit Current: 70 A (maximum 30 A per MC4 connector)
- Maximum Efficiency: Greater than 99%
- Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
- Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
- Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
- Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
- Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
- Advanced Tracking: The innovative SmartSolar algorithm maximizes energy harvest by locking to the optimum maximum power point even during partial shading conditions.
- Battery Recovery Function: Can initiate charging even if the battery has been discharged to zero volts; will reconnect to fully discharged Li-ion batteries with integrated disconnect functions.
Connectivity & Features
- Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
- Parallel Operation: Synchronized charging for up to 25 units via VE.Can or 10 units via Bluetooth.
- Remote On/Off: Yes (2-pole connector)
- Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC)

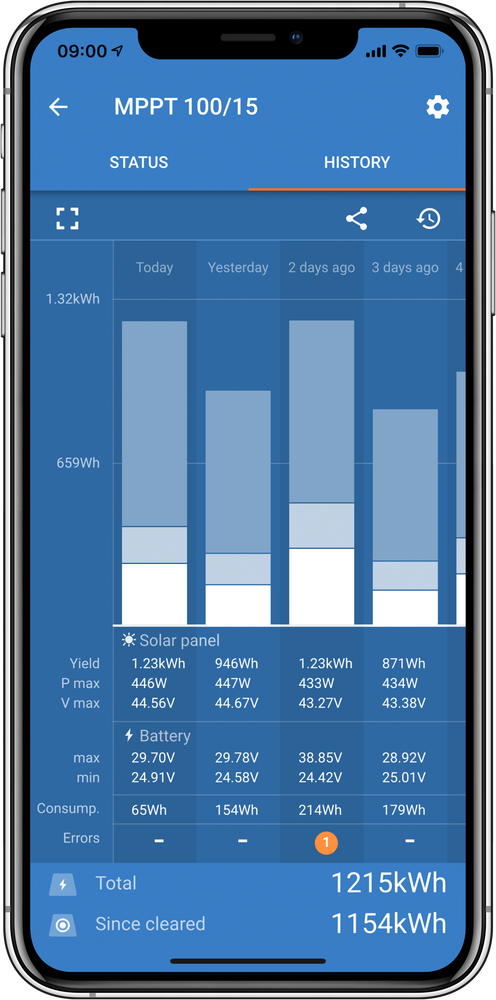

- Data Logging: 46-day trend history for battery voltage, current, temperature, PV voltage, and PV current.
- External Sensing: Compatible with Smart Battery Sense, BMV-712, or SmartShunt for battery voltage, temperature, and current sensing via Bluetooth.
- Optional Display: Compatible with the SmartSolar pluggable LCD display (not included).
Mechanical & Enclosure
- PV Terminals: Three pairs of MC4 connectors
- Battery Terminals: 35 mm² / AWG2
- Dimensions (H x W x D): 246 x 295 x 103 mm
- Weight: 4.5 kg
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Color: Blue (RAL 5012)
- Cooling: Natural convection (no cooling fan)
Environmental & Standards
- Operating Temperature Range: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Maximum Altitude: 5000 m (Full rated output up to 2000 m)
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
- Electronic Protections: PV reverse polarity, Output short circuit, PV reverse current, and Over-temperature protection.
Technical Specifications
Technical Specifications
| MPPT Amps | 100 |
|---|
