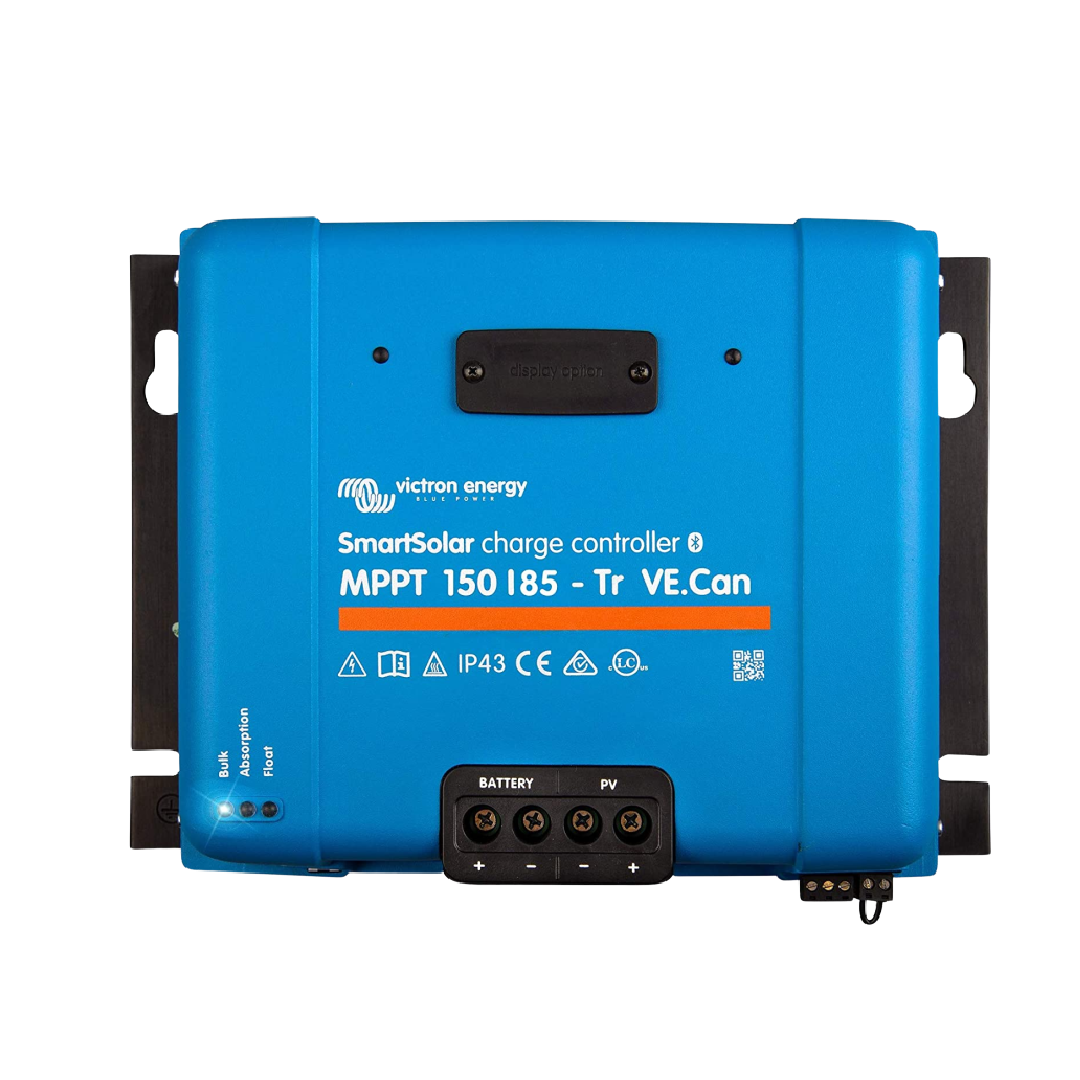

Victron SmartSolar MPPT 150/85-Tr VE.Can
Victron SmartSolar MPPT 150/85-Tr VE.Can
SKU:SCC115085411
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
UD11-23
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: SCC115085411
Battery Voltage Auto Select: 12V / 24V / 48V Auto Select (software tool needed to select 36V)
Bluetooth: Yes
Charge Algorithm: Multi-stage adaptive (adjustable)
Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)
Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)
Colour: Blue (RAL 5012)
Data Communication: VE.Direct,VE.Bus,Bluetooth
Data Retention Period: 46 d
Data Stored: Battery voltage,Battery current,Battery temperature,PV voltage,PV current
Depth: 103 mm
Environmental Condition: Indoor, unconditioned
Height: 216 mm
Max Altitude: 5,000
Max Efficiency: 98 %
Max Humidity: 95 %
Max PVOpen Circuit Voltage: 150 V
Max PVShort Circuit Current: 70 A
Nominal PVpower12V: 1,200 W
Nominal PVpower24V: 2,400 W
Nominal PVpower36V: 3,600 W
Nominal PVpower48V: 4,900 W
Number Of Sync Parallel Operating Units: 25
Number Of Sync Parallel Operating Units BT: 10
Number Of Trackers: 1
Pollution Degree: PD3
Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Protection Category: IP22 (connection area),IP43 (electronic components)
Protections: Output short-circuit,Excessive temperature,PV reverse polarity
Rated Charge Current: 85 A
Relay Terminal Connection1: Screw terminal 3-pole
Remote On Off Terminal: Yes
Remote On Off Terminal Connection: Screw terminal two pole
Safety: CSA C22.2,EN-IEC 62109-1,UL 1741
Self Consumption: Less than 35mA @ 12V / 20mA @ 48V
Start Up PVDCVoltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
Temperature Sensor: Optional (Smart Battery Sense)
Weight: 45 kg
Width: 295 mm
Source: Victron
