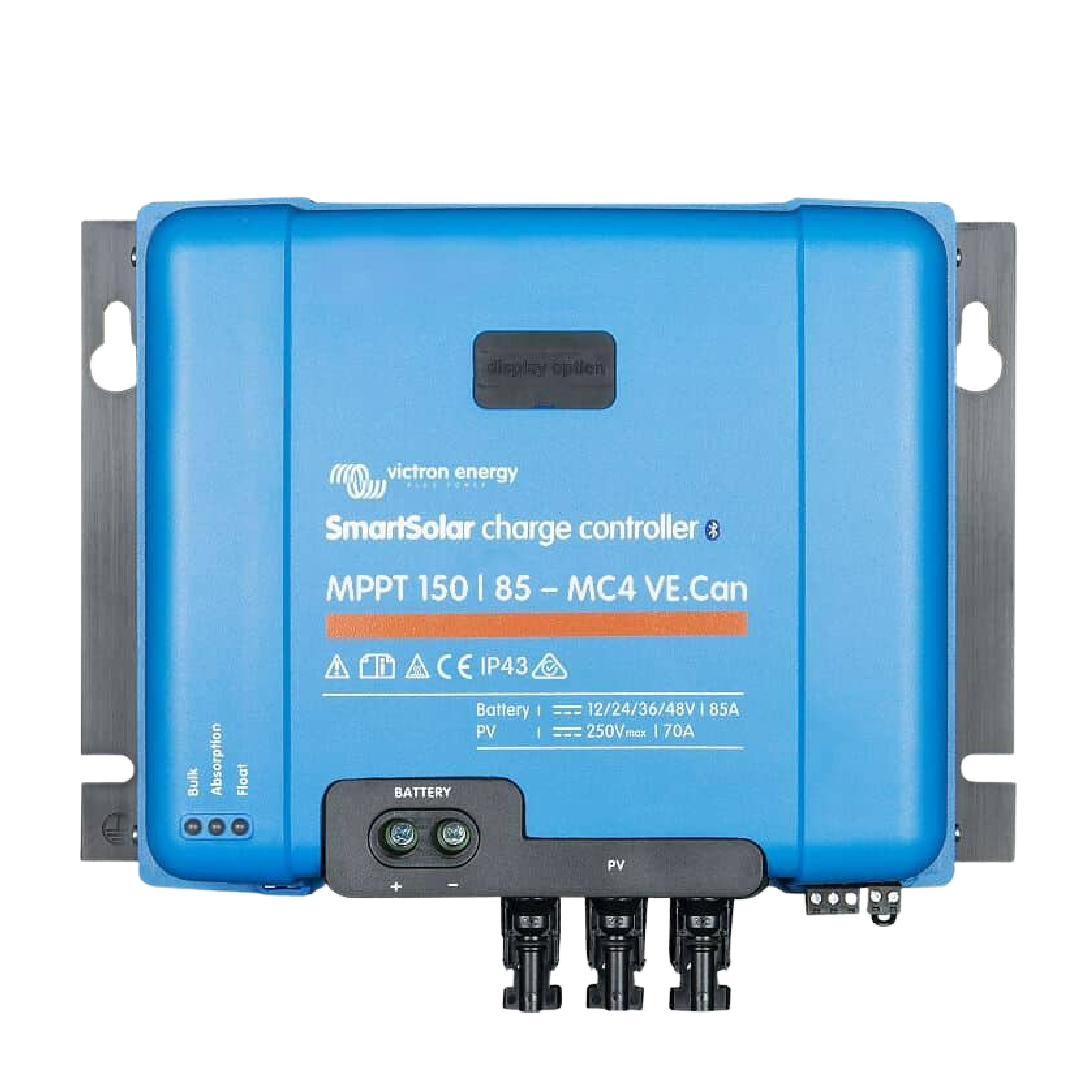

Victron SmartSolar MPPT 150/85-MC4 VE.Can
Victron SmartSolar MPPT 150/85-MC4 VE.Can
SKU:SCC115085511
Brand: Victron
Low stock: 3 left
Couldn't load pickup availability
Product Details
Product Details
The Victron SmartSolar MPPT 150/85-MC4 VE.Can (SKU: SCC115085511) is a high-performance solar charge controller designed for commercial and off-grid applications. Engineered to optimise energy harvest and protect battery health, this model is ideal for businesses seeking reliable and efficient solar solutions.
Key Features:
- High Efficiency: Delivers peak efficiency of over 98%, ensuring maximum energy conversion from solar panels to batteries.
- Wide Battery Compatibility: Supports 12V, 24V, and 48V battery systems, automatically selecting the appropriate voltage.
- Advanced MPPT Technology: Utilises ultra-fast Maximum Power Point Tracking to maximise energy harvest, even in partially shaded conditions.
- VE.Can Connectivity: Enables communication with other Victron devices, allowing for system expansion and integration.
- MC4 Connectors: Equipped with MC4 connectors for quick and secure connections to solar panels.
This charge controller is suitable for various applications, including commercial solar installations, off-grid systems, and backup power solutions. Its robust design and advanced features make it a reliable choice for businesses looking to invest in sustainable energy solutions.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24/48 V Auto Select (36 V: Manual)
- Rated Charge Current: 85 A
- Maximum PV Open Circuit Voltage: 150 V (absolute maximum coldest conditions), 145 V (start-up and operating maximum)
- Max. PV Short Circuit Current: 70 A (Maximum 30 A per MC4 connector)
- Maximum Efficiency: Exceeds 98%
- Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
- Nominal PV Power (12 V): 1200 W
- Nominal PV Power (24 V): 2400 W
- Nominal PV Power (36 V): 3600 W
- Nominal PV Power (48 V): 4900 W
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
- Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
- Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
- Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
- Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
Mechanical & Enclosure
- PV Terminals: Two pairs of MC4 connectors
- Battery Terminals: 35 mm² / AWG2
- Dimensions (H x W x D): 215 x 250 x 95 mm
- Weight: 3 kg
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Color: Blue (RAL 5012)
Connectivity & Features

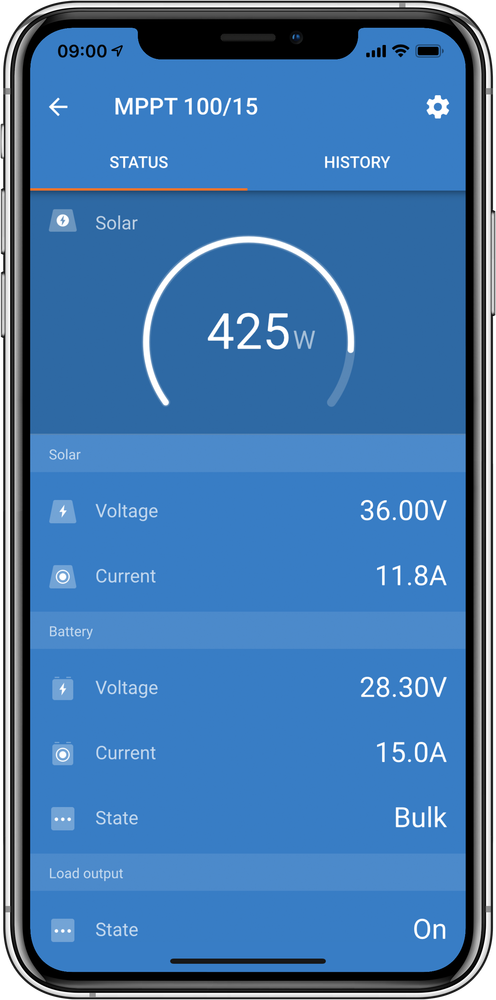

- Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
- Parallel Operation: Synchronized charging with up to 25 units (VE.Can) or 10 units (Bluetooth)
- Remote On/Off: Yes (2-pole connector)
- Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC)

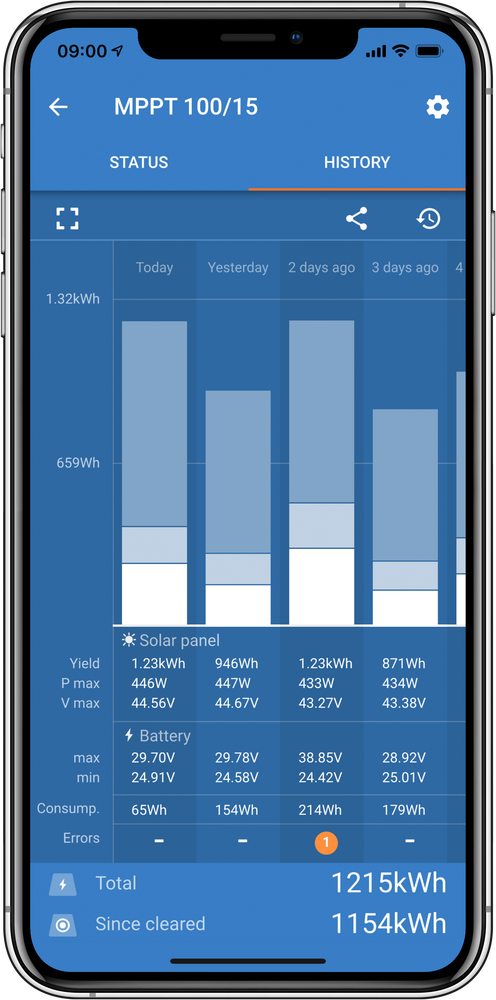

- Data Storage: 46-day trend history for battery voltage, current, temperature, PV voltage, and PV current
- Optional Display: SmartSolar pluggable LCD display (not included)
Environmental & Standards
- Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Maximum Altitude: 5000m (Full rated output up to 2000m)
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
Technical Specifications
Technical Specifications
| MPPT Amps | 85 |
|---|
