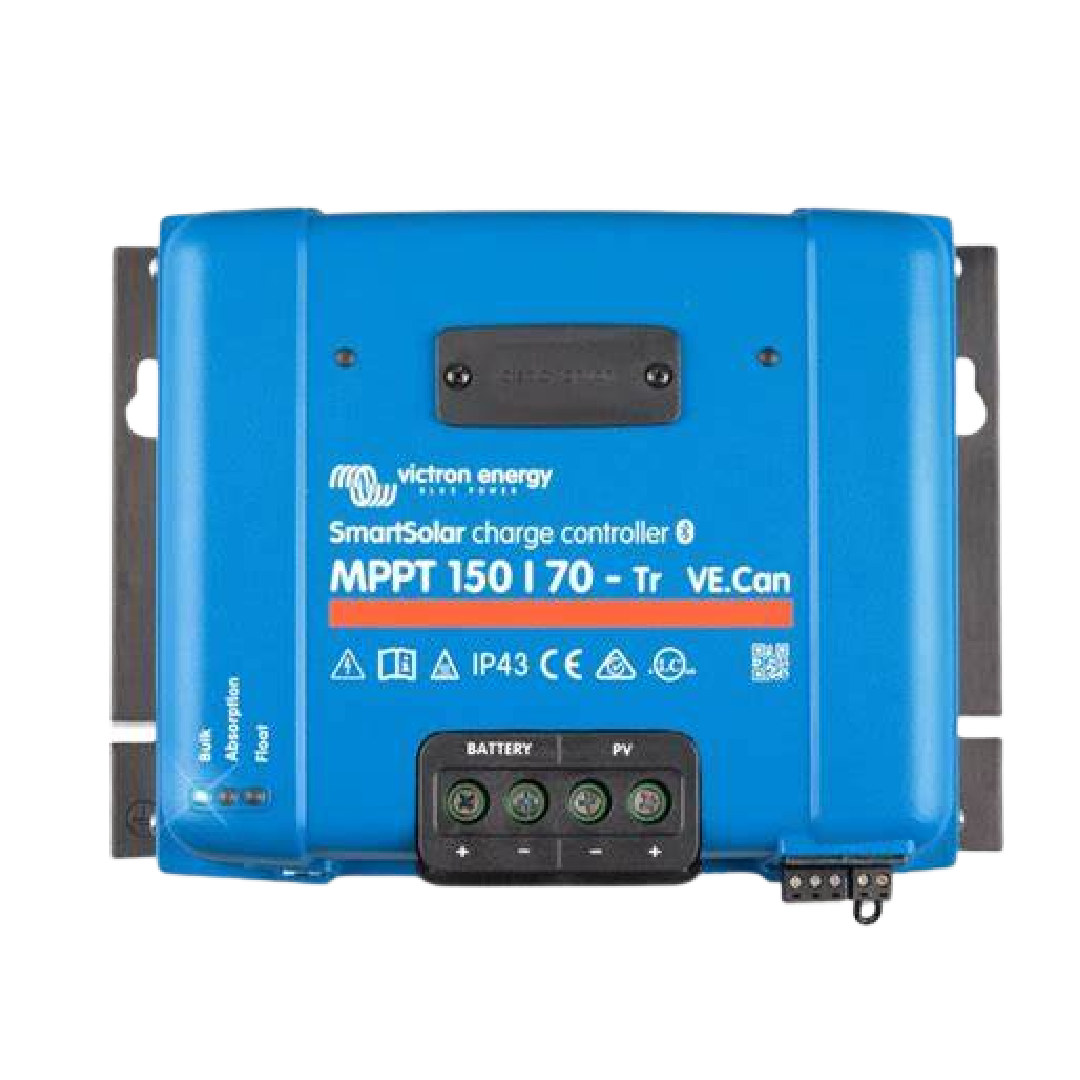

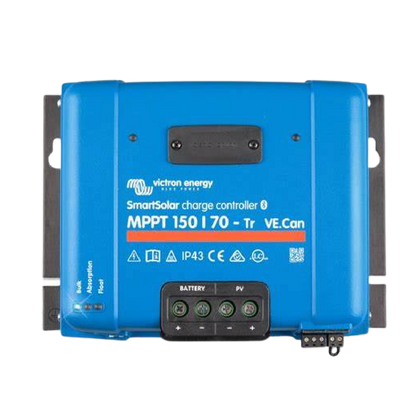

Victron MPPT 150/70 – SmartSolar Charge Controller – Tr VE.Can
Victron MPPT 150/70 – SmartSolar Charge Controller – Tr VE.Can
SKU:SCC115070411
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
Victron MPPT 150/70 – SmartSolar Charge Controller – Tr VE.Can: The Heart of Your High-Performance Off-Grid System
Step up to elite solar power management with the Victron SmartSolar MPPT 150/70-Tr VE.Can. Engineered for serious off-grid applications, from advanced marine installations and large caravans to remote energy storage systems (ESS), this charge controller combines Victron's industry-leading technology with robust connectivity. It ensures you capture maximum energy from your solar array while perfectly protecting your valuable battery bank.
At its core is Victron's renowned Ultra-Fast Maximum Power Point Tracking (MPPT). This intelligent technology constantly scans the power-voltage curve of your solar panels. Crucially, in conditions of partial shading or quickly changing cloud cover, the unit rapidly adapts to lock onto the optimum Maximum Power Point (MPP), delivering up to 30% more energy harvest compared to slower PWM controllers. This means more power delivered to your batteries, quicker charging times, and maximum efficiency (up to 98%).
The 'SmartSolar' designation highlights its integrated Bluetooth Smart capability. Using the free VictronConnect App on your smartphone or tablet, you get complete, real-time control. Monitor key data like battery voltage and charge current, review 46 days of historical performance, and easily configure settings or update firmware wirelessly.
The addition of the VE.Can communication port is what truly sets this model apart. This industrial-grade CAN bus allows you to daisy-chain and synchronise up to 25 SmartSolar MPPT units to operate as one unified, high-power system. When connected to a Victron GX monitoring device (such as a Cerbo GX), you gain total system oversight, synchronised charging stages, and global remote management access via the Victron Remote Management (VRM) portal.

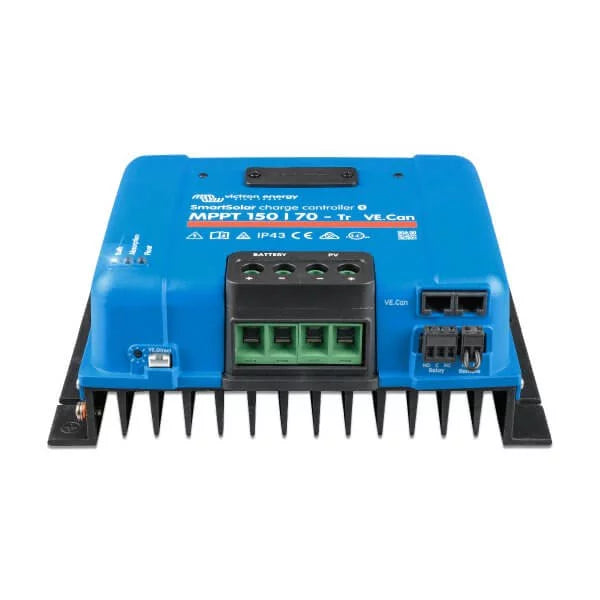

Built for flexibility and reliability, the controller features a 150V maximum PV input voltage for long, high-efficiency panel strings, and a powerful 70 Amp rated charge current suitable for large 12V, 24V, 36V, and 48V battery banks. The 'Tr' stands for the secure, robust screw terminals, ensuring a solid, low-resistance connection for your PV and battery cables. Its completely fan less design keeps operation silent, cool, and highly dependable, backed by extensive electronic protection.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24/48 V Auto Select (36 V: Manual)
- Rated Charge Current: 70 A
- Nominal PV Power (12 V): 1000 W
- Nominal PV Power (24 V): 2000 W
- Nominal PV Power (36 V): 3000 W
- Nominal PV Power (48 V): 4000 W
- Maximum PV Open Circuit Voltage: 150 V (absolute maximum coldest conditions), 145 V (start-up and operating maximum)
- Max. PV Short Circuit Current: 50 A
- Maximum Efficiency: 98%
- Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
- Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
- Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
- Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
- Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
- Battery Recovery: Fully discharged battery recovery function can initiate charging even if the battery has been discharged to zero volts.
Connectivity & Features
- Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
- Parallel Operation: Synchronized charging with up to 25 units via VE.Can or 10 units via Bluetooth
- Remote On/Off: Yes (2-pole connector)
- Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC)
- Advanced Tracking: Innovative algorithm maximizes harvest in partial shading conditions by locking to the optimum maximum power point.
- Data Storage: Stores up to 46 days of historical trend data for battery voltage, current, temperature, PV voltage, and PV current.
- Optional Display: Compatible with the SmartSolar pluggable LCD display (not included).
Mechanical & Enclosure
- PV Terminals: 35 mm² / AWG2 (Tr screw terminals)
- Battery Terminals: 35 mm² / AWG2
- Dimensions (H x W x D): 185 x 250 x 95 mm
- Weight: 3 kg
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Color: Blue (RAL 5012)
Environmental & Standards
- Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Maximum Altitude: 5000m (Full rated output up to 2000m)
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
- Electronic Protection: PV reverse polarity, output short circuit, and over-temperature protection.
Technical Specifications
Technical Specifications
| MPPT Amps | 70 |
|---|
