Victron SmartSolar MPPT 150/70-Tr: Maximum Power and Smart Control for Your System
Future-proof your off-grid power setup with the Victron SmartSolar MPPT 150/70-Tr, the advanced charge controller engineered to maximise your energy harvest and protect your battery bank. Built for demanding applications, from marine and campervan systems to remote cabins, this unit delivers outstanding performance, efficiency, and full wireless control.
At the core of the SmartSolar 150/70 is Victron’s patented Ultra-Fast Maximum Power Point Tracking (MPPT) technology. This innovative feature constantly monitors and optimises the voltage and current output from your solar panels. This is crucial for real-world scenarios, particularly when light intensity is constantly fluctuating due to cloud cover or when panels are partially shaded. The result is up to a 30% improvement in energy yield compared to standard PWM controllers, ensuring you capture every possible watt of power throughout the day.
The unit’s name, "SmartSolar," comes from its integrated Bluetooth Smart capability. There is no need for extra accessories; simply use the free VictronConnect App on your smartphone or tablet to gain total control. You can wirelessly configure all settings, monitor real-time performance data, view 46 days of historical energy trends, and update the firmware. For systems connected to the internet, the Victron Remote Management (VRM) portal provides even deeper insights and remote management from anywhere in the UK or abroad.
Designed for powerful systems, the 150/70-Tr supports a high 150V maximum PV open circuit voltage, which gives you the flexibility to use longer, more efficient solar panel strings. The robust 70 Amp rated charge current is suitable for charging large 12V, 24V, or 48V battery banks (36V is also configurable). Compatibility extends to virtually all battery types, including Lithium, AGM, Gel, and Flooded, with an adaptive, multi-stage charge algorithm tailored to maintain battery health and prolong its lifespan.

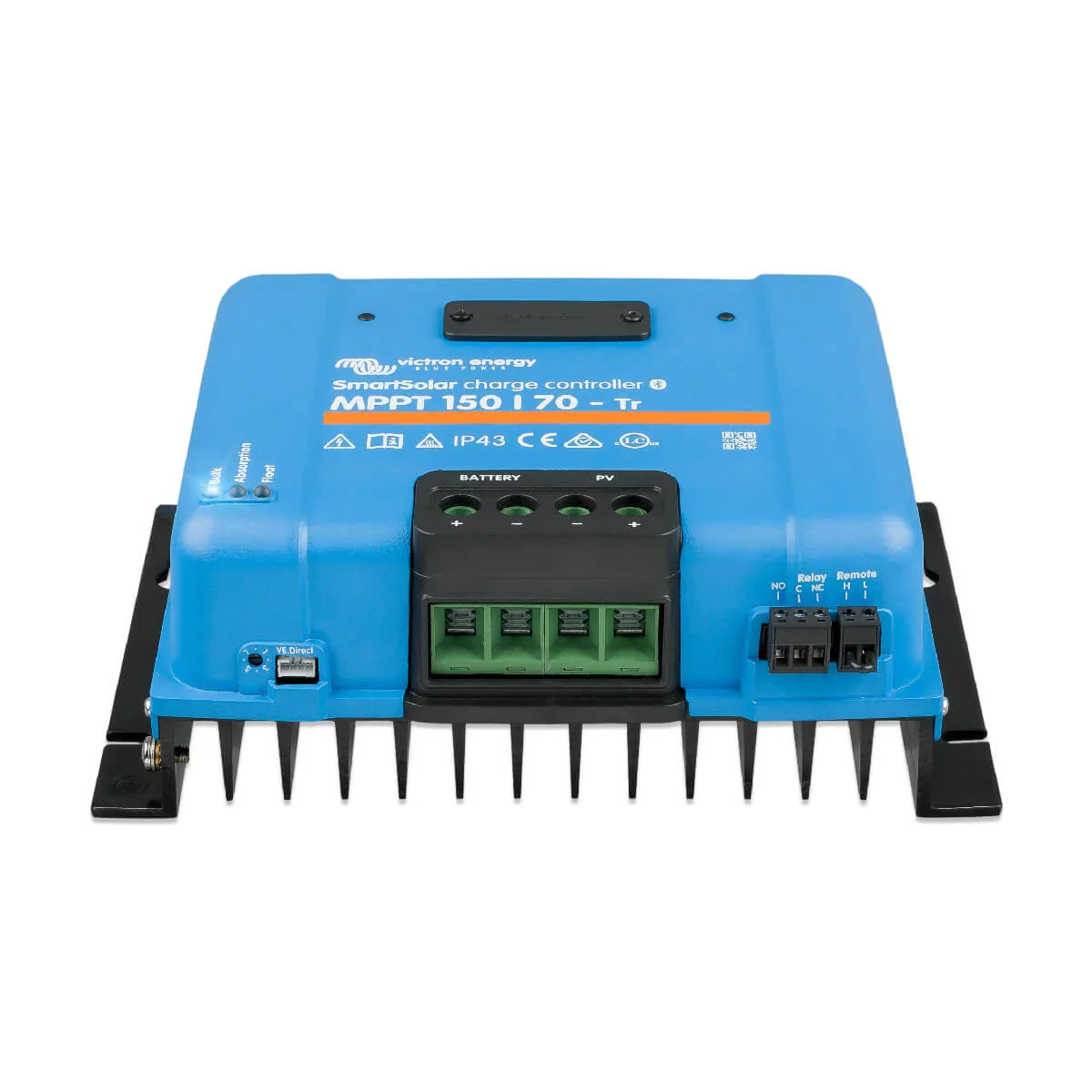

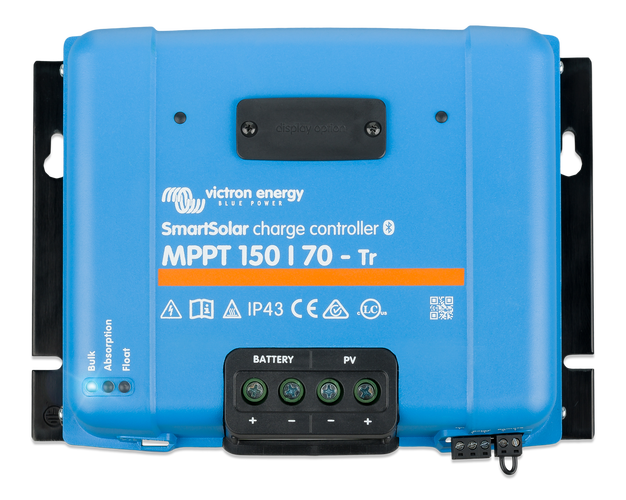

The 'Tr' model signifies the use of secure, heavy-duty screw terminals for both the PV and battery connections, guaranteeing a reliable, low-resistance connection. With an outstanding 98% peak conversion efficiency and a robust fan less design for silent, cool operation, the Victron SmartSolar MPPT 150/70-Tr is the intelligent, highly efficient solution for serious solar power users.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12 / 24 / 48 V Auto Select (36 V requires software tool)
- Rated Charge Current: 70 A
- Nominal PV Power (12 V): 1000 W
- Nominal PV Power (24 V): 2000 W
- Nominal PV Power (36 V): 3000 W
- Nominal PV Power (48 V): 4000 W
- Maximum PV Open Circuit Voltage: 150 V (absolute maximum coldest conditions), 145 V (start-up and operating maximum)
- Max. PV Short Circuit Current: 50 A
- Maximum Efficiency: 98%
- Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
- Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
- Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
- Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
- Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
- Internal Temperature Sensor: Included (compensates absorption and float charge voltage for temperature)
- Battery Recovery Function: Will initiate charging even if the battery has been discharged to zero volts; can reconnect to a fully discharged Li-ion battery with an integrated disconnect function.
Connectivity & Features
- Bluetooth Smart Built-in: Wireless solution to set-up, monitor, update, and synchronize controllers.
- VE.Direct Port: For a wired data connection to GX products (Color Control GX, etc.), PC, or other devices.
- Parallel Operation: Up to 10 units can be synchronized via Bluetooth.
- Remote On/Off: Yes (2-pole connector); can connect to a VE.Bus BMS.
- Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC).
- Optional Display: SmartSolar pluggable LCD display (sold separately).
- Data Storage: Stores 46 days of trend data (battery voltage, current, temperature, PV voltage, and PV current).
Mechanical & Enclosure
- PV & Battery Terminals: 35 mm² / AWG2 (Tr models)
- Dimensions (H x W x D): 185 x 250 x 95 mm
- Weight: 3 kg
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Color: Blue (RAL 5012)
Environmental & Standards
- Operating Temperature Range: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Maximum Altitude: 5000 m (Full rated output up to 2000 m)
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
- Electronic Protections: PV reverse polarity, Output short circuit, and Over-temperature protection.
Technical Specifications
Technical Specifications
| MPPT Amps | 70 |
|---|
