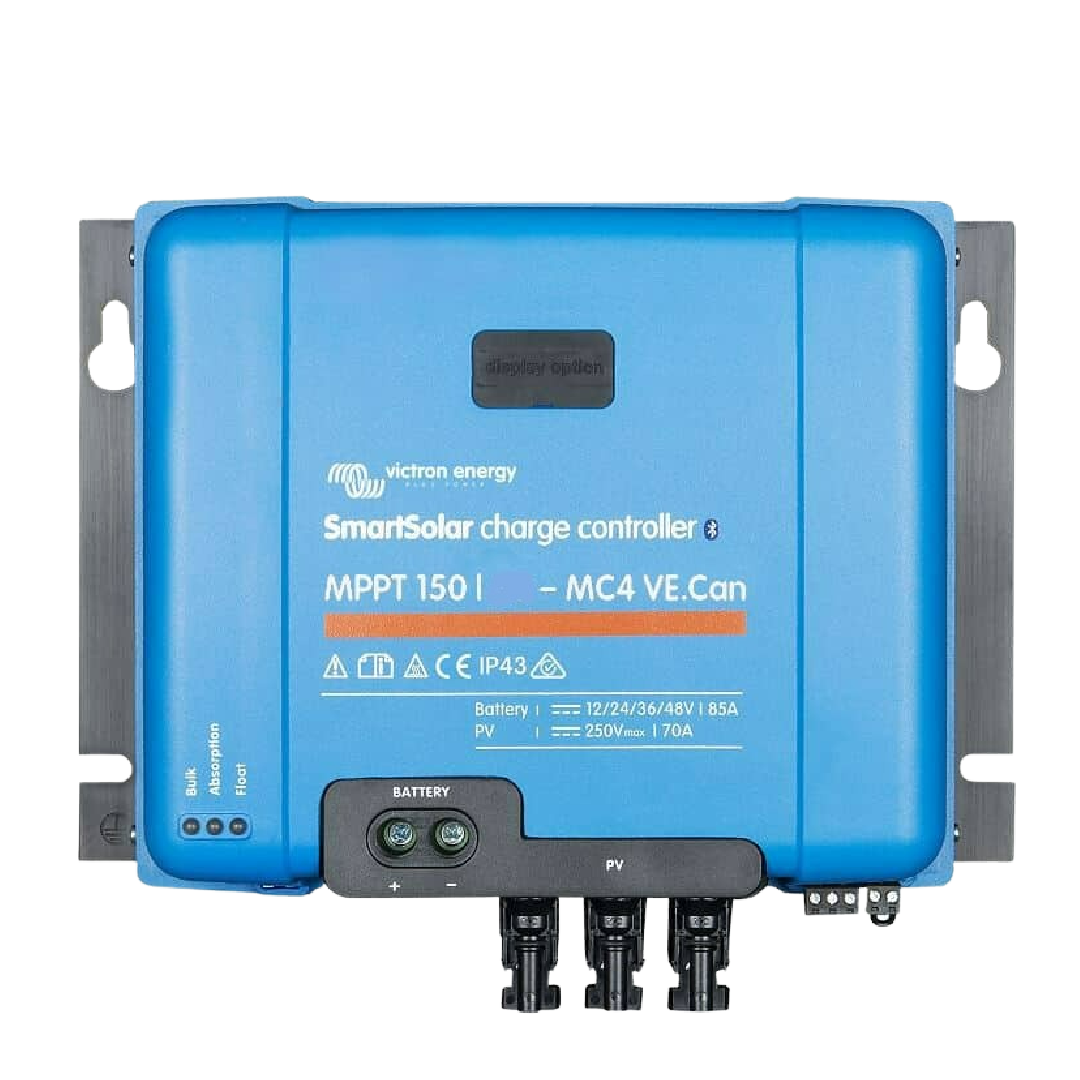

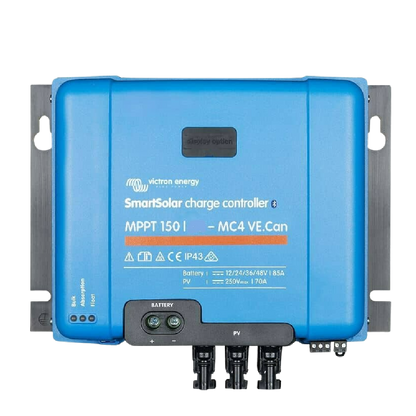

Victron SmartSolar MPPT 150/70-MC4 VE.Can
Victron SmartSolar MPPT 150/70-MC4 VE.Can
SKU:SCC115070511
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
SmartSolar MPPT 150/70 MC4
Solar charge controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control

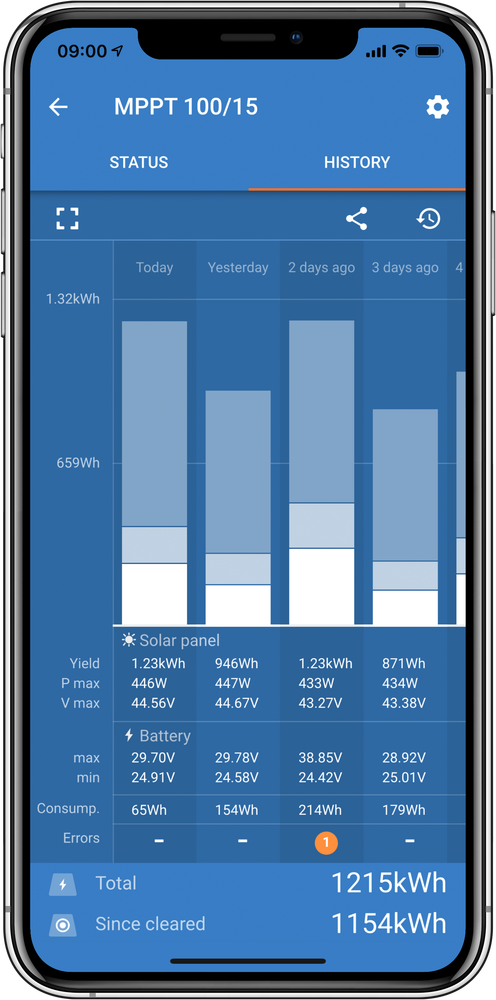

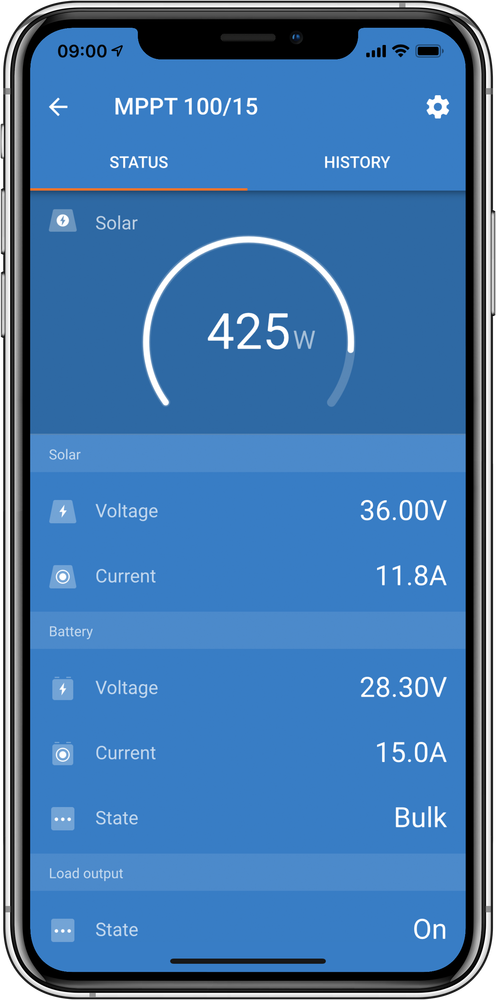

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN(long-range wide area network) device, available optionally.
UD11-23
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24/48 V Auto Select (36 V: Manual)
- Rated Charge Current: 70 A
- Maximum PV Open Circuit Voltage: 150 V (absolute maximum coldest conditions), 145 V (start-up and operating maximum)
- Max. PV Short Circuit Current: 50 A (Maximum 30 A per MC4 connector)
- Maximum Efficiency: 98%
- Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
- Nominal PV Power (12 V): 1000 W
- Nominal PV Power (24 V): 2000 W
- Nominal PV Power (36 V): 3000 W
- Nominal PV Power (48 V): 4000 W
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
- Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
- Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
- Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
- Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
Mechanical & Enclosure
- PV Terminals: Two pairs of MC4 connectors
- Battery Terminals: 35 mm² / AWG2
- Dimensions (H x W x D): 215 x 250 x 95 mm
- Weight: 3 kg
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Color: Blue (RAL 5012)
Connectivity & Features
- Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
- Parallel Operation: Synchronized charging with up to 25 units (VE.Can) or 10 units (Bluetooth)
- Remote On/Off: Yes (2-pole connector)
- Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC)
- Data Storage: 46-day trend history for battery voltage, current, temperature, PV voltage, and PV current
- Optional Display: SmartSolar pluggable LCD display (not included)
Environmental & Standards
- Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Maximum Altitude: 5000m (Full rated output up to 2000m)
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
Technical Specifications
Technical Specifications
| MPPT Amps | 70 |
|---|
