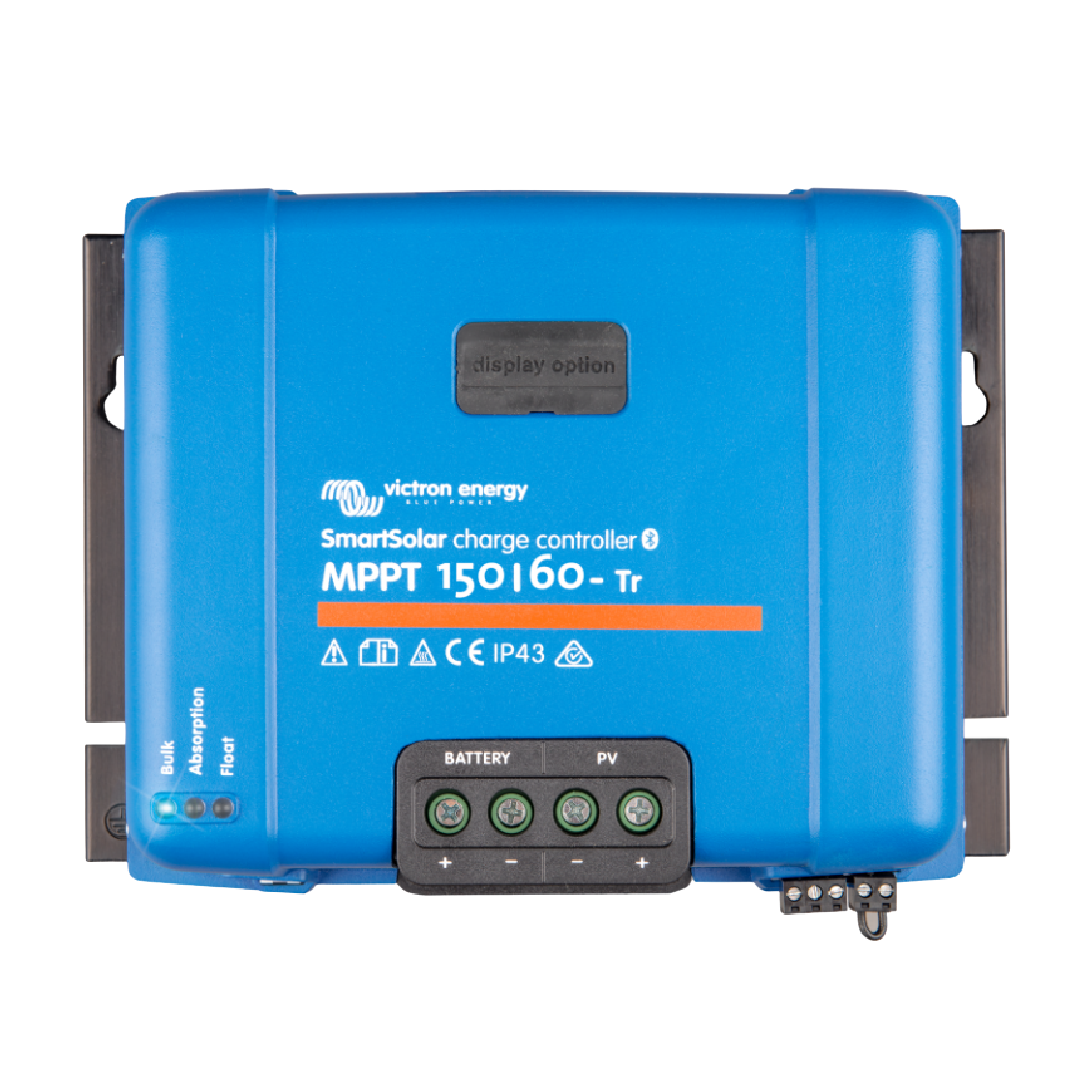

Victron SmartSolar MPPT 150/60-Tr: The Smart Way to Harvest Solar Power
Take complete control of your solar system and achieve the highest possible energy yield with the Victron SmartSolar MPPT 150/60-Tr charge controller. Engineered with next-level technology, this unit is the smart, robust heart of any demanding off-grid, marine, or recreational vehicle power installation.
At its core is Victron’s patented Ultra-Fast Maximum Power Point Tracking (MPPT). This innovative algorithm is relentless, monitoring and optimising the voltage and current output of your solar panels constantly. In real-world conditions, especially during overcast skies or when panels are partially shaded, this capability can boost your energy harvest by up to 30% compared to older PWM controllers. You capture every possible watt of power, driving it intelligently to achieve a full battery charge in the shortest possible time.

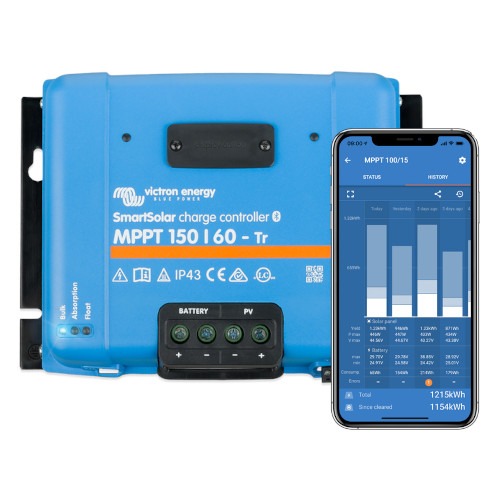

The "Smart" in SmartSolar comes from the integrated Bluetooth Smart feature. This eliminates the need for any additional dongles or accessories. Simply pair the controller with your smartphone or tablet using the free VictronConnect App. This grants you full, intuitive access to real-time performance data, historical information, and the ability to configure all settings wirelessly. For installations connected to the internet, the Victron Remote Management (VRM) portal provides even deeper insights and remote management from anywhere in the world.
Safety and battery longevity are paramount. The 60 Amp charge controller is compatible with a wide range of battery types, including Lithium, AGM, and Gel, offering a flexible, multi-stage adaptive charging algorithm to maintain battery health and extend life. Its high 150V maximum PV input allows you to connect longer solar panel strings, simplifying wiring and reducing power loss across longer distances. The Tr model ensures a reliable connection using sturdy screw terminals for your PV and battery cables.
Protected by comprehensive electronic features against hazards like PV short circuit, reverse polarity, and overheating, the SmartSolar MPPT 150/60-Tr delivers uncompromising reliability. Choose this Victron charge controller for a highly efficient, connected, and future-proof solar power solution.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12 / 24 / 48 V Auto Select (36 V requires software tool)
- Rated Charge Current: 60 A
- Nominal PV Power (12 V): 860 W
- Nominal PV Power (24 V): 1720 W
- Nominal PV Power (36 V): 2580 W
- Nominal PV Power (48 V): 3440 W
- Maximum PV Open Circuit Voltage: 150 V (absolute maximum coldest conditions), 145 V (start-up and operating maximum)
- Max. PV Short Circuit Current: 50 A
- Maximum Efficiency: 98%
- Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
- Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
- Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
- Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
- Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
- Internal Temperature Sensor: Included (compensates absorption and float charge voltage for temperature)
- Battery Recovery Function: Initiates charging even if the battery has been discharged to zero volts; can reconnect to a fully discharged Li-ion battery with integrated disconnect.
Connectivity & Features
- Bluetooth Smart Built-in: Wireless setup, monitoring, updates, and synchronization.
- VE.Direct Port: For a wired data connection to GX devices, PCs, or other equipment.
- Parallel Operation: Up to 10 units can be synchronized via Bluetooth.
- Remote On/Off: Yes (2-pole connector); can connect to a VE.Bus BMS.
- Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC).
- Data Storage: Stores 46 days of historical trend data (battery voltage, current, temperature, PV voltage, and PV current).
- Optional Display: Compatible with the SmartSolar pluggable LCD display (not included).
Mechanical & Enclosure

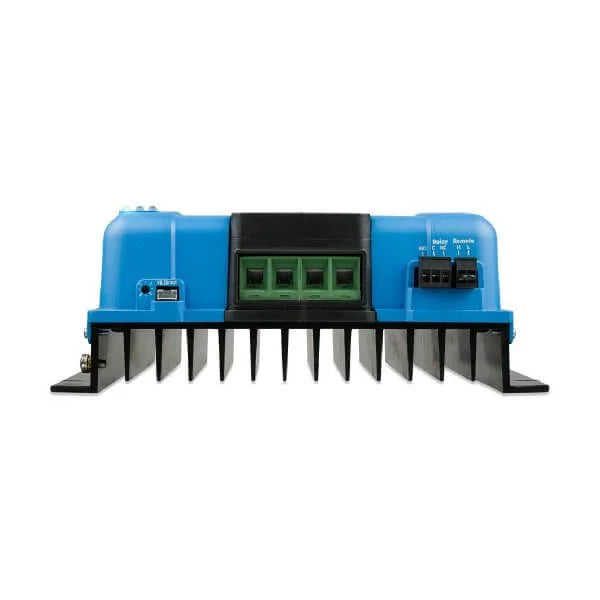

- PV Terminals: 35 mm² / AWG2 (Tr screw terminals)
- Battery Terminals: 35 mm² / AWG2
- Dimensions (H x W x D): 185 x 250 x 95 mm
- Weight: 3 kg
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Color: Blue (RAL 5012)
Environmental & Standards
- Operating Temperature Range: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Maximum Altitude: 5000 m (Full rated output up to 2000 m)
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
- Electronic Protections: PV reverse polarity, Output short circuit, and Over-temperature protection.
Technical Specifications
Technical Specifications
| MPPT Amps | 60 |
|---|
