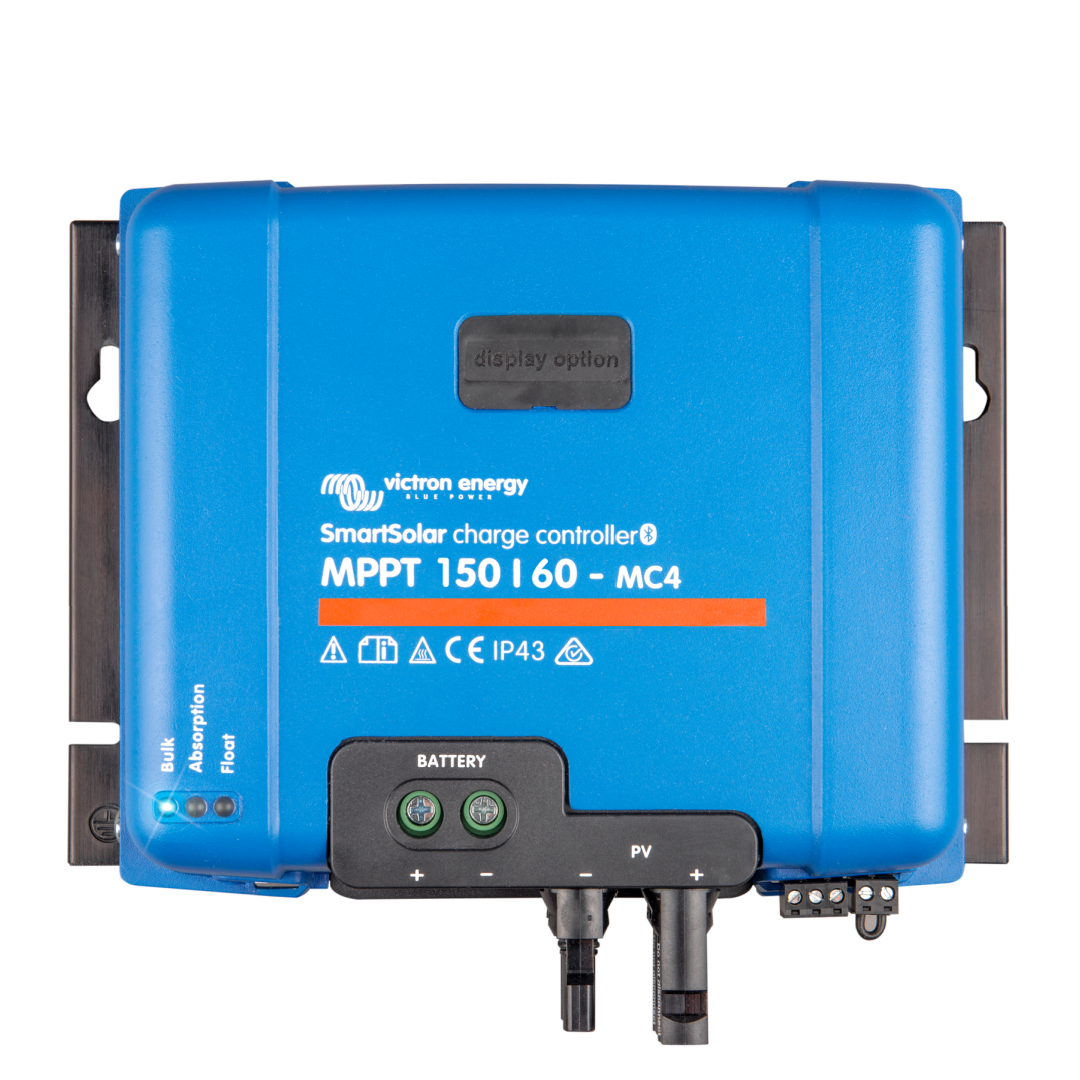

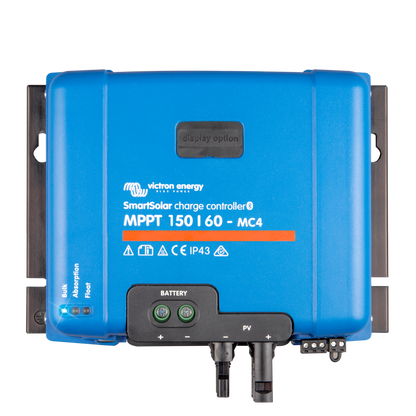

Victron MPPT 150/60 – SmartSolar Charge Controller – MC4
Victron MPPT 150/60 – SmartSolar Charge Controller – MC4
SKU:SCC115060311
Brand: Victron
High Efficiency: Achieves over 98% peak efficiency, ensuring optimal energy conversion.
Versatile Battery Support: Automatically selects between 12V, 24V, and 48V battery systems.
Advanced MPPT Technology: Maximises energy harvest, even in challenging conditions.
Easy Integration: VE.Can connectivity allows seamless communication with other Victron devices.
Durable Design: Built to withstand harsh environments, ensuring long-term reliability.
Dimensions: 215 x 250 x 95mm
Weight: 3kg
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£338.00 GBP
Regular price
Sale price
£338.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron MPPT 150/60 – SmartSolar Charge Controller – MC4 (SKU: SCC115060311) is a high-performance solar charge controller designed to optimise energy conversion and protect battery health in commercial and off-grid applications.
Key Features:
- High Efficiency: Achieves over 98% peak efficiency, ensuring maximum energy conversion from solar panels to batteries.
- Wide Battery Compatibility: Supports 12V, 24V, and 48V battery systems, automatically selecting the appropriate voltage.
- Advanced MPPT Technology: Utilises ultra-fast Maximum Power Point Tracking to maximise energy harvest, even in partially shaded conditions.
- VE.Can Connectivity: Enables communication with other Victron devices, allowing for system expansion and integration.
- MC4 Connectors: Equipped with MC4 connectors for quick and secure connections to solar panels.
This charge controller is suitable for various applications, including commercial solar installations, off-grid systems, and backup power solutions. Its robust design and advanced features make it a reliable choice for businesses looking to invest in sustainable energy solutions.
OLD SKU: SCC115060310
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12 / 24 / 48 V Auto Select (36V selection requires a software tool)
- Rated Charge Current: 60 A
- Nominal PV Power (12V): 860 W
- Nominal PV Power (24V): 1720 W
- Nominal PV Power (36V): 2580 W
- Nominal PV Power (48V): 3440 W
- Maximum PV Open Circuit Voltage: 150 V absolute maximum coldest conditions / 145 V start-up and operating maximum
- Maximum PV Short Circuit Current: 50 A (Maximum 30 A per MC4 connection)
- Maximum Efficiency: 98%
- Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
Charging & Algorithms
- Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
- Charge Voltage 'Absorption' (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
- Charge Voltage 'Float' (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
- Charge Voltage 'Equalization' (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
- Temperature Compensation: -16 / -32 / -64 mV/°C
- Temperature Sensing: Internal sensor included; optional external sensing via Bluetooth (Smart Battery Sense, BMV-712, or SmartShunt)
Protection & Environmental
- Integrated Protections: PV reverse polarity, output short circuit, and over-temperature (with power derating).
- Operating Temperature Range: -30°C to +60°C (Full rated output up to 40°C)
- Humidity: 95%, non-condensing
- Maximum Altitude: 5000 m (Full rated output up to 2000 m)
- Environmental Condition: Indoor, unconditioned (Pollution degree PD3)
Features & Connectivity

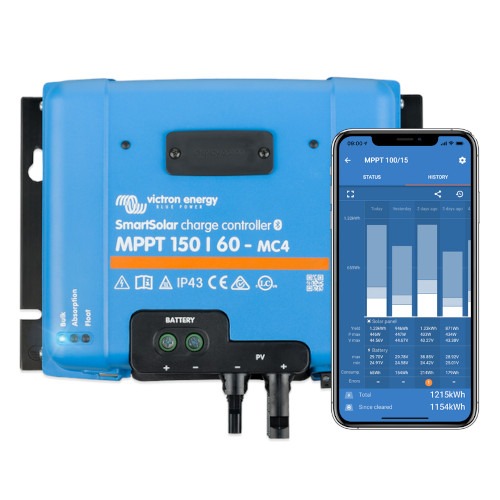

- Bluetooth Smart: Built-in for wireless setup, monitoring, and synchronized parallel charging (up to 10 units).

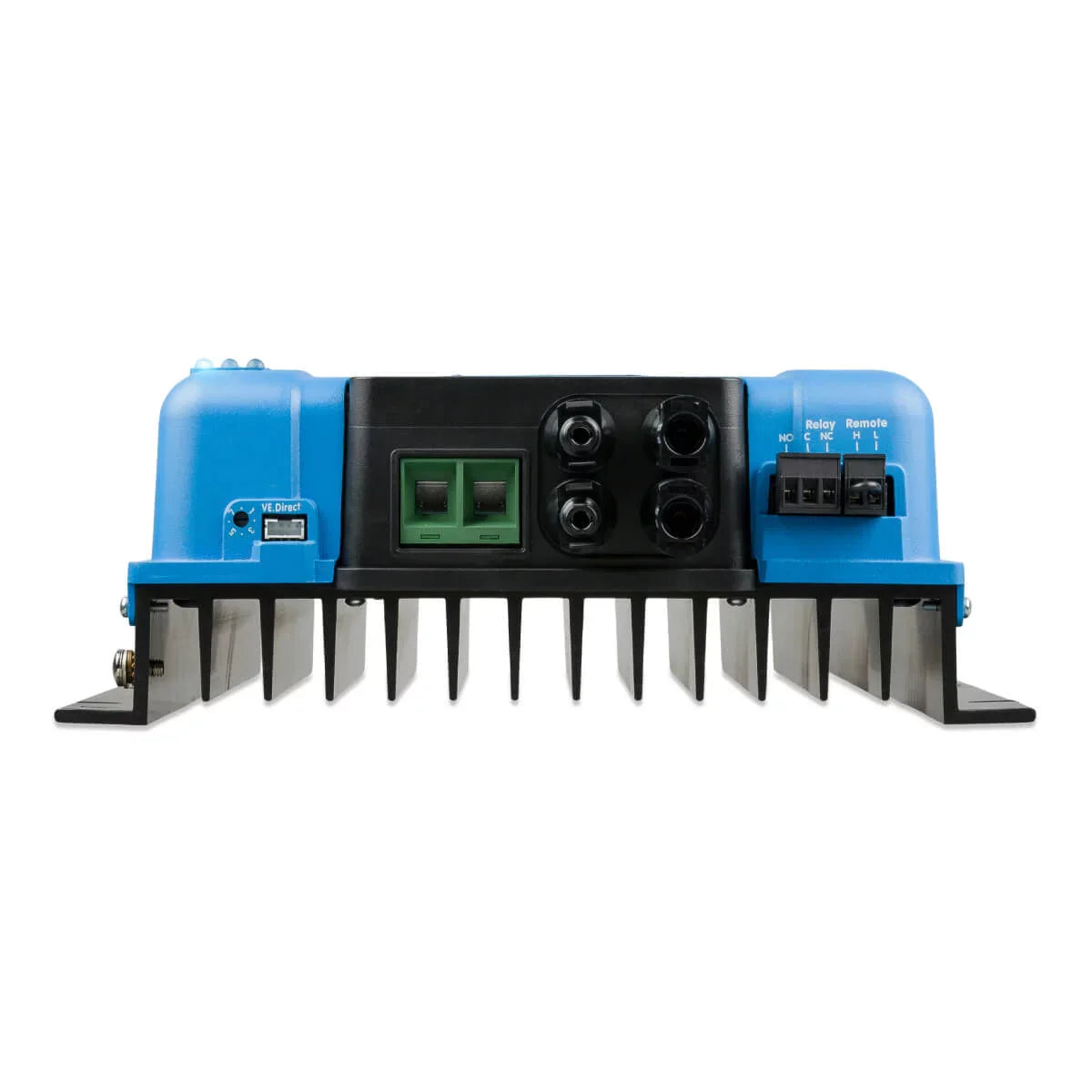

- VE.Direct Port: For wired data connection to GX products, PC, or other devices.
- Remote On-Off: Yes (2-pole connector)
- Programmable Relay: DPST; AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC.
- Optional Display: Compatible with the SmartSolar pluggable LCD display.
Mechanical Specifications
- Dimensions (H x W x D): 215 x 250 x 95 mm
- Weight: 3 kg
- Enclosure Colour: Blue (RAL 5012)
- PV Terminals: Two pairs of MC4 connectors
- Battery Terminals: 35 mm² / AWG2
- Protection Category: IP43 (electronic components), IP22 (connection area)
Standards & Data Logging
- Safety: EN/IEC 62109-1, UL 1741, CSA C22.2
- Stored Trends: Stores up to 46 days of data including battery voltage, current, temperature, load output current, PV voltage, and PV current.
Technical Specifications
Technical Specifications
| MPPT Amps | 60 |
|---|
