Victron MPPT 150/45 – SmartSolar Charge Controller – Tr

Victron MPPT 150/45 – SmartSolar Charge Controller – Tr

SCC115045212

Brand: Victron

High-performance MPPT technology – Optimises energy harvest with ultra-fast tracking and advanced algorithm for partially shaded conditions. Wide system compatibility – Auto-select battery voltage for 12 V, 24 V or 48 V systems; supports up to 150 V PV array open-circuit voltage for flexible array sizing. Smart connectivity – Built-in Bluetooth Smart and VE.Direct port for set-up, monitoring and firmware updates via the VictronConnect app. Programmable charging & protection – Supports multi-stage adaptive charging plus comprehensive protection: over-temperature, reverse polarity, short circuit and more. Dimensions: 130 x 186 x 70mm Weight: 1.25kg

Low stock: 10 left

£210.00 GBP
£210.00 GBP
Sale Sold out

Product Details

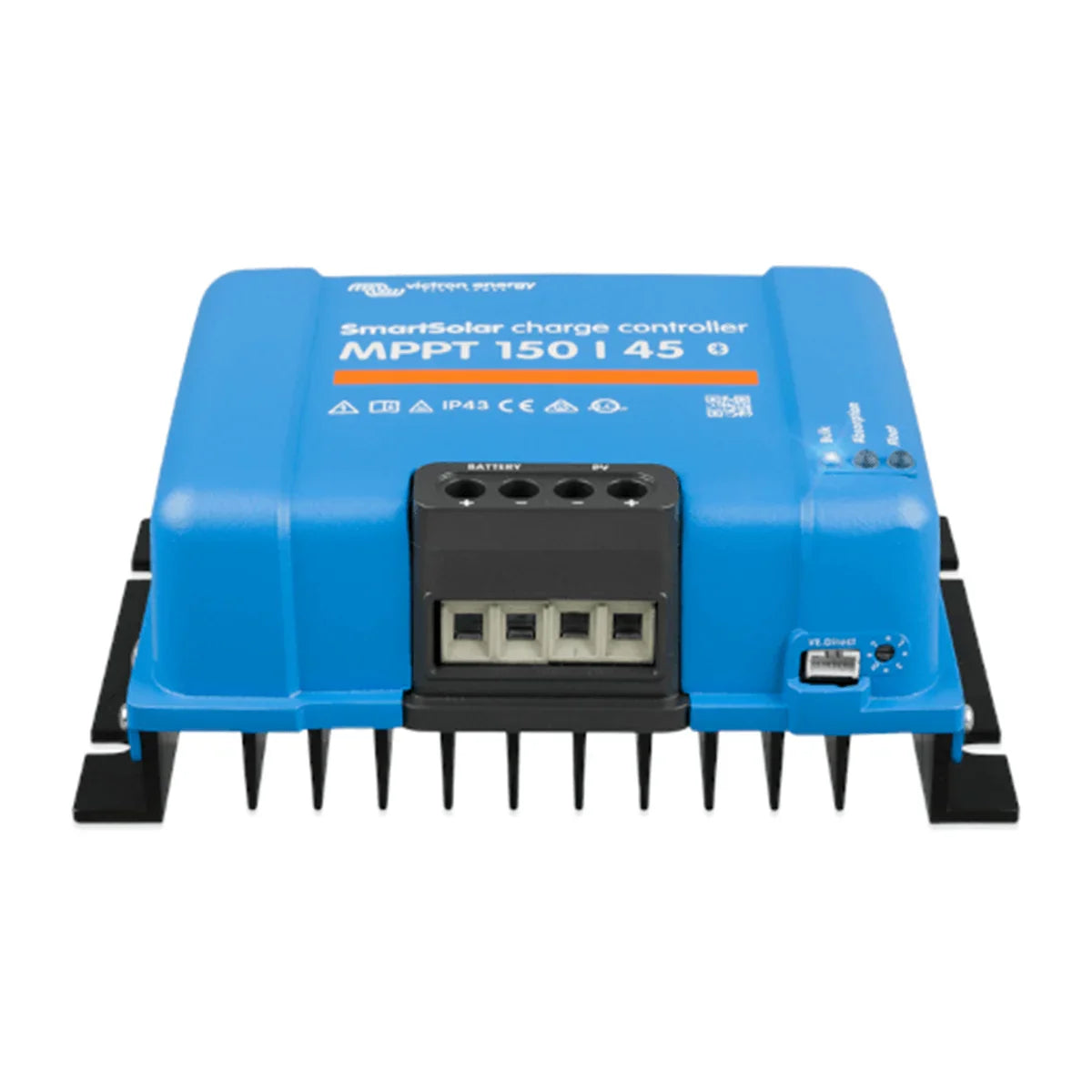

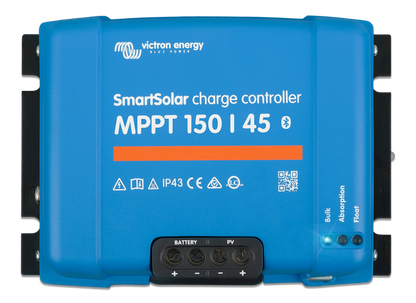

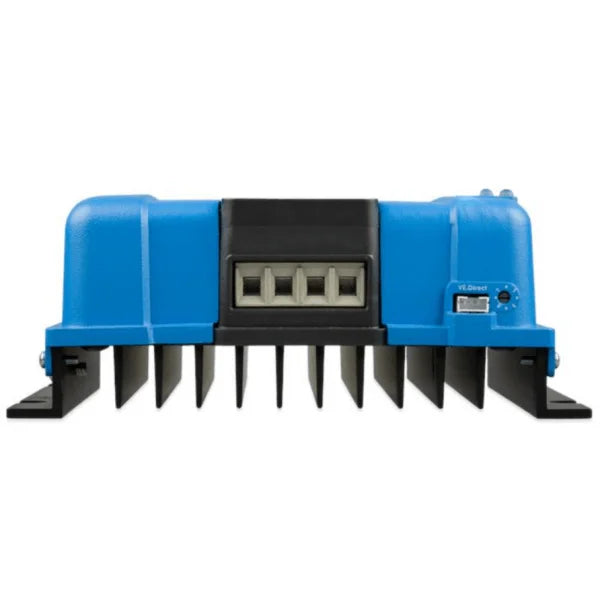

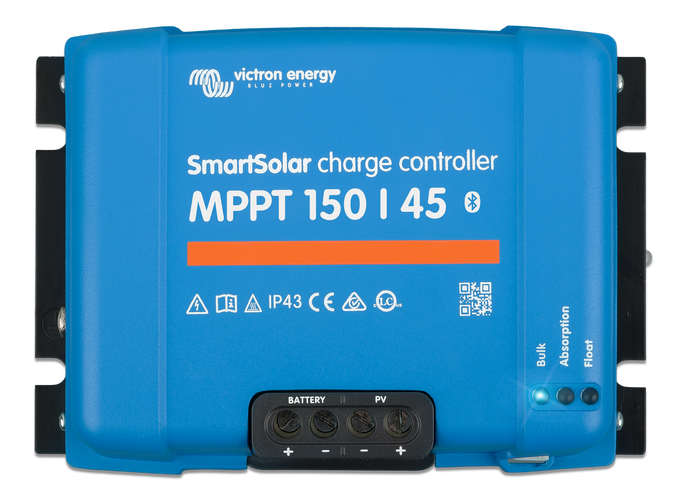

The Victron SmartSolar MPPT 150/45 Charge Controller (SKU SCC115045212) offers a powerful and flexible solar charging solution for professional installations. With a nominal charge current of 45 A and auto-selecting battery voltage compatibility (12 V, 24 V or 48 V) it adapts to a wide range of systems.

PV input voltage is supported up to 150 V open-circuit (Voc) for safe integration of larger solar arrays. The controller uses Victron’s ultra-fast MPPT technology for improved energy harvest in variable sunlight conditions, delivering peak efficiency above 98 % thanks to its fan-less design.

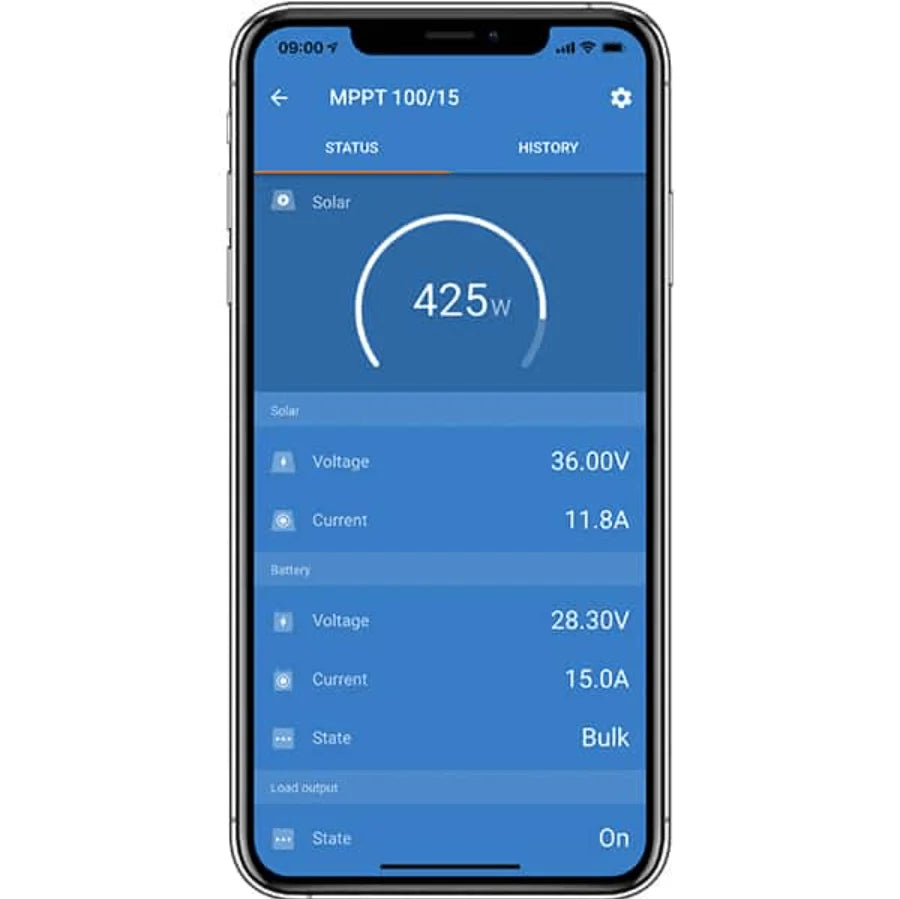

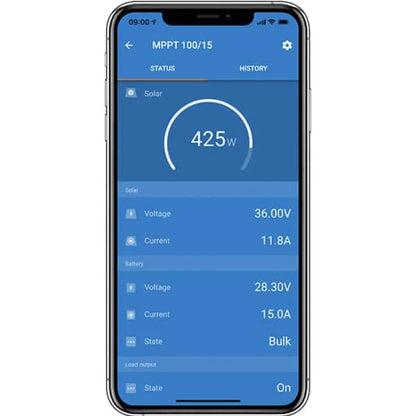

Built for smart system integration, it features Bluetooth Smart built-in and a VE.Direct data port for configuration, monitoring and remote updates via the VictronConnect app. The flexible charge algorithm allows for multi-stage adaptive charging (bulk, absorption, float) and is fully programmable to accommodate different battery chemistries and system requirements.

Mechanically the unit is compact and trade-friendly. It comes in Victron blue colour, weighs about 1.25 kg and its dimensions are 130 × 186 × 70 mm. Protection ratings include IP43 for electronics and IP22 for connection area.

Ideal for installers working on solar-hybrid systems, boat, vehicle or off-grid battery setups, this controller simplifies wiring and enhances performance with professional features expected in trade applications.

Product Specifications

Electrical Specifications

  • Battery Voltage: 12 / 24 / 48 V Auto Select (36 V requires software tool)
  • Rated Charge Current: 45 A
  • Nominal PV Power (12 V): 650 W
  • Nominal PV Power (24 V): 1300 W
  • Nominal PV Power (36 V): 1950 W
  • Nominal PV Power (48 V): 2600 W
  • Maximum PV Open Circuit Voltage: 150 V (absolute maximum coldest conditions), 145 V (start-up and operating maximum)
  • Max. PV Short Circuit Current: 50 A
  • Maximum Efficiency: 98%
  • Self-Consumption: 12 V: 20 mA / 24 V: 15 mA / 48 V: 10 mA

Charge Settings & Algorithm

  • Charge Algorithm: Multi-stage adaptive
  • Pre-programmed Algorithms: Eight selectable algorithms via a rotary switch
  • Charge Voltage 'Absorption': 14.4 / 28.8 / 43.2 / 57.6 V (Default setting, fully programmable)
  • Charge Voltage 'Float': 13.8 / 27.6 / 41.4 / 55.2 V (Default setting, fully programmable)
  • Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
  • Internal Temperature Sensor: Included (compensates absorption and float charge voltage for temperature)
  • Recovery Function: Will initiate charging even if the battery has been discharged to zero volts; reconnects to fully discharged Li-ion batteries with internal disconnect functions.

Connectivity & Features

  • Bluetooth Smart Built-in: Wireless solution to set-up, monitor, update, and synchronise SmartSolar Charge Controllers.
  • VE.Direct Port: For a wired data connection to a Color Control GX, other GX products, PC, or other devices.
  • External Sensing Option: Compatible with Smart Battery Sense or a BMV-712 Smart Battery Monitor via Bluetooth to communicate battery voltage and temperature.
  • Stored Trends: Internal storage for 46 days of historical data, including battery voltage, current, temperature, PV voltage, and PV current.

Mechanical & Enclosure

  • Dimensions (H x W x D): 130 x 186 x 70 mm
  • Weight: 1.25 kg
  • Power Terminals: 16 mm² / AWG6
  • Colour: Blue (RAL 5012)
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Cooling: Natural convection (no cooling fan)

Environmental & Standards

  • Operating Temperature Range: -30 to +60°C (Full rated output current up to 40°C)
  • Humidity: 95%, non-condensing
  • Integrated Protections: Over-temperature protection and power derating, PV short circuit, PV reverse polarity, and PV reverse current protection.
  • Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2

Victron MPPT 150/45 – SmartSolar Charge Controller – Tr – Manual

Victron MPPT 150/45 – SmartSolar Charge Controller – Tr – Data Sheet

MPPT Amps 45
