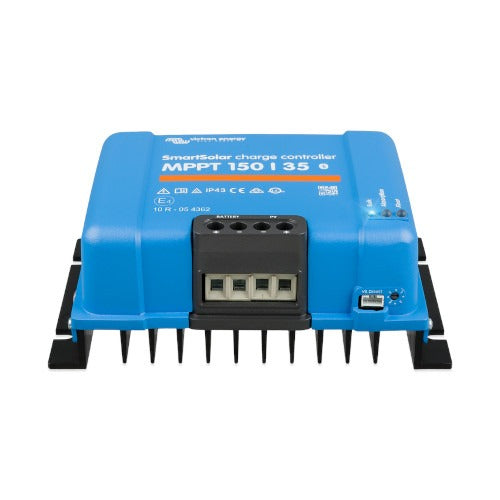

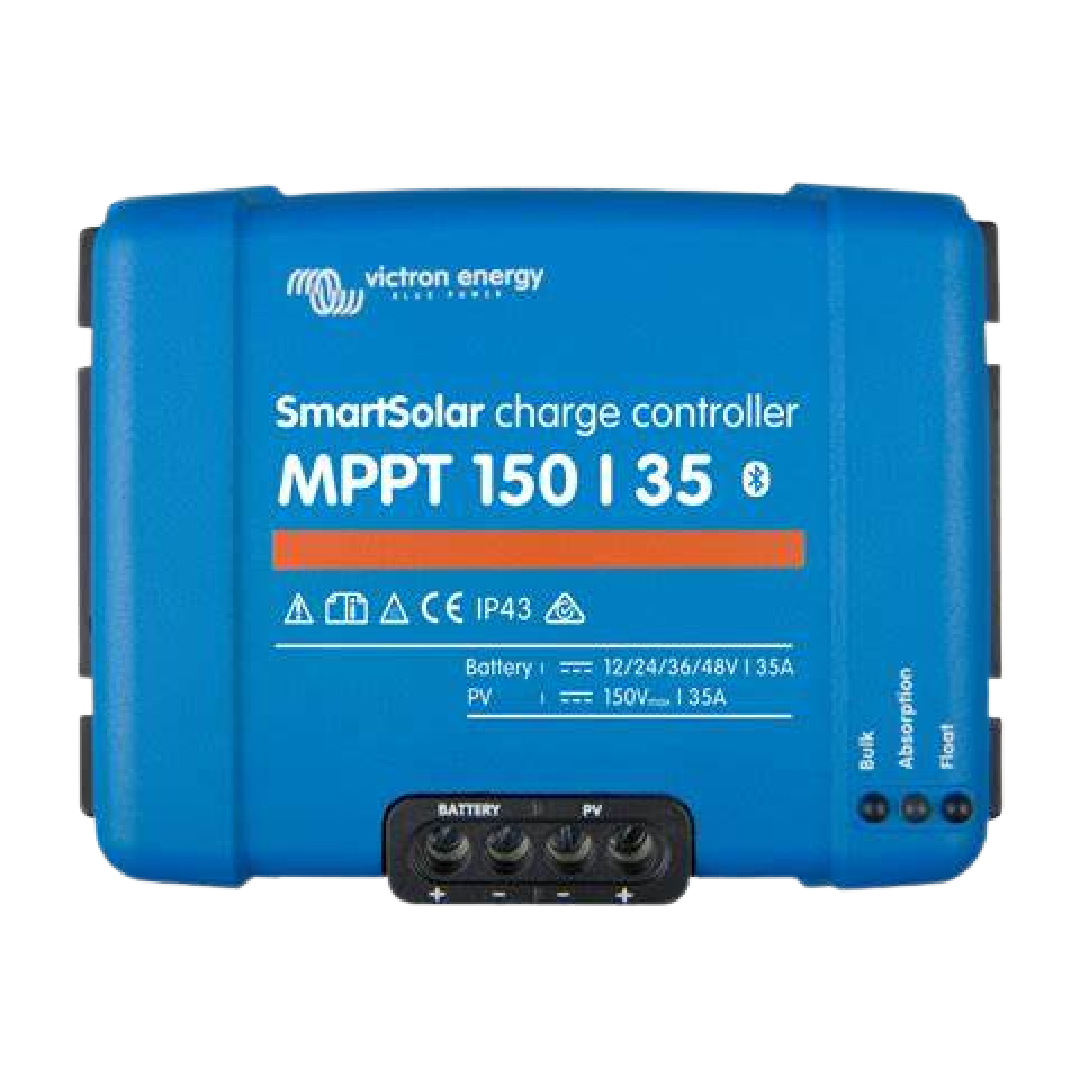

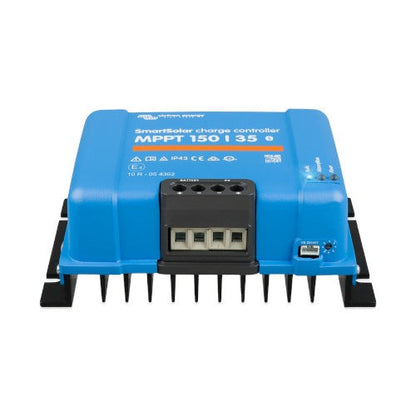

Victron MPPT 150/35 – SmartSolar Charge Controller – Tr
Victron MPPT 150/35 – SmartSolar Charge Controller – Tr
SKU:SCC115035210
Brand: Victron
Superior Efficiency: Delivers over 98% peak efficiency, optimising energy harvest.
Versatile Compatibility: Automatically detects and supports 12V, 24V, and 48V systems.
Intelligent Charging: Adaptive multi-stage charging extends battery lifespan.
Robust Protection: Equipped with over-temperature, short circuit, and reverse polarity safeguards.
Remote Access: Monitor and configure settings via VictronConnect app and VRM portal.
Dimensions: 130 x 186 x 70mm
Weight: 1.25kg
19 in stock
Regular price
£178.00 GBP
Regular price
Sale price
£178.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron MPPT 150/35 – SmartSolar Charge Controller is engineered to maximise solar energy capture and ensure efficient battery charging. Designed for professional and trade applications, it offers intelligent charging, robust protection, and seamless integration into off-grid systems.
Key Features:
- High Efficiency: Achieves peak efficiency exceeding 98%, ensuring optimal energy conversion.
- Automatic Battery Voltage Detection: Supports 12V, 24V, and 48V systems with manual selection for 36V.
- Advanced Charging Algorithms: Utilises multi-stage adaptive charging to extend battery life.
- Comprehensive Protection: Includes over-temperature, short circuit, and reverse polarity protections.

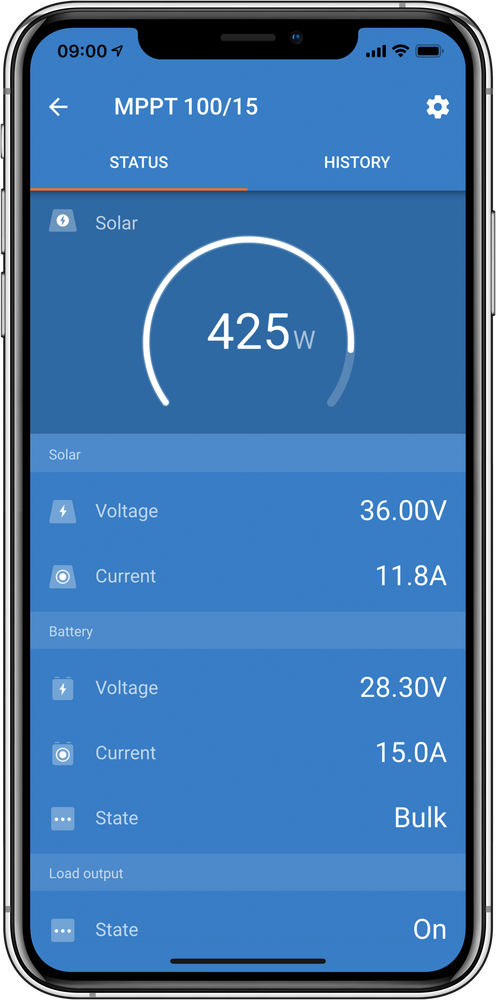

- Remote Monitoring: Compatible with VictronConnect app and VRM portal for real-time monitoring and configuration.
This charge controller is ideal for applications such as off-grid solar systems, marine setups, and remote installations, providing reliable and efficient power management.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12 / 24 / 48 V Auto Select (36V requires software tool)
- Rated Charge Current: 35 A
- Nominal PV Power (12V): 500 W
- Nominal PV Power (24V): 1000 W
- Nominal PV Power (36V): 1500 W
- Nominal PV Power (48V): 2000 W
- Maximum PV Open Circuit Voltage: 150 V absolute maximum coldest conditions / 145 V start-up and operating maximum
- Maximum PV Short Circuit Current: 40 A
- Maximum Efficiency: 98%
- Self-Consumption: 12V: 20 mA / 24V: 15 mA / 48V: 10 mA
Charging & Algorithms
- Charge Algorithm: Multi-stage adaptive
- Pre-programmed Algorithms: Eight selectable via rotary switch
- Programmability: Fully programmable charge algorithm via software
- Charge Voltage 'Absorption' (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
- Charge Voltage 'Float' (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
- Temperature Compensation: -16 / -32 / -64 mV/°C
- Temperature Sensing: Internal sensor included; optional external battery sensing via Bluetooth (using Smart Battery Sense or BMV-712)
Protection & Environmental
- Electronic Protection: Over-temperature and power derating, PV short circuit, PV reverse polarity, and PV reverse current protection.
- Operating Temperature Range: -30°C to +60°C (Full rated output up to 40°C)
- Humidity: 95%, non-condensing
- Cooling: Natural convection (No cooling fan)
Mechanical Specifications
- Dimensions (H x W x D): 130 x 186 x 70 mm
- Weight: 1.25 kg
- Enclosure Colour: Blue (RAL 5012)
- Power Terminals: 16 mm² / AWG6
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Data Communication Port: VE.Direct (for wired connection to GX products, PC, or other devices)
Standards & Compliance
- Safety: EN/IEC 62109-1, UL 1741, CSA C22.2

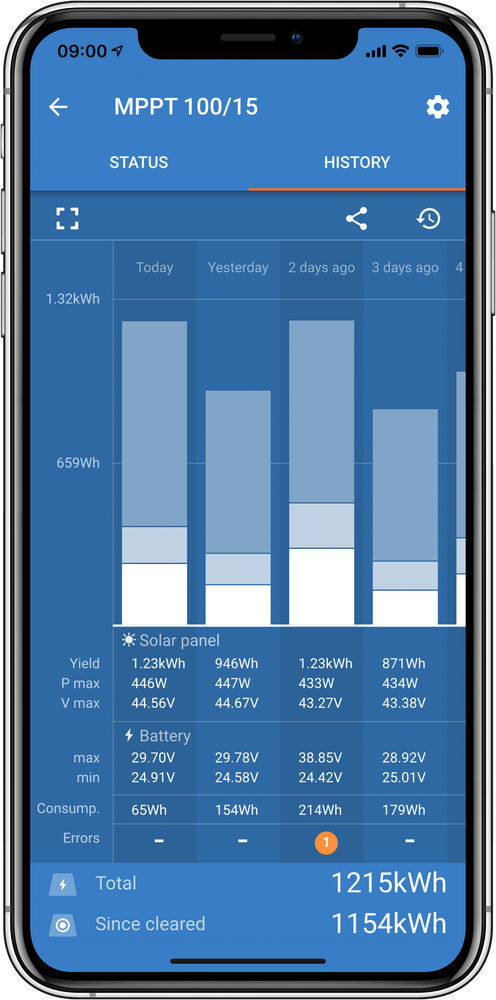

- Data Logging: Internal storage for up to 46 days of trend data, including battery voltage, current, temperature, PV voltage, and PV current.
Technical Specifications
Technical Specifications
| MPPT Amps | 35 |
|---|
