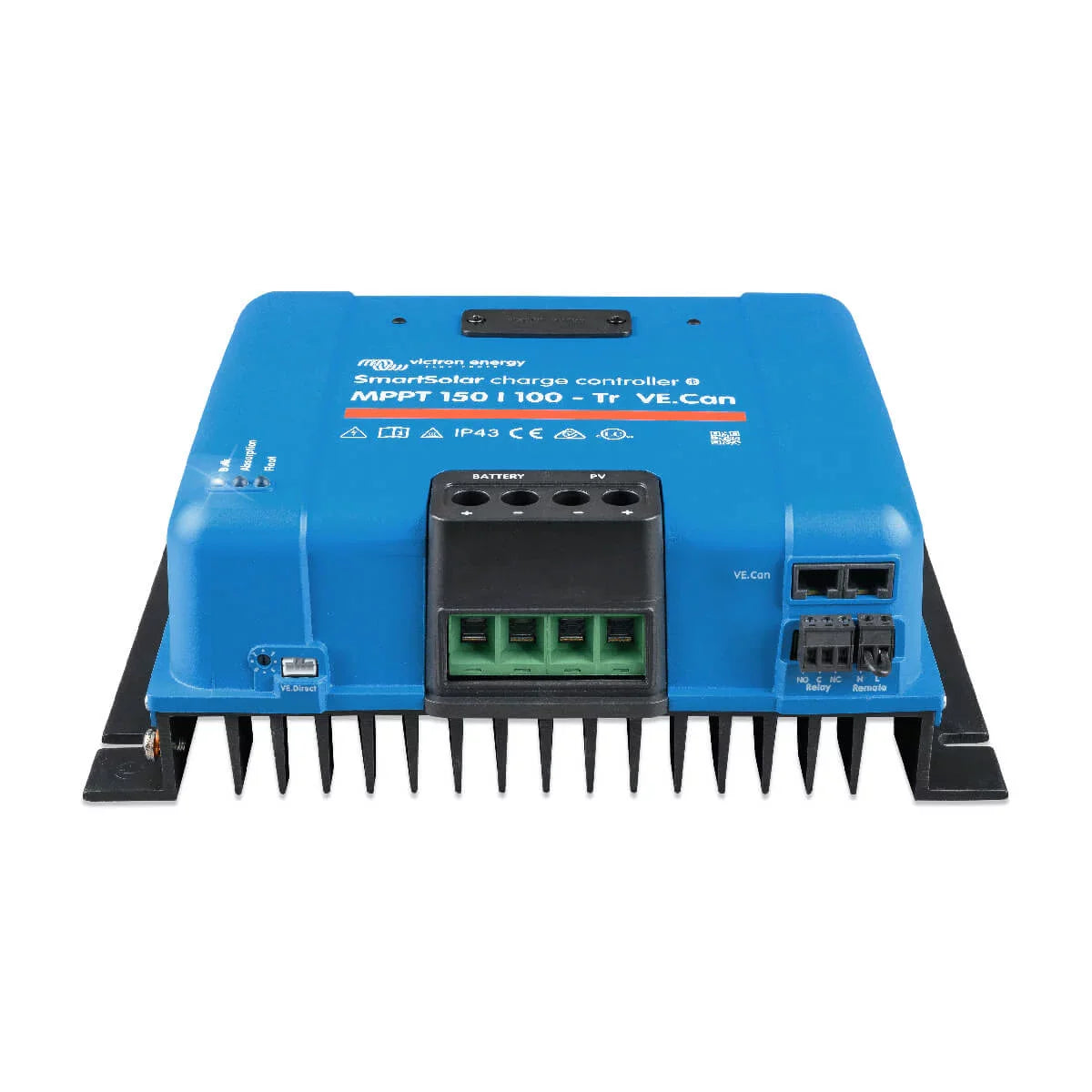

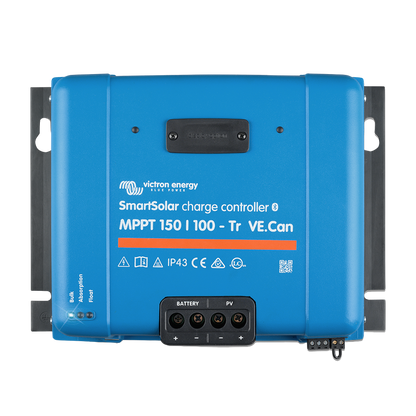

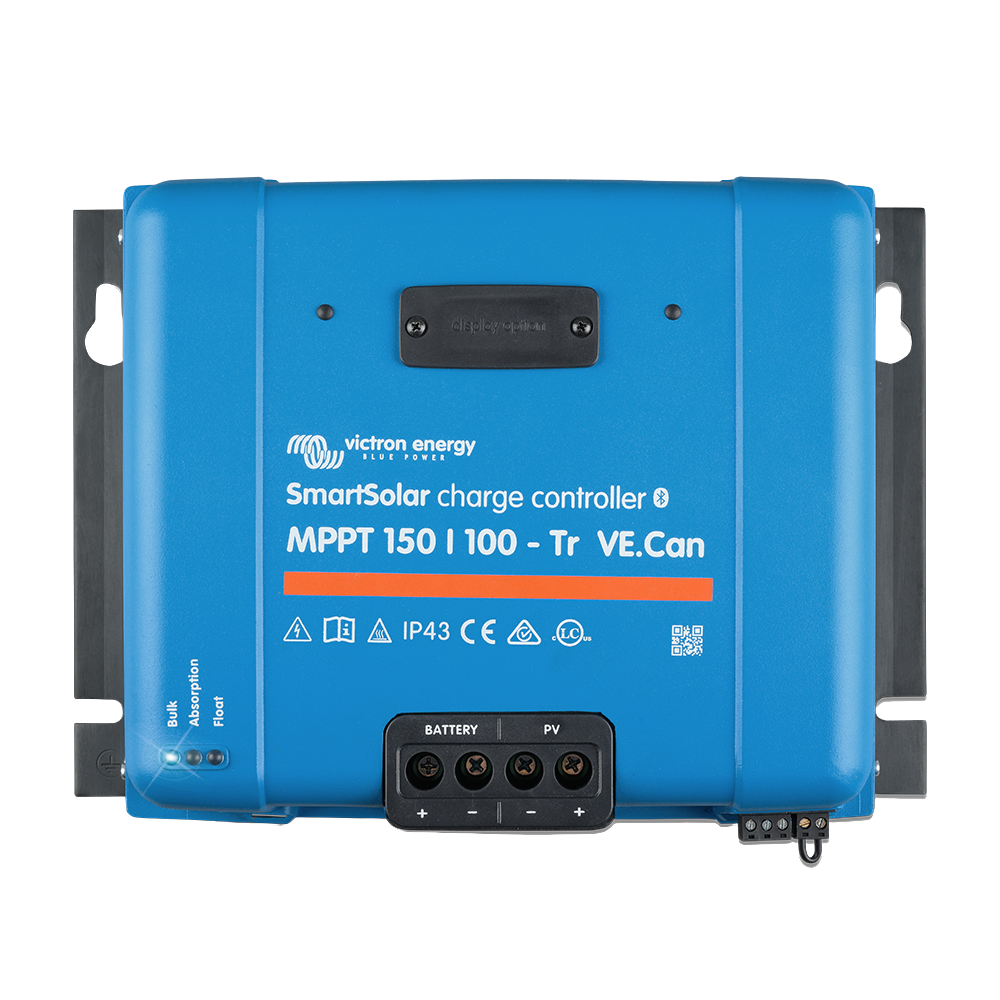

Victron MPPT 150/100 – SmartSolar Charge Controller – Tr VE.Can

Victron MPPT 150/100 – SmartSolar Charge Controller – Tr VE.Can

SCC115110411

Brand: Victron

30% More Energy Harvest: Ultra-Fast MPPT maximises solar yield, even under partial shading. System Sync via VE.Can: Daisy-chain and synchronise up to 25 controllers for optimal large-system performance. Wireless App Control: Monitor and manage settings easily using the built-in Bluetooth and VictronConnect App. Extends Battery Life: Adaptive charging and the BatteryLife algorithm protect and prolong battery health. Professional 100A Capacity: High-current 100A rating handles substantial PV arrays for serious installations. Dimensions: 216 x 295 x 103mm Weight: 4.5kg

Low stock: 3 left

£498.00 GBP
£498.00 GBP
Sale Sold out

Product Details

The Victron MPPT 150/100 SmartSolar Charge Controller is the intelligent, high-capacity solution for serious off-grid, marine, and commercial solar installations. Engineered for performance and reliability, this flagship 100-Amp controller is designed to maximise your energy harvest and significantly extend your battery life, making it an essential investment for any high-power 12V, 24V, or 48V system.

At the core of the 150/100 is Victron's Ultra-Fast Maximum Power Point Tracking (MPPT) technology. This advanced system constantly scans your solar array's output, ensuring that every drop of available power is converted into useable energy. In challenging conditions, such as partial shading or continuous cloud movement, this ultra-fast tracking can deliver up to 30% more energy compared to slower controllers, guaranteeing peak system performance when you need it most.

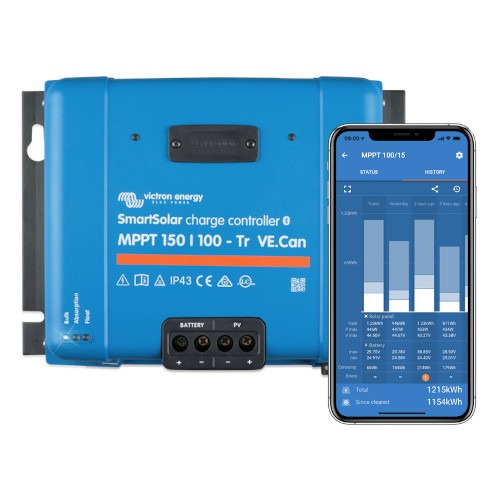

Connectivity is key in modern power systems, and the SmartSolar 150/100 excels with both Bluetooth Smart and VE.Can built-in. Use the free VictronConnect App on your smartphone to wirelessly set up, monitor, and update your charger, giving you real-time data and full control from the palm of your hand. For larger, complex installations, the VE.Can port is a game changer, allowing you to easily daisy chain and synchronise up to 25 units. This feature ensures all controllers switch through charge stages simultaneously, optimising overall system efficiency and simplifying data transmission to a central Victron GX device.

The controller prioritises the health and longevity of your battery bank. Its adaptive, multi-stage charging algorithm intelligently switches between bulk, absorption, and float stages, adjusting to your specific battery type (compatible with lithium, AGM, gel, and flooded). Furthermore, the innovative BatteryLife algorithm protects against excessive discharge, ensuring the system attempts a full 100% recharge daily. It can even initiate charging for a fully depleted battery, offering unmatched resilience and extending operational life.

Built to Victron's high standards, the unit features a robust, naturally cooled design for high reliability, capable of full output up to 40°C. With its industrial Tr screw terminals for secure, high-current connections and finished in the distinct Victron blue colour, the SmartSolar MPPT 150/100 is the professional choice for a powerful, optimised, and fully connected solar power system. For installers, the precise dimensions are 216mm (H) x 295mm (W) x 103mm (D). Choose this controller for a reliable, high-performing foundation for your next project.

Product Specifications

Electrical Specifications

  • Battery Voltage: 12/24/48 V Auto Select (36 V: Manual)
  • Rated Charge Current: 100 A
  • Maximum PV Open Circuit Voltage: 150 V (absolute maximum coldest conditions), 145 V (start-up and operating maximum)
  • Max. PV Short Circuit Current: 70 A
  • Maximum Efficiency: 98%
  • Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
  • Nominal PV Power (12 V): 1450 W
  • Nominal PV Power (24 V): 2900 W
  • Nominal PV Power (36 V): 4350 W
  • Nominal PV Power (48 V): 5800 W

Charge Settings & Algorithm

  • Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
  • Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
  • Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
  • Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
  • Temperature Compensation: -16 mV / -32 mV / -64 mV / °C

Mechanical & Enclosure

  • PV Terminals: 35 mm² / AWG2 (Tr screw terminals)
  • Battery Terminals: 35 mm² / AWG2
  • Dimensions (H x W x D): 216 x 295 x 103 mm
  • Weight: 4.5 kg
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Color: Blue (RAL 5012)

Connectivity & Features

  • Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
  • Parallel Operation: Synchronized charging with up to 25 units (VE.Can) or 10 units (Bluetooth)
  • Remote On/Off: Yes (2-pole connector)
  • Programmable Relay: DPST (AC: 240 VAC / 4 A; DC: 4 A up to 35 VDC, 1 A up to 60 VDC)
  • Data Storage: 46-day trend history for battery voltage, current, temperature, PV voltage, and PV current
  • Optional Display: SmartSolar pluggable LCD display (not included)

Environmental & Standards

  • Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
  • Humidity: 95%, non-condensing
  • Maximum Altitude: 5000m (Full rated output up to 2000m)
  • Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2

Victron MPPT 150/100 – SmartSolar Charge Controller – Tr VE.Can – Manual

Victron MPPT 150/100 – SmartSolar Charge Controller – Tr VE.Can – Data Sheet

MPPT Amps 100
