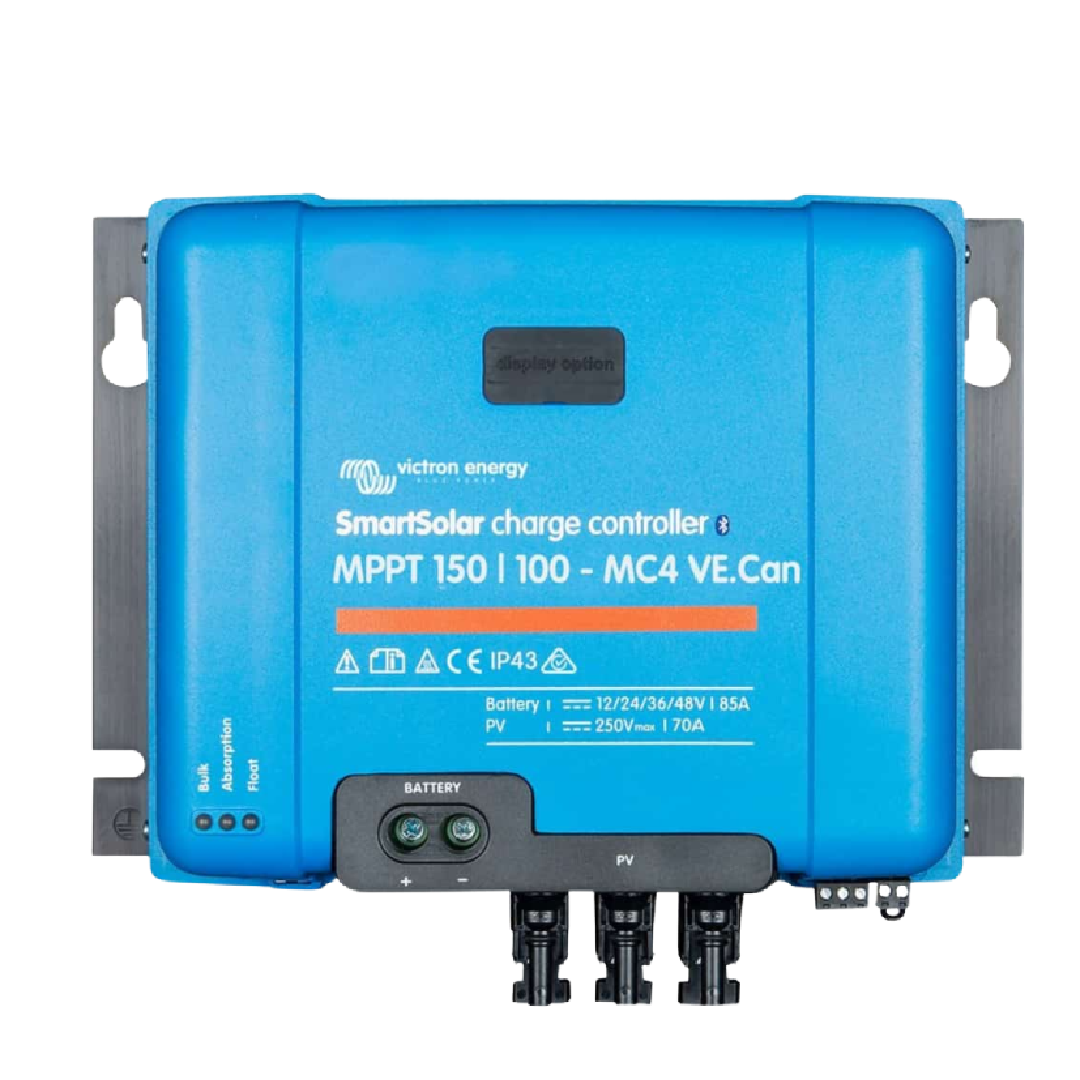

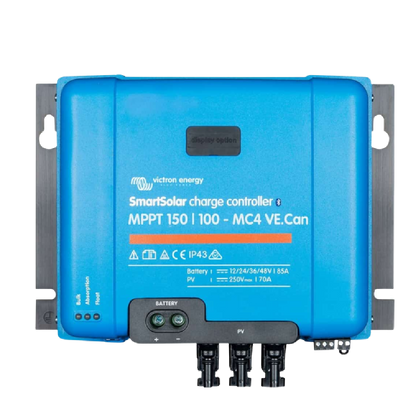

Victron SmartSolar MPPT 150/100-MC4 VE.Can

Victron SmartSolar MPPT 150/100-MC4 VE.Can

SCC115110511

Brand: Victron

Maximum Energy Yield: Ultra-Fast MPPT technology boosts solar harvest by up to 30%, especially in partially shaded or cloudy UK conditions. Professional Power Handling: Rated for a massive 100 Amps of charge current and a 150V PV input, it is built for large, high-efficiency solar arrays. Ultimate Scalability (VE.Can): Easily daisy-chain and synchronise up to 25 controllers via VE.Can for creating one unified, centrally managed power system. Wireless Control & Setup: Integrated Bluetooth Smart allows you to monitor and configure the unit instantly and wirelessly using the free VictronConnect App. Secure, Simple Connection: Features MC4 connectors for a fast, reliable, and durable connection to your solar panel strings. Dimensions: 246 x 295 x 103mm Weight: 4.5kg

Low stock: 3 left

£508.00 GBP
£508.00 GBP
Sale Sold out

Product Details

Victron SmartSolar MPPT 150/100-MC4 VE.Can: The Ultimate 100A Solar Power Manager

Step up to professional-grade solar energy management with the Victron SmartSolar MPPT 150/100-MC4 VE.Can. Engineered for large, high-voltage off-grid systems, from extensive motorhome and marine installations to sophisticated remote power solutions, this charge controller delivers maximum performance and seamless integration. It is your guarantee of superior energy harvest and long-term battery health.

At the heart of the unit is Victron's industry-leading Ultra-Fast Maximum Power Point Tracking (MPPT) technology. This innovative algorithm constantly scans the power-voltage curve of your solar array, ensuring it immediately locks onto the optimal Maximum Power Point (MPP). This is especially crucial in the unpredictable UK climate: even under fast-moving cloud cover or partial shading, the controller can deliver up to 30% more energy harvest than slower PWM controllers. With an outstanding 98% conversion efficiency and a completely silent, fanless design, you get all the power without the waste.

This 'SmartSolar' model features built-in Bluetooth Smart, making setup and monitoring incredibly simple. Use the free VictronConnect App on your smartphone or tablet for wireless access to real-time performance data, historical records for up to 46 days, and effortless configuration of charging parameters.

The inclusion of VE.Can and the robust MC4 connectors defines this model's high-capacity capability. The MC4 inputs provide a quick, secure, and weatherproof connection for multiple solar strings, while the VE.Can industrial-grade communication allows you to synchronise and daisy-chain up to 25 SmartSolar MPPT units to work together as a single, powerful system. When connected to a Victron GX monitoring device, this offers full system oversight and remote management via the Victron Remote Management portal.

Built to handle serious power, the controller supports a 100 Amp rated charge current and a high 150V maximum PV input voltage, making it perfect for efficient, long-string panel layouts charging 12V, 24V, 36V, or 48V battery banks. It includes a fully flexible, multi-stage adaptive charge algorithm that automatically optimises charging for all common battery types, including Lithium, Gel, AGM, and Flooded, ensuring your valuable batteries are always protected and maintained.

Product Specifications

Electrical Specifications

  • Battery Voltage: 12/24/48 V Auto Select (36 V: Manual)
  • Rated Charge Current: 100 A
  • Maximum PV Open Circuit Voltage: 150 V (absolute maximum coldest conditions), 145 V (start-up and operating maximum)
  • Max. PV Short Circuit Current: 70 A (Maximum 30 A per MC4 connector pair)
  • Maximum Efficiency: Exceeds 98%
  • Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
  • Nominal PV Power (12 V): 1450 W
  • Nominal PV Power (24 V): 2900 W
  • Nominal PV Power (36 V): 4350 W
  • Nominal PV Power (48 V): 5800 W

Charge Settings & Algorithm

  • Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
  • Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
  • Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
  • Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
  • Temperature Compensation: -16 mV / -32 mV / -64 mV / °C

Mechanical & Enclosure

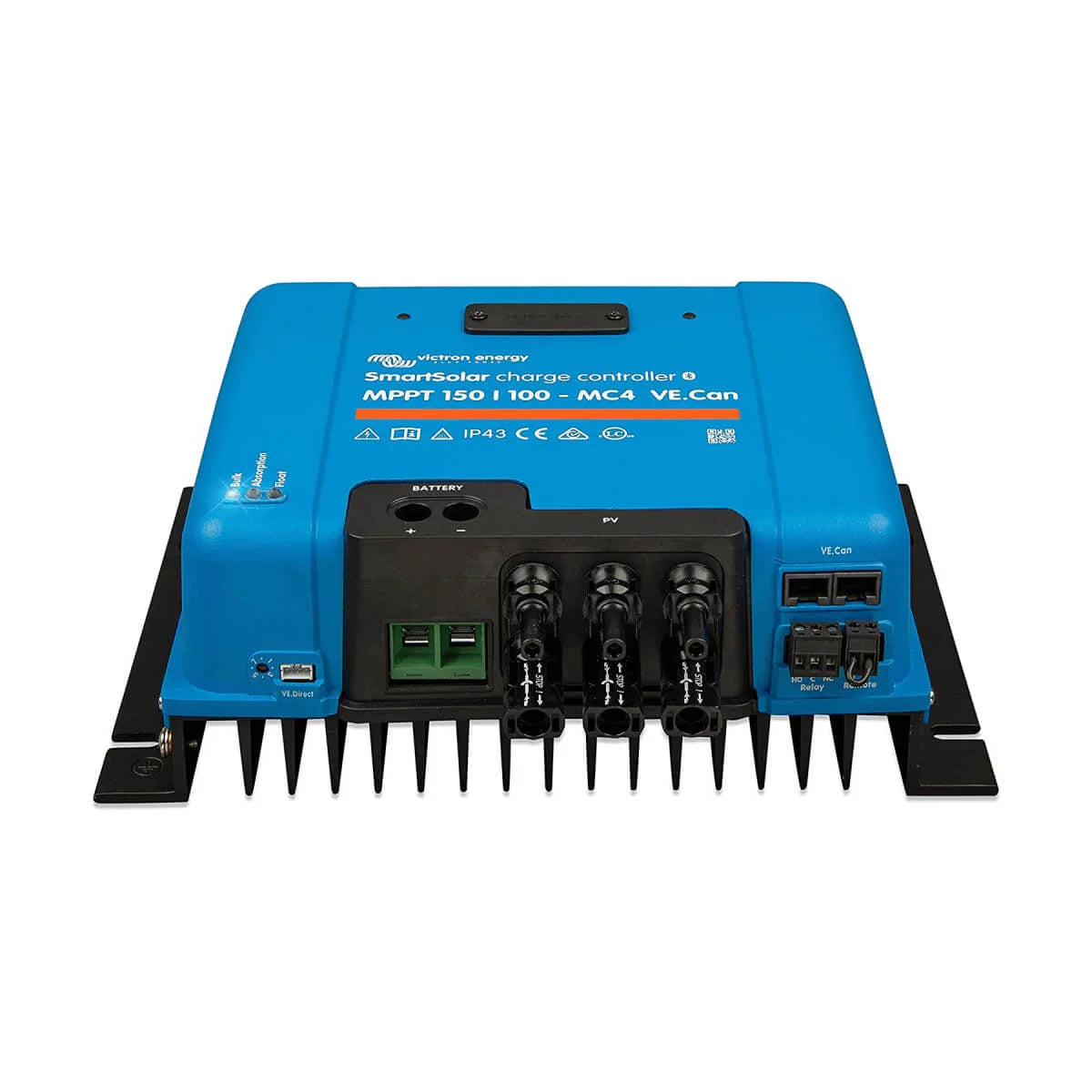

  • PV Terminals: Three pairs of MC4 connectors
  • Battery Terminals: 35 mm² / AWG2
  • Dimensions (H x W x D): 246 x 295 x 103 mm
  • Weight: 4.5 kg
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Color: Blue (RAL 5012)

Connectivity & Intelligence

  • Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
  • Parallel Operation: Synchronized charging with up to 25 units (VE.Can) or 10 units (Bluetooth)
  • Remote On/Off: Yes (2-pole connector)
  • Programmable Relay: DPST (AC: 240 VAC / 4 A; DC: 4 A up to 35 VDC, 1 A up to 60 VDC)
  • Data Storage: 46-day trend history for battery voltage, current, temperature, and PV data

Environmental & Standards

  • Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
  • Humidity: 95%, non-condensing
  • Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2

Victron SmartSolar MPPT 150/100-MC4 VE.Can – Manual

Victron SmartSolar MPPT 150/100-MC4 VE.Can – Data Sheet

MPPT Amps 100
