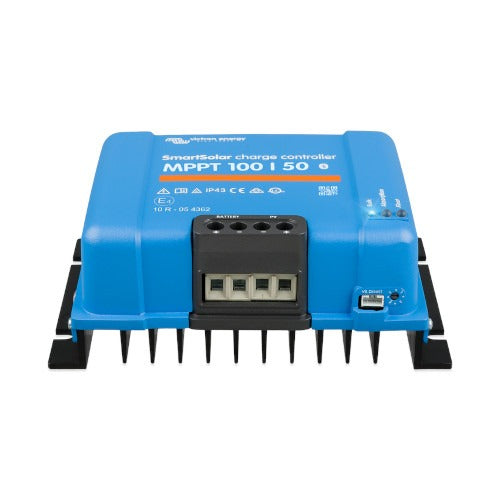

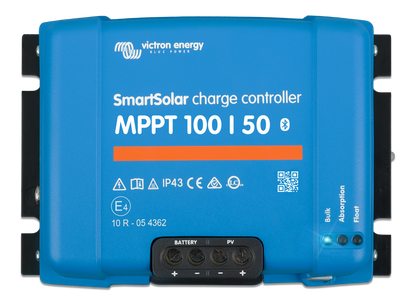

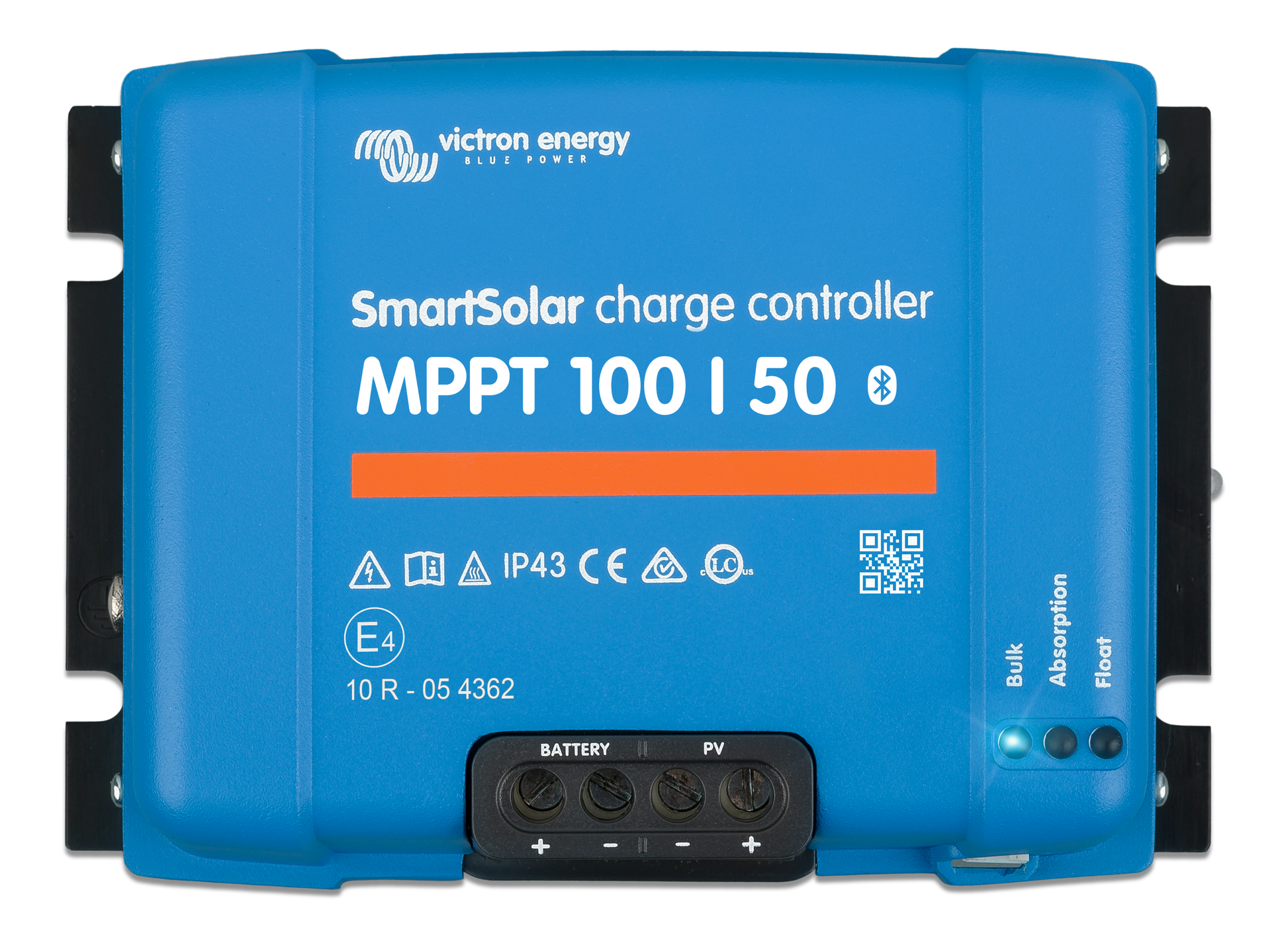

Victron MPPT 100/50 - SmartSolar Charge Controller
Victron MPPT 100/50 - SmartSolar Charge Controller
SKU:SCC110050210
Brand: Victron
40 in stock
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy MPPT 100/50 – SmartSolar Charge Controller is engineered for high-performance solar energy systems, offering intelligent battery charging and efficient power conversion. With a maximum charge current of 50A and compatibility with 12V and 24V battery systems, it is ideal for off-grid installations, marine applications, and mobile setups.
Key Features:
- Maximum Power Point Tracking (MPPT): Ensures optimal energy harvest by continuously adjusting to the maximum power point of the solar panels, even under varying light conditions.

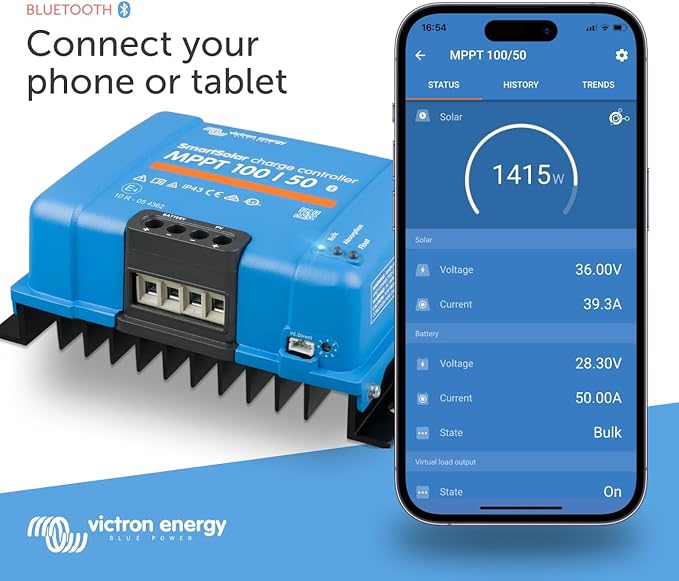

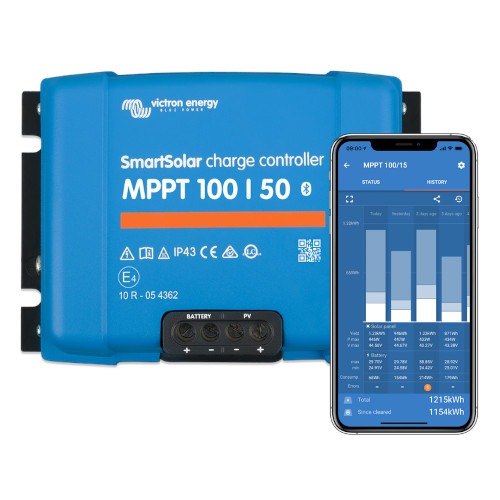

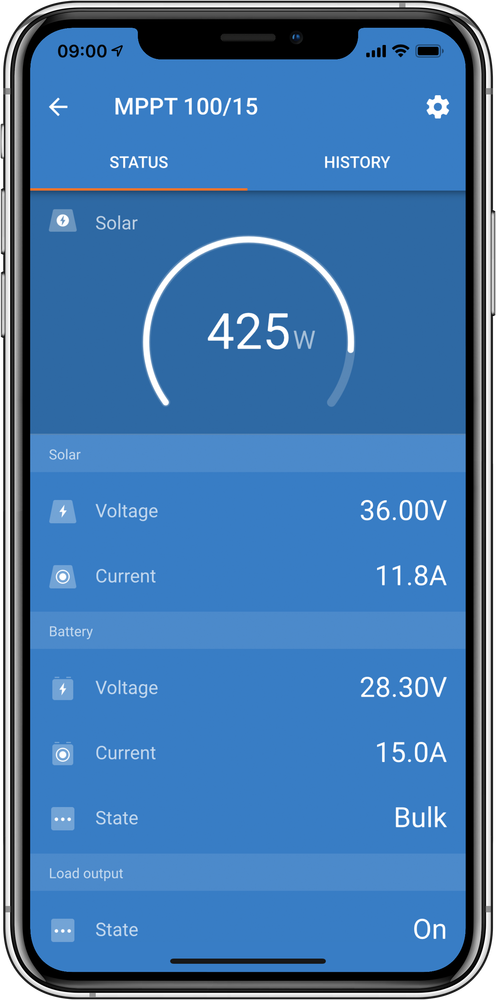

- Bluetooth Connectivity: Integrated Bluetooth allows for remote monitoring and configuration via the VictronConnect app, providing real-time data and system status updates.
- Multi-Stage Adaptive Charging: The controller employs a multi-stage adaptive charging algorithm, automatically switching between bulk, absorption, and float stages to efficiently charge batteries.
- Wide Battery Compatibility: Supports various battery types, including lithium, AGM, gel, and flooded batteries, with automatic voltage selection and dedicated charging profiles.
- Comprehensive Protection Features: Includes built-in protections against over-temperature, short circuits, and reverse polarity, ensuring safe and reliable operation.
Designed with a compact and robust enclosure (IP43 rated), the MPPT 100/50 is suitable for installations in challenging environments. Its user-friendly interface and advanced features make it a preferred choice for professionals seeking a reliable and efficient solar charge controller.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24 V Auto Select
- Rated Charge Current: 50 A
- Nominal PV Power (12V): 700 W
- Nominal PV Power (24V): 1400 W
- Maximum PV Open Circuit Voltage: 100 V
- Maximum PV Short Circuit Current: 60 A
- Maximum Efficiency: 98%
- Self-Consumption: 12V: 30 mA / 24V: 20 mA
Charging & Algorithm
- Charge Algorithm: Multi-stage adaptive
- Charge Voltage 'Absorption': 14.4 V / 28.8 V (Default setting, adjustable)
- Charge Voltage 'Float': 13.8 V / 27.6 V (Default setting, adjustable)
- Temperature Compensation: -16 mV / °C (12V) / -32 mV / °C (24V)
- Internal Temperature Sensor: Included (compensates absorption and float charge voltage)
- Flexible Programming: Eight pre-programmed algorithms selectable via rotary switch or fully programmable via software.
Protection & Environmental
- Integrated Protections: PV reverse polarity, output short circuit, and over-temperature (with power derating).
- Operating Temperature Range: -30°C to +60°C (Full rated output up to 40°C)
- Humidity: 95%, non-condensing
- Cooling: Natural convection (No cooling fan)
Mechanical Specifications

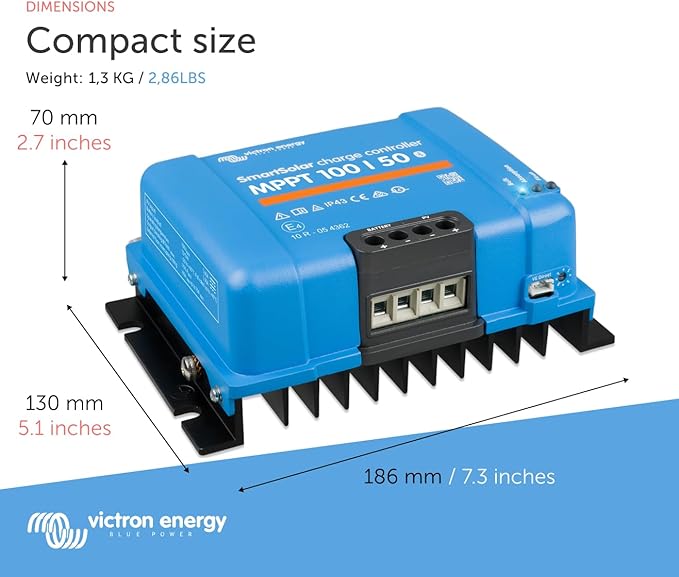

- Dimensions (H x W x D): 130 x 186 x 70 mm
- Weight: 1.3 kg
- Enclosure Colour: Blue (RAL 5012)

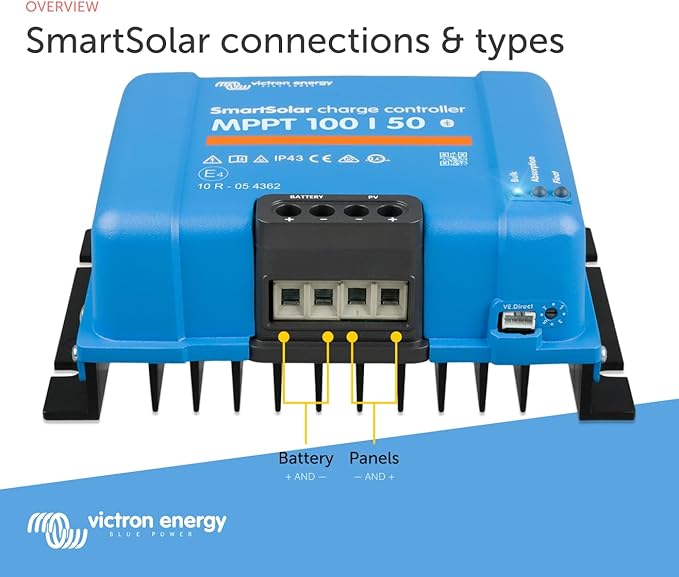

- Power Terminals: 16 mm² / AWG6
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Data Communication Port: VE.Direct (for wired connections to GX products, PC, or other devices)
Standards & Compliance
- Safety: EN/IEC 62109-1, UL 1741, CSA C22.2

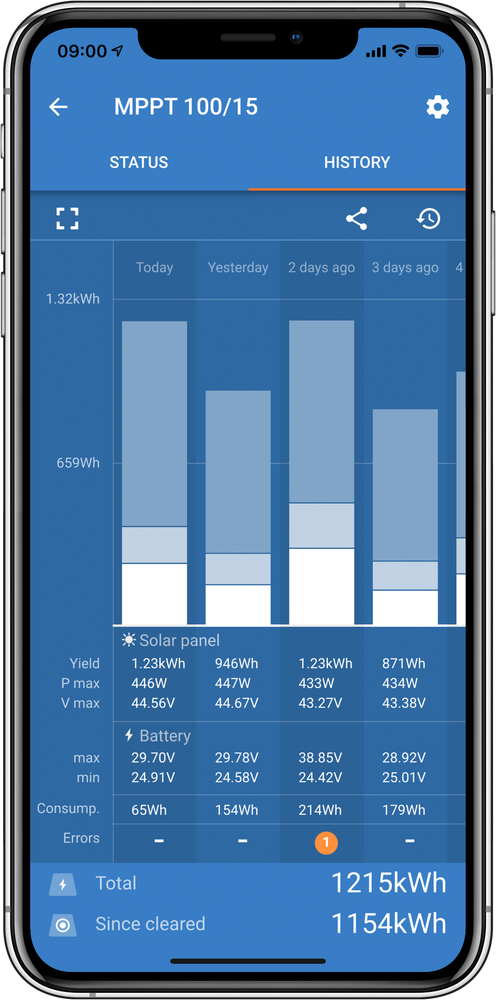

- Stored Trends: Stores up to 46 days of data including battery voltage, current, temperature, PV voltage, and PV current.
Technical Specifications
Technical Specifications
| MPPT Amps | 50 |
|---|
