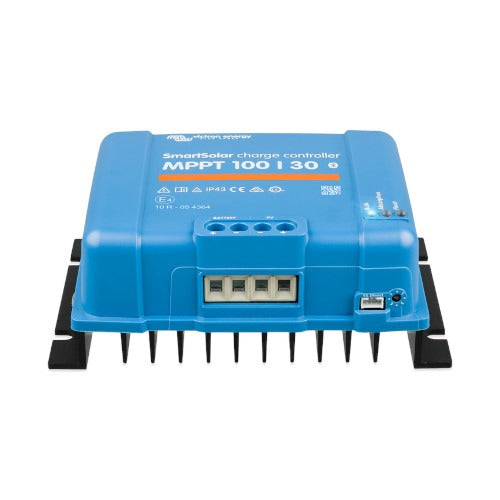

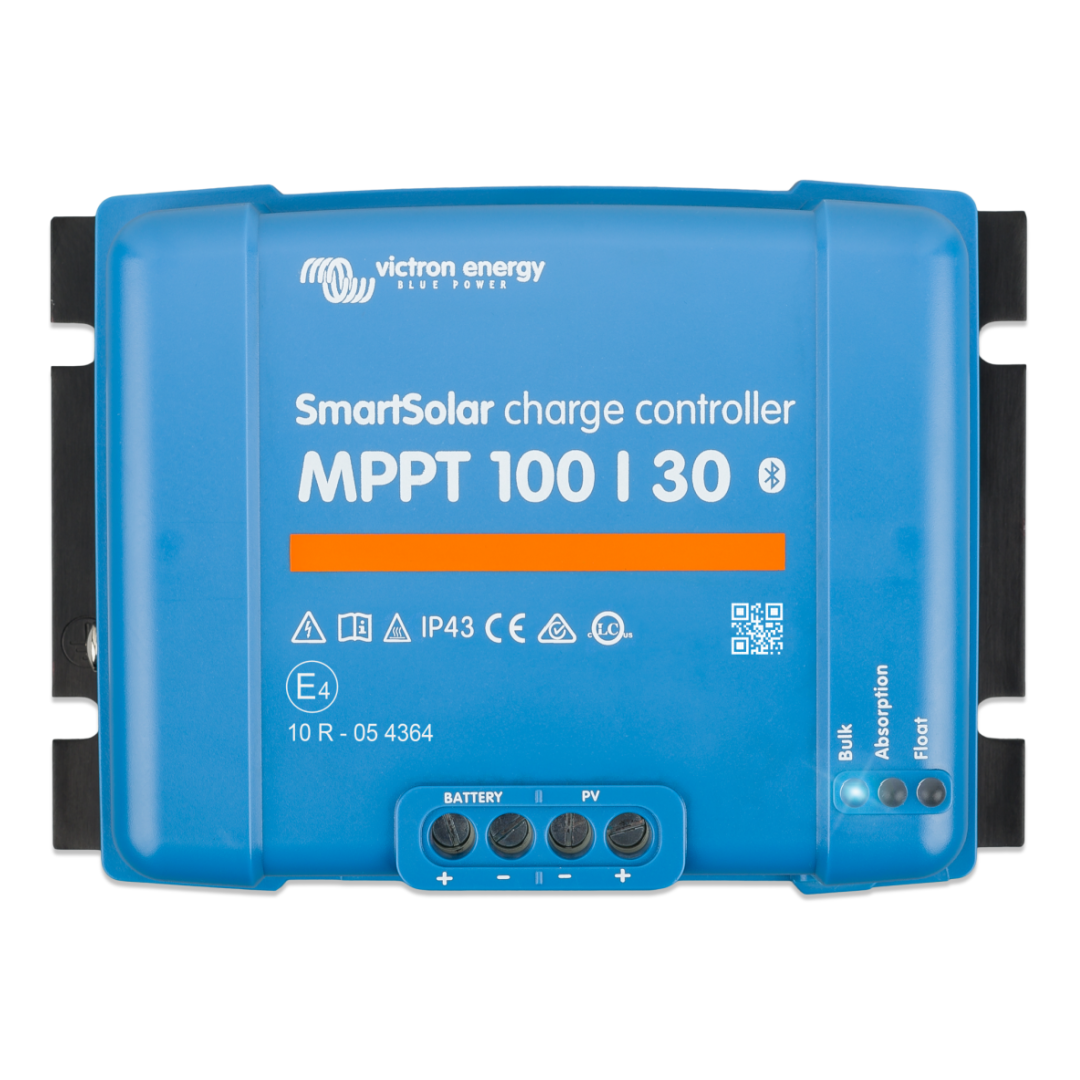

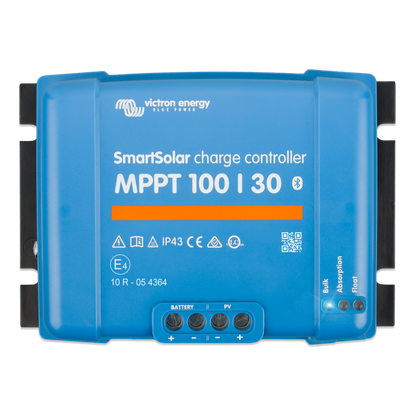

Victron MPPT 100/30 - SmartSolar Charge Controller
Victron MPPT 100/30 - SmartSolar Charge Controller
SKU:SCC110030210
Brand: Victron
Efficient Energy Harvesting: Advanced MPPT technology ensures optimal solar energy capture, even in suboptimal lighting conditions.

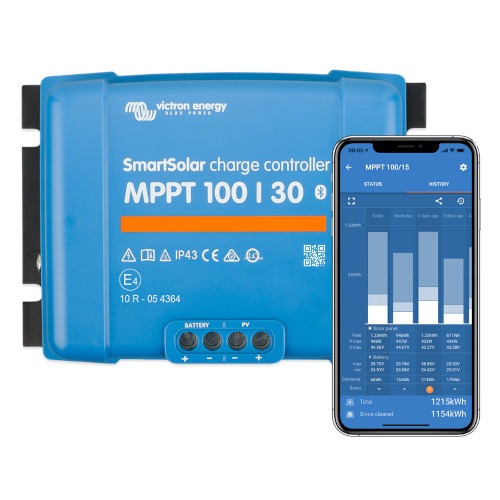

Remote Monitoring: Bluetooth integration enables real-time monitoring and configuration through the VictronConnect app.
Versatile Battery Compatibility: Supports multiple battery types with automatic voltage selection and tailored charging profiles.
Enhanced Safety Features: Built-in protections safeguard against over-temperature, short circuits, and reverse polarity.
Durable and Compact Design: IP43 rated enclosure ensures reliability in various environmental conditions.
Dimension: 130 x 186 x 70mm
Weight: 1.3kg
56 in stock
Regular price
£124.00 GBP
Regular price
Sale price
£124.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy MPPT 100/30 – SmartSolar Charge Controller is a high-performance solution designed to maximise solar energy harvest and ensure efficient battery charging in off-grid, marine, and mobile applications. With a maximum charge current of 30A and compatibility with 12V and 24V battery systems, it is ideal for installations requiring reliable and efficient power management.
Key Features:
- Maximum Power Point Tracking (MPPT): Utilises advanced MPPT technology to optimise energy capture from solar panels, even under varying light conditions.
- Bluetooth Connectivity: Integrated Bluetooth allows for remote monitoring and configuration via the VictronConnect app, providing real-time data and system status updates.
- Multi-Stage Adaptive Charging: Employs a multi-stage adaptive charging algorithm, automatically switching between bulk, absorption, and float stages to efficiently charge batteries.
- Wide Battery Compatibility: Supports various battery types, including lithium, AGM, gel, and flooded batteries, with automatic voltage selection and dedicated charging profiles.
- Comprehensive Protection Features: Includes built-in protections against over-temperature, short circuits, and reverse polarity, ensuring safe and reliable operation.
Designed with a compact and robust enclosure (IP43 rated), the MPPT 100/30 is suitable for installations in challenging environments. Its user-friendly interface and advanced features make it a preferred choice for professionals seeking a reliable and efficient solar charge controller.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24V Auto Select
- Rated Charge Current: 30A
- Nominal PV Power (12V): 440W
- Nominal PV Power (24V): 880W
- Maximum PV Open Circuit Voltage: 100V
- Max. PV Short Circuit Current: 35A

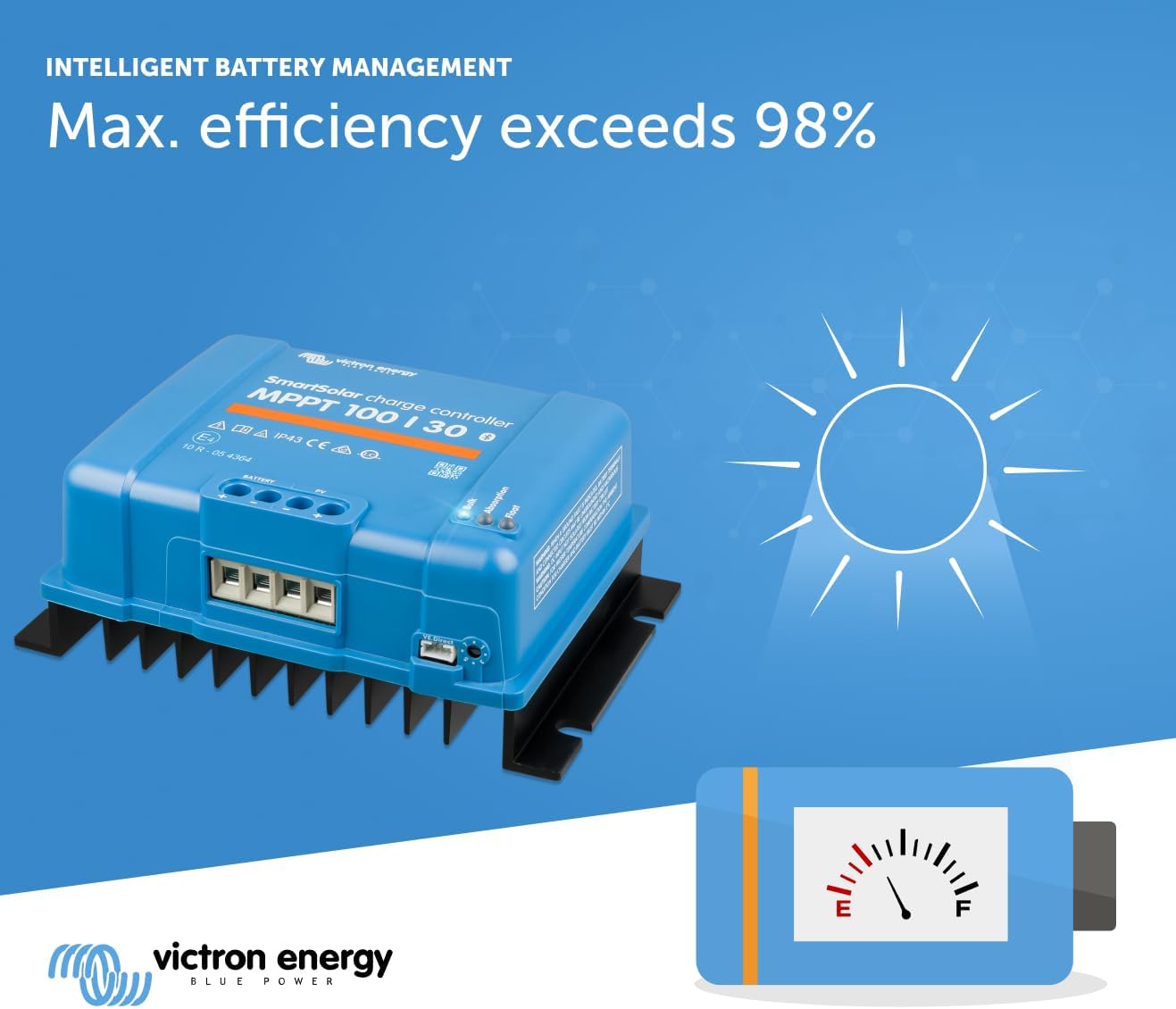

- Maximum Efficiency: 98%
- Self-Consumption: 12V: 30 mA / 24V: 20 mA
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive
- Charge Voltage 'Absorption': 14.4V / 28.8V (Default setting, fully programmable)
- Charge Voltage 'Float': 13.8V / 27.6V (Default setting, fully programmable)
- Pre-programmed Algorithms: Eight selectable algorithms via a rotary switch
- Temperature Compensation: -16 mV / °C (12V) or -32 mV / °C (24V)
- Internal Temperature Sensor: Included (compensates absorption and float charge voltage for temperature)

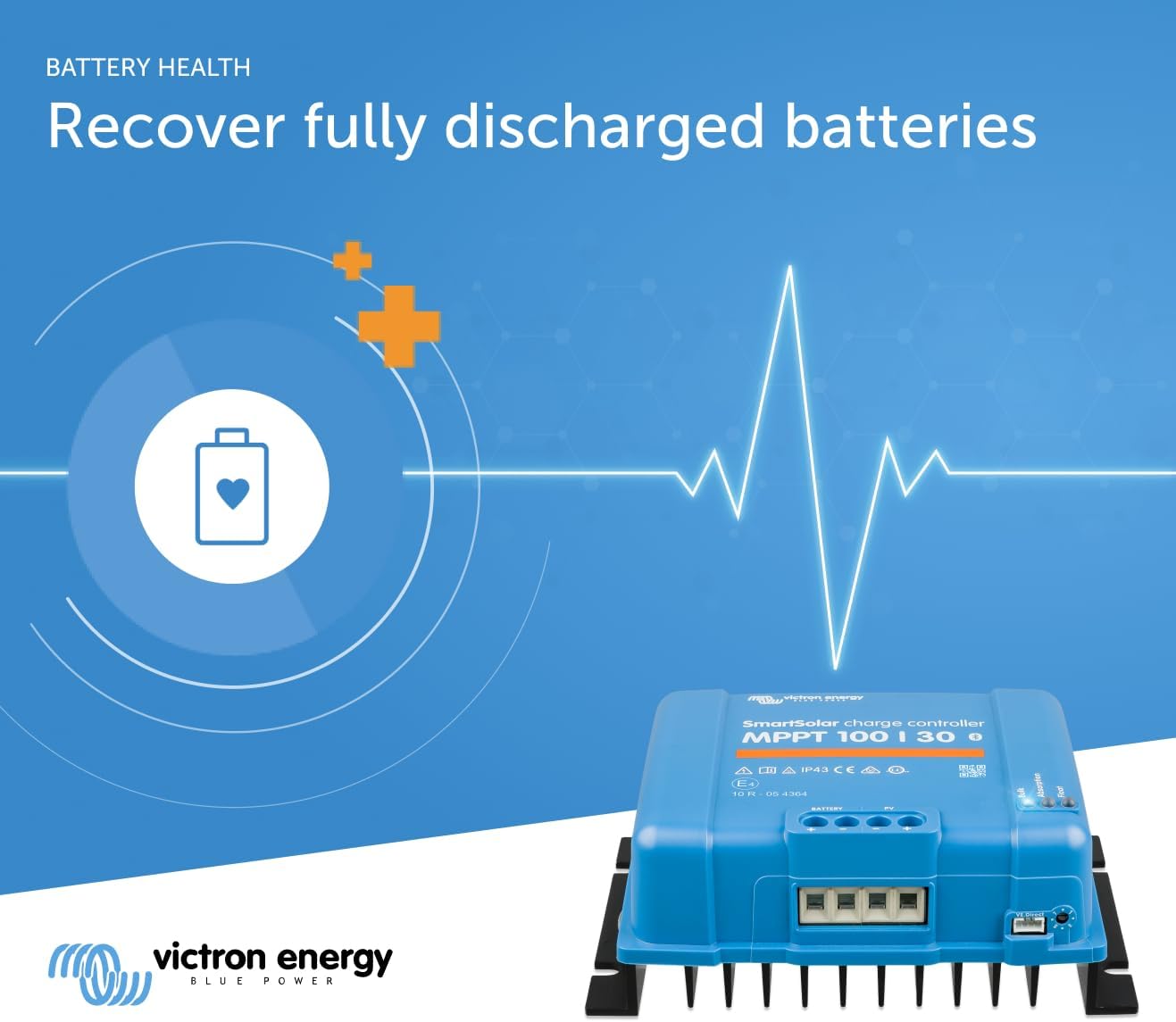

- Recovery Function: Will initiate charging even if the battery has been discharged to zero volts; reconnects to fully discharged Li-ion batteries with internal disconnect functions.
Connectivity & Features

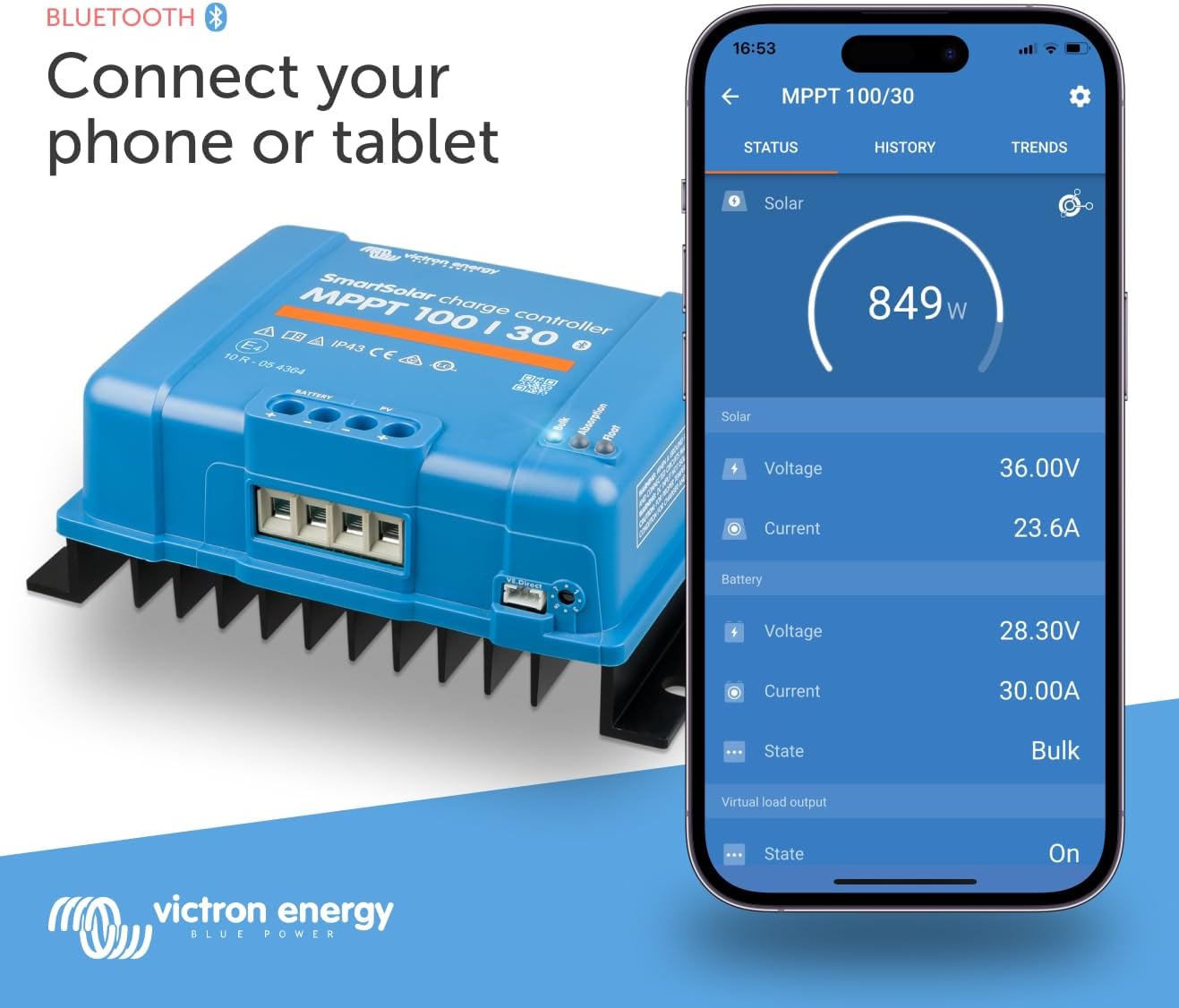

- Bluetooth Smart Built-in: Wireless solution to set-up, monitor, update, and synchronise SmartSolar Charge Controllers.
- VE.Direct Port: For a wired data connection to a Color Control GX, other GX products, PC, or other devices.
- External Sensing: Compatible with Smart Battery Sense or BMV-712 Smart Battery Monitor via Bluetooth to communicate battery voltage and temperature.
- Stored Trends: Internal storage for 46 days of data, including battery voltage, current, temperature, PV voltage, and PV current.
Mechanical & Enclosure

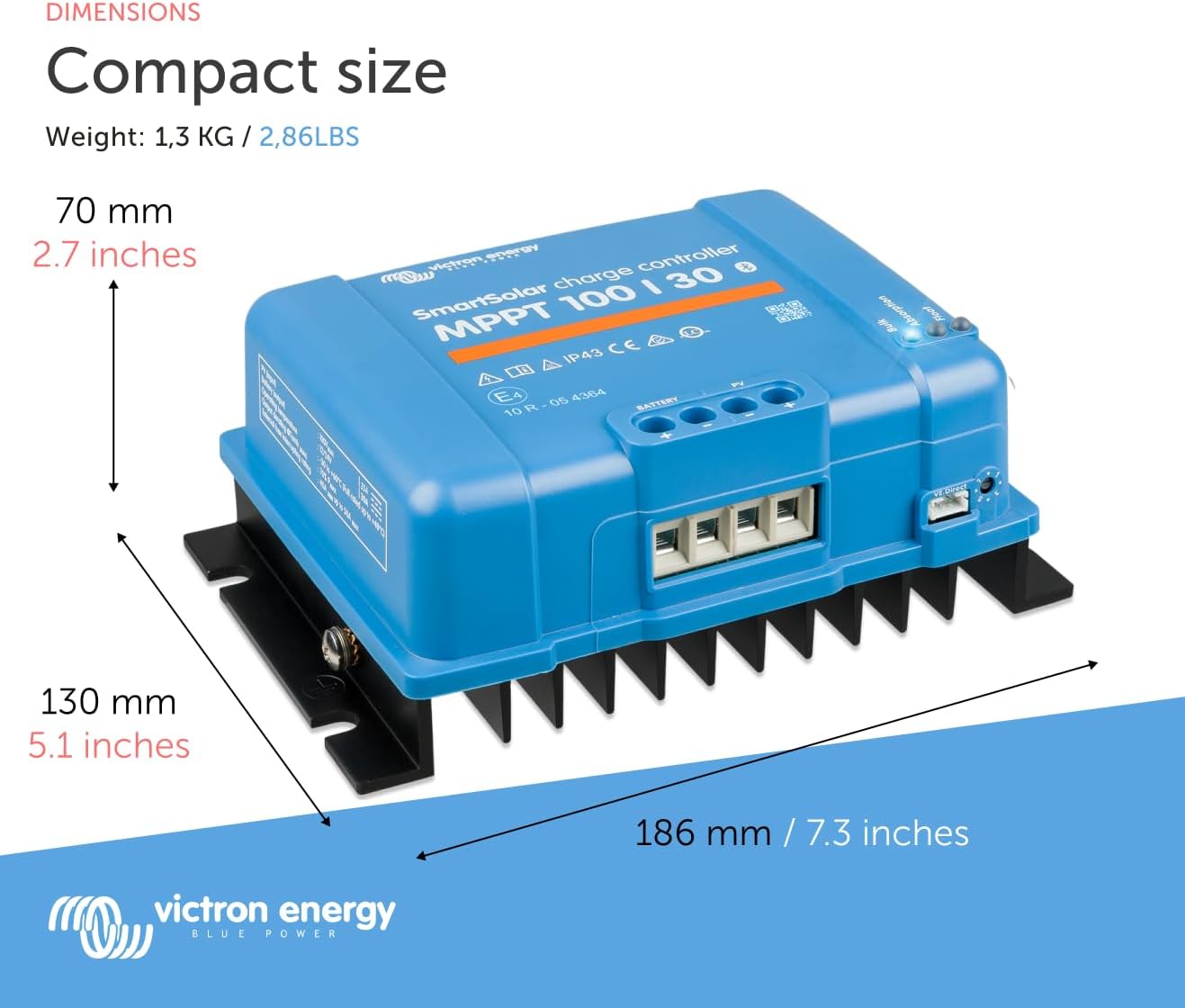

- Dimensions (H x W x D): 130 x 186 x 70 mm
- Weight: 1.3 kg

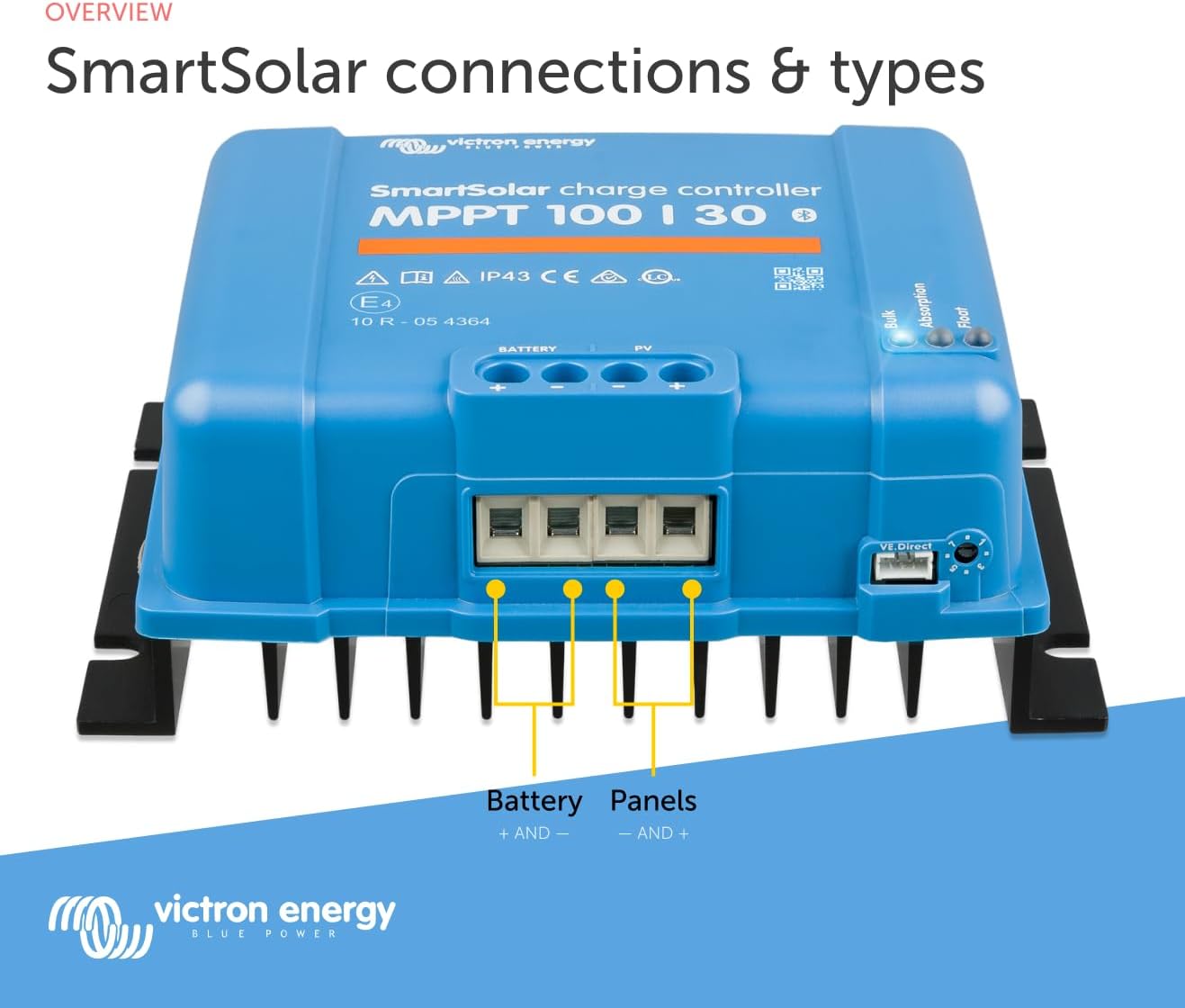

- Power Terminals: 16 mm² / AWG6
- Colour: Blue (RAL 5012)
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Cooling: Natural convection (no cooling fan)
Environmental & Standards
- Operating Temperature Range: -30 to +60°C (Full rated output current up to 40°C)
- Humidity: 95%, non-condensing
- Integrated Protections: Over-temperature protection and power derating, PV short circuit, PV reverse polarity, and PV reverse current protection.
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
Technical Specifications
Technical Specifications
| MPPT Amps | 30 |
|---|
