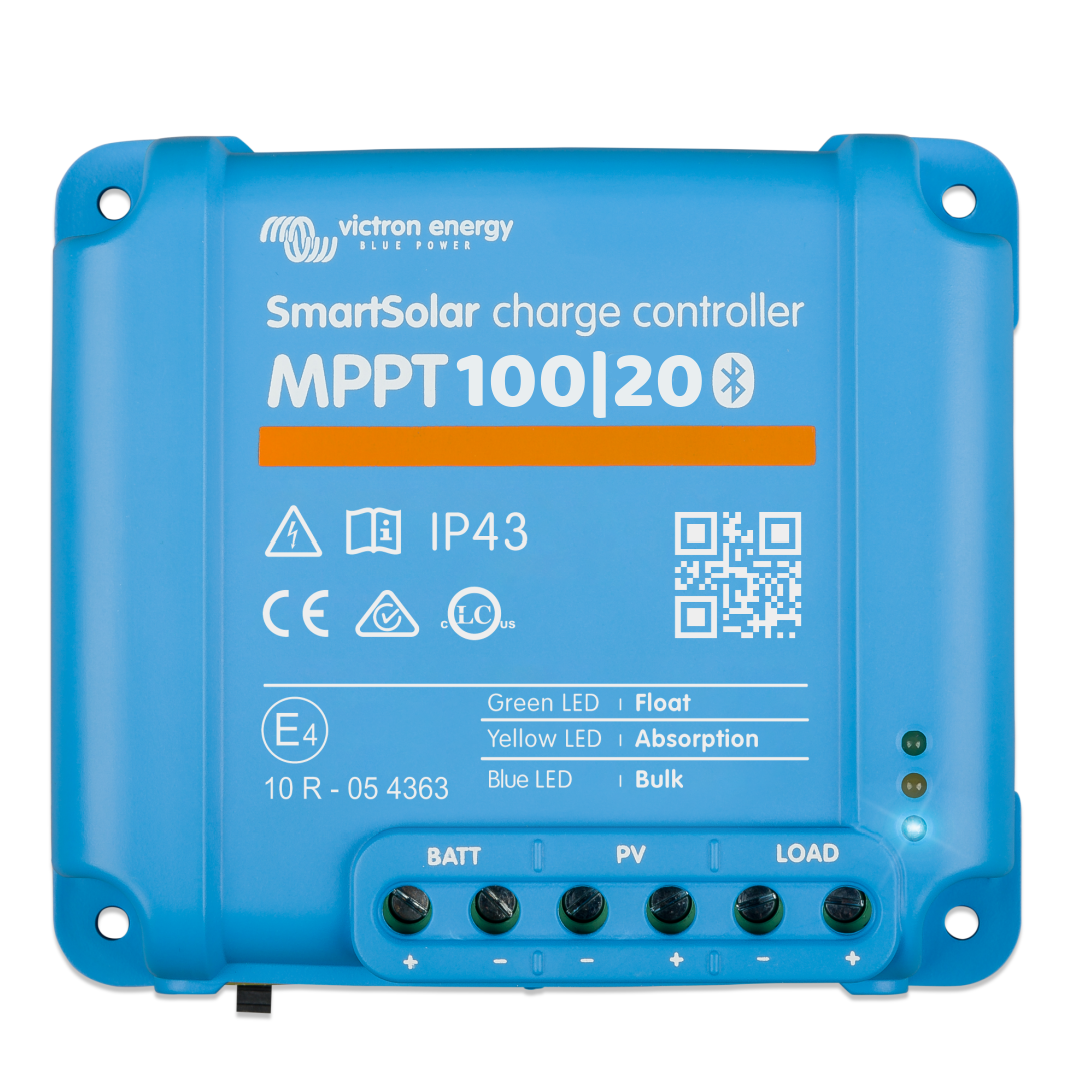

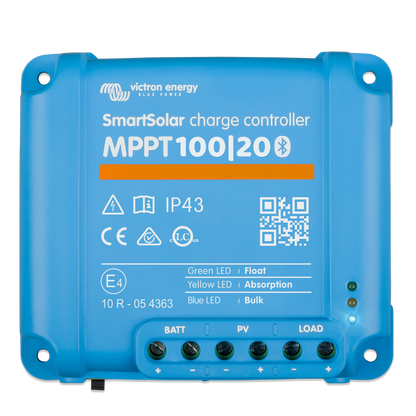

Victron MPPT 100/20 - SmartSolar Charge Controller
Victron MPPT 100/20 - SmartSolar Charge Controller
SKU:SCC110020160R
Brand: Victron
75 in stock
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy MPPT 100/20 SmartSolar charge controller is designed to optimise the performance of solar charging systems for leisure and off grid applications. Built around advanced MPPT technology, it constantly tracks the maximum power point of your solar panels to ensure the highest possible energy harvest, even when light levels fluctuate due to cloud cover or shading. This means more efficient charging throughout the day and improved overall system performance.
With a maximum input voltage of 100V and a maximum charging current of 20A, this controller is suitable for small to medium solar setups commonly found in campervans, boats, sheds, and tiny homes. It protects batteries by safely managing the charge process and preventing overcharging, significantly extending battery lifespan. Victron’s BatteryLife feature monitors battery levels over prolonged periods and automatically adjusts disconnect voltage during prolonged poor weather. This helps maintain battery health and ensures regular attempts to reach a full charge.

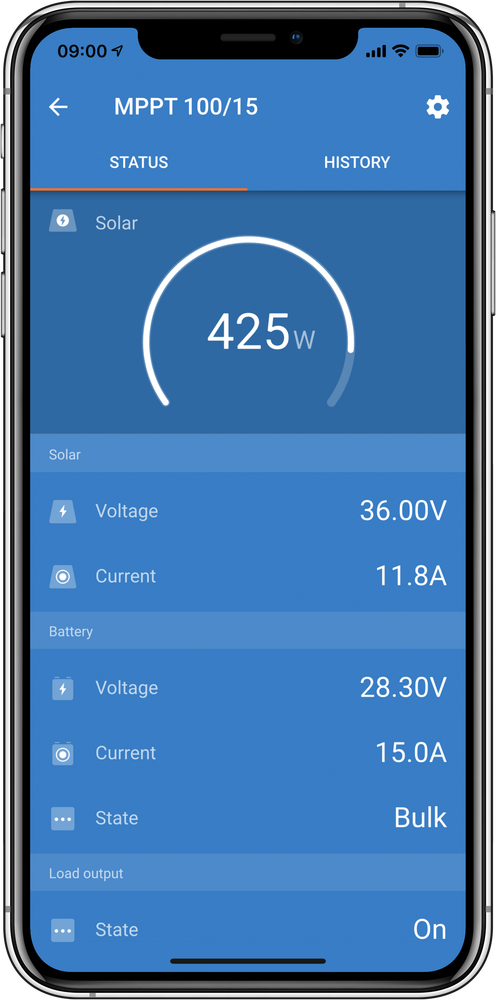

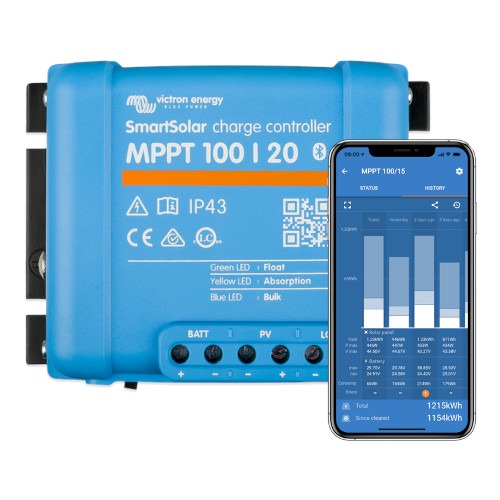

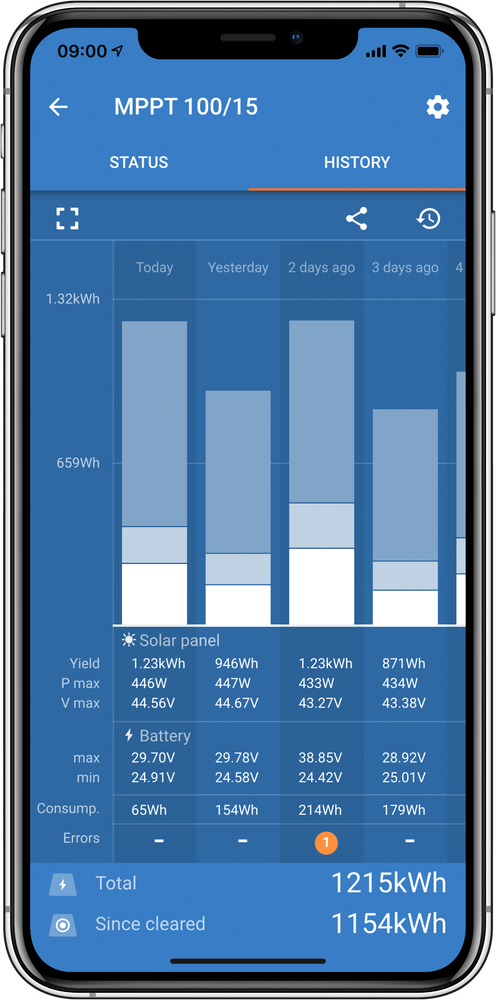

Bluetooth connectivity is integrated as standard, allowing you to pair the controller with the Victron Connect app on your smartphone or tablet. From here, you can monitor power yield, adjust configuration settings, and review performance history without needing additional hardware. For installations in hard to reach places, this wireless access is especially useful.
The intelligent load output prevents batteries from being drained to damaging levels. This output can be customised to meet the needs of different electrical systems, ensuring key devices remain powered while avoiding unnecessary battery wear. The result is improved reliability and greater peace of mind, whether your system is installed on the move or at a remote location.
The compact design and durable construction allow the controller to be mounted discreetly within electrical cupboards or control panels.
Ideal for users looking to upgrade from older PWM controllers, the Victron MPPT 100/20 offers improved energy harvesting and smarter charge management. Combined with mobile monitoring, intelligent battery protection, and high efficiency, it provides excellent value for anyone seeking dependable solar charging on the go.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12 / 24 / 36 / 48 V (Automatic recognition)
- Rated Charge Current: 20 A
- Maximum PV Open Circuit Voltage (Voc): 100 V
- Maximum Efficiency: Outstanding conversion efficiency with natural convection cooling
- Charging Algorithm: Multi-stage adaptive and flexible charge algorithm
Load Output Specifications

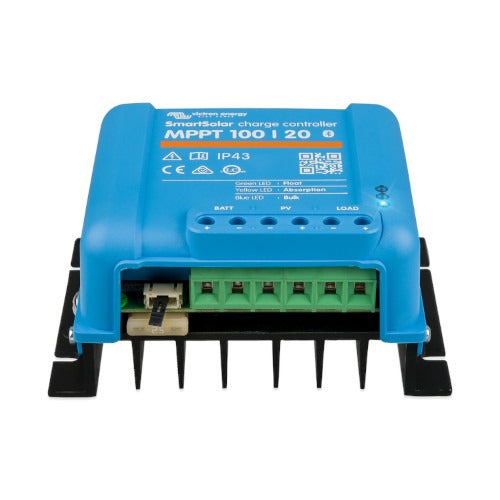

- Physical Load Output: Yes (Dedicated output terminals included)
- Rated Load Current: 20 A (for 12V and 24V systems) / 1 A (for 48V systems)
- Load Control: Programmable load disconnect/reconnect via Battery Life algorithm or manual settings
- Protection: Output short circuit and over-temperature protection
Connectivity & Intelligence
- Bluetooth Smart Built-in: Wireless setup, monitoring, and synchronization with other SmartSolar controllers
- VE.Direct Port: For wired data connection to GX devices (e.g., Cerbo GX), PCs, or other monitoring hardware
- Advanced Tracking: Advanced Maximum Power Point Detection to optimize harvest even in partial shading conditions
- Remote Monitoring: Supported via the VictronConnect Application, VRM portal (with GX device), or MPPT Control panel
Mechanical & Environmental
- Cooling: Natural convection cooling (no fans)
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Wire Box Compatibility: Compatible with Victron "S 100-20" size wire box for cable protection
- Temperature Sensor: Internal sensor included for charge voltage compensation
Features & Protections
- Battery Recovery: Can initiate charging for a battery that has been discharged to zero volts
- Safety Features: Over-temperature protection and power derating when temperatures are high
- System Integration: Compatible with GX devices (Color Control GX, Venus GX, Cerbo GX) for full system management
Technical Specifications
Technical Specifications
| MPPT Amps | 20 |
|---|
