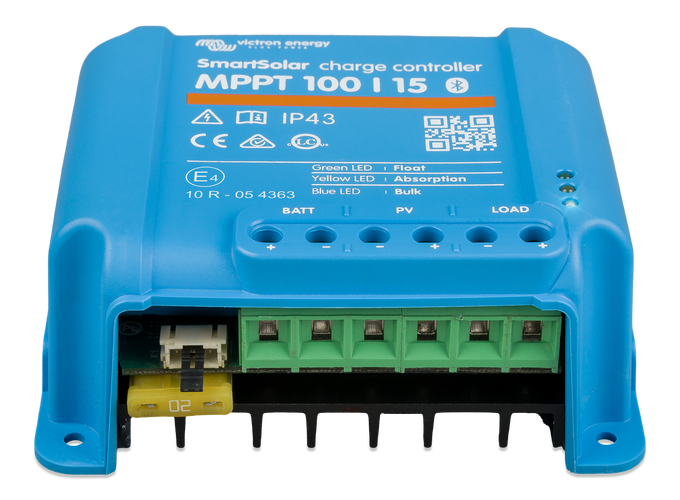

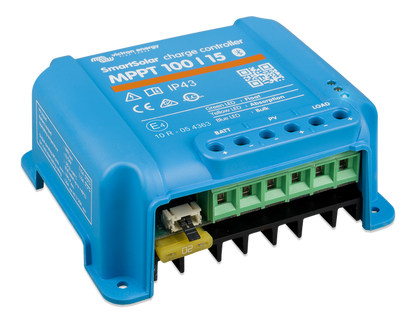

Victron MPPT 100/15 – SmartSolar Charge Controller
Victron MPPT 100/15 – SmartSolar Charge Controller
SKU:SCC110015060R
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details

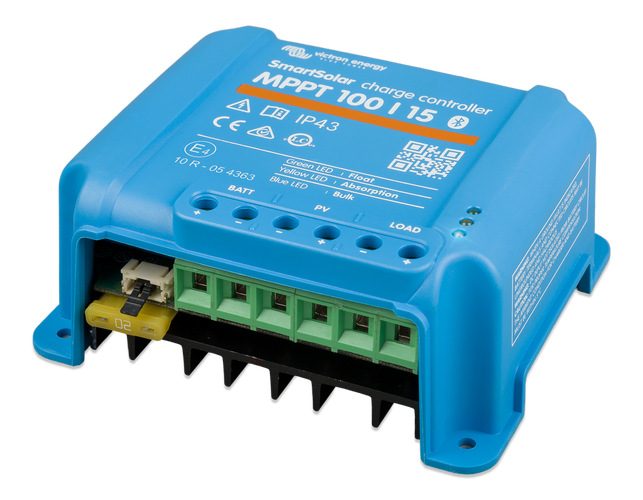

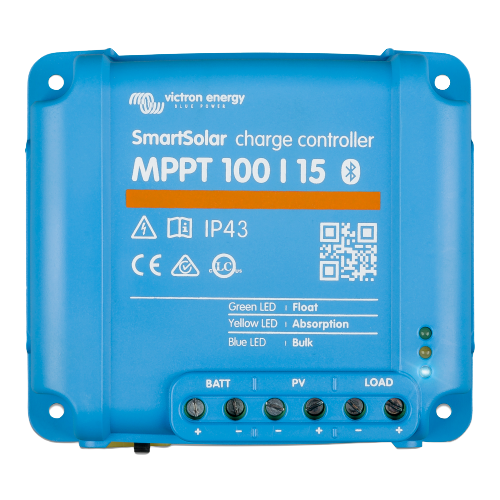

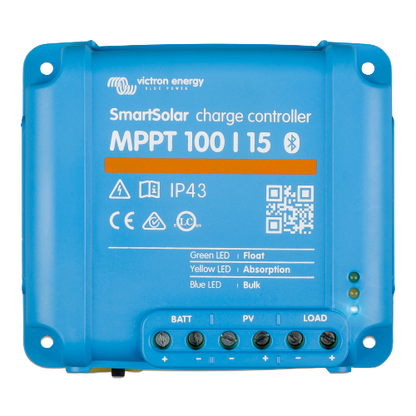

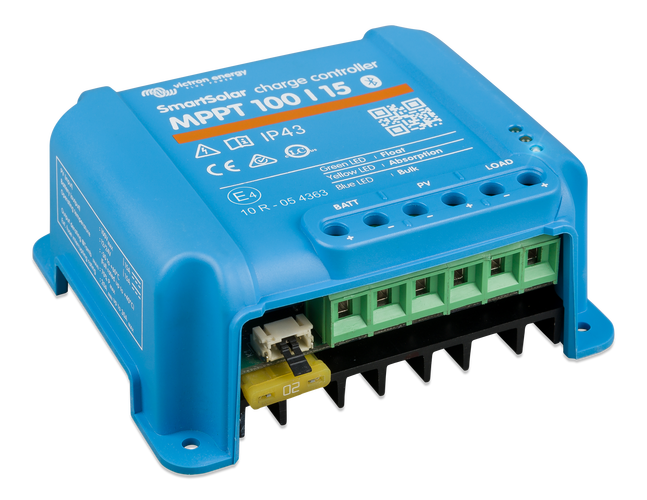

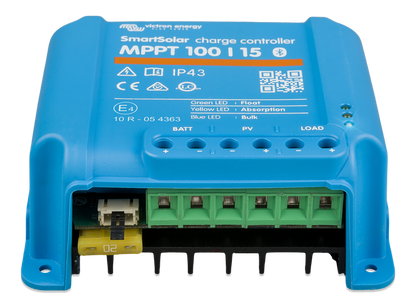

The Victron SmartSolar MPPT 100/15 is a compact yet powerful solar charge controller. It supports 12 V or 24 V systems (auto-select) and delivers up to 15 A of charge current, providing excellent performance for small to medium solar‑battery installations. Its maximum PV open‑circuit voltage is 100 V, making it compatible with a wide range of solar panel configurations.
This controller uses ultra-fast Maximum Power Point Tracking (MPPT), which constantly optimises the power drawn from the solar panels. This improves energy harvest, especially in variable lighting or partially shaded conditions. It achieves a high peak efficiency of 98 %, so more energy is converted to storage.

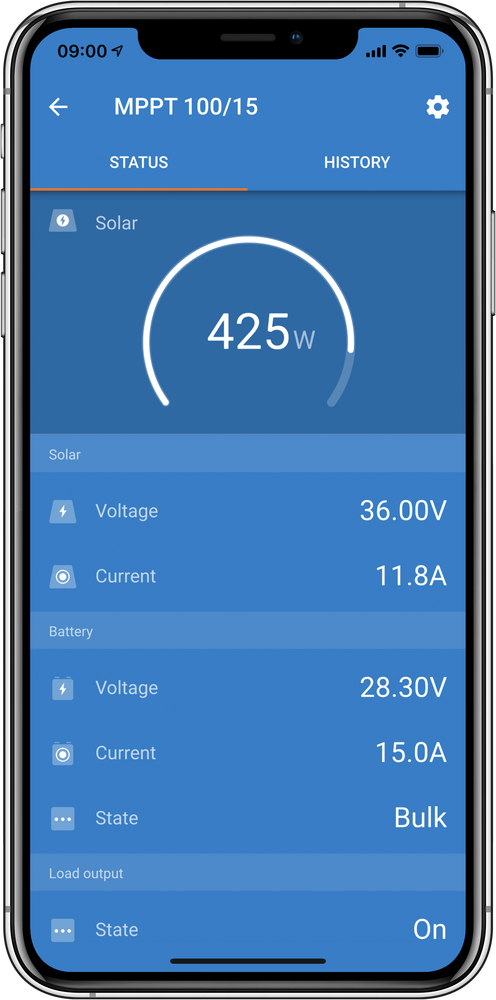

The unit features built-in Bluetooth Smart, which allows trade professionals and installers to set up, monitor, and update the controller using the VictronConnect app. There is also a VE.Direct port for wired communication, enabling connection to Victron GX devices or other monitoring equipment.
SmartSolar includes a load output (up to 15 A) that helps prevent battery over-discharge. It uses Victron’s BatteryLife algorithm, which adapts the load-disconnect voltage over time so that the battery can reach a full recharge at least once a week. This intelligent process helps prolong battery life, particularly in systems that rarely see a full daily recharge.
Temperature compensation is provided via an internal sensor. The controller also has protection against over-temperature, short circuit, and reverse-polarity. It operates in a broad temperature range, from −30 °C to +60 °C, and is rated to full output up to 40 °C. The enclosure has IP43 protection for electronics and IP22 for the connection area, offering trade‑grade durability in harsh environments.

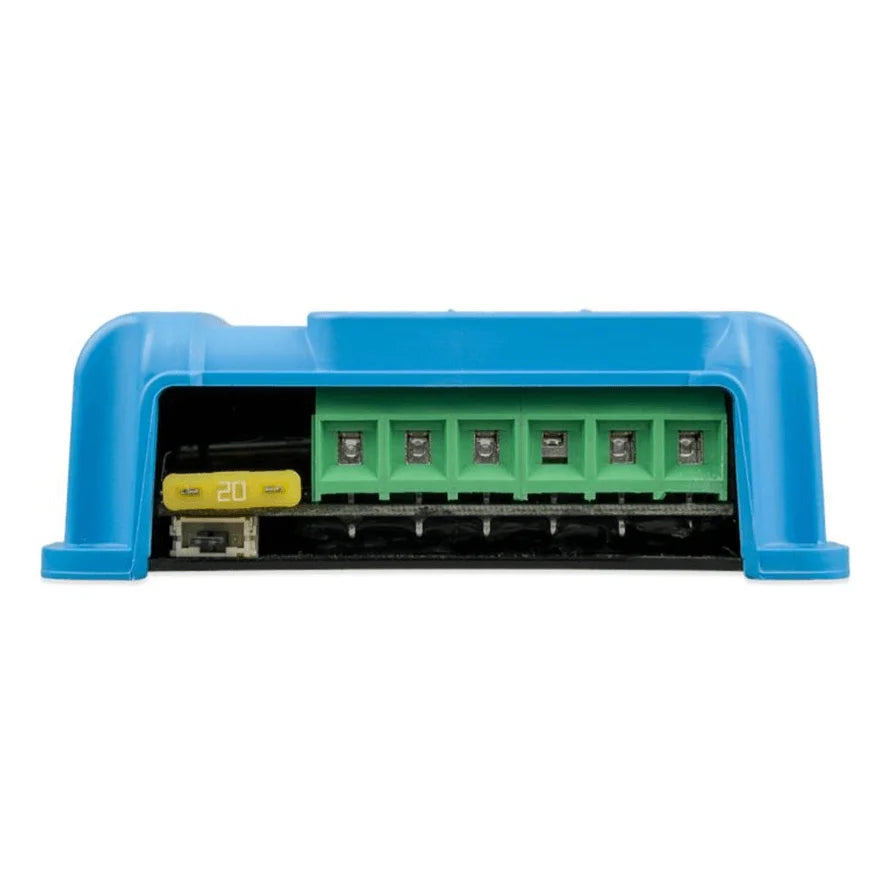

The physical footprint is modest: measuring roughly 100 × 113 × 50 mm and weighing about 0.6 kg, it is ideal for tight installations on walls or in enclosures. The power terminals accommodate 6 mm² wiring, making it suitable for professional-grade cable runs. It comes with a 5-year warranty, giving installers peace of mind on serviceable projects.
Product Specifications
Product Specifications
Electrical Specifications
- Battery Voltage: 12/24 V (Auto Select)
- Rated Charge Current: 15 A
- Maximum PV Open Circuit Voltage: 100 V
- Max. PV Short Circuit Current: 15 A
- Peak Efficiency: 98%
- Self-Consumption (Load On): 12 V: 26 mA / 24 V: 20 mA
- Self-Consumption (Load Off): 12 V: 10 mA / 24 V: 8 mA
- Nominal PV Power (12 V): 220 W
- Nominal PV Power (24 V): 440 W
Charge Settings & Algorithm
- Charge Algorithm: Multi-stage adaptive (Programmable)
- Absorption Voltage (Default): 14.4 V / 28.8 V (Adjustable)
- Float Voltage (Default): 13.8 V / 27.6 V (Adjustable)
- Temperature Compensation: -16 mV / °C (12 V) / -32 mV / °C (24 V)
- Battery Recovery Function: Can initiate charging even if the battery has been discharged to zero volts and can reconnect to fully discharged Li-ion batteries with integrated disconnect functions.
Load Output Specifications
- Max. Continuous Load Current: 15 A
- Low Voltage Load Disconnect: 11.1 V / 22.2 V or 11.8 V / 23.6 V or Battery Life algorithm
- Low Voltage Load Reconnect: 13.1 V / 26.2 V or 14 V / 28 V or Battery Life algorithm
- Protection: Output short circuit and over-temperature protection.
Mechanical & Enclosure
- Dimensions (H x W x D): 100 x 113 x 50 mm
- Weight: 0.6 kg
- Power Terminals: 6 mm² / AWG10
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Enclosure Color: Blue (RAL 5012)
Features & Connectivity
- Bluetooth Smart Built-in: Wireless solution to set up, monitor, update, and synchronize SmartSolar Charge Controllers.
- VE.Direct Port: For a wired data connection to GX products (e.g., Cerbo GX), PCs, or other devices.
- Battery Life Management: Intelligent algorithm that monitors the state of charge and, if needed, adjusts load disconnect levels daily to ensure a nearly 100% recharge is achieved weekly.
- Internal Temperature Sensor: Automatically compensates absorption and float charge voltages for temperature.
- Optional External Sensing: Supports Smart Battery Sense or a BMV-712 Smart Battery Monitor via Bluetooth for precise battery voltage and temperature communication.

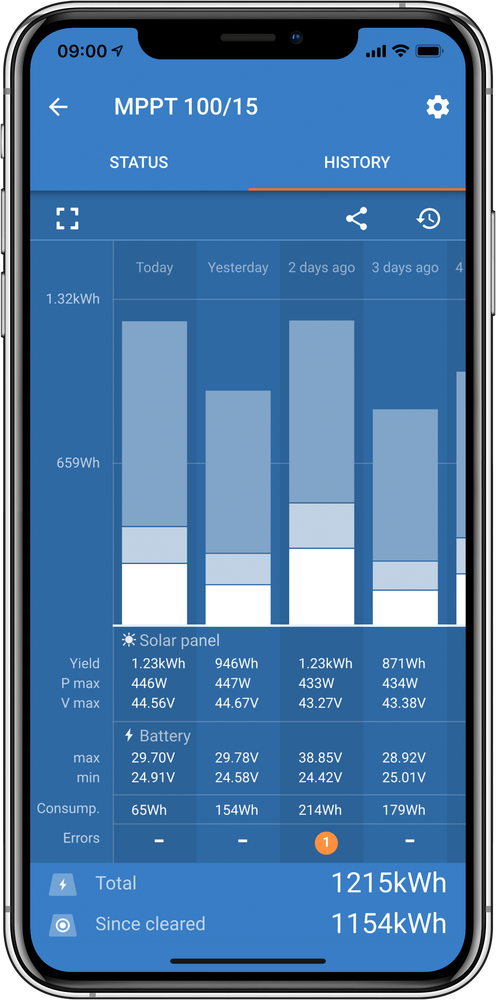

- Stored Trends: Stores up to 46 days of historical data, including battery voltage, current, temperature, load output current, PV voltage, and PV current.
Environmental & Standards
- Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
Technical Specifications
Technical Specifications
| MPPT Amps | 15 |
|---|
