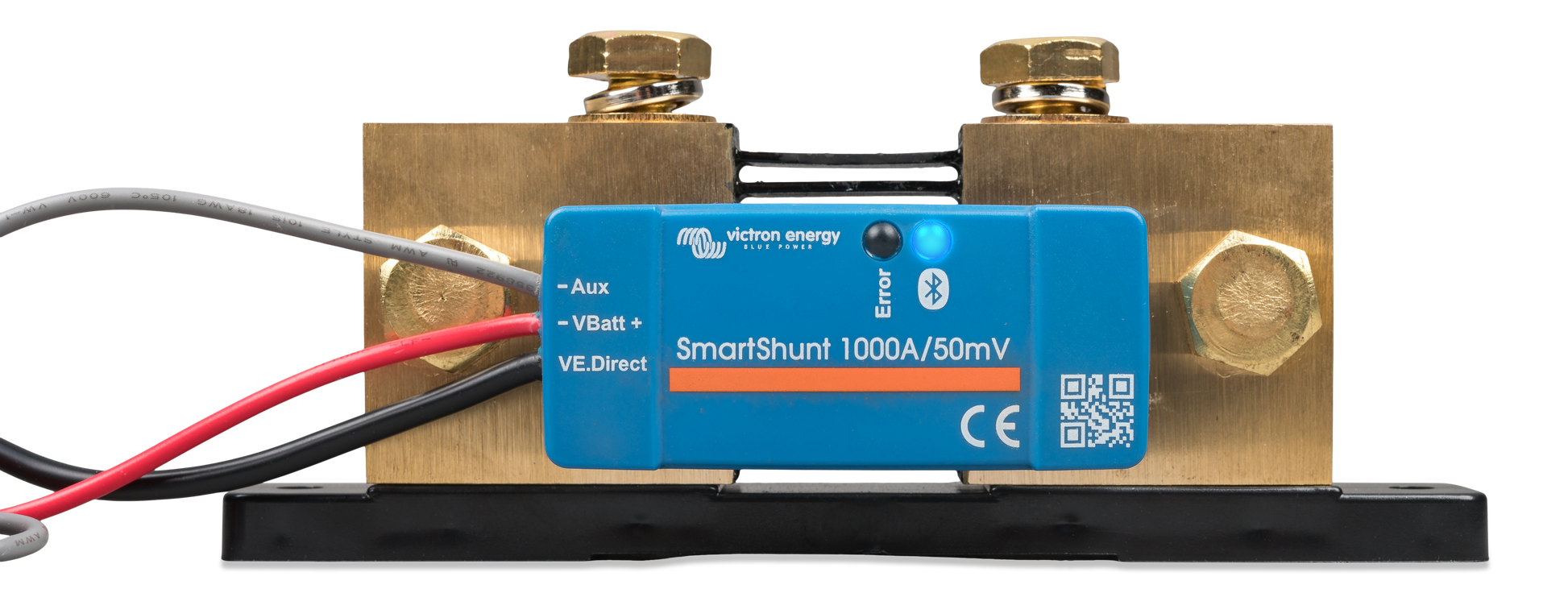

Victron SmartShunt 1000A/50mV IP65
Victron SmartShunt 1000A/50mV IP65
SKU:SHU065210050
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: SHU065210050
Audible Alarm On Device: No
Automotive Directive: EN 50498
Aux Cable: 1.5m cable with 1A fuse
Aux Input Fo Auxiliary Battery Voltage: Yes
Battery Capacity Measurement Range: [-?, 9,999] Ah
Bluetooth: Yes
Body Depth: 31 mm
Body Diameter: 52 mm
Capacity Measurement Resolution: 0.1 Ah
Communication Port: VE.Direct
Current Draw: 1 mA
Current Measurement Accuracy: 0.4 %
Current Measurement Offset: 20 mA
Current Measurement Resolution: 0.1 A
Current Rating: 1,000 A
Data Retention Period: 46 d
Data Stored: Battery voltage,Battery current,Battery temperature,Battery state of charge percentage,Battery midpoint deviation,Starter battery voltage
Depth: 75 mm
Display: No
Emisison Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Front Diameter: 63 mm
Height: 68 mm
Input Voltage Measurement Range Auxiliary Battery: [6.5, 70] VDC
Positive Cable: 1.5m cable with 1A fuse
Programmable Relay: -1
Protection Category: IP65
Safety: EN 60335-1
Shunt Connection Terminals: M10 bolts
State Of Charge Measurement Resolution: 0.1 %
Supply Voltage Range: [6.5, 70] VDC
Temperature Sensor: Optional (ASS000100000 - Temp. sensor for BMV)
Time To Go Measurement Resolution: 1 min
Ve Direct Cable: 1.5m cable with a VE.Direct socket. Note that a (not included) VE.Direct cable is needed to connect a GX device
Visual Alarm On Device: No
Voltage Measurement Accuracy: 0.3 %
Voltage Measurement Resolution: 0.01 V
Weight: 1.22 kg
Width: 168 mm
Source: Victron
