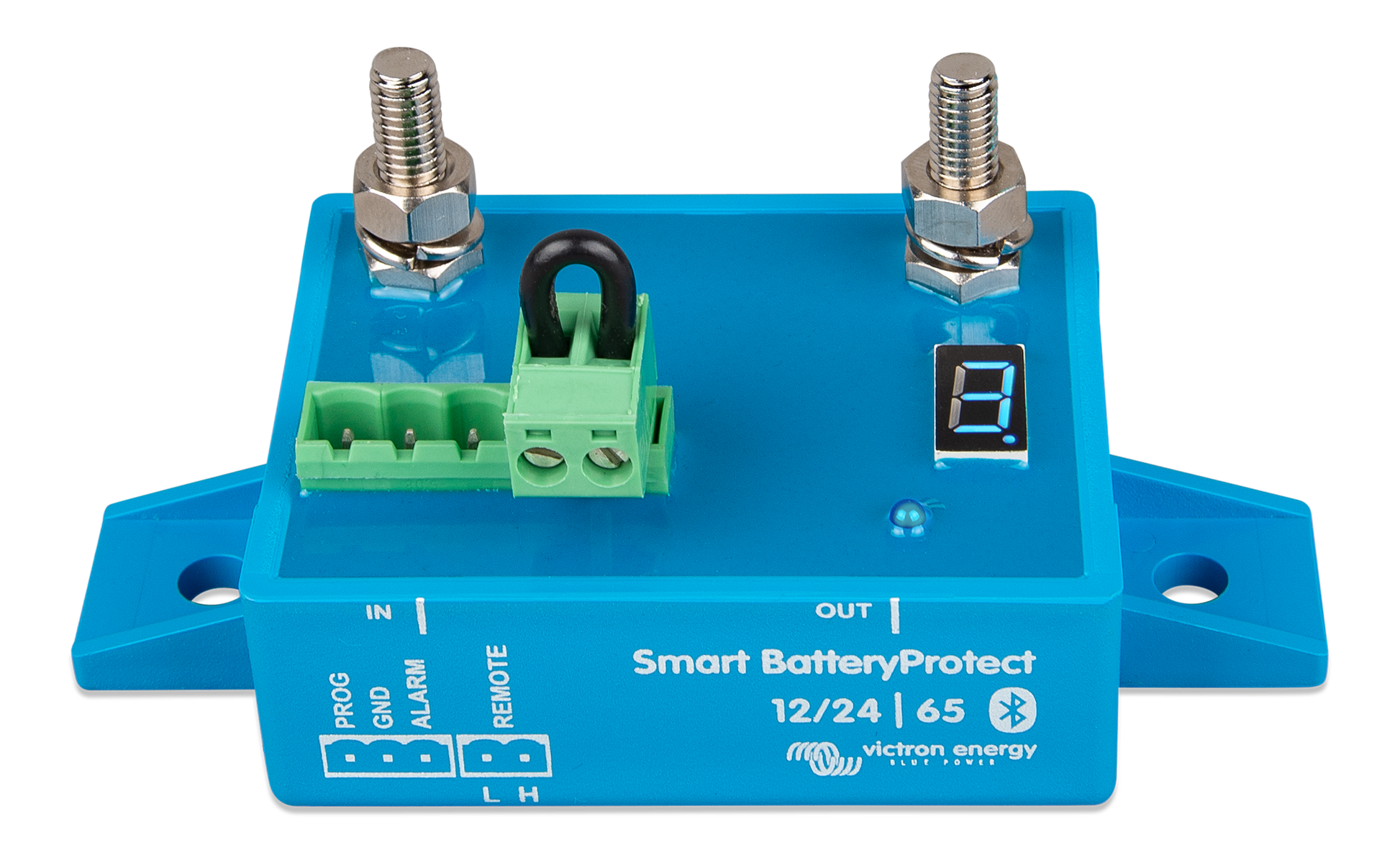

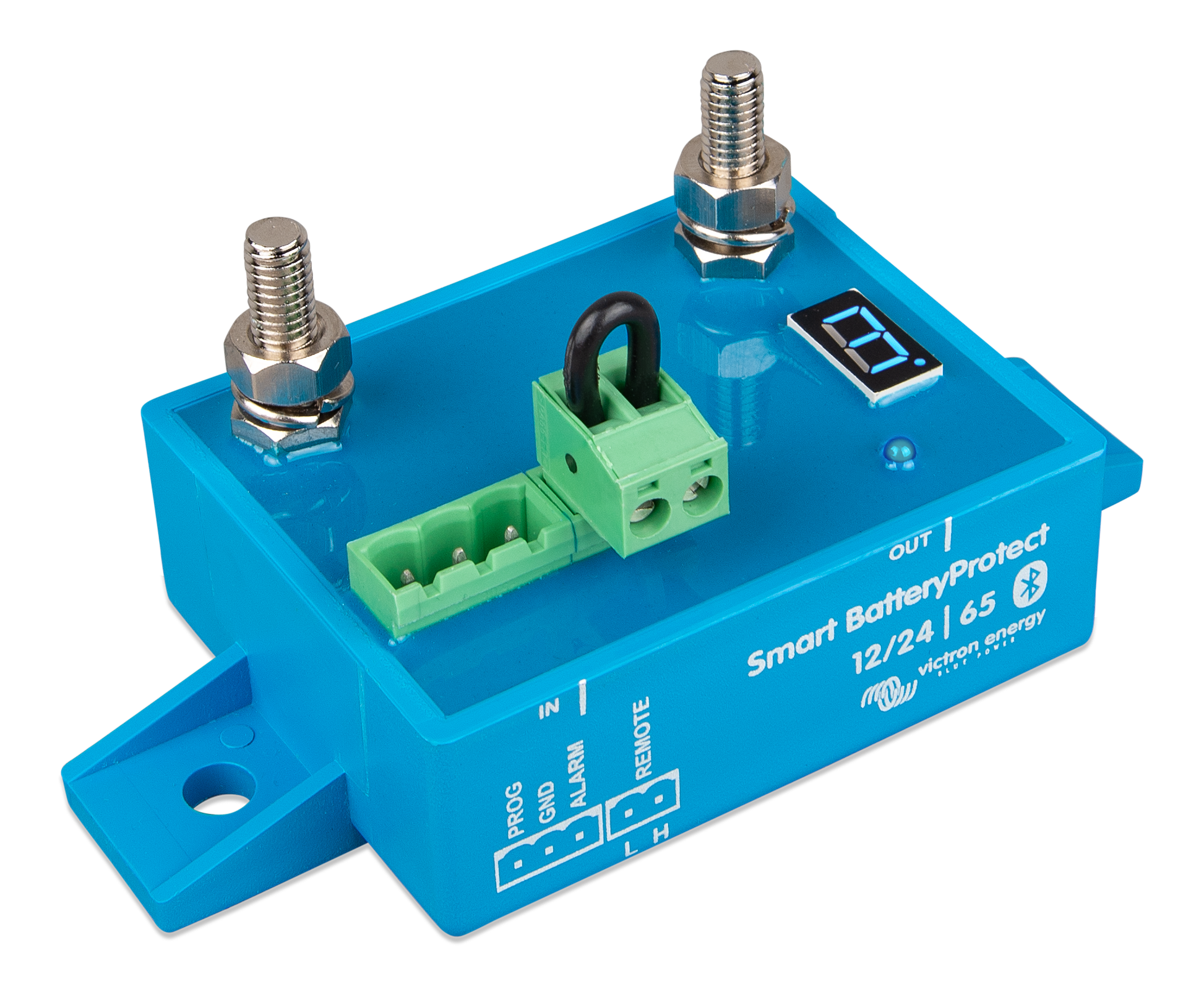

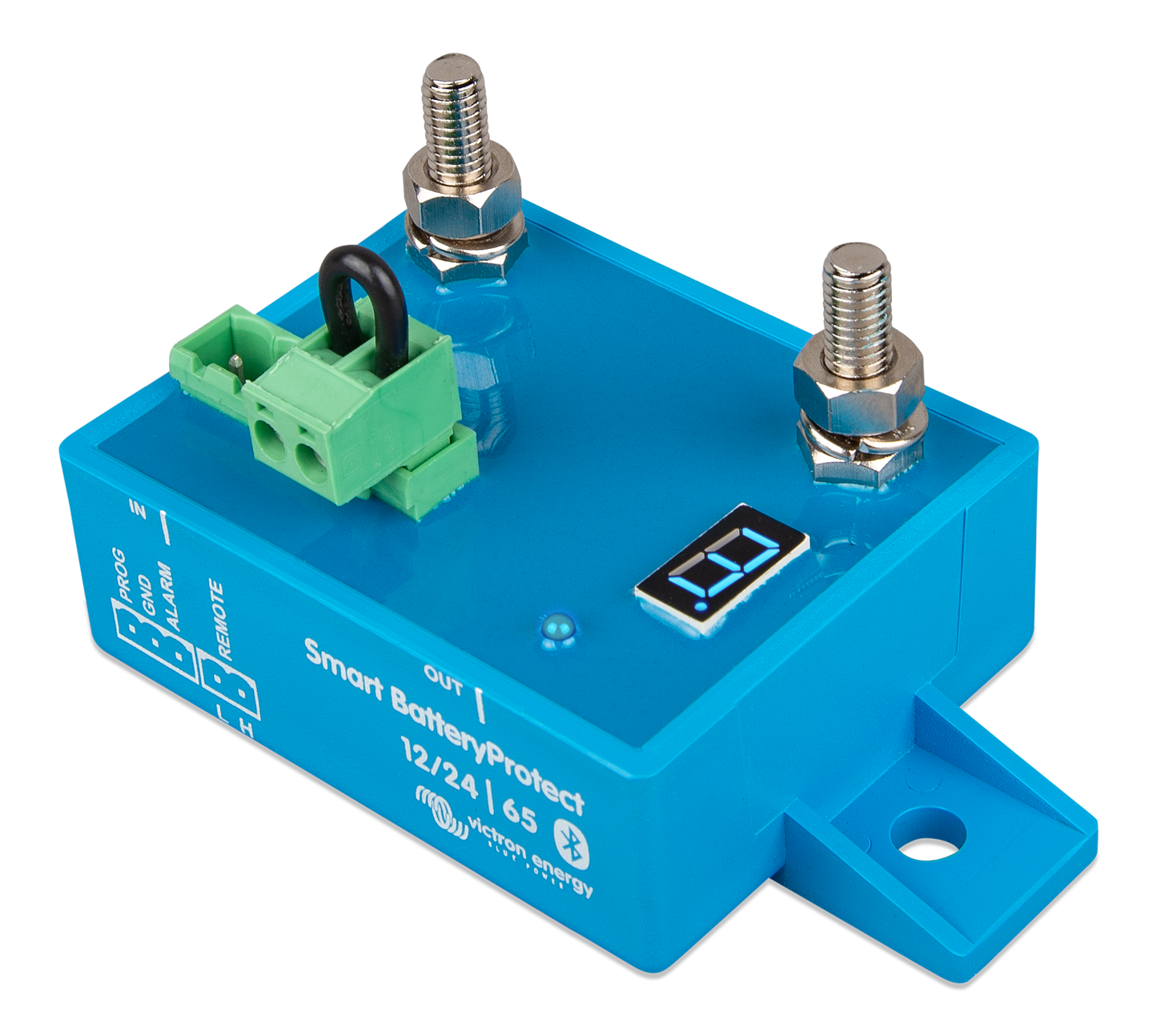

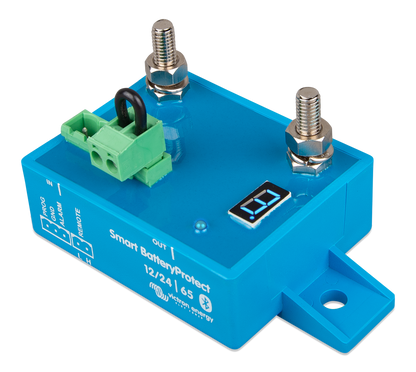

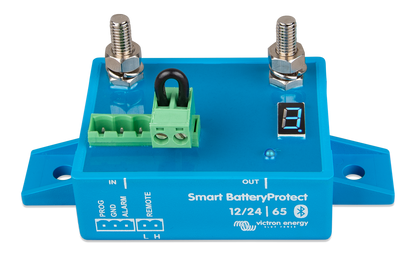

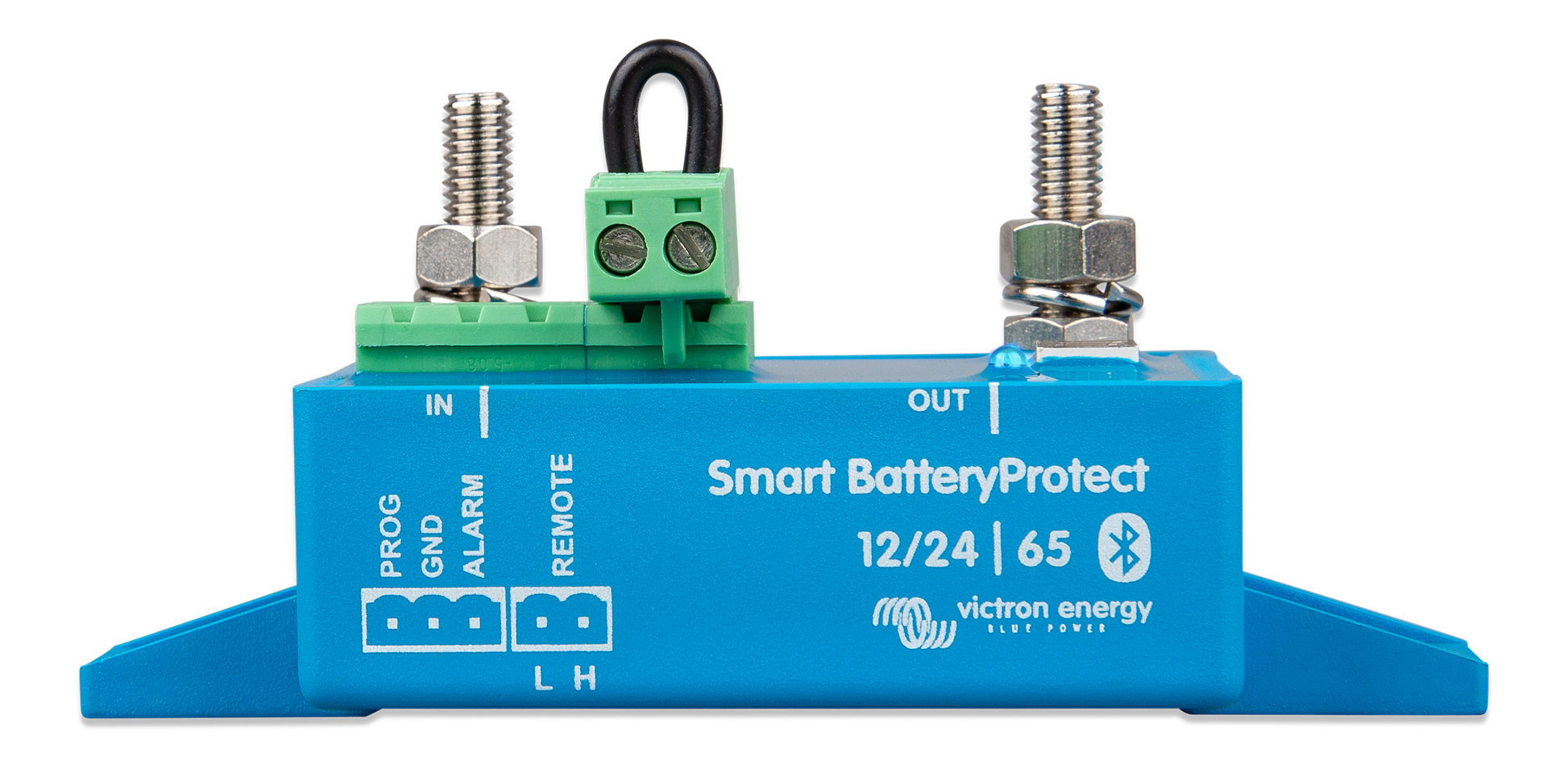

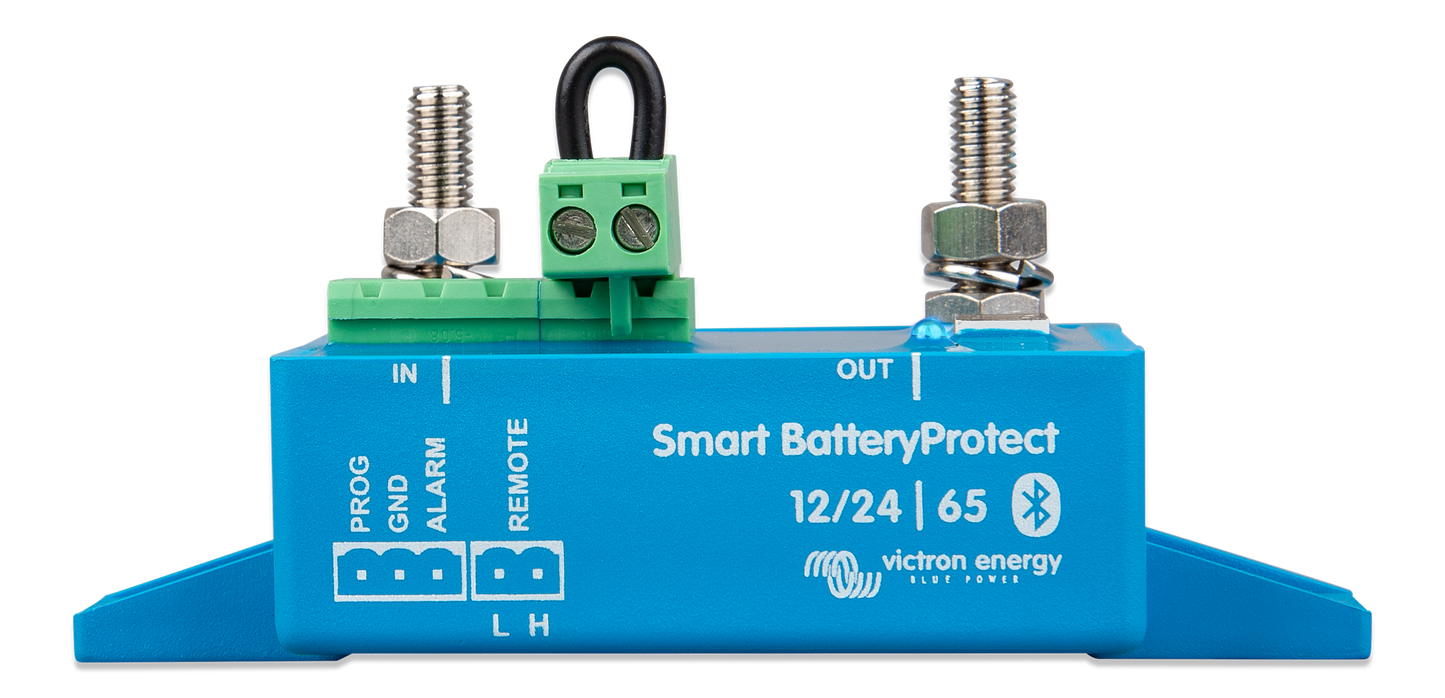

Smart BatteryProtect 12/24V-65A
Smart BatteryProtect 12/24V-65A
SKU:BPR065022000
Brand: Victron
16 in stock
Couldn't load pickup availability
Product Details
Product Details
The Victron Smart BatteryProtect 12/24V-65A is designed to safeguard your battery bank and connected equipment by automatically disconnecting loads before the battery voltage falls too low. This protects against unexpected power loss and helps maintain long term battery health. Suitable for commercial vehicles, marine systems, mobile power setups, and off-grid applications, it provides a reliable solution focused on efficiency and durability.
This model supports both 12 volt and 24 volt systems and automatically detects the correct operating voltage. It can manage loads up to 65 amps, making it a strong choice for medium duty electrical setups found in many trade, workshop, and fleet environments. The unit prevents deep discharge by monitoring battery voltage and isolating the load at configurable thresholds.
Configuration using Bluetooth via the VictronConnect app allows installers to adjust settings quickly. Customisable load disconnect levels, behaviour, and timing help match the unit to the demands of different systems without needing additional hardware. An auxiliary terminal for remote on and off switching gives greater flexibility when integrating with complex electrical layouts.
The Smart BatteryProtect also provides protection for sensitive electronics. Voltage spikes and dips can shorten the life of control boards, navigation equipment, compressors, and lighting systems. The device helps stabilise output and ensures that only healthy battery voltage reaches your connected loads during operation.
Installation is straightforward thanks to clearly marked terminals and a compact footprint. Its durable construction is suitable for professional environments, including commercial vans, workboats, mobile workshops, and industrial battery systems. This product helps reduce downtime and supports planned maintenance cycles by avoiding deep discharge events that often lead to premature battery failure.
Stocking the Smart BatteryProtect is a smart decision for trade buyers who need dependable battery safeguarding. Pairing it with lithium or lead-acid batteries helps ensure performance consistency and preserves investment in expensive power storage solutions. With remote configuration, automatic voltage detection, and proven build quality, it is a strong addition to commercial electrical installations.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Maximum Continuous Load Current: 65 A
- Peak Current (during 30 seconds): 250 A
- Operating Voltage Range: 6 – 35 V
- Nominal Voltage: 12/24 V (auto-ranging)
- Current Consumption (Bluetooth On): 1.4 mA (When on), 0.9 mA (When off or low voltage shutdown)
- Current Consumption (Bluetooth Off): 1.2 mA (When on), 0.7 mA (When off or low voltage shutdown)
- Over Voltage Protection: Load is disconnected if DC voltage exceeds 16.3V (for 12V systems) or 32.6V (for 24V systems)
Smart Features & Operation
- Bluetooth Built-in: Wireless programming via the VictronConnect app allows you to set custom engage/disengage levels or choose from nine predefined levels.
- Instant Readout: The VictronConnect app can display vital data and visual notifications for warnings, alarms, and errors without needing to pair with the device.
- Li-ion Mode: Includes a special setting for control by a VE.Bus BMS. It can also be used as a charge interrupter between a battery charger and a Li-ion battery.
- Ignition Proof: Uses MOSFET switches instead of relays, eliminating sparks and making it suitable for sensitive environments.
- Delayed Alarm Output: Activated if the battery voltage drops below the preset level for more than 12 seconds (preventing alarms during engine starting). Max current: 50 mA.
- Delayed Load Disconnect: Load is disconnected 90 seconds after the voltage drops below the threshold (immediate if triggered by BMS).
- Delayed Load Reconnect: Load is reconnected 30 seconds after the battery voltage rises above the preset reconnect threshold.
- Default Thresholds: Disengage: 10.5 V or 21 V | Engage: 12 V or 24 V
Mechanical & Environmental Specifications
- Operating Temperature Range: -40°C to +40°C (Full load); up to 60% of nominal load at 50°C
- IP Rating: Electronics: IP67 (potted) | Connections: IP00
- Connection Type: M6
- Mounting Torque: 5 Nm
- Weight: 0.2 kg (0.5 lbs)
- Dimensions (h x w x d): 48 x 55 x 106 mm (1.9 x 2.2 x 4.2 inch)
Important Notes
- The BatteryProtect is not designed for reverse currents from charging sources.

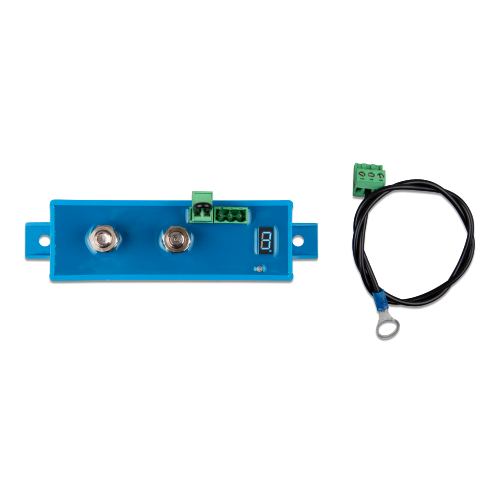

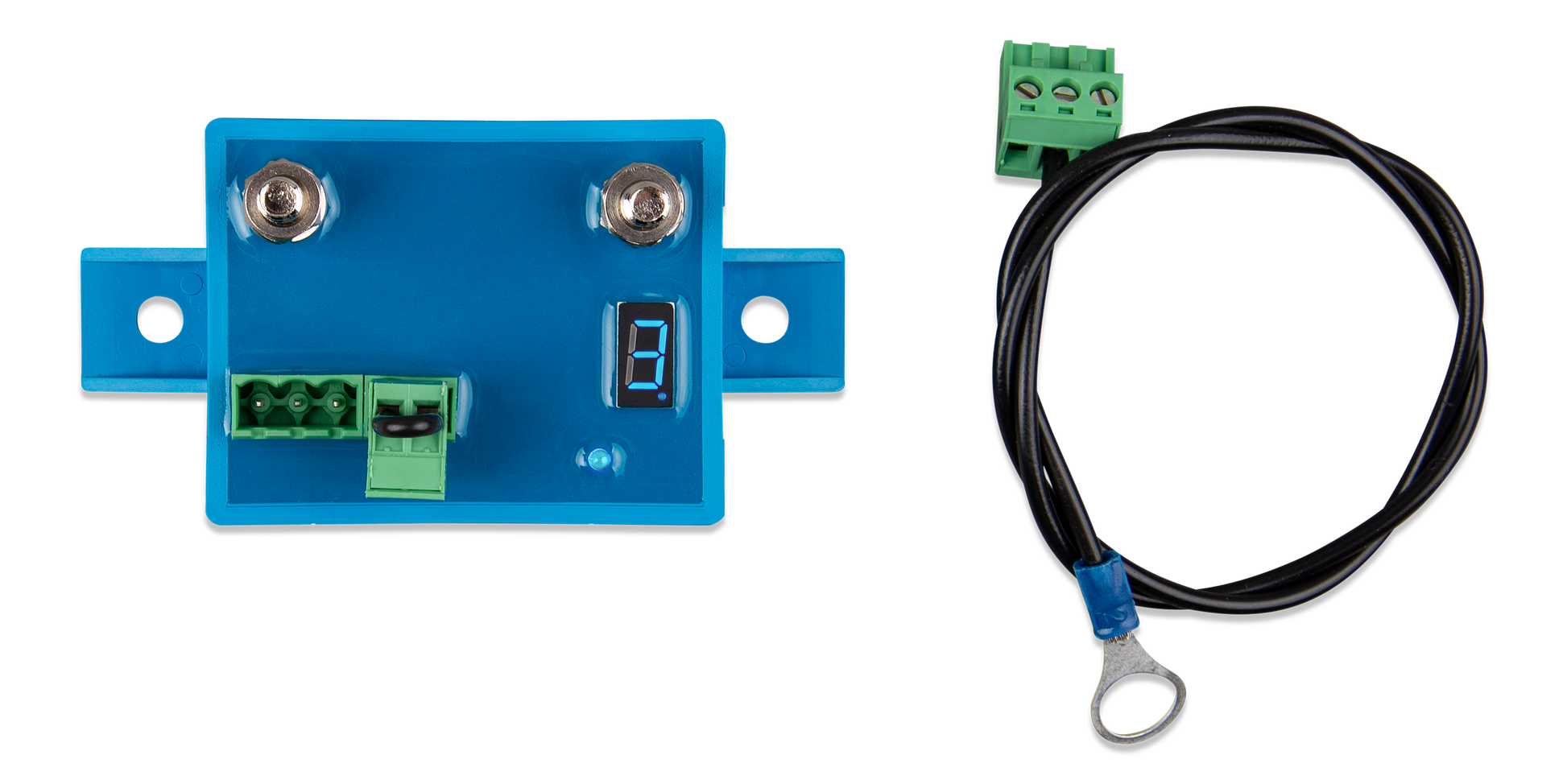

- Includes a connector with a preassembled DC minus cable.
