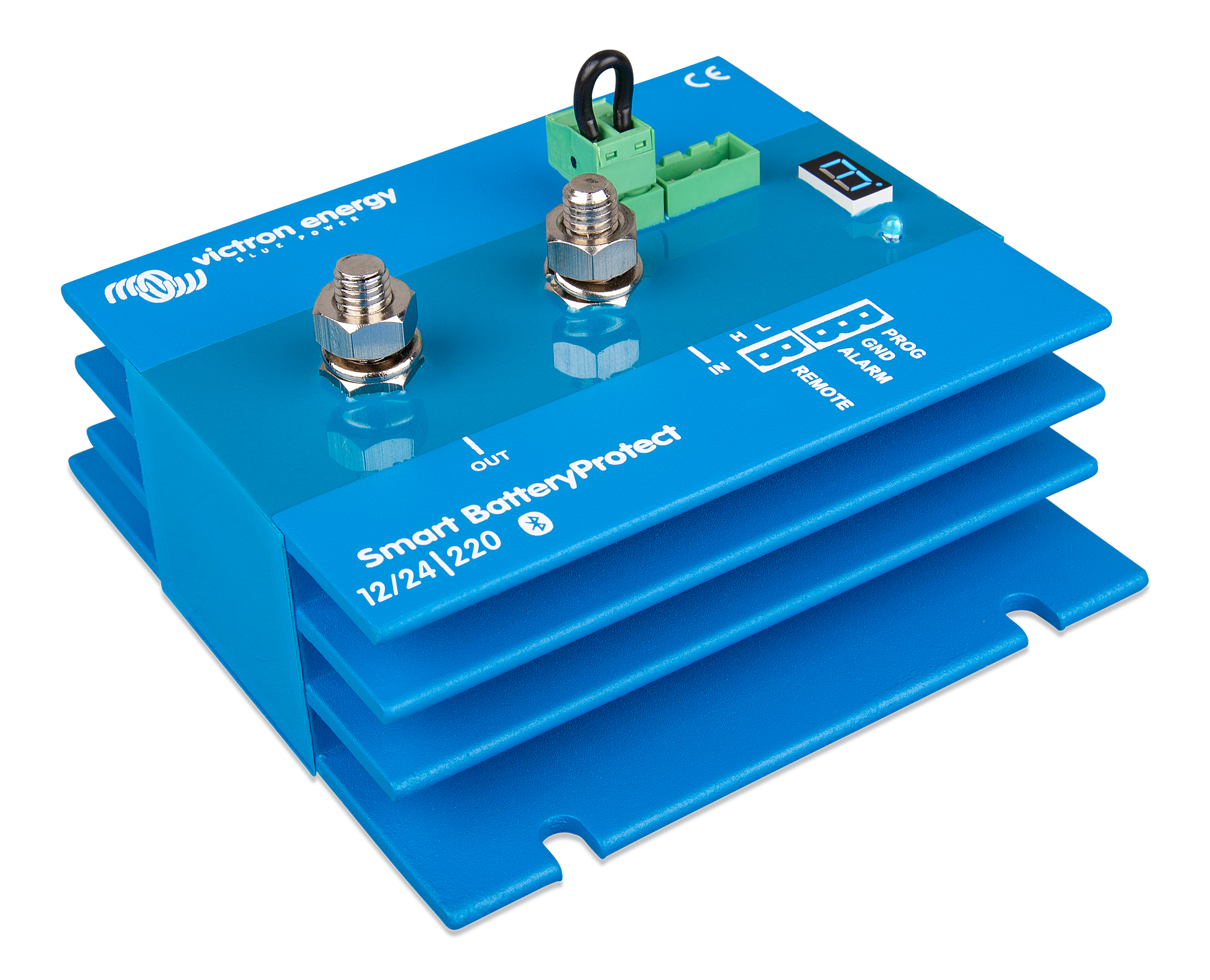

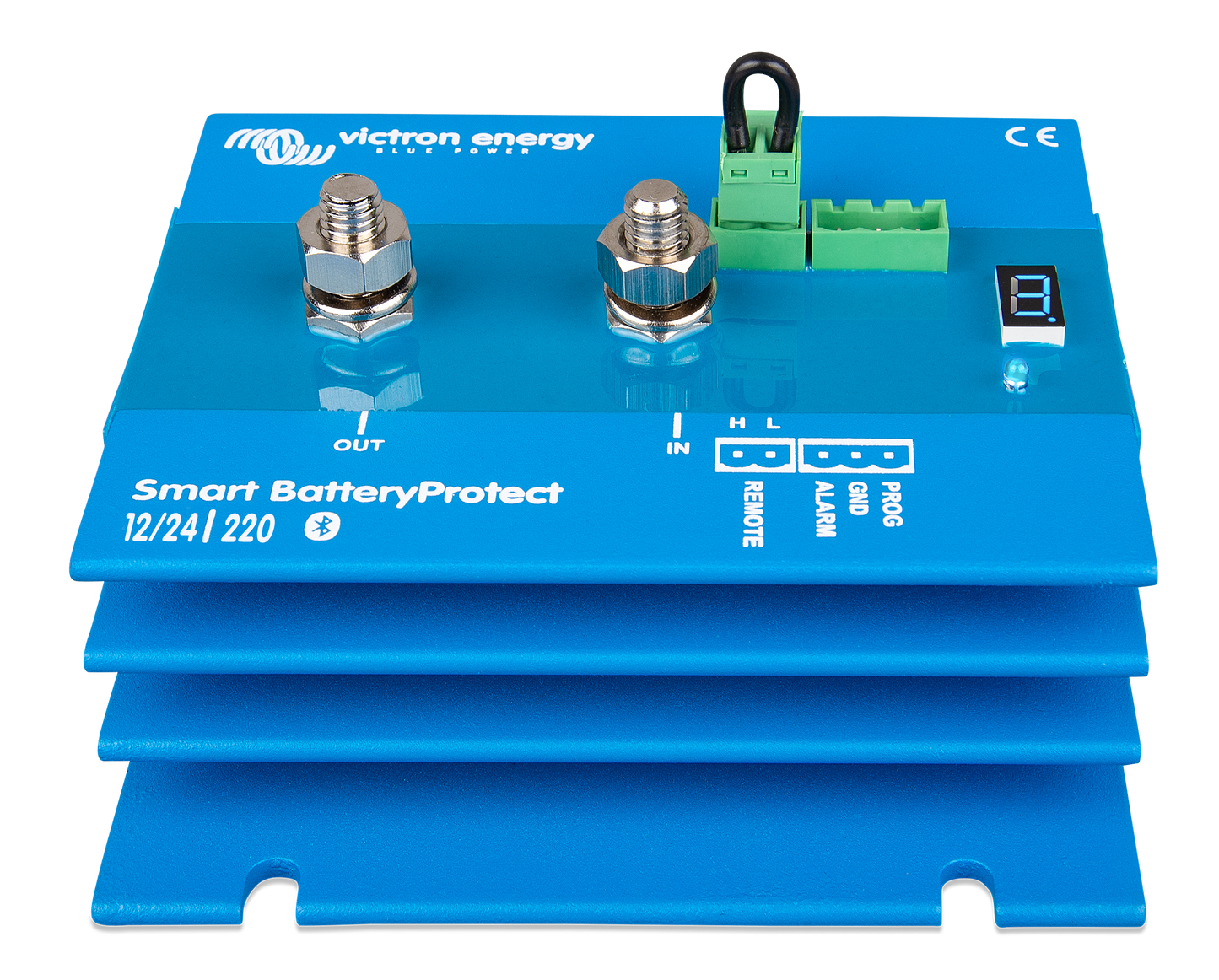

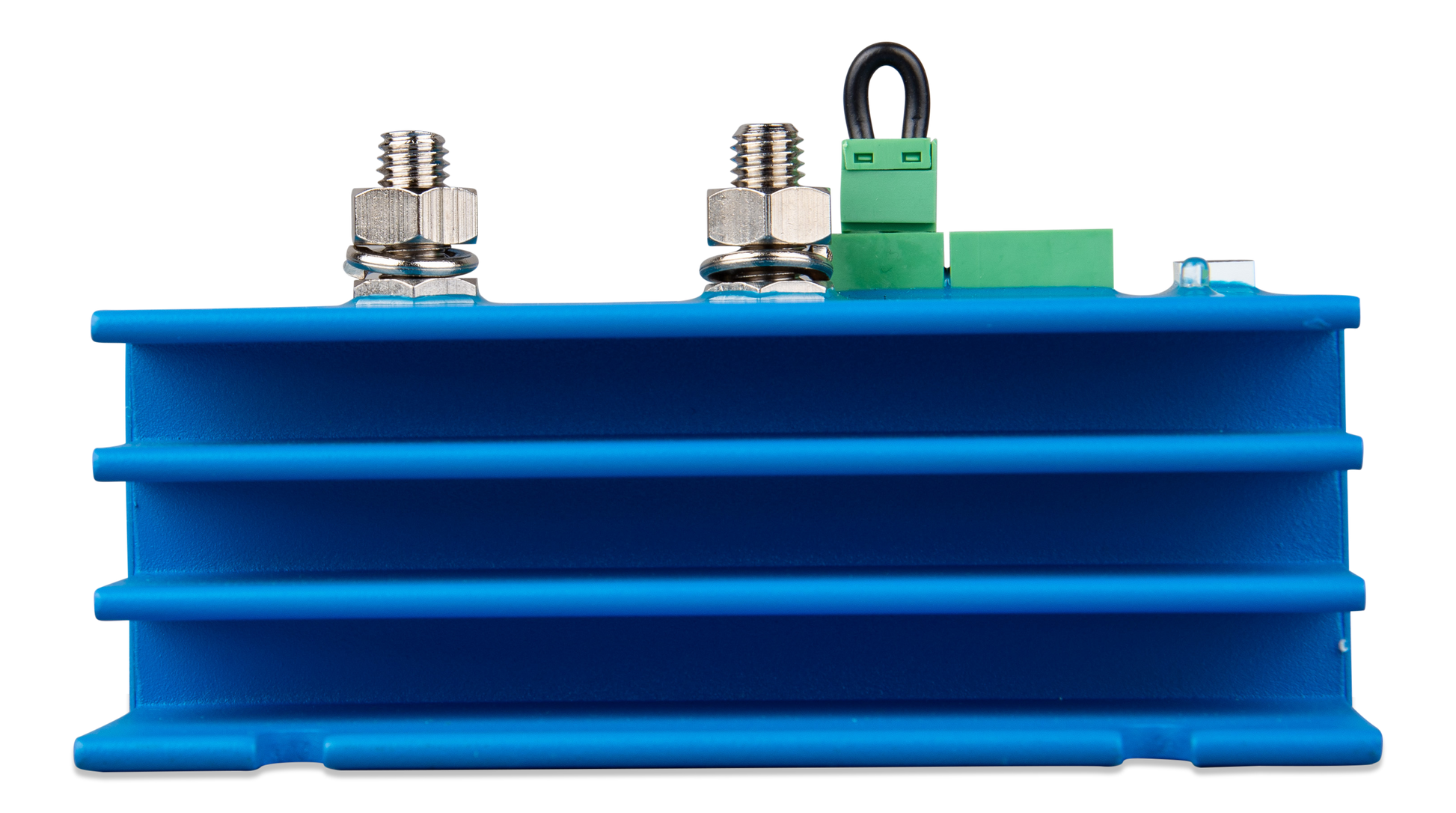

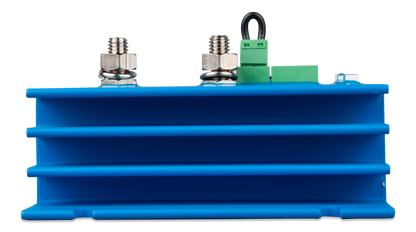

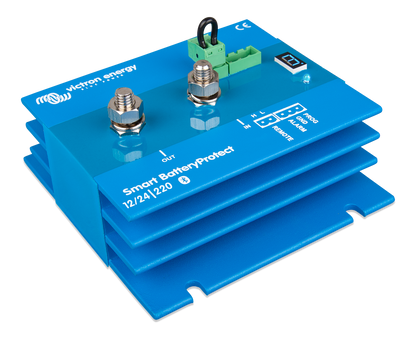

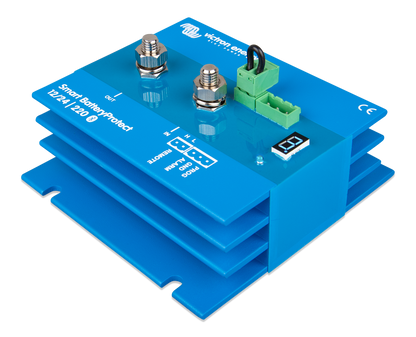

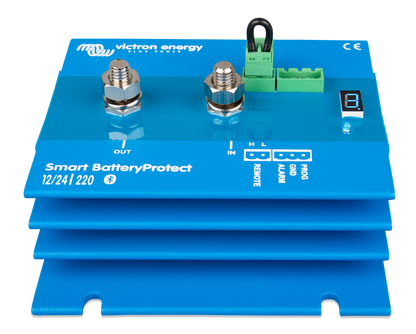

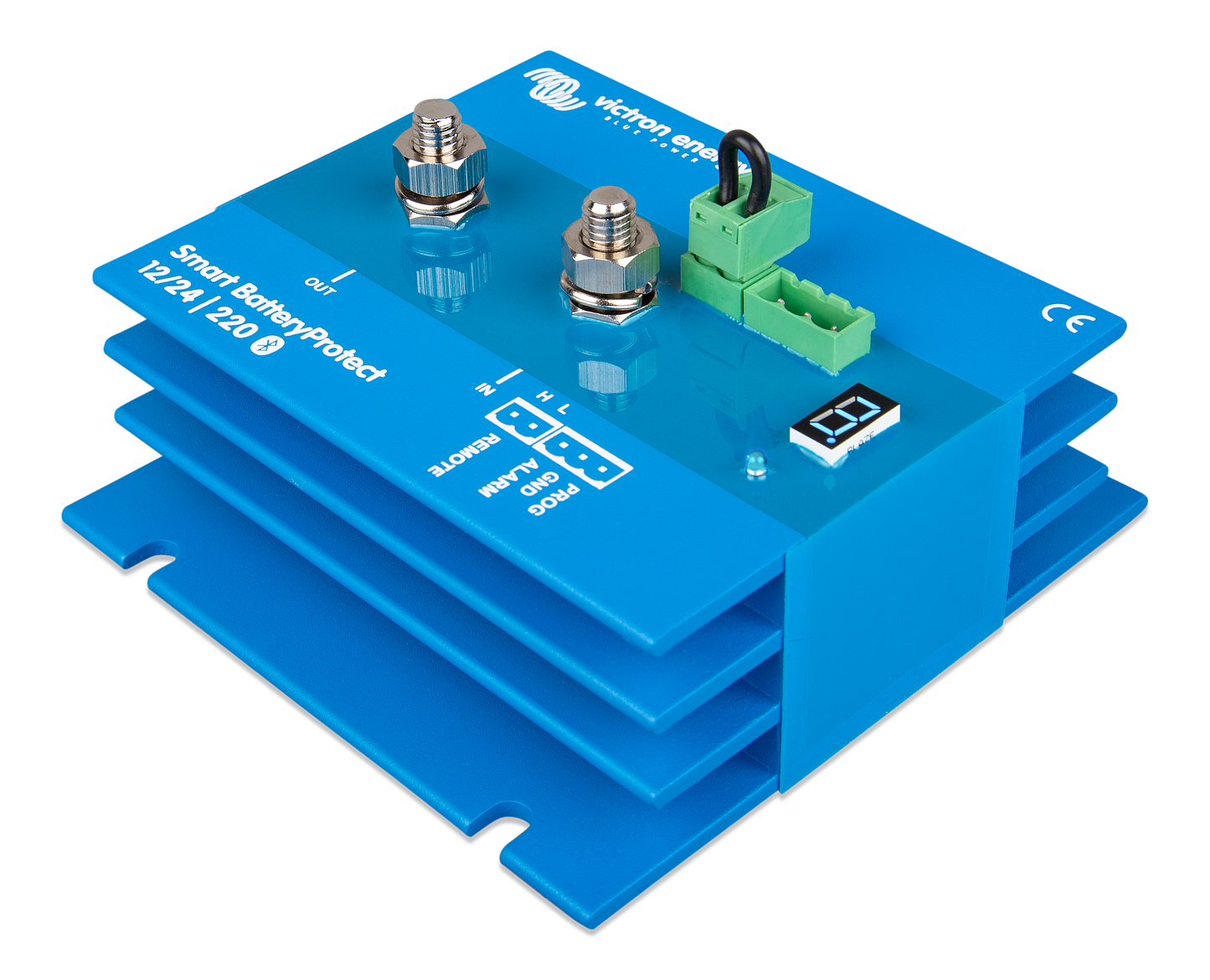

Smart BatteryProtect 12/24V-220A
Smart BatteryProtect 12/24V-220A
SKU:BPR122022000
Brand: Victron
Low stock: 2 left
Couldn't load pickup availability
Product Details
Product Details
The Smart BatteryProtect 12/24V-220A is designed to safeguard your battery by disconnecting non-essential electrical loads before voltage drops to damaging levels. This helps prevent costly battery replacements and keeps power available for critical functions such as engine starting. Suitable for a wide range of automotive, marine, leisure vehicle, and off-grid power applications, it offers reliable protection in demanding environments.
With built-in Bluetooth, the Smart BatteryProtect allows easy programming through a smartphone or tablet. You can set custom engage and disengage voltage levels to suit your system requirements, ensuring you maintain control over power delivery. For users who prefer manual programming, the device offers nine predefined settings that can be selected through a programming pin. If security or simplicity is required, Bluetooth functionality can also be disabled.
This model is a uni-directional device. Current can only flow from the IN terminal to the OUT terminal and will only handle current in one direction at any given time. This means it must be positioned correctly depending on whether it is protecting a load or a charger. When used with a load, the battery connects to the IN terminal. When used with a charger, the charger connects to the IN terminal. This avoids reverse flow, protects system components, and maintains consistent performance.
Engineered for 12V or 24V systems and rated up to 220A, it can support heavy-duty consumption profiles. Ideal for vehicles with additional electronics, boats with multiple accessory circuits, or battery banks powering inverters and appliances, this unit helps extend battery life. It ensures that once voltage drops to a critical level, unnecessary equipment is disconnected, conserving enough charge to start the engine or run priority systems.
Installation is straightforward thanks to a compact, robust design that can be mounted close to the battery or distribution point. The Smart BatteryProtect integrates cleanly into new or existing circuitry and provides a convenient tool for managing battery health with precision. This dependable power management device gives peace of mind to anyone relying on stored energy away from mains supply.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Maximum Continuous Load Current: 220 A
- Peak Current (during 30 seconds): 600 A
- Operating Voltage Range: 6 – 35 V
- Nominal Voltage: 12/24 V (Auto-ranging)
- Current Consumption (Bluetooth On): 1.4 mA (When on), 0.9 mA (When off or low voltage shutdown)
- Current Consumption (Bluetooth Off): 1.2 mA (When on), 0.7 mA (When off or low voltage shutdown)
- Over Voltage Protection: Disconnects the load if DC voltage exceeds 16.3 V (for 12V systems) or 32.6 V (for 24V systems).
Smart Features & Configuration
- Bluetooth Built-in: Wireless programming via the VictronConnect app allows you to set custom engage/disengage levels or choose from nine predefined levels using the programming pin.
- Instant Readout: The VictronConnect app can display vital status information (warnings, alarms, and errors) on the Device List page without the need to pair with the device.
- Li-ion Mode: Includes a special setting for control by a VE.Bus BMS. It can also function as a charge interrupter between a battery charger and a Li-ion battery.
- Ignition Proof: Uses MOSFET switches instead of traditional relays, ensuring no sparks are produced, making it suitable for sensitive environments.
- Delayed Alarm Output: Activated if battery voltage drops below the preset disconnect level for more than 12 seconds. Max current: 50 mA (short-circuit proof).
- Delayed Load Disconnect: The load is disconnected 90 seconds after the threshold is reached (immediate if triggered by a VE.Bus BMS).
- Delayed Load Reconnect: Reconnects 30 seconds after battery voltage rises above the preset reconnect threshold.
Mechanical & Environmental
- Operating Temperature Range: -40°C to +40°C (Full load); up to 60% of nominal load at 50°C.
- IP Rating: Electronics: IP67 (potted) | Connections: IP00.
- Connection Type: M8 bolts.
- Mounting Torque: 9 Nm.
- Weight: 0.8 kg (1.8 lbs).
- Dimensions (h x w x d): 60 x 123 x 121 mm (2.4 x 4.8 x 4.8 inch).
Default Thresholds
- Disengage: 10.5 V or 21 V
- Engage: 12 V or 24 V
Important Notes
- The BatteryProtect is not designed for reverse currents from charging sources.

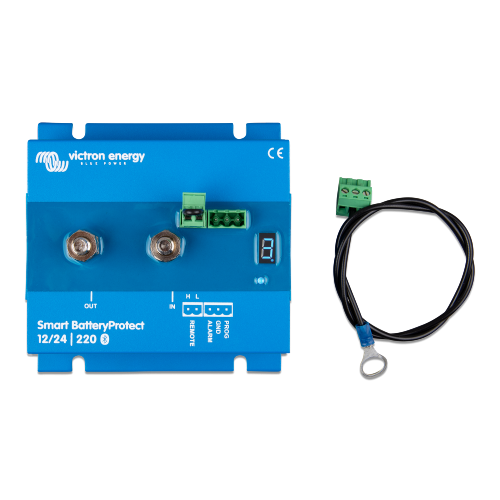

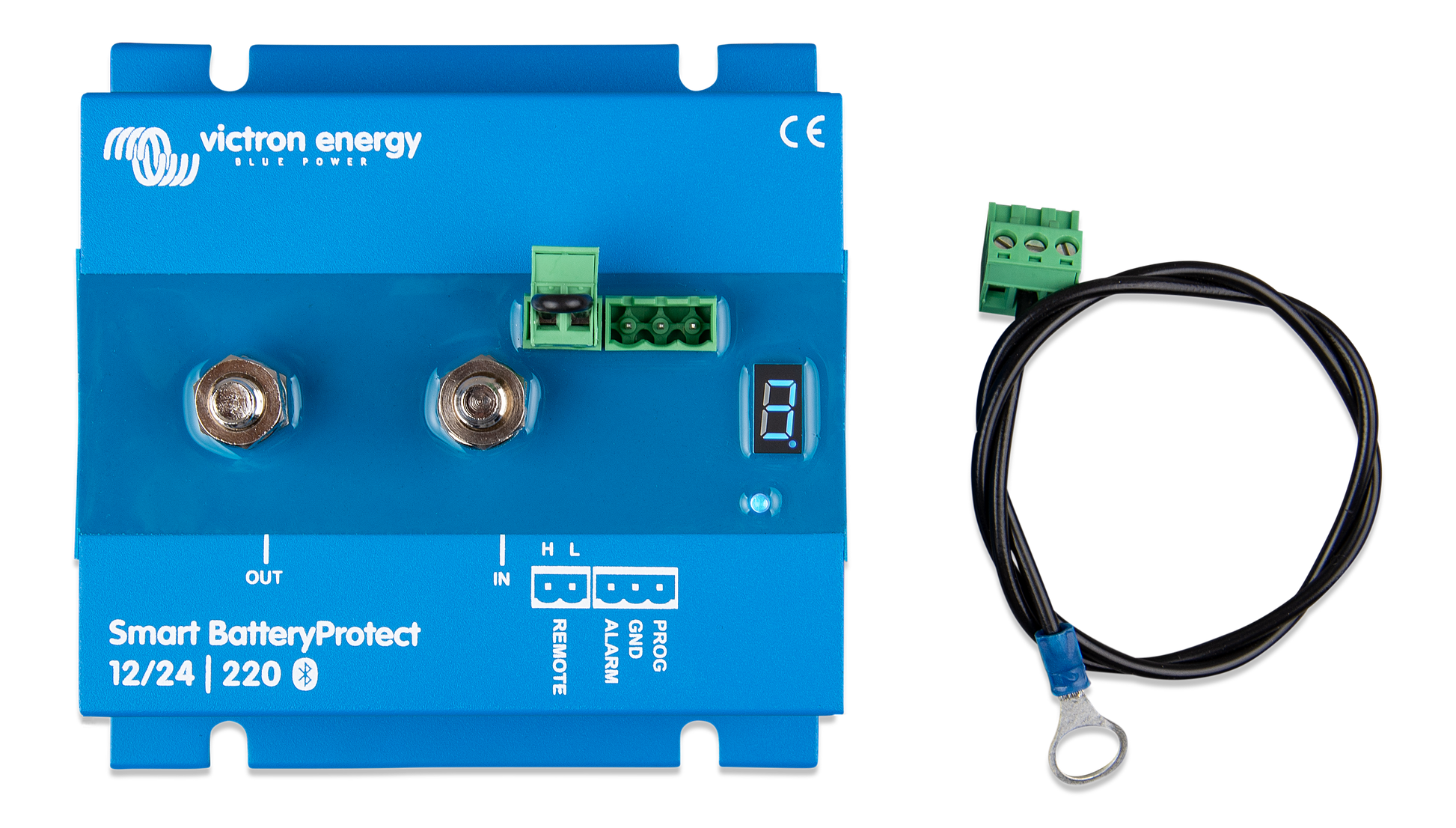

- A connector with a preassembled DC minus cable is included for installation.
