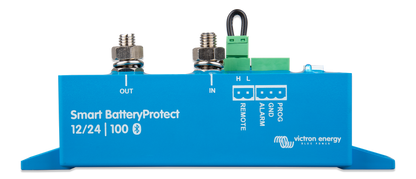

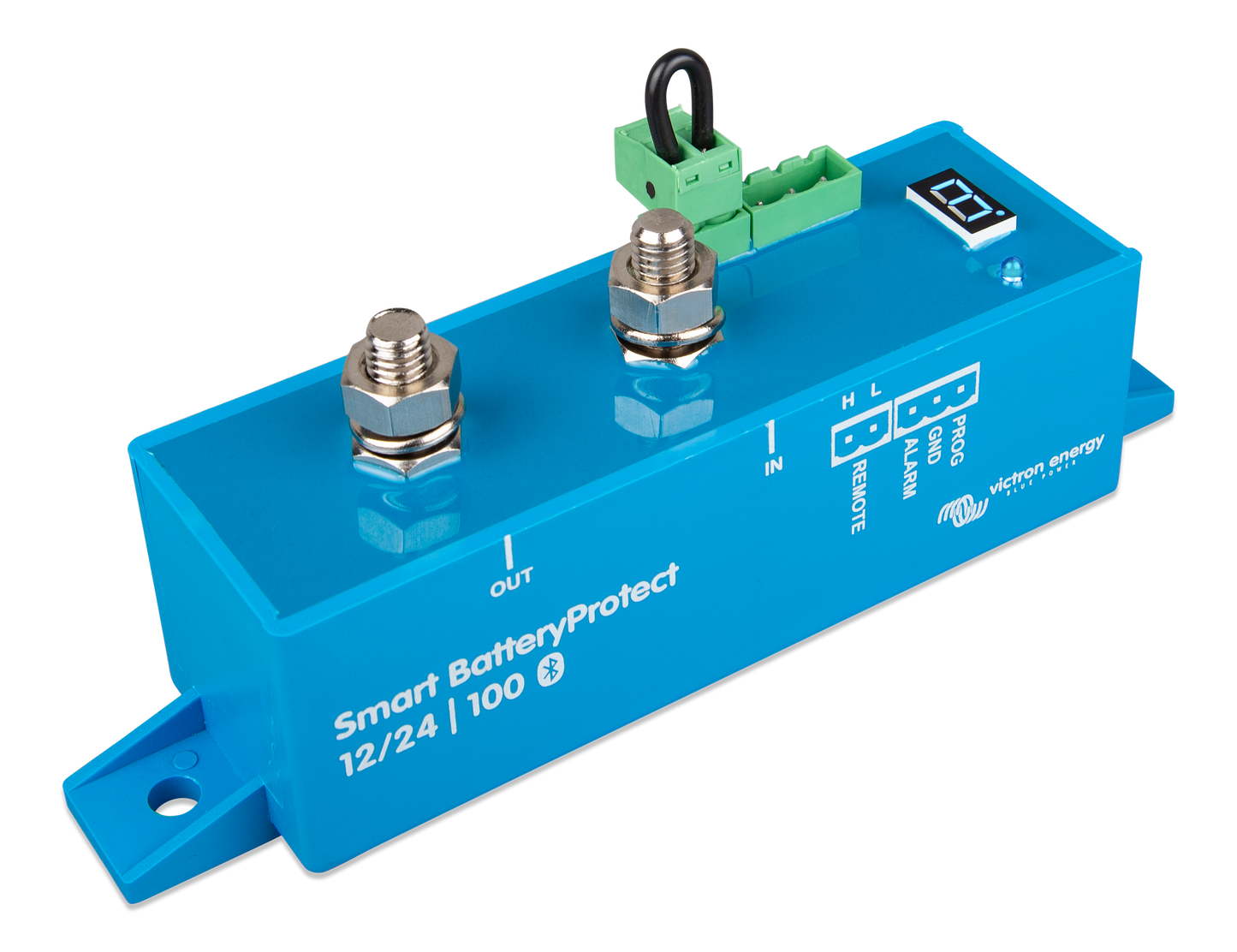

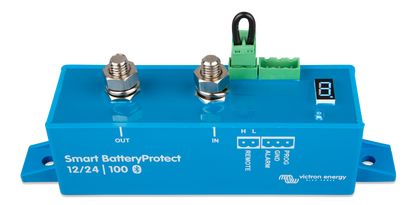

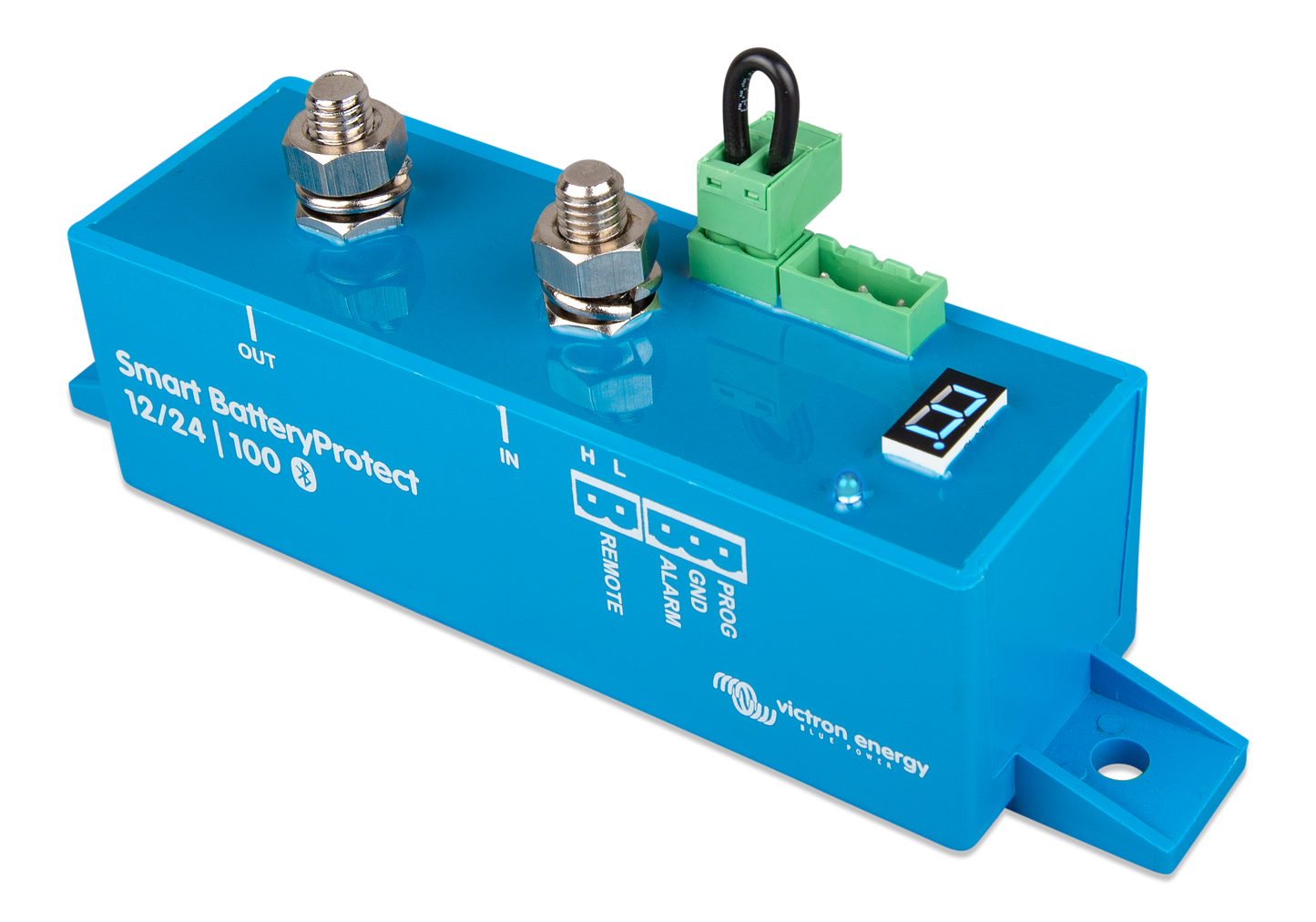

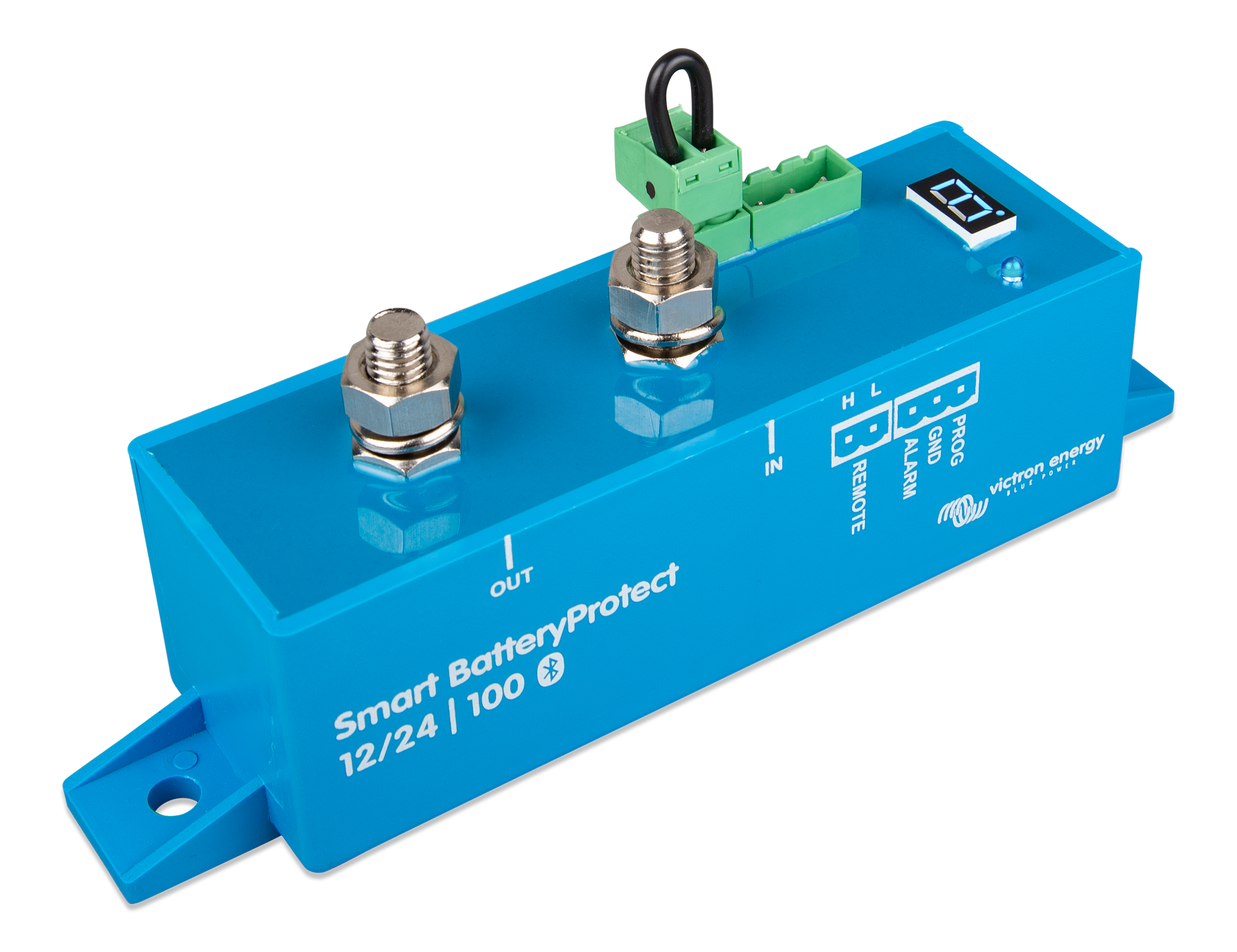

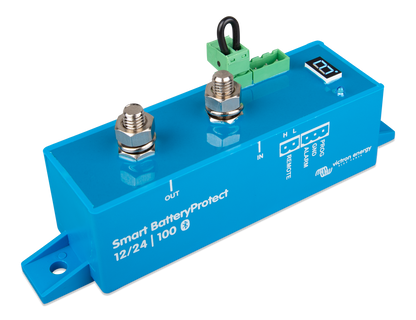

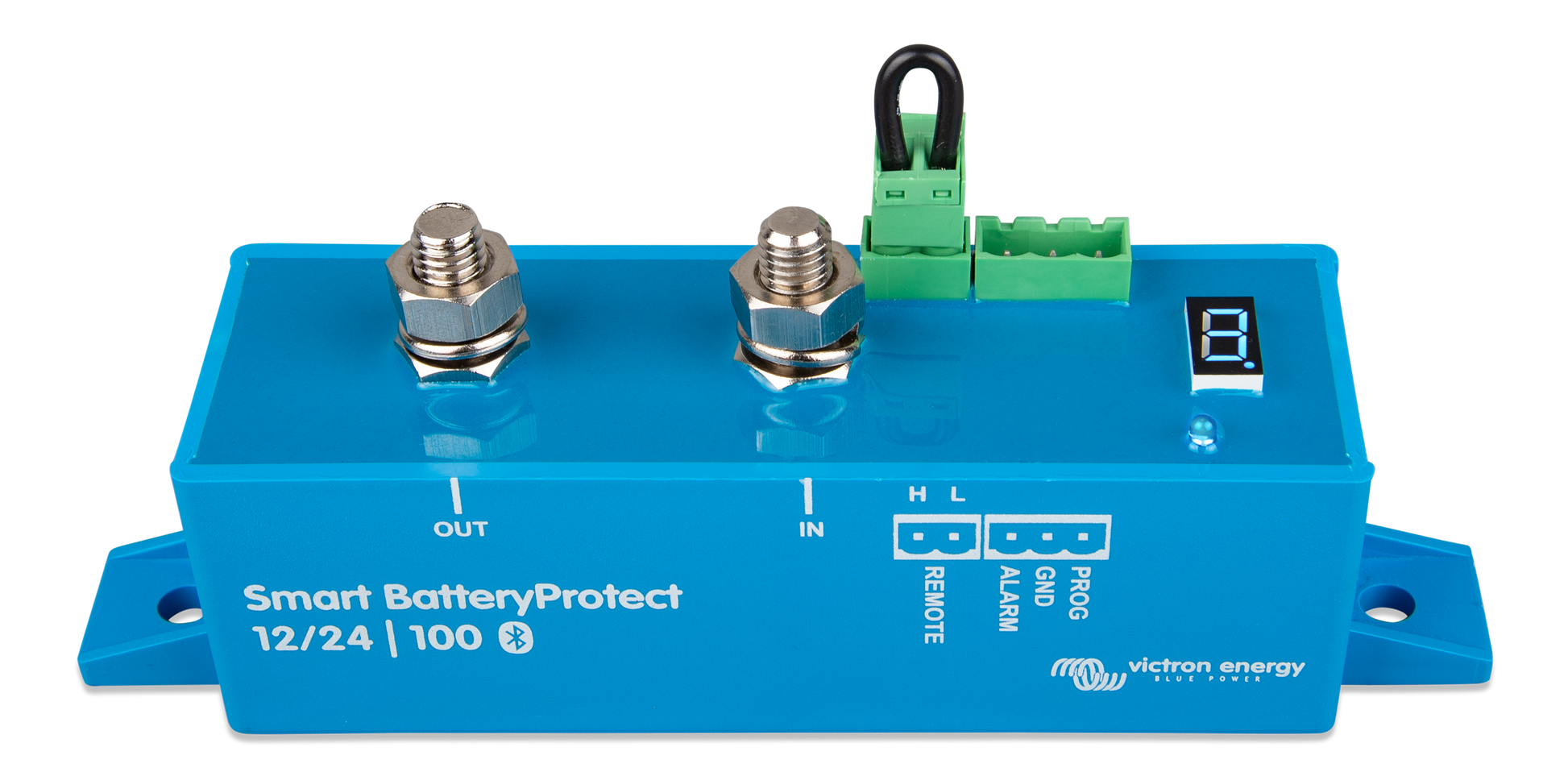

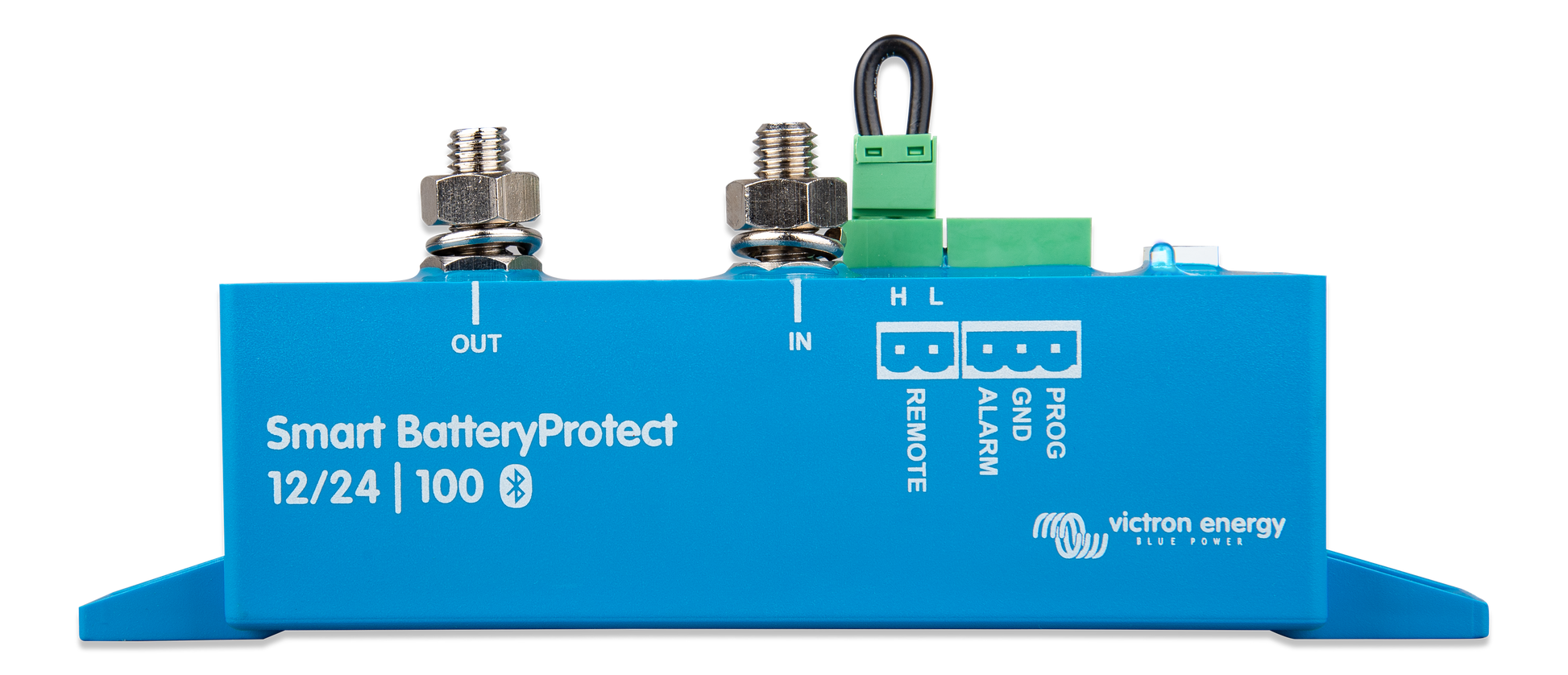

Smart BatteryProtect 12/24V-100A
Smart BatteryProtect 12/24V-100A
SKU:BPR110022000
Brand: Victron
Low stock: 2 left
Couldn't load pickup availability
Product Details
Product Details
The Victron Smart BatteryProtect 12/24V 100A is designed for reliable battery safeguarding in demanding electrical systems. It automatically disconnects non essential loads before your battery becomes deeply discharged, helping to preserve battery life and prevent costly damage. Operating on both 12V and 24V systems, it is suitable for commercial vehicles, marine installations, off grid power systems and mobile workshops. The unit supports up to 100A continuous current, making it a robust choice for medium sized power setups.
A key advantage is Bluetooth configuration through the VictronConnect app. This provides remote setup of voltage thresholds, load disconnect behaviour and alarms without manual switches or guessing. Installers and fleet managers can quickly optimise protection values for different battery types, including lithium. Intelligent presets are available to simplify configuration for common chemistries. Once installed, the system constantly monitors battery voltage and takes action when levels drop too low.
The Smart BatteryProtect also factors in electronics start up currents to avoid false disconnects caused by brief surges. Solid state internal components support fast switching and reduce mechanical wear compared with traditional relays. When voltage recovers, the unit reconnects automatically, restoring power to connected loads. This helps prevent unexpected downtime and reduces the risk of flat batteries on remote sites or unattended equipment.
Compact and lightweight, the device is easy to integrate into space limited electrical compartments. The housing is built for durability in harsh environments, including vibration and temperature changes. Protection against ignition risk helps support safe installation in vehicle or boat engine bays. For installers, the simple wiring layout and app based configuration cut setup time and reduce the need for additional panels or switches.
Whether you are building commercial power solutions or maintaining a fleet, the Victron Smart BatteryProtect offers dependable battery safety and flexibility. Its ability to prevent deep discharge and unnecessary wear contributes to lower ownership costs over time. This makes it a smart choice for trade customers seeking reliable power management, longevity and control without complicated hardware.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Maximum Continuous Load Current: 100 A
- Peak Current (during 30 seconds): 600 A
- Operating Voltage Range: 6 – 35 V
- Nominal Voltage: 12/24 V (Auto-ranging)
- Current Consumption (Bluetooth On): 1.4 mA (When on), 0.9 mA (When off or low voltage shutdown)
- Current Consumption (Bluetooth Off): 1.2 mA (When on), 0.7 mA (When off or low voltage shutdown)
- Over Voltage Protection: Disconnects the load if DC voltage exceeds 16.3 V (for 12V systems) or 32.6 V (for 24V systems).
Smart Features & Configuration
- Bluetooth Built-in: Programming made easy via the VictronConnect app. Set custom engage/disengage levels or choose from nine predefined levels using the programming pin.
- Instant Readout: The VictronConnect app can display vital status information (warnings, alarms, and errors) on the Device List page without needing to pair with the product.
- Li-ion Mode: Features a special setting for control by a VE.Bus BMS. It can also serve as a charge interrupter between a battery charger and a Li-ion battery.
- Ignition Proof: Employs MOSFET switches instead of traditional relays, ensuring no sparks are produced.
- Delayed Alarm Output: Activated if battery voltage falls below the preset level for more than 12 seconds. Designed to trigger buzzers, LEDs, or relays (max 50 mA, short-circuit proof).
- Delayed Load Disconnect: The load is disconnected 90 seconds after reaching the threshold (immediate if triggered by a VE.Bus BMS).
- Delayed Load Reconnect: Reconnects 30 seconds after battery voltage rises above the preset reconnect threshold.
Mechanical & Environmental
- Operating Temperature Range: -40°C to +40°C (Full load); up to 60% of nominal load at 50°C.
- IP Rating: Electronics: IP67 (potted) | Connections: IP00.
- Connection Type: M8 bolts.
- Mounting Torque: 9 Nm.
- Weight: 0.5 kg (0.6 lbs).
- Dimensions (h x w x d): 61 x 41 x 164 mm (2.4 x 1.6 x 6.5 inch).
Default Thresholds
- Disengage: 10.5 V or 21 V
- Engage: 12 V or 24 V
Installation Note:
The BatteryProtect is not designed for reverse currents from charging sources.

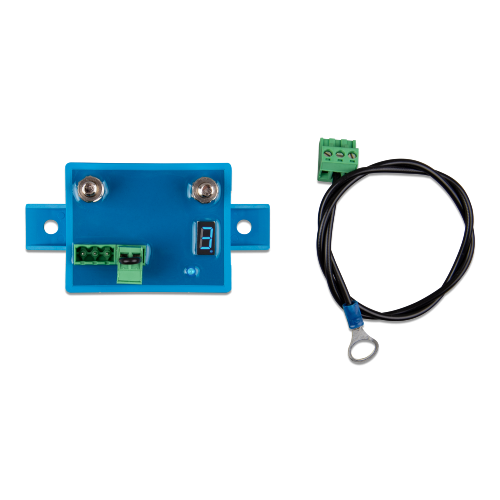

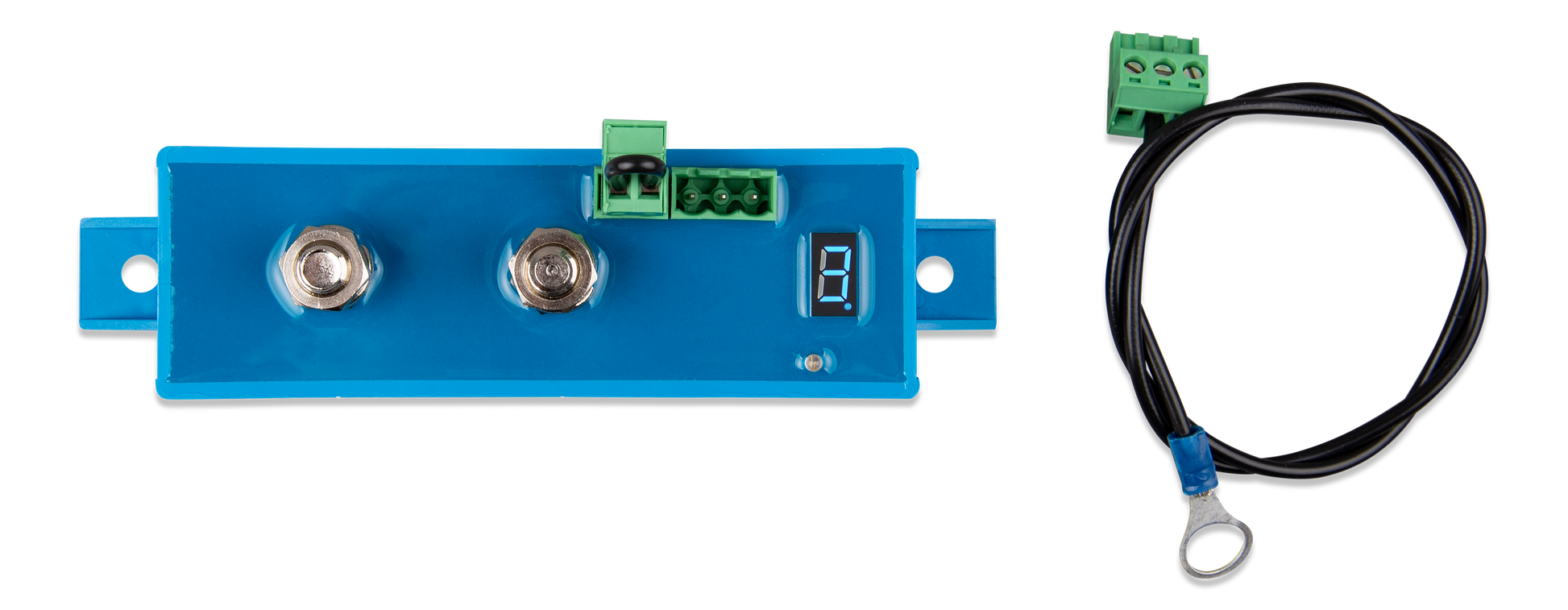

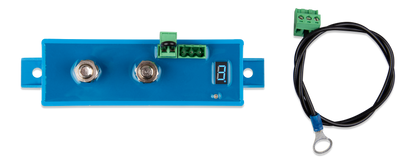

A connector with a preassembled DC minus cable is included for installation.
