Smart Battery Sense long range (up to 10m)
Smart Battery Sense long range (up to 10m)
SKU:SBS050150200
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details

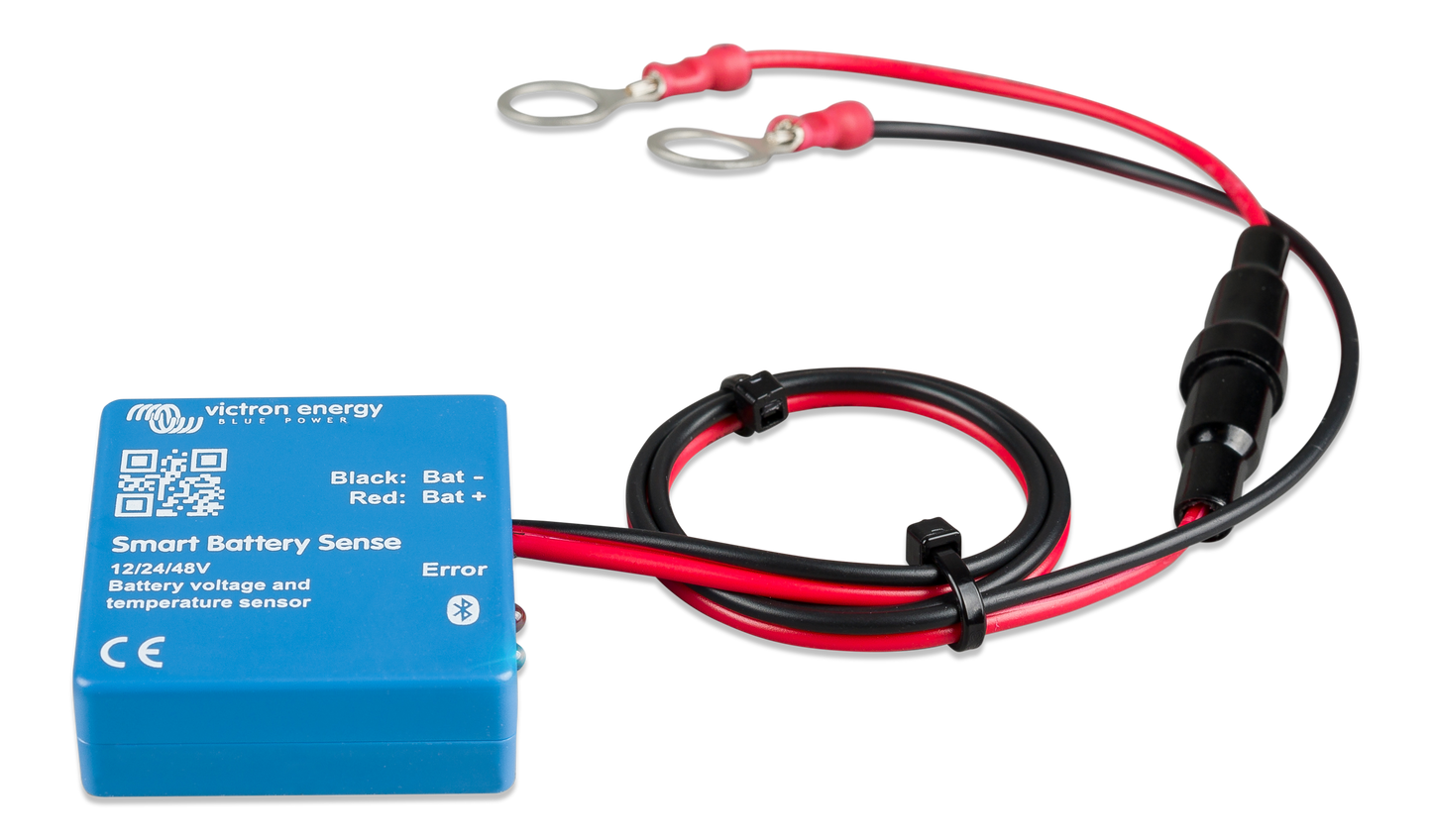

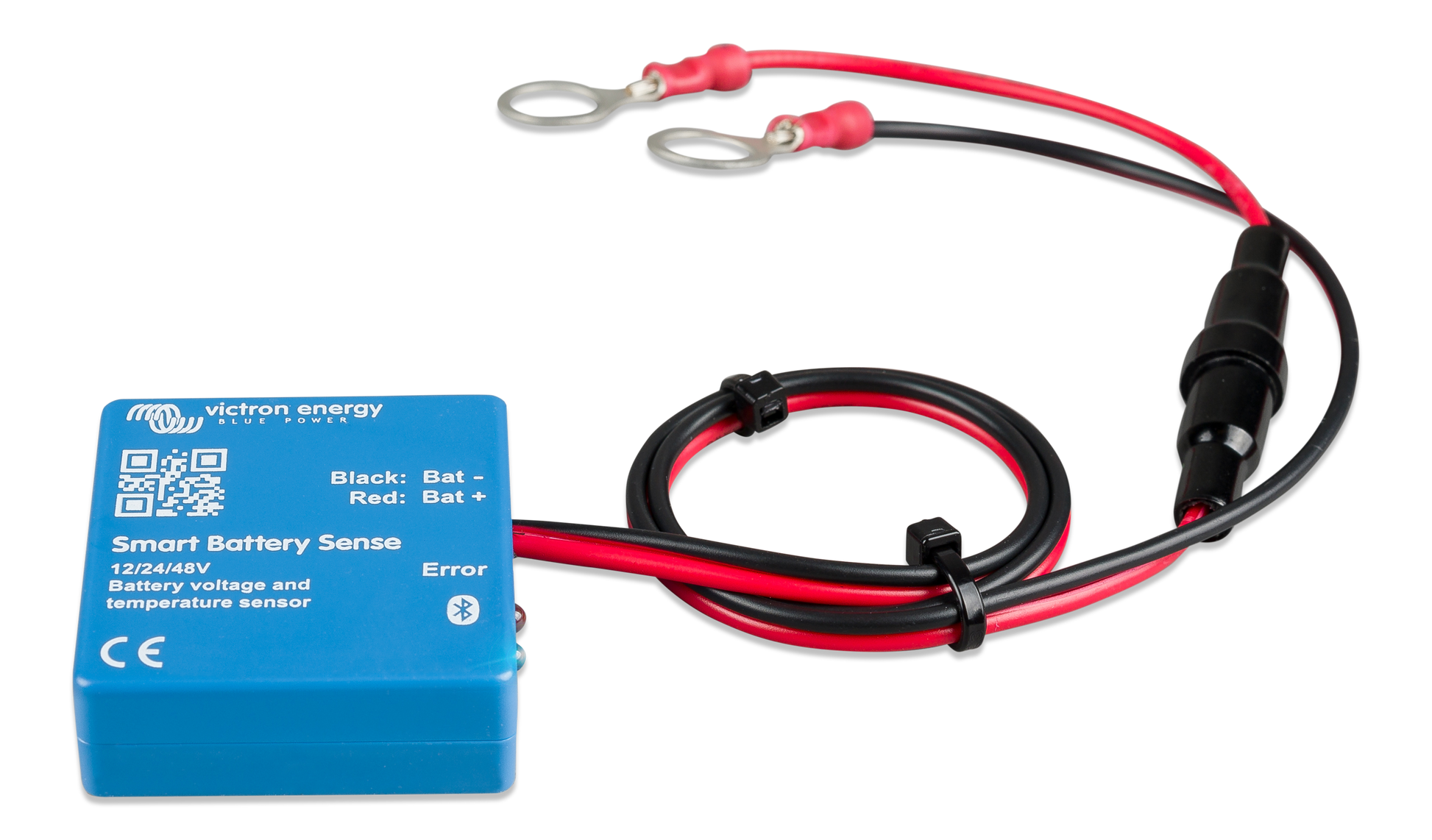

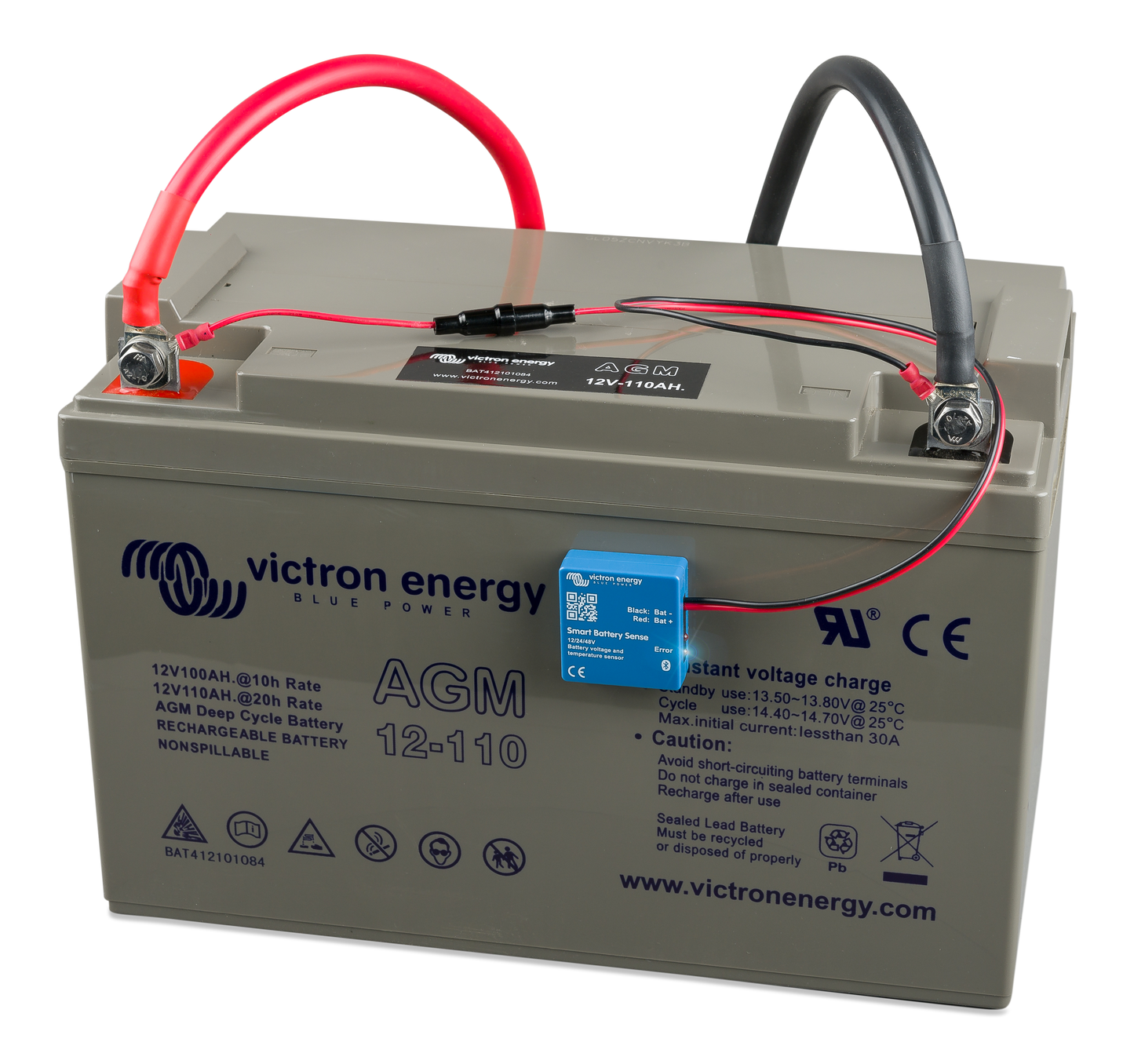

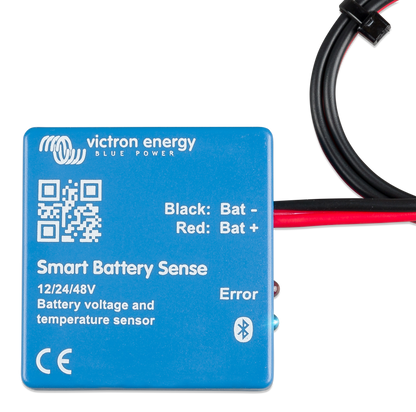

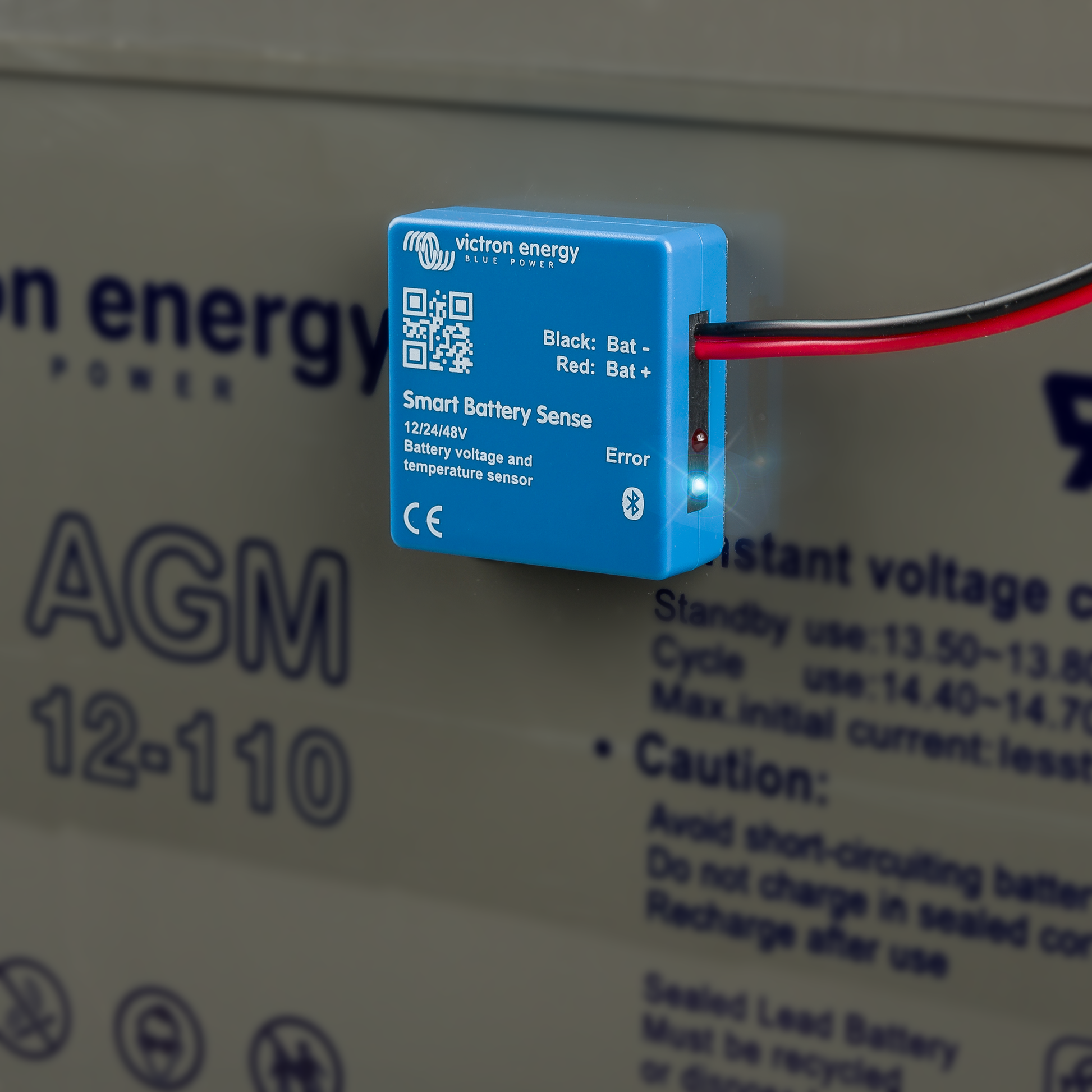

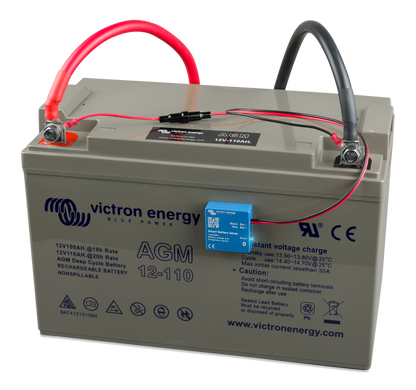

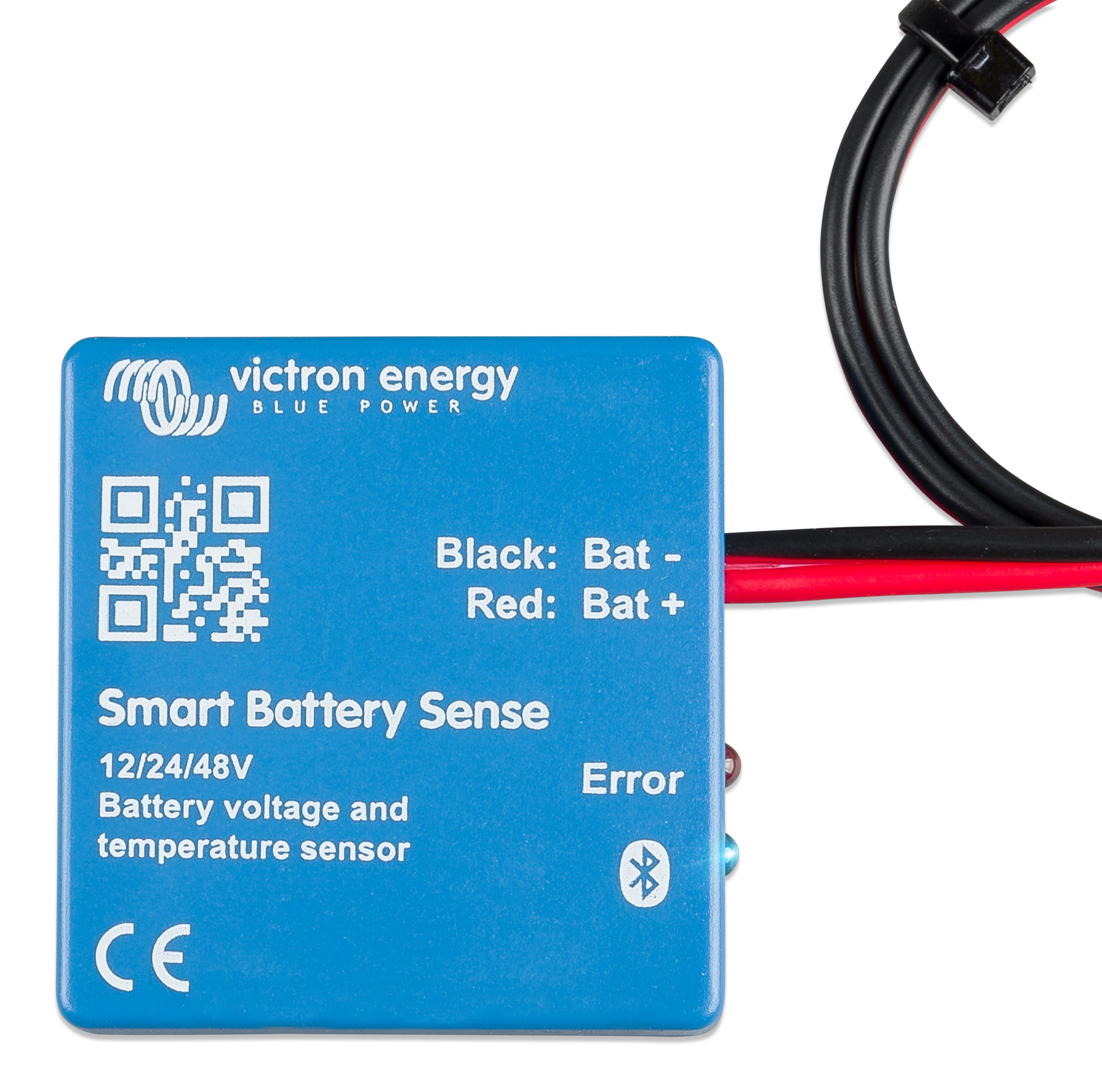

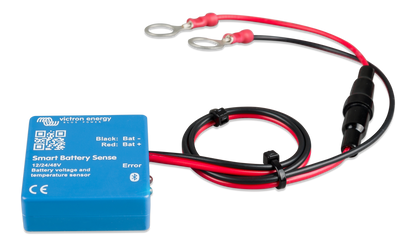

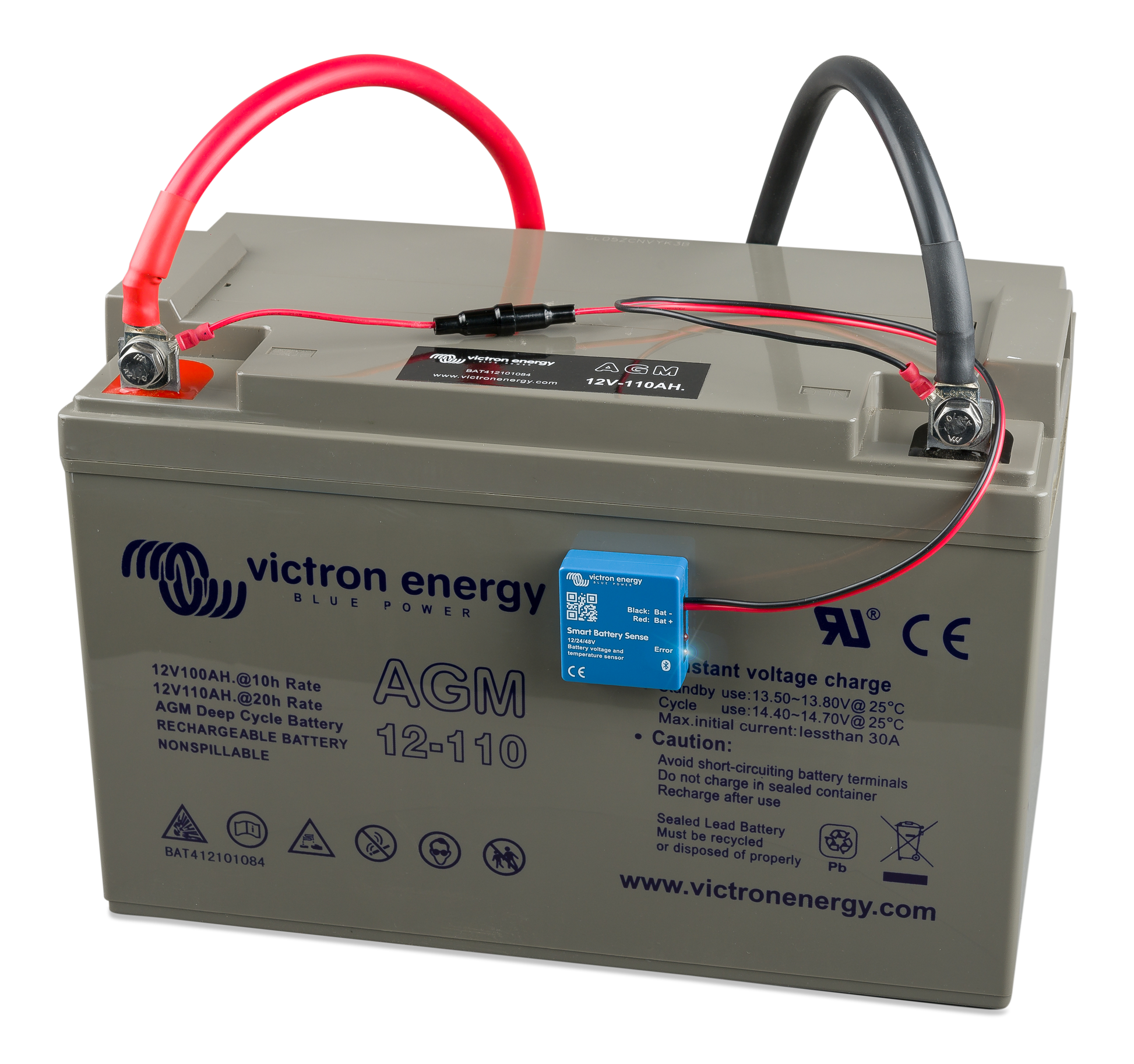

Upgrade your battery-monitoring system with the Victron Smart Battery Sense (SBS050150200); the wireless sensor designed to enhance the charging performance of your Victron MPPT solar chargers. This compact unit connects directly to your battery terminals via two pre-crimped eyelets and adheres to the battery surface using its self-adhesive back. Once installed, it transmits both voltage and temperature measurements wirelessly over the VE.Smart Network (Bluetooth Smart) to one or more compatible Victron devices.
Why does that matter? Traditional systems often rely on measuring voltage at an inverter or charge controller, which can suffer from voltage drops in cables and misread the true battery terminal voltage. By mounting the sensor directly at the battery, the Smart Battery Sense gives accurate terminal voltage data, enabling your charger to deliver the correct charge voltage. For lead-acid batteries, temperature compensation means higher charge voltages in cold conditions and lower in hot. For lithium batteries, the sensor can inhibit charging in dangerously low temperatures, protecting your battery investment.

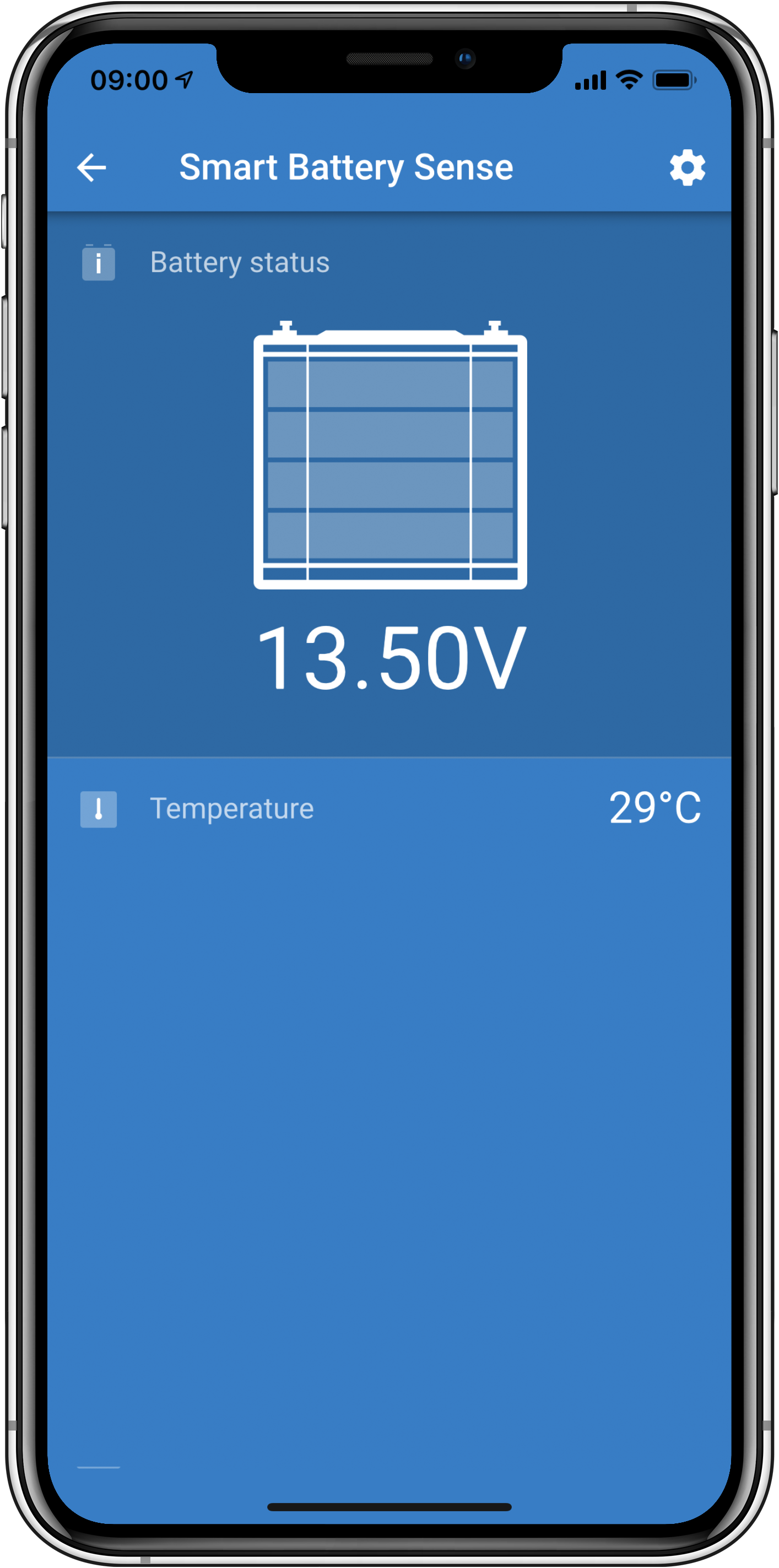

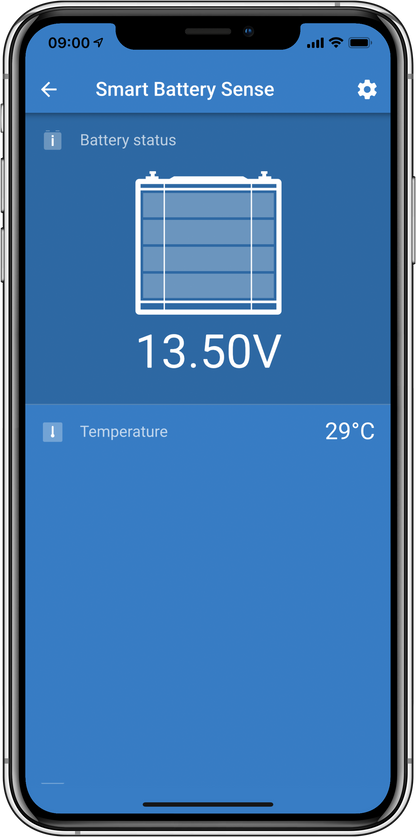

With compatibility across 12 V, 24 V and 48 V banks (operating range 8-60 V), this Long Range version is ideal for installations where the charger is mounted some distance from the battery, offering wireless connectivity up to about 10 metres. Installation is straightforward and tidy: mount the unit, connect the eyelets, pair via the VictronConnect app, and your system is ready to go. It draws minimal power from the battery, so you won’t compromise your off-grid or mobile setup.
Whether you’re working with a campervan, yacht, remote off-grid cabin or professional solar system, the Smart Battery Sense helps ensure your batteries receive the right charge at the right time, boosting system efficiency and prolonging battery life.
Product Specifications
Product Specifications
Technical Specifications
- Operating Voltage Range: 8 V to 60 V
- Absolute Maximum Voltage: 65 V
- Operating Temperature Range: -10°C to +60°C
- Cable Length: 10 Meters
- Eyelet Hole Size: 10 mm (M10)
- Fuse Rating: T1A 250V
- Bluetooth Frequency: 2402–2480 MHz
- Bluetooth Power: -4 dBm
Power Consumption
- 12V System: 0.3 mA (Not connected) / 1.6 mA (Connected)
- 24V System: 0.2 mA (Not connected) / 0.9 mA (Connected)
- 48V System: 0.2 mA (Not connected) / 0.6 mA (Connected)
System Compatibility
- Supported Products: Bluetooth-enabled VE.Direct MPPT Solar Chargers and Smart IP43 Chargers.
- Ecosystem Integration: Functions as a key component in a VE.Smart Network for synchronized charging.
- Note: This sensor is not required in systems already controlled by a Color Control GX or Venus GX, or those utilizing a BMV-712 with a temperature sensor.
Quality & Warranty
- Warranty: Backed by Victron Energy’s standard 5-year warranty.
- Manufacturing: Produced in ISO9001 certified facilities and compliant with official Declarations of Conformity.
