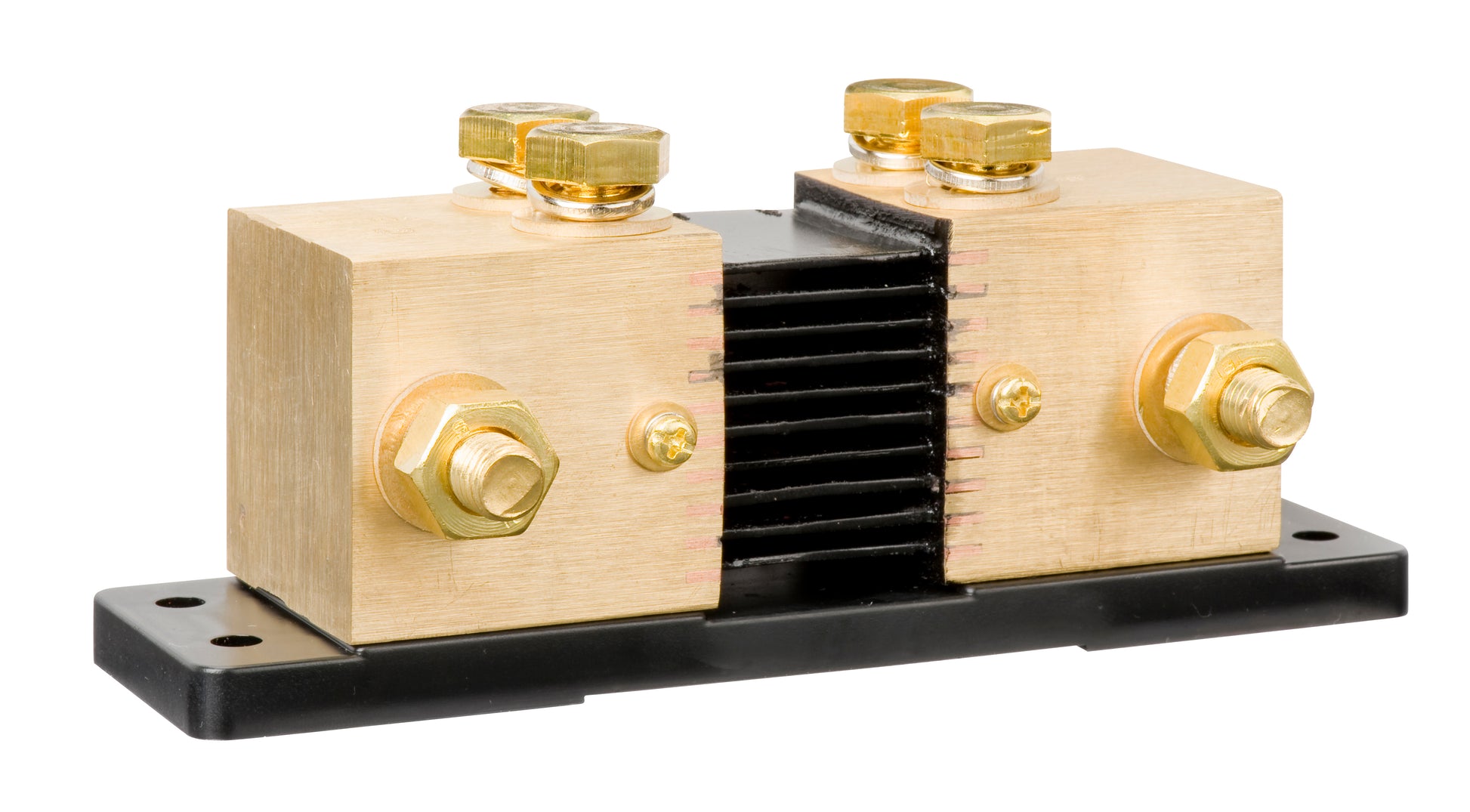

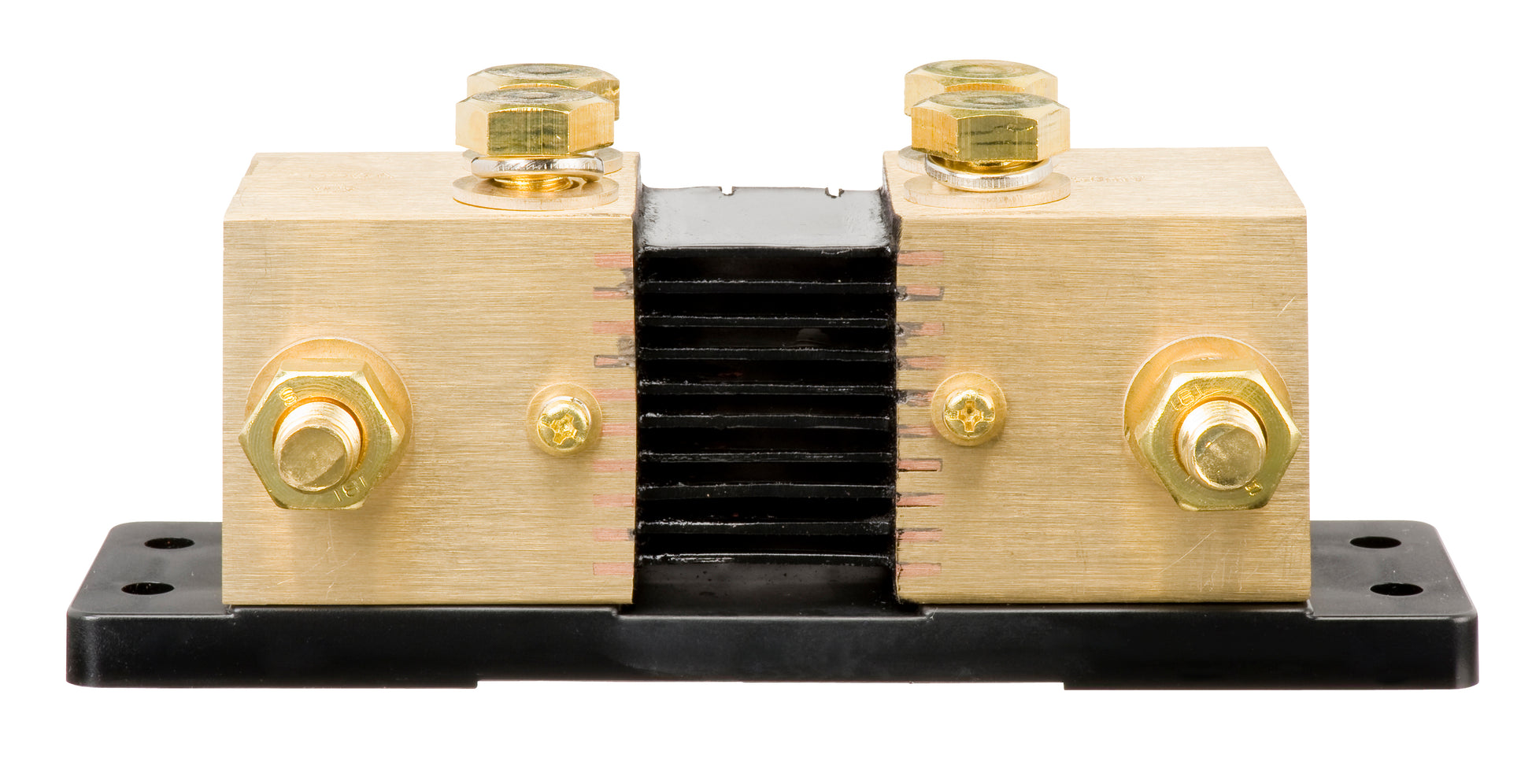

Shunt 2000A/50mV-0.5 / 3xM10

Shunt 2000A/50mV-0.5 / 3xM10

SHU202050200

Brand: Victron

High capacity rating: 2000 A measurement capability supports large battery banks and high-current systems. Accurate output : 50 mV full‐scale output (0.5 mV per amp) ensures reliable data for monitoring and control. Three M10 terminals: Enables multiple cable entries or busbar connections for flexible installations. Compact and robust form: Built for professional use in mobile, marine, off-grid and industrial environments. Brand quality and compatibility: From Victron Energy, a trusted name in power systems, ensuring seamless integration into pro installations. Dimensions: 80mm x 50mm x 168mm

In stock

This is pre-order - Available in 7 – 10 days

£112.00 GBP
£112.00 GBP
Sale Sold out

Product Details

The Shunt 2000A/50mV-0.5 / 3 x M10 (SKU SHU202050200) from Victron Energy is designed for professional and trade-level power-system installations where precise current measurement and heavy-duty connections are essential. This shunt offers a 2000 A rating with a 50 mV output (0.5 mV per ampere) and three M10 terminals for secure and robust installation clearance.

Constructed with a heavy metal base and precision machined terminals, the shunt provides a low-resistance path and accurate measurement under high current loads. The three M10 studs give flexibility for connecting multiple main cables or busbars, making it ideal for large battery banks, solar installations, marine systems, mobile power solutions or industrial DC-bus applications.

The model is easily integrated into 48 V or higher voltage systems when paired with compatible monitoring equipment. This makes it a trade-ready component for system upgrades or new builds.

For installers and system designers seeking reliable performance in heavy-duty environments, this Victron shunt delivers the measurement accuracy, durability and connectivity required. It supports system monitoring, capacity tracking and fault detection, enabling proactive maintenance and improved system reporting. Add this to your toolkit for larger scale or high-current DC installations.

Product Specifications

Electrical Specifications

  • Current Rating: 2000 A (Continuous)
  • Rated Output: 50 mV at 2000 A
  • Accuracy Class: 0.5 (±0.5%)
  • Resistance: 25 µΩ (0.000025 Ω)
  • Voltage Drop at 100A: 2.5 mV
  • Voltage Drop at 500A: 12.5 mV
  • Voltage Drop at 1000A: 25 mV
  • Voltage Drop at 2000A: 50 mV

Power Dissipation

  • Power Dissipation at 100A: 0.25 W
  • Power Dissipation at 500A: 6.25 W
  • Power Dissipation at 1000A: 25 W
  • Power Dissipation at 2000A: 100 W

Note: Due to high heat dissipation at full load, the shunt should be mounted in a well-ventilated location.

Mechanical & Physical Specifications

  • Dimensions (L x W x H): 168 x 58 x 48 mm
  • Weight: Approximately 2.25 kg
  • Main Terminals: 3 x M10 connection points (typically configured as 2 x M10 studs for battery connection and 1 x M10 stud plus additional threaded points for system connections)
  • Sense Terminals: 2 x M4 screws
  • Construction Materials: Precision manganin resistive element with heavy copper end blocks
  • Manufacturing: Factory laser/calibration trimmed for Class 0.5 accuracy

Compatibility & Equipment

  • Compatible Monitors: Designed for Victron battery monitoring systems using 50 mV external shunts, including:
    - Victron BMV-700
    - Victron BMV-702
    - Victron BMV-712 Smart
  • Upgrade Note: When upgrading from a standard 500A BMV shunt, the monitoring PCB/electronics must be transferred from the original shunt to this unit, as the bare shunt is a passive component.

Installation & Applications

  • Wiring Requirements: Must be installed exclusively in the battery negative conductor. All loads and charging sources must connect to the system side of the shunt to ensure accurate readings.
  • Typical Applications:
     - Commercial energy storage systems
    - Large off-grid battery banks
    - Marine propulsion systems
    - Industrial DC power systems and forklifts
    - Telecom power plants
    - High-power lithium battery systems

Key Features

  • 3xM10 Configuration: Features three heavy-duty M10 connection points to facilitate easier installation in systems using multiple large conductors or DC busbars, preventing excessive terminal stacking.
  • High-Current Precision: Offers double the current capacity and half the resistance of the 1000A model while maintaining high accuracy.
  • Rugged Construction: Substantial 2.25 kg build reflecting the heavy copper content required for safe high-current operation.
  • Passive Reliability: Contains no internal electronics or power consumption, ensuring long-term maintenance-free performance.

Warranty

  • Manufacturer Warranty: Typically 5 Years
View full details
Product Product subtotal Quantity Price Product subtotal

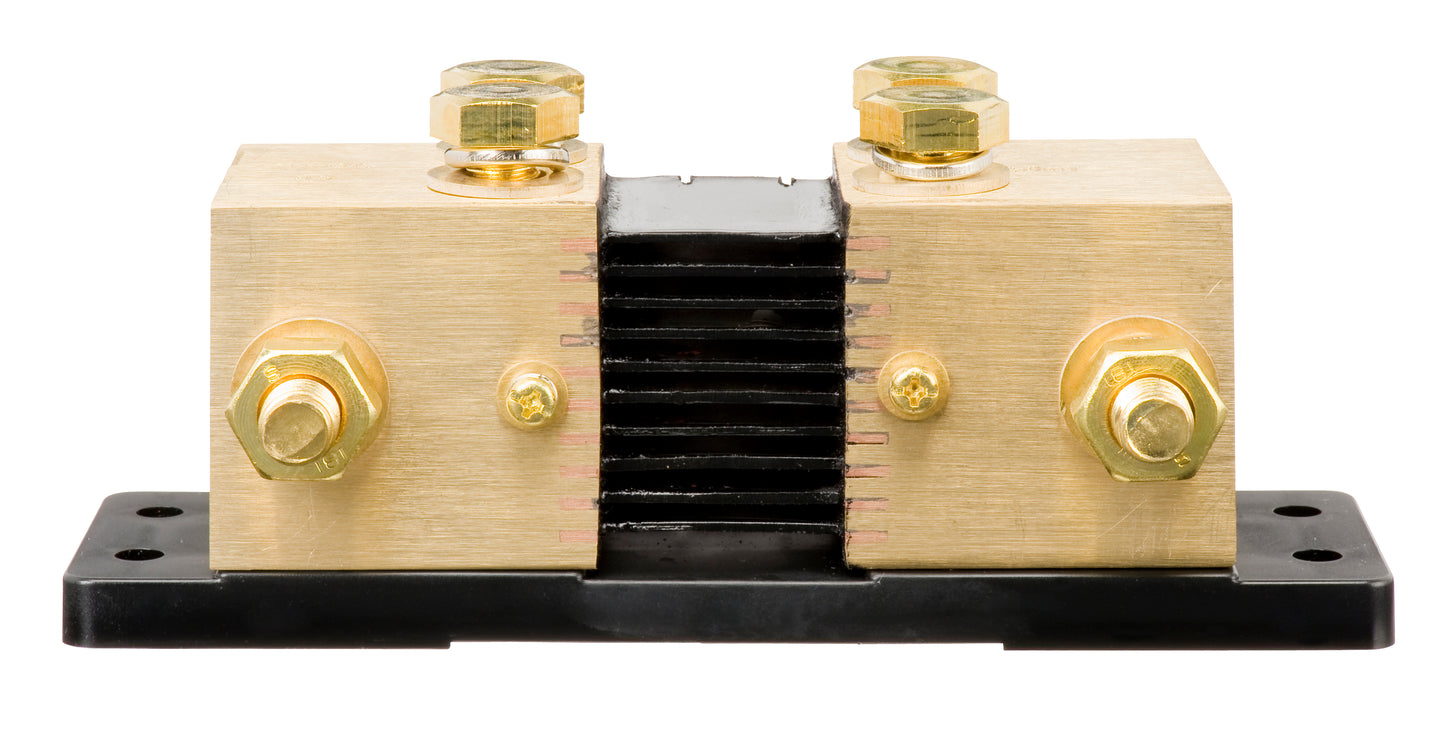

Shunt 2000A/50mV-0.5 / 3xM10
