Can this cable seal be installed below the waterline?
No, these seals are designed to be installed above the waterline.
1
/
of
1

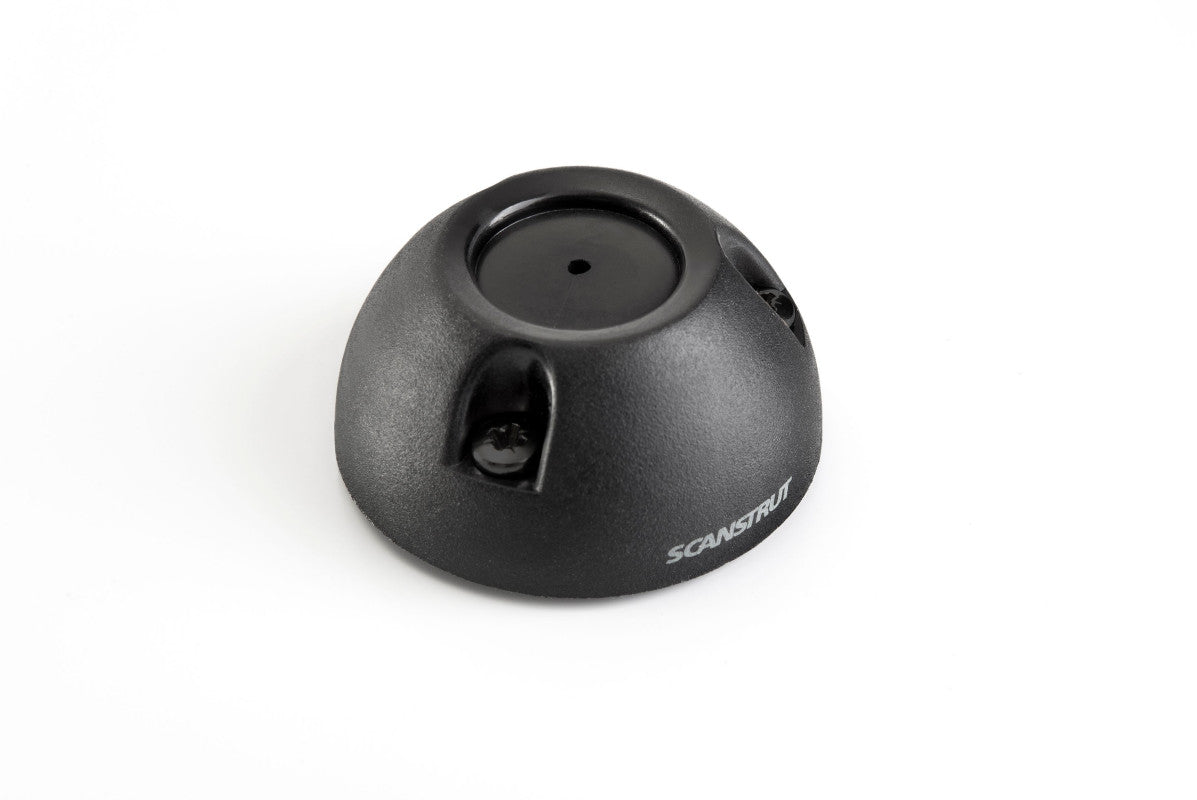

Scanstrut Vertical Cable Seal - DS16-P-BLK
Scanstrut Vertical Cable Seal - DS16-P-BLK
SKU:DS16-P-BLK-U
Brand: Scanstrut
IP68 waterproof rated
Made from premium marine-grade UV-stable materials
Includes 316 stainless steel fixings and a waterproof 3M gasket
Captive nuts ensure an easy and reliable repeat installation
No messy sealant on bungs
Split bungs for ease of installation
Install connectors up to 16mm (0.63") in diameter
Fully customizable with self-drill bung options
20 in stock
Regular price
£20.84 GBP
Regular price
Sale price
£20.84 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
Vertical Cable Seal
DS16-P-BLK
Designed for cables from 2-8mm (0.08"-0.31"). The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make for an easy assembly.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.
Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.
Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Split Bungs
The split-seal option enables connectors up to 16mm (0.63") to remain installed during the installation process.
What's the best way to drill a blank bung?
Before drilling holes, freeze the blank seal in a freezer, this makes it very easy to accurately and neatly drill the hole. For best fit around cables drill a hole Ø1-2mm larger than the cable diameter. When drilling into a frozen blank seal this hole will look far too big but when the seal defrosts, it will be a good tight fit.
Product Specifications
Product Specifications
Material & Build
- Material: High Impact Plastic
- Colour: Black
Physical Dimensions
- Height: 19mm (0.75")
- Seal Diameter: 39mm (1.53")
Cable Compatibility
- Cable Diameter Range: 2mm to 8mm (0.08" to 0.31")
Included Bungs: The seal comes with a variety of bungs to ensure a precise, watertight fit for different cable sizes:
- 1 x 3mm (0.12")
- 1 x 4mm (0.16")
- 1 x 7mm (0.28")
- 1 x Self-drill bung (for custom or non-standard cable diameters)
Key Features
- Watertight Integrity: Designed to create a secure seal around cables, preventing water ingress at the entry point.
- Low Profile: Features a compact 19mm height to minimize tripping hazards and maintain a streamlined look.
- Customizable Installation: The inclusion of a self-drill bung allows the user to create a perfect fit for specific cable requirements within the supported range.
- Rugged Construction: Made from high-impact materials to resist damage in high-traffic or harsh outdoor areas.
