Scanstrut Tile 12V/24V Indoor Ultra Fast Dual USB-C Interior Charger - Black Bezel
Scanstrut Tile 12V/24V Indoor Ultra Fast Dual USB-C Interior Charger - Black Bezel
SKU:SC-TILE-20
Brand: Scanstrut
Low stock: 8 left
Couldn't load pickup availability
Product Details
Product Details

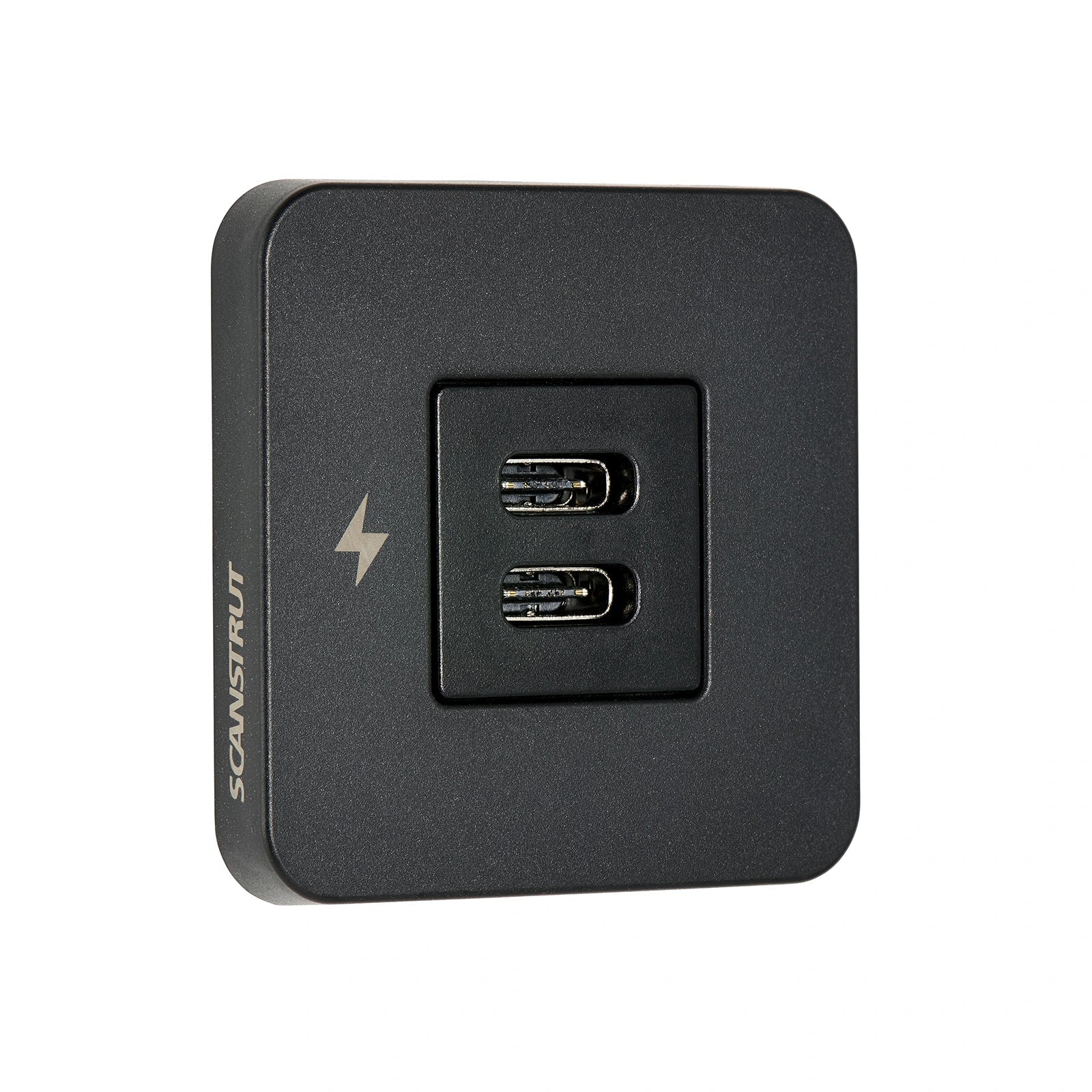

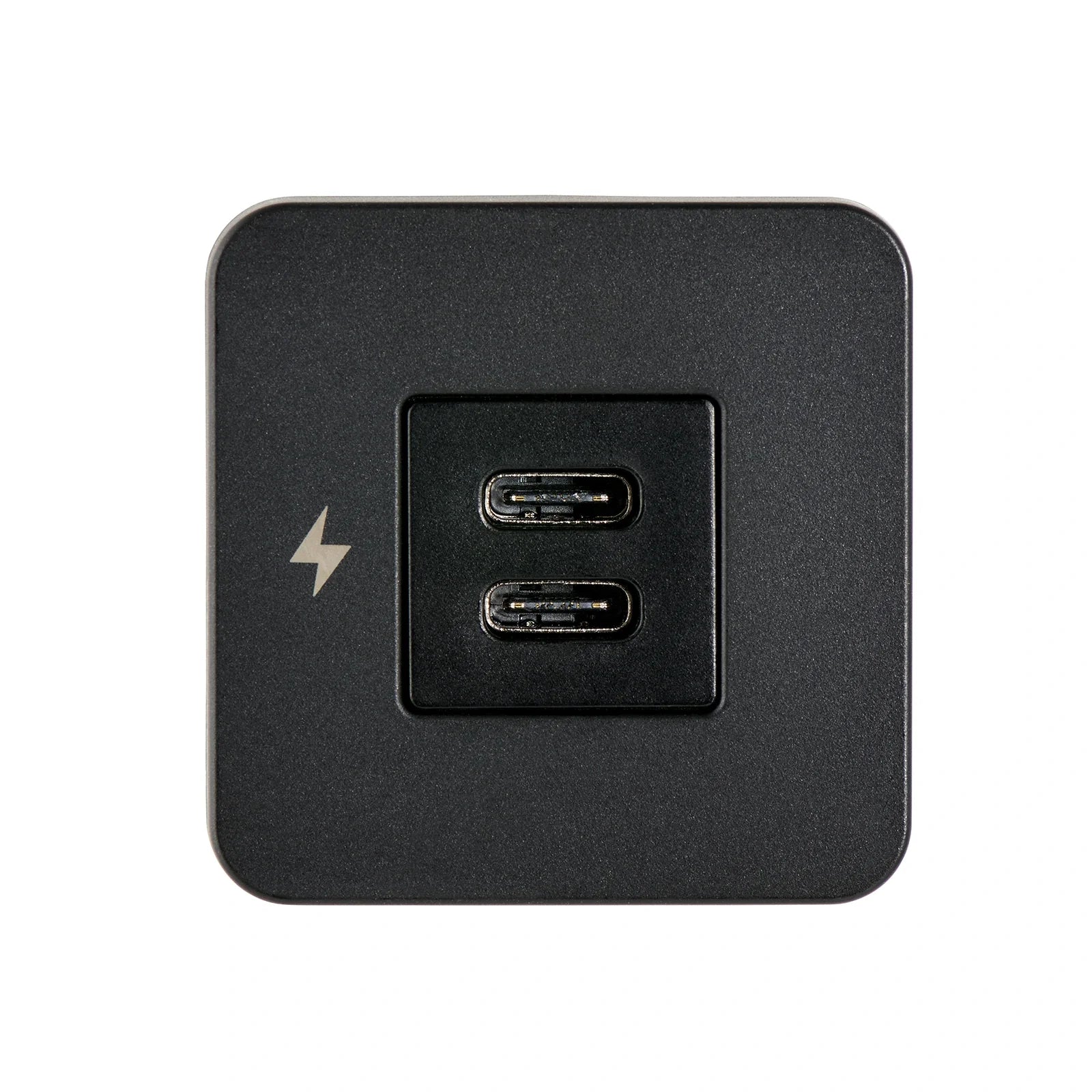

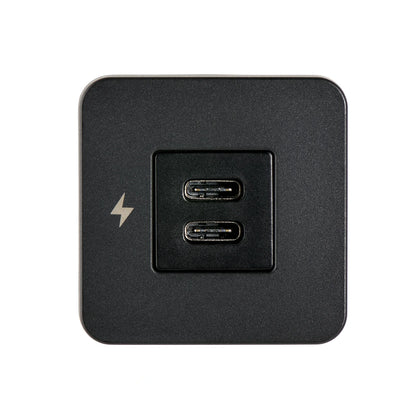

Scanstrut TILE Dual USB-C Flush-Fit Charger – 12/24V Campervan Interior
Modern power for modern spaces. The Scanstrut TILE Dual USB-C Charger delivers ultra-fast charging in an ultra-low profile. Built for dry, luxury campervan and motorhome interiors, it combines cutting-edge performance with minimalist design to elevate your living space, while keeping your tech fully powered.
Powerful, Minimal, Designed for Interiors
With two high-speed USB-C ports, TILE delivers up to 60W output on 24V systems, allowing you to charge laptops, tablets, and smartphones with ease. The front-fit design and compact 40mm footprint make it a discreet yet powerful upgrade for any modern RV.
- Dual USB-C outputs – 36W (12V) / 60W (24V)
- Flush-mounted & ultra-low profile – only 40mm diameter
- Premium interior finish – matte black or stainless steel styling
- Simple 29mm hole-saw install – fits tight spaces easily
Engineered for Interior Performance
TILE’s electronics are conformally coated for moisture resistance and built to withstand the conditions found in busy vehicle interiors. It works with any USB-C device and supports charging two devices at once.
- 60W output – perfect for MacBooks, iPads, Samsung phones & more
- Universal USB-C compatibility – C-to-C or C-to-Lightning
- Safe, smart, and efficient – standby draw of just 0.01W
- Ideal for motorhome dashboards, control panels, bedside spaces & desks
⚠ WARNING
TILE USB products are designed for interior use only. Do not install in locations where water exposure is possible, as this may lead to product failure.
Product Specifications
Product Specifications
Electrical Specifications
- Input Voltage: 10-32V DC (Compatible with 12/24V systems)
- Input Current Max: 6A
- Recommended Fuse: 10A
- Standby Power Draw: 0.01W
- Output (Dual USB-C Ports):
- 12V System: 36W Max (5V⎓3A, 9V⎓3A, 12V⎓3A)
- 24V System: 60W Max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A) - Charging Performance: Capable of fast-charging up to two devices simultaneously. To achieve the full 60W output required for laptops, a 24V system must be used.
Design & Build Quality
- Installation Type: Front fit
- Profile: Ultra-low profile for a flush finish
- Protection: Conformal coated electronics to protect internal components against moisture
- Environment: Designed exclusively for interior use (not for locations where water exposure is possible)
Device Compatibility
- Universal Fit: Compatible with any USB-C connectors.
- Supported Devices: Optimized for modern laptops, large tablets, smartphones, and any other USB-C powered devices.
- Note: For maximum performance, it is recommended to use the original cable supplied with your device (C-to-C or C-to-Lightning).
Installation Data
- Hole Saw Diameter: 29mm (1.14”)
- External Footprint: 40mm (1.57”)
- Ease of Install: Designed for simple integration into RV and vessel interiors using standard tools.
Certifications & Compliance
- Compliance: CE, FCC, UKCA, C-Tick, ROHS, WEEE
Technical Specifications
Technical Specifications
| Voltage | 12V/24V |
|---|
