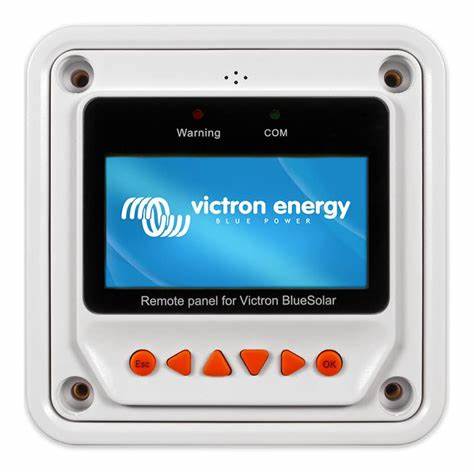

Remote panel for BlueSolar PWM-Pro Charge Controller

The Victron Remote Panel is an accessory for the BlueSolar PWM-Pro series. It provides a local display and user interface, allowing you to monitor system parameters, see state of charge, adjust settings, and respond to alarms without accessing the controller directly. It connects via RJ45 cable and offers visual indicators and an audible alert for failures, giving you greater control and awareness of your solar battery system.

Key Features

• LCD display showing battery status, load, PV current/voltage, and system icons
• Warning LED and communication LED for visual failure or connection alerts
• Audible alarm that can be enabled or disabled to alert for system faults
• Full parameter programming: charge modes, load disconnects, timing, etc
• Displays state of charge when battery capacity is set and loads wired correctly
• Connects to BlueSolar PWM-Pro via standard RJ45 / UTP cable

Technical Specs (at a glance)

• Compatible with BlueSolar PWM-Pro 12/24V charge controllers
• Interface: RJ45 connection (UTP cable)
• Displays: battery voltage, PV voltage/current, load status, state of charge icons
• Buttons for navigation: up/down/left/right, OK, ESC
• LED indicators: warning; communication
• Audible alarm: optional
• Housing & build suitable for protected environments (indoor / sheltered)

Applications

• Remote monitoring of BlueSolar PWM-Pro installed in hard-to-access locations
• Solar battery systems in caravans, boats, RVs where user convenience matters
• Off-grid solar systems where visualisation of state of charge and loads is helpful
• Situations where quick fault detection is needed without accessing controller directly

Remote panel for BlueSolar PWM-Pro Charge Controller – Manual
