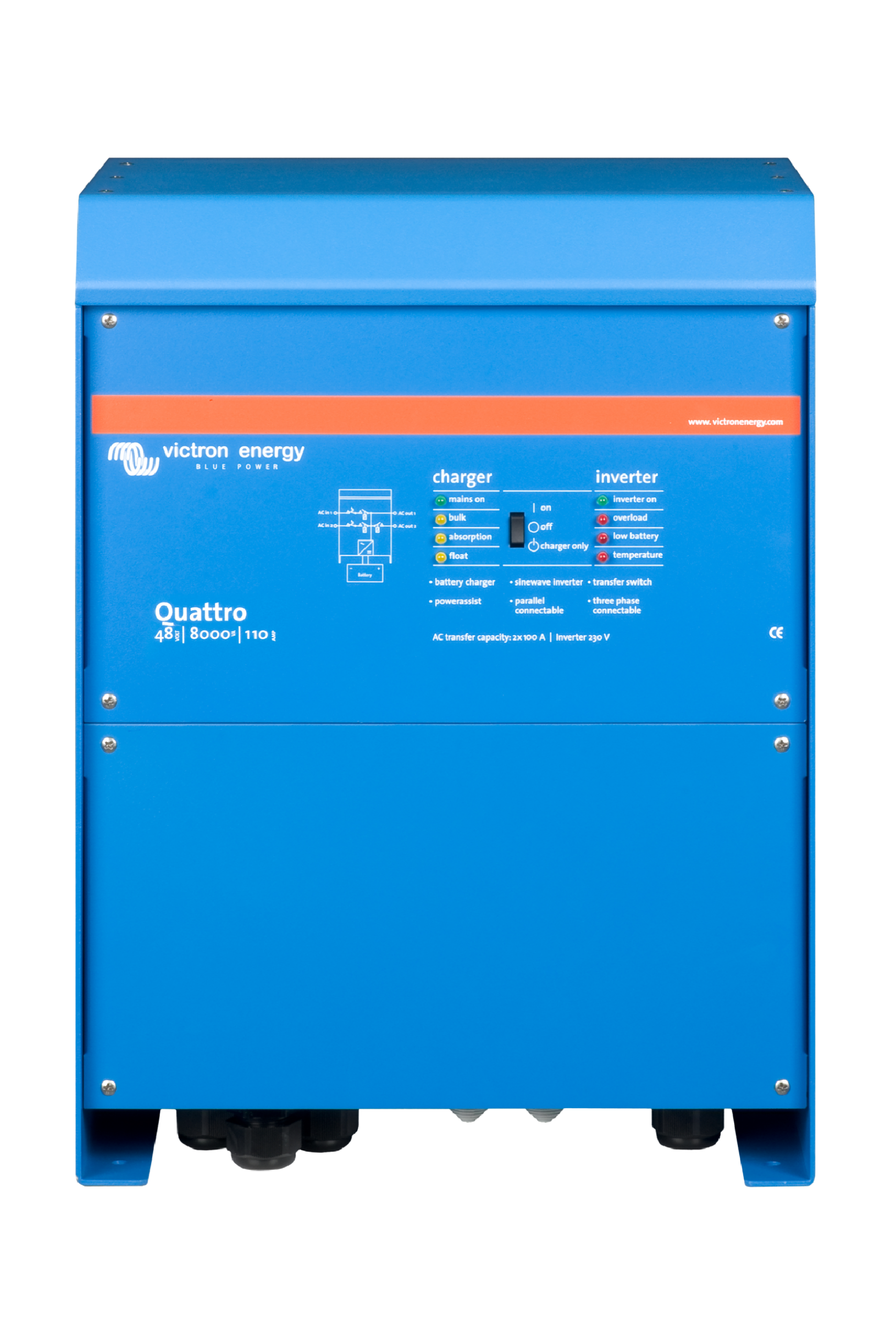

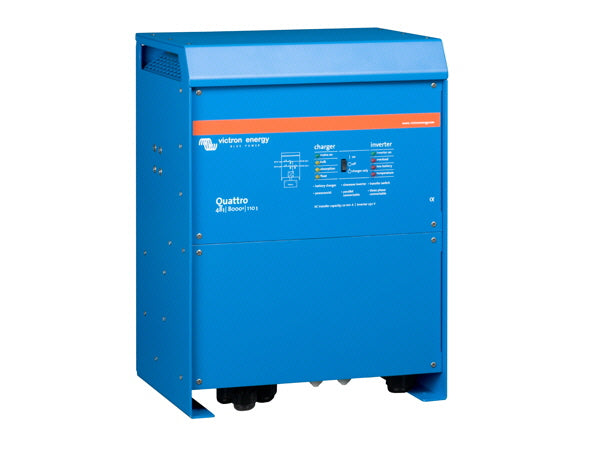

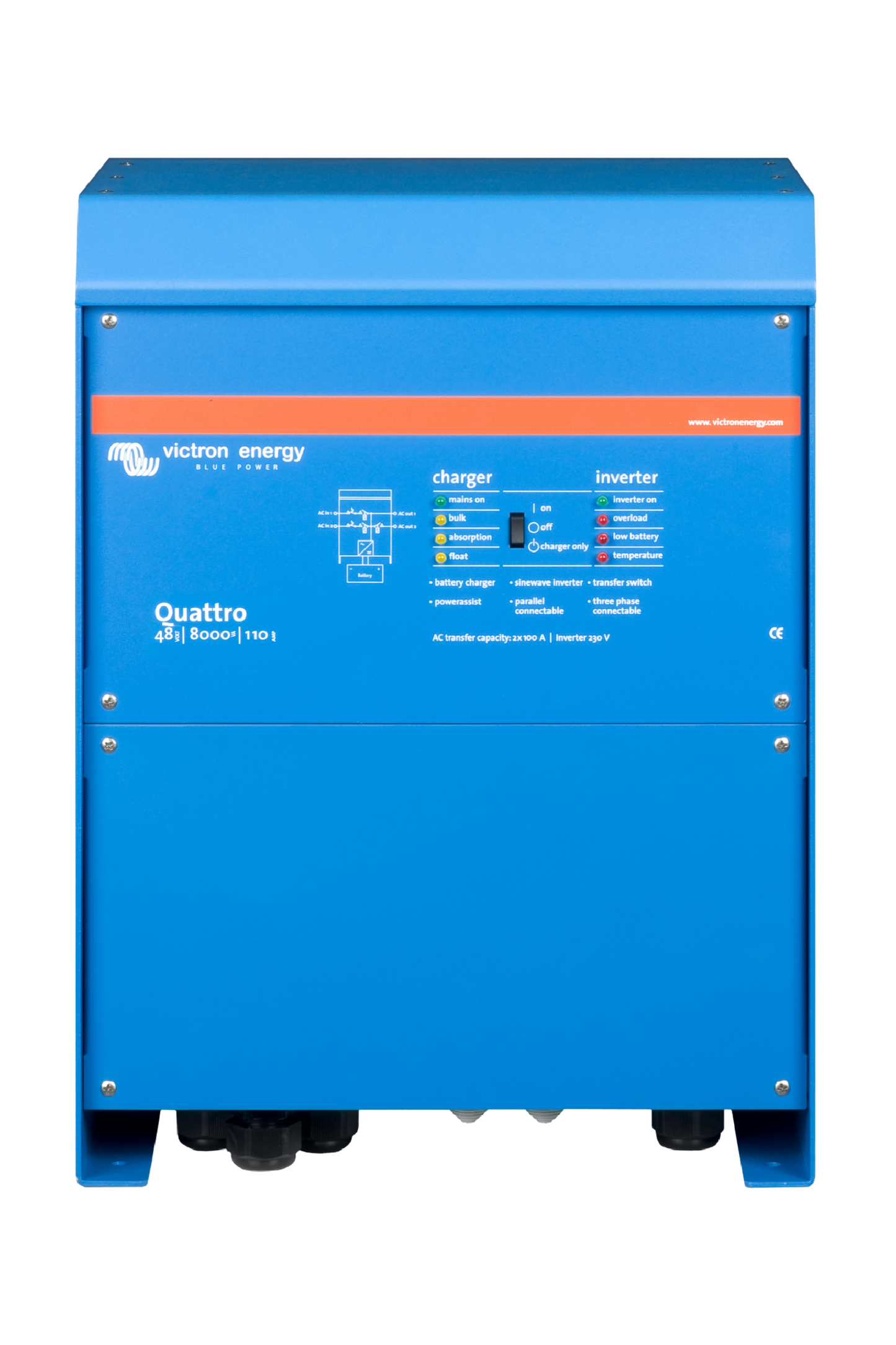

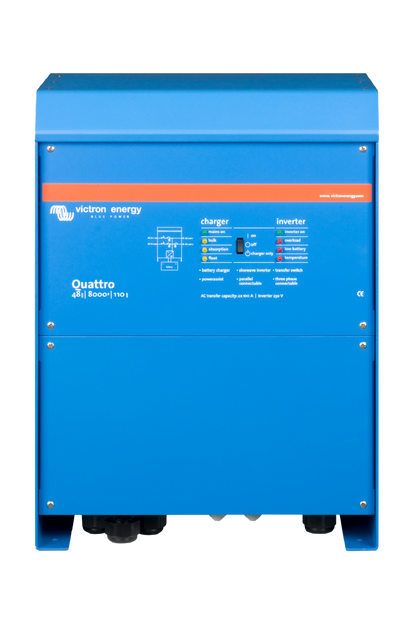

Victron Quattro 48V/8000VA Inverter/Charger - 48/8000/110-100/100 230V VE.Bus
Victron Quattro 48V/8000VA Inverter/Charger - 48/8000/110-100/100 230V VE.Bus
SKU:QUA488024000
Brand: Victron
Low stock: 3 left
Couldn't load pickup availability
Product Details
Product Details
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Features of the- Victron Quattro 48V/8000VA 110-100/100A - 230V VE.Bus
Two AC inputs with integrated transfer switch
The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro will automatically connect to the active source.
Two AC Outputs
The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.
Virtually unlimited power thanks to parallel operation
Up to 6 Quattro units can operate in parallel. Six units 48/10000/140, for example, will provide 54kW / 60kVA output power and 840 Amps charging capacity.
Three phase capability
Three units can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected to provide 162kW / 180kVA inverter power and more than 2500A charging capacity.
PowerControl – Dealing with limited generator, shore side or grid power
The Quattro is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (16A per 5kVA Quattro at 230VAC). A current limit can be set on each AC input. The Quattro will then take account of other AC loads and use whatever is spare for charging, thus preventing the generator or mains supply from being overloaded.
PowerAssist – Boosting shore or generator power
This feature takes the principle of PowerControl to a further dimension allowing the Quattro to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the Quattro will make sure that insufficient mains or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
Solar energy: AC power available even during a grid failure
The Quattro can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available.
System configuring
In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure. - Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configuration software. - Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).
On-site Monitoring and control
Several options are available: Battery Monitor, Multi Control Panel, V.E.Net Blue Power panel, Colour Control panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).
Remote Monitoring and control
Victron Ethernet Remote, Victron Global Remote and the Colour Control Panel. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
Remote configuring
When connected to the Ethernet, systems with a Colour Control panel can be accessed and settings can be changed.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: QUA488024000
A CConnection Terminal Type: M6 bolts
AC Input Voltage Range: [187, 250] V
AC Output Frequency: 50 Hz
AC Output Voltage: 230 VAC
Anti Islanding Standard: See our website
Automotive Directive: ECE R10-4
Auxiliary Output: Yes
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Battery Voltage Nominal: 48 V
Charge Algorithm: Adaptive, 4-stage
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Colour: Blue (RAL 5012)
Communication Port: VE.Bus
Communication Port General: Yes
Continuous Power (VA, 25°C): 8,000 VA
Continuous Power (W, 25°C): 6,400 W
Continuous Power (W, 40°C): 5,500 W
Continuous Power (W, 65°C): 3,600 W
D CInput Current: 188 A
DC Input Voltage Range: [38, 66] VDC
Depth: 280 mm
Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Fan Assist Cooling: Yes
Frequency Select: 50Hz or 60Hz
Height: 470 mm
Icw: 10,000 A
Integrated Transfer Switch: Yes
Material: Aluminium
Max Altitude: 2,000 m
Max Efficiency: 96 %
Max Feed Trough Current: 2x 100A
Max Humidity: 95 %
Max Output Ac Current: 30 A
Max Output Ac Current Fault: 100 A
Maximum Battery Charge Current: 110 A
Number Ac Inputs: 2
Ovciii Icw: Yes
Parallel Operation: Yes
Peak Power Rating: 16,000 W
Pollution Degree: 2
Power Assist: Yes
Power Control: Yes
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protection Category: IP20
Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
Relay Terminal: Screw terminal 3-pole
Remote Terminal: On / Off / Charger only
Remote Terminal Type: Screw terminal two pole
Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1
Temperature Sensor: Included
Three-phase Operation: Yes
VE.Bus Terminal Type: Two RJ45 terminals
Weight: 41 kg
Width: 350 mm
Zero Load Power: 60 W
Zero Load Power (AES): 40 W
Zero Load Power (Search): 15 W
Source: Victron
