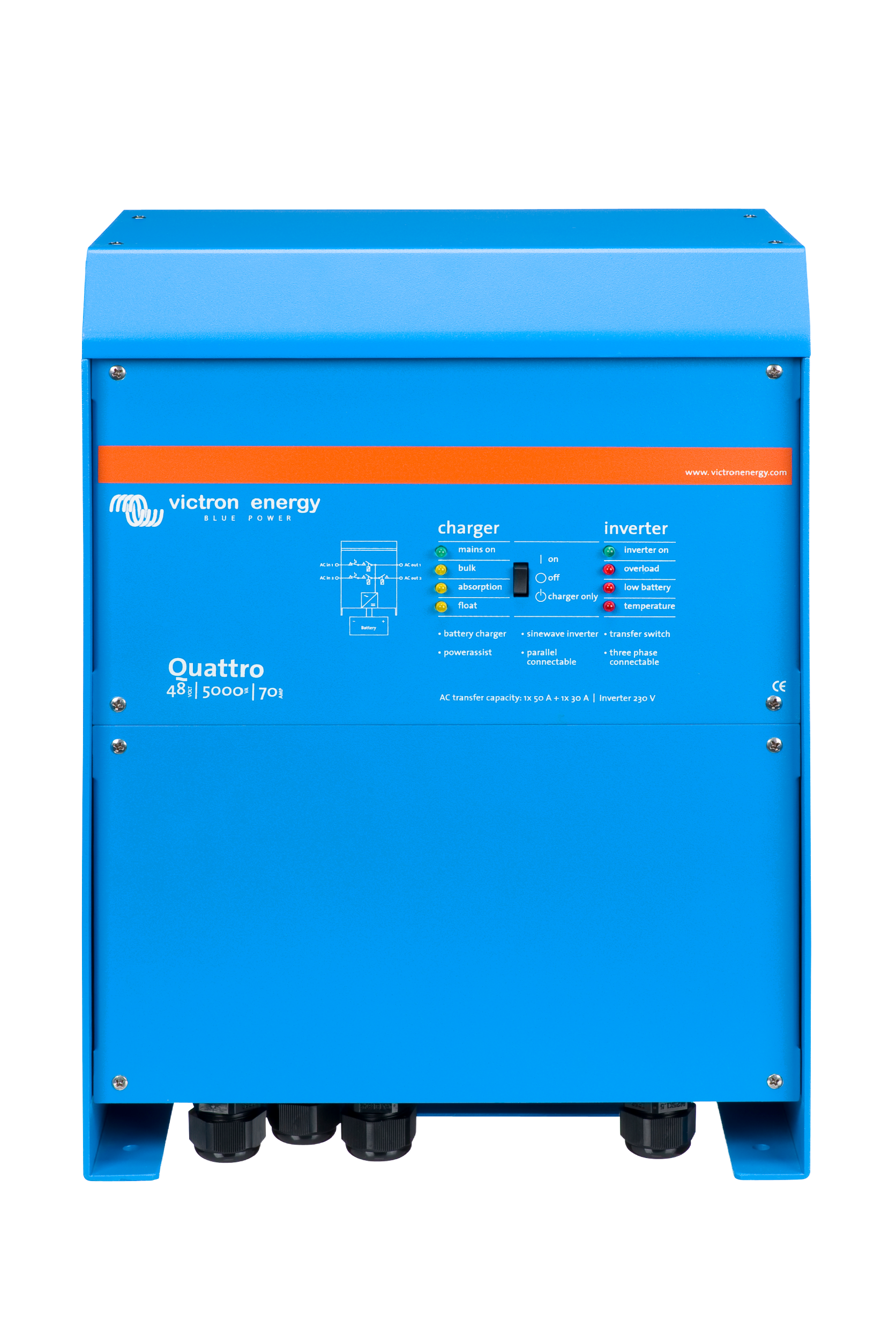

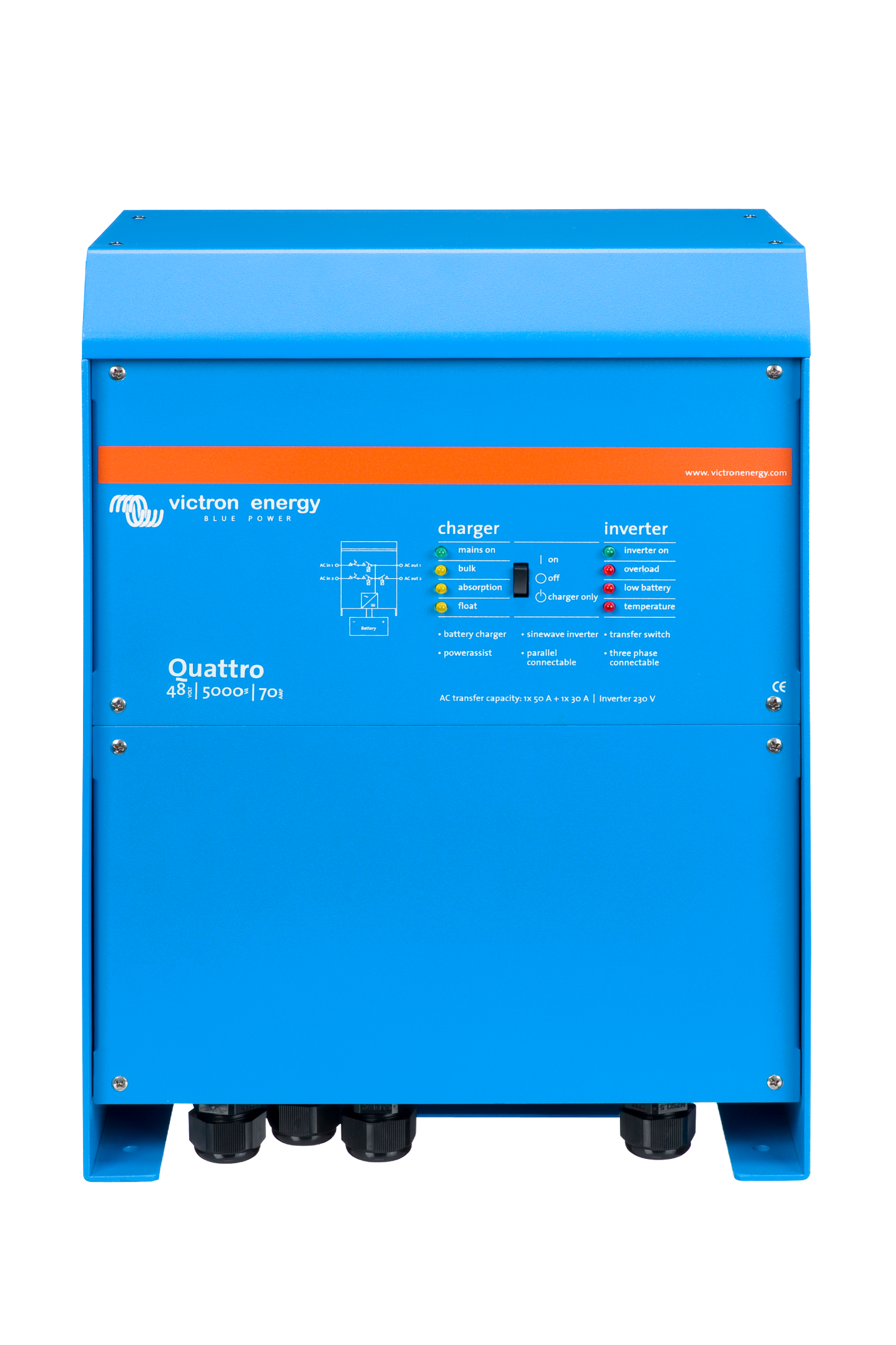

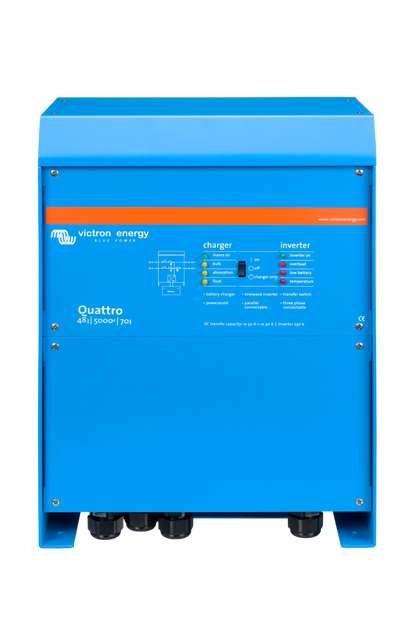

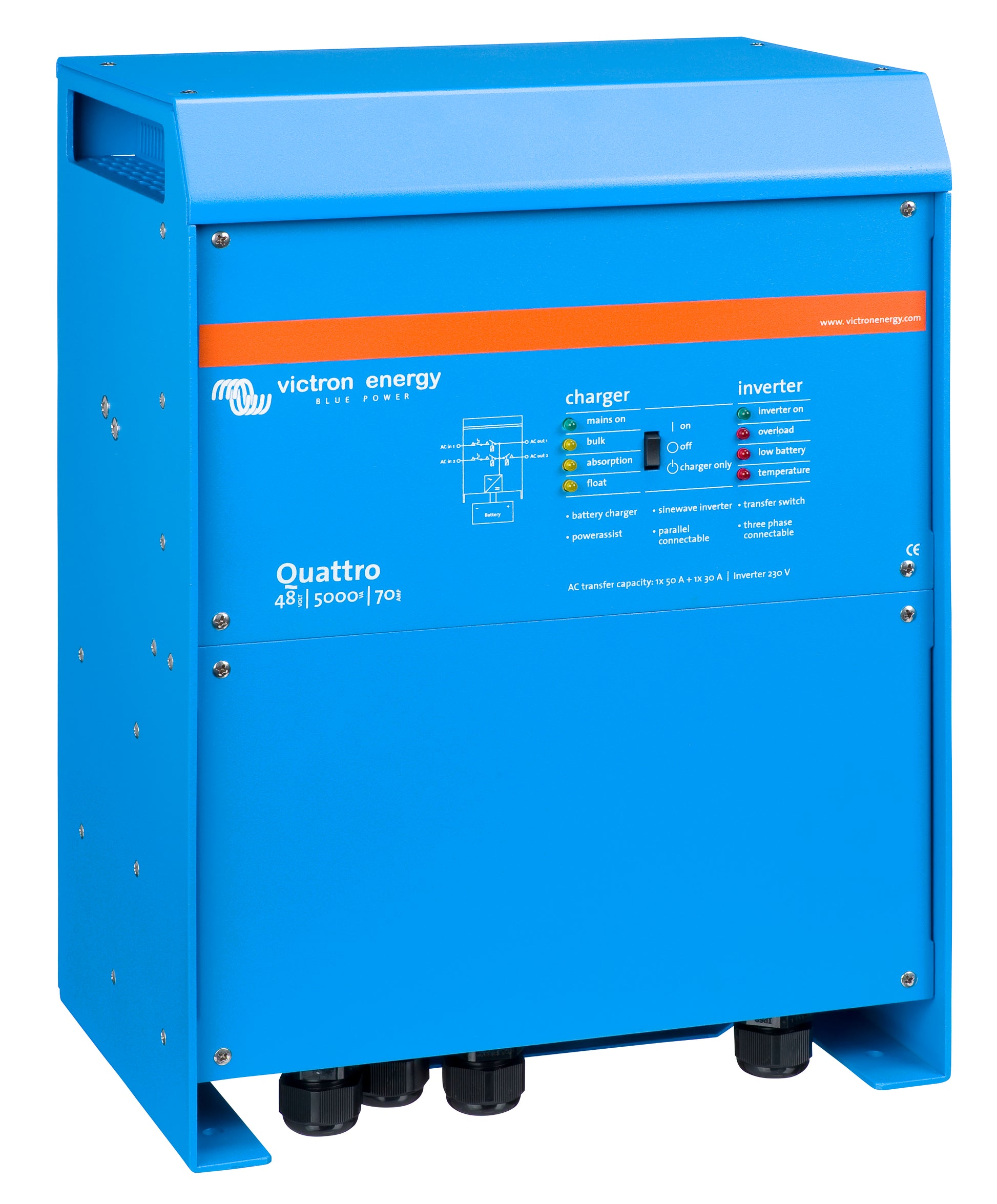

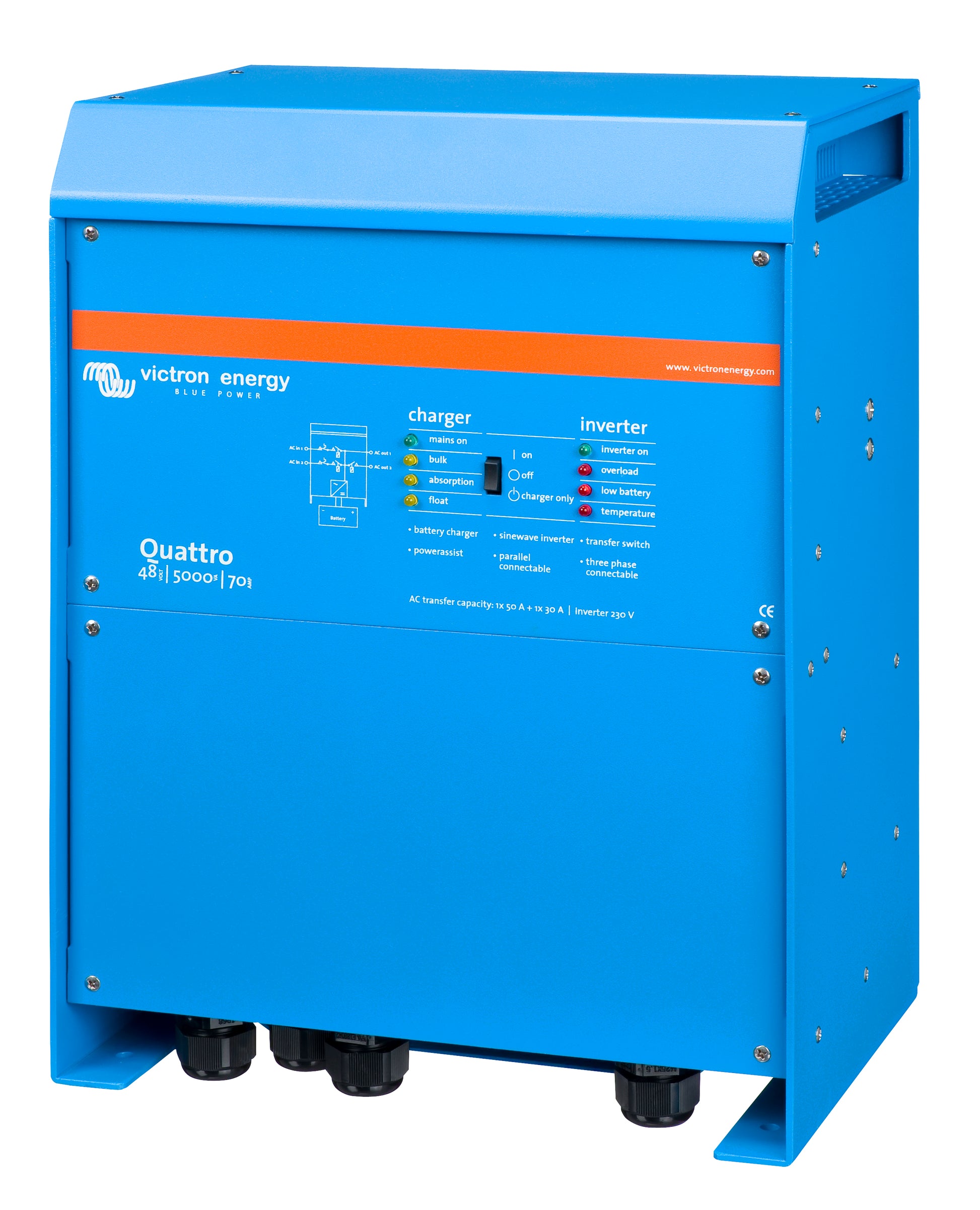

Victron Quattro 48/5000/70-100/100 230V VE.Bus
Victron Quattro 48/5000/70-100/100 230V VE.Bus
SKU:QUA485021010
Brand: Victron
Low stock: 1 left
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy Quattro 48/5000/70-100/100 230V VE.Bus is built for commercial installations, workshops, industrial facilities and professional off-grid systems where dependable power is essential. Delivering a continuous 5,000 VA output with a 70 A battery charging capability, it provides a stable power supply and consistent recharge performance for demanding electrical loads. Designed to support both backup and primary power requirements, it offers reassurance for environments where outages, fluctuations or unreliable mains connections can interrupt business operations.
A key advantage of this unit is its dual AC input functionality. It can be connected to two independent power sources, such as grid supply and generator output. The system automatically switches to whichever source is available, helping prevent downtime and reducing reliance on manual changeovers. This is particularly useful for businesses that cannot afford interruptions to critical equipment.
With PowerAssist, the Quattro can top up limited AC input with stored battery energy, helping prevent overloads when starting machinery or running multiple devices simultaneously. This feature can reduce the need for oversizing generators or upgrading incoming supply, which helps control project costs. In the event of grid failure, the unit transfers to battery power in a fraction of a second, keeping connected loads running and avoiding potential equipment damage or lost productivity.
For larger installations, the Quattro can be configured in parallel or three phase arrangements, making it suitable for scalable systems and future expansion. This flexibility is ideal for growing operations, commercial off-grid sites and professional energy storage solutions.
A rugged build quality and trusted Victron engineering provide long-term reliability. Integration through VE.Bus supports advanced monitoring and management using compatible accessories. For trade customers, this means easier commissioning, remote diagnostics and reduced service time.
Choose the Victron Energy Quattro 48/5000/70-100/100 when reliability, flexibility and protection against power interruption are business priorities. It delivers a dependable solution for those who need continuous performance every day.
Product Specifications
Product Specifications
Inverter Specifications
- Input Voltage Range: 38 – 66 VDC
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Cont. Output Power at 25°C: 5000 VA
- Cont. Output Power at 25°C: 4000 W
- Cont. Output Power at 40°C: 3700 W
- Cont. Output Power at 65°C: 3000 W
- Peak Power: 10000 W
- Maximum Efficiency: 95%
- Zero Load Power: 35 W
- Zero Load Power in AES Mode: 30 W
- Zero Load Power in Search Mode: 15 W
Charger Specifications
- Charge Voltage 'Absorption': 57.6 VDC
- Charge Voltage 'Float': 55.2 VDC
- Storage Mode: 52.8 VDC
- Charge Current (House Battery): 70 A
- Battery Temperature Sensor: Included
- Lithium-Ion Compatible: Yes
Transfer Switch & AC Inputs
- AC Inputs: 2x independent sources
- Input Voltage Range: 187 – 250 VAC
- Input Frequency: 50/60 Hz
- Maximum Feed-Through Current: 2x 100 A
- PowerControl & PowerAssist: Yes (Allows current limiting and supplementation of shore/generator power)
Features & Connectivity
- Programmable Relays: 3x (Can be set for general alarm, DC under voltage, or generator start/stop functions)
- Communication Port: VE.Bus (For parallel and three-phase operation, remote monitoring, and system integration)
- General Purpose Com. Ports: 2x
- Parallel Operation: Yes (Up to 6 units can be connected in parallel)
- Three-Phase Operation: Yes
- Remote Monitoring: Compatible with Cerbo GX, Ekrano GX, VRM Portal, and VictronConnect app
Mechanical Specifications
- Dimensions (h x w x d): 444 x 328 x 240 mm
- Weight: 30 kg
- Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP20
- Battery Connection: Four M8 bolts (2 plus and 2 minus)
- 230V AC Connection: Screw terminals
Environmental & Standards
- Operating Temperature Range: -20 to +60°C
- Humidity (Non-condensing): Max 95%
- Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
- EMC Standards: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Technical Specifications
Technical Specifications
| Inverter Rating | 5000VA |
|---|
