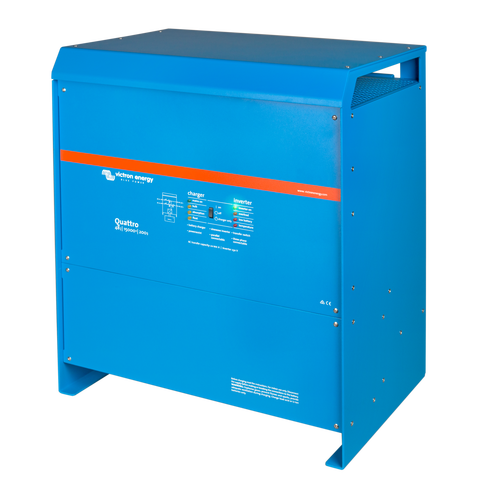

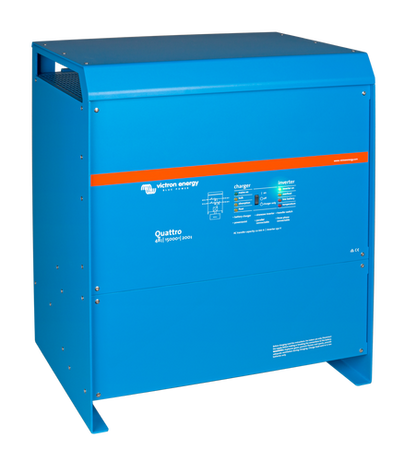

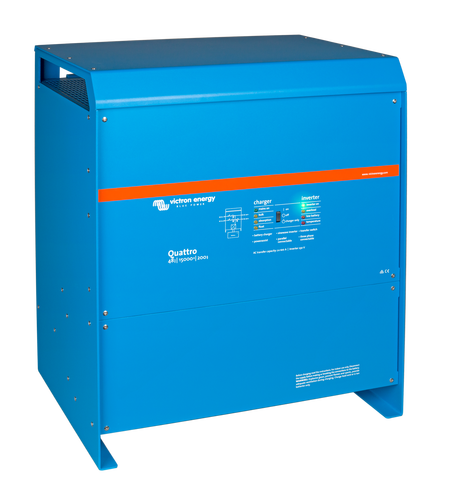

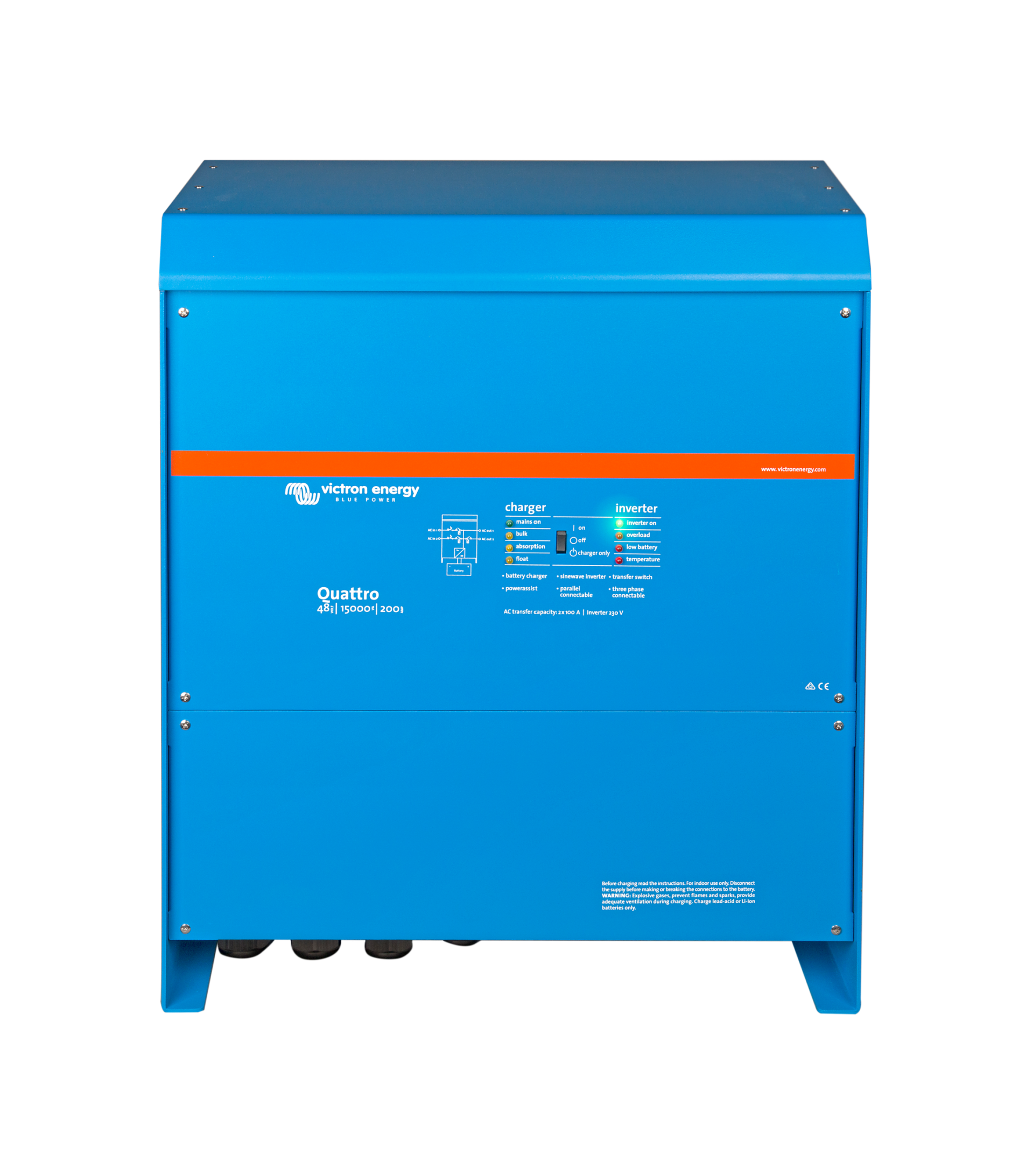

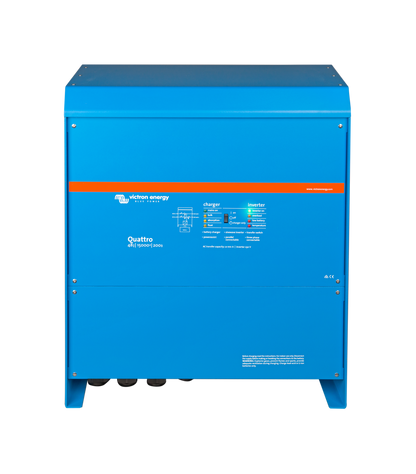

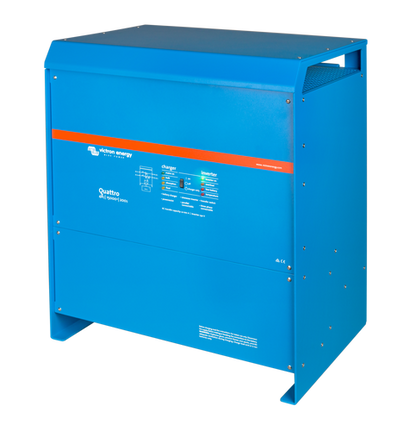

Victron Energy Quattro 48/15000/200-100/100 230V VE.Bus - QUA483150000
Victron Energy Quattro 48/15000/200-100/100 230V VE.Bus - QUA483150000
SKU:QUA483150000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy Quattro 48/15000/200-100/100 is a high-capacity inverter/charger system for demanding trade, off-grid, marine and industrial installations. Operating from a 48 V DC battery input, it delivers up to 15 kVA of continuous AC output at 230 V, making it a powerful core component for large installations.
This unit features two AC inputs and two AC outputs, enabling automatic switching between sources (for example between shore power and a generator) and providing ‘no-break’ transfer to the main output in under 20 milliseconds keeping sensitive equipment powered through input changes.
Built with adaptive charging technology and the proprietary PowerAssist feature, it protects limited AC sources (such as generators or shore supply) by diverting or reducing battery charging current and, where needed, boosting the AC output from battery power.
The Quattro supports advanced system integration, it offers parallel operation of up to six units for increased capacity, and supports three-phase or split-phase deployment.
It also includes remote monitoring and control via the VE.Bus interface and the Victron VRM (Remote Management) portal, ideal for trade clients managing multiple installations.
With its robust design and industry-grade rating, the Quattro 48/15000/200-100/100 is ideal for commercial buildings, large mobile vehicle systems, marine applications or sophisticated off-grid setups where dependable, high-power DC-to-AC conversion and intelligent charger management are required.
Product Specifications
Product Specifications
Inverter Specifications
- SKU / Part Number: QUA483150000
- Nominal Battery Voltage: 48V DC
- DC Input Voltage Range: 38 – 60V DC
- Continuous Output Power at 25°C: 15000 VA / 12000 W
- Continuous Output Power at 40°C: 10000 W
- Continuous Output Power at 65°C: 7000 W
- Peak Power: 25000 W
- Output AC Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Maximum Continuous Output Current: 53A / 50A
- Maximum Efficiency: 96%
- Power Factor Range: ±0.8
- DC Input Current: 350A
- Maximum Output Fault Current: 150A peak (1 sec)
- Zero-Load Power: 110 W
- Zero-Load Power (AES Mode): 75 W
- Zero-Load Power (Search Mode): 20 W
Battery Charger Specifications
- Charge Current (House Battery): 200A
- Charge Voltage 'Absorption': 57.6 VDC
- Charge Voltage 'Float': 55.2 VDC
- Storage Mode Voltage: 52.8 VDC
- Battery Temperature Sensor: Not included with 48V models (Optional ASS000001000)
- Lithium-Ion Compatible: Yes
AC Inputs & Transfer Switch
- AC Inputs: 2x Independent AC Inputs with Integrated Transfer Switch
- Input Voltage Range: 187 – 250 VAC
- Input Frequency: 50 / 60 Hz
- Power Factor: >0.8
- Maximum Feed-Through Current: 2x 100A
- Short-Time Withstand Current (ICw): 10 kA (30 ms)
- Switching Transfer Time: Less than 20 ms (No-break main output)
- Auxiliary Output (AC-out-2): 50A (Switches off when no external AC source is available)
Key Features & System Capabilities
- PowerControl & PowerAssist: Automatically prevents overload of a limited AC source by reducing battery charging first, then boosting grid/generator capacity with power drawn from the battery.
- Parallel Operation: Up to 6 units can operate in parallel to achieve higher power output.
- Three-Phase & Split-Phase Capability: Configurable for 3-phase setups. Up to 4 sets of three 15 kVA units can be paralleled to provide up to 144 kW / 180 kVA inverter power and 2400A charging capacity.
- Programmable Relays: 3x Programmable relays (configurable for general alarm, DC under-voltage, or generator start/stop). Rating: AC 230V / 4A; DC 4A up to 35 VDC, 1A up to 60 VDC.
- Communication Ports: VE.Bus communication port (for parallel/3-phase operation, remote monitoring, and system integration) and 2x General Purpose communication ports.
- Remote Control & Monitoring: Fully compatible with Cerbo GX, Ekrano GX, and VRM portal/app.
Protection Safeguards
- Output short circuit
- Overload
- Battery voltage too high
- Battery voltage too low
- Temperature too high
- 230 VAC backfeed on inverter output
- Input voltage ripple too high
Physical & Enclosure Specifications
- Dimensions (H x W x D): 572 x 488 x 344 mm
- Weight: 72 kg
- Enclosure Material & Colour: Aluminium | Blue (RAL 5012)
- Protection Category: IP20, Pollution Degree 2, OVC III
- Battery Connection: 4x M8 bolts (2 positive and 2 negative connections)
- 230 VAC Connection: M6 bolts
- Operating Temperature Range: -20°C to +60°C
- Humidity (Non-condensing): Maximum 95%
- Maximum Operating Altitude: 2000 m
Standards & Compliance
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
- Emission & Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Technical Specifications
Technical Specifications
| Inverter Rating | 15000VA |
|---|---|
| Battery Charger Rating | 200A |
| Voltage | 48V |
| Protection | IP20 - Indoor |
| Weight KG | 72 |
