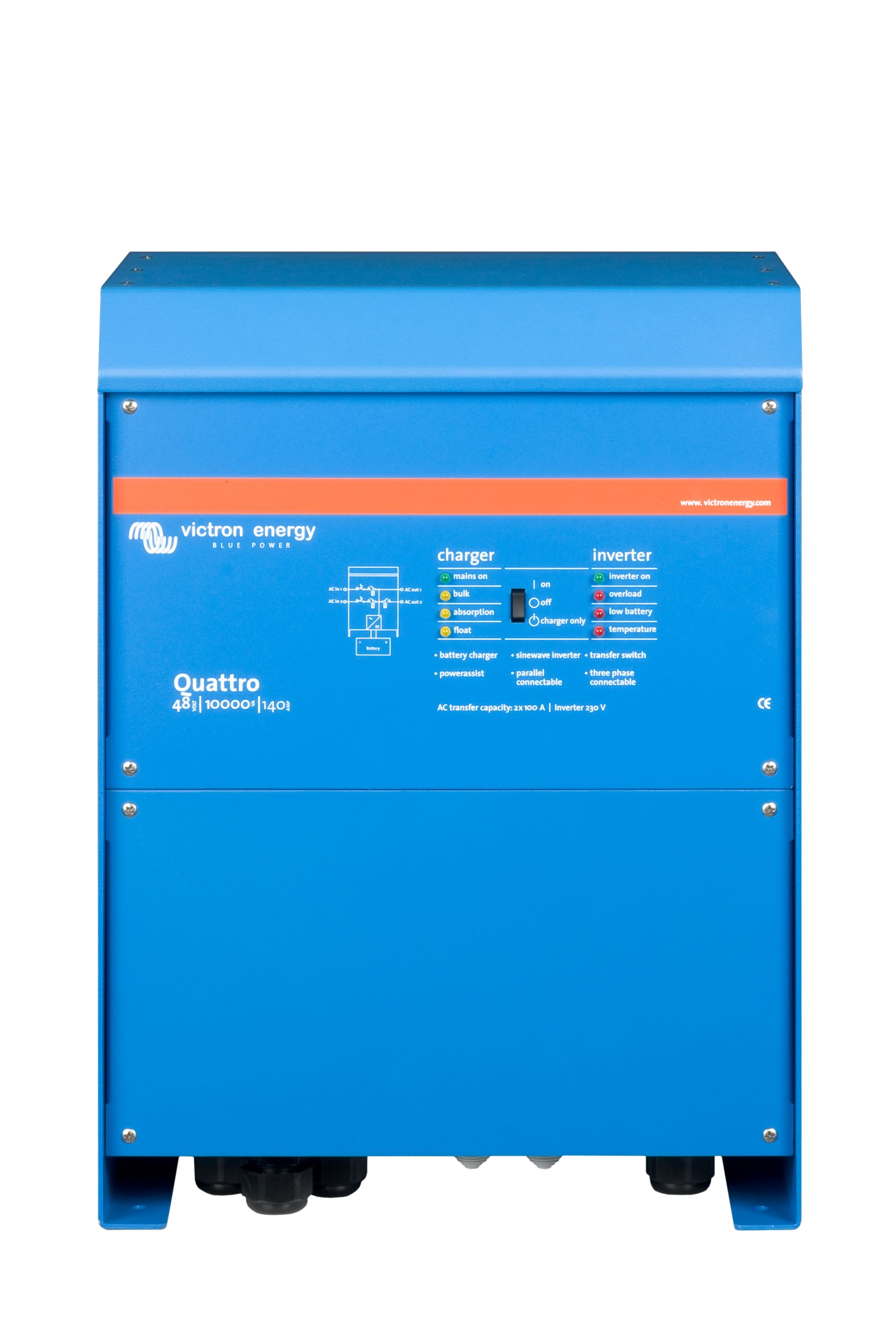

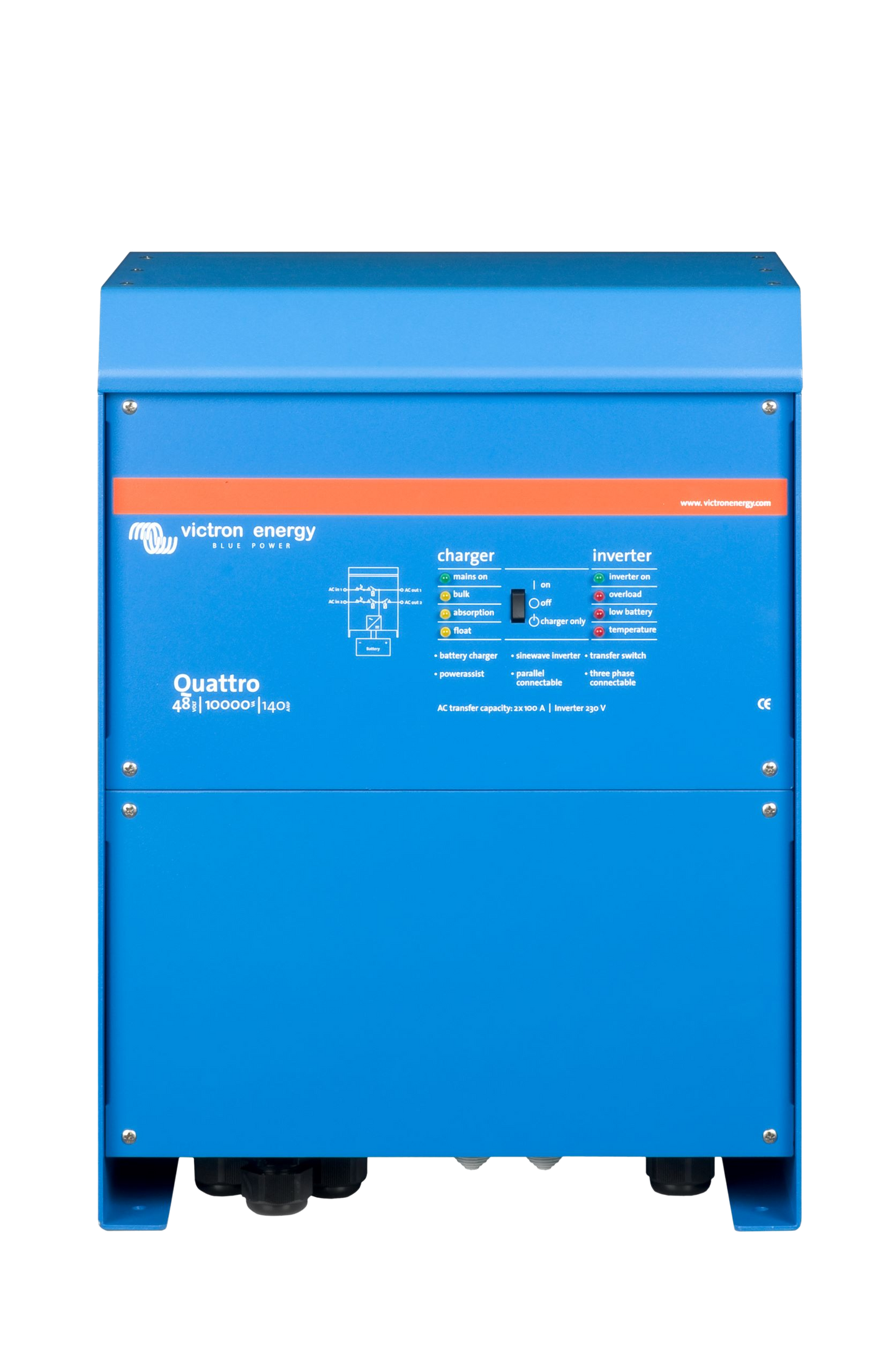

Victron Quattro 48/10000/140-100/100 230V VE.Bus

Victron Quattro 48/10000/140-100/100 230V VE.Bus

QUA481030010

Brand: Victron

Dual AC Inputs with Integrated Transfer Switch: Connects to two independent AC sources and automatically selects the active source. True Sine Wave Inverter: Provides clean and stable power suitable for sensitive electronic equipment. Adaptive Charging: Optimises battery life and performance with advanced charging algorithms. Hybrid PowerAssist Technology: Supplements shore or generator power during peak demand, preventing overloads. VE.Bus Communication Port: Enables remote monitoring and control via Victron's GX devices or other compatible systems. Dimensions: 470 x 350 x 280mm Weight: 51kg

Low stock: 1 left

£2,154.00 GBP
£2,154.00 GBP
Sale Sold out

Product Details

The Victron Quattro 48/10000/140-100/100 230V VE.Bus is a high-performance inverter/charger designed for demanding applications requiring reliable power conversion and seamless integration. With a continuous output power of 10,000VA and a peak power of 14,000VA, it ensures stable and efficient operation for various systems.

Key Features:

  • Dual AC Inputs with Integrated Transfer Switch: Connects to two independent AC sources, such as the public grid and a generator, or two generators, and automatically connects to the active source.
  • True Sine Wave Inverter: Provides clean and stable power suitable for sensitive electronic equipment.
  • Adaptive Charging: Offers advanced charging algorithms to optimise battery life and performance.
  • Hybrid PowerAssist Technology: Supplements shore or generator power during peak demand, preventing overloads.
  • Multi-Stage Battery Charging: Includes bulk, absorption, and float stages for efficient battery charging.
  • VE.Bus Communication Port: Enables remote monitoring and control via Victron's GX devices or other compatible systems.
  • Parallel and Three-Phase Operation: Allows multiple units to be connected in parallel or three-phase configurations for increased power output.
  • No-Break AC Output: Ensures uninterrupted power supply during AC input failure.

Ideal Applications:

  • Off-Grid Systems: Provides reliable power in remote locations without access to the public grid.
  • Backup Power Systems: Offers seamless transition during power outages to keep critical loads operational.
  • Marine and Mobile Installations: Suitable for yachts, RVs, and other mobile applications requiring robust power solutions.
  • Industrial Applications: Supports equipment and processes that demand consistent and high-quality power.

With its robust design and advanced features, the Victron Quattro 48/10000/140-100/100 is a reliable choice for professionals seeking a versatile and efficient inverter/charger solution.

Product Specifications

Power & Performance

  • DC Input Voltage Range: 38 – 66 VDC
  • Output Voltage: 230 VAC ± 2%
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Continuous Output Power at 25°C: 10,000 VA
  • Continuous Output Power at 25°C: 8,000 W
  • Continuous Output Power at 40°C: 6,500 W
  • Continuous Output Power at 65°C: 4,500 W
  • Peak Power: 20,000 W
  • Maximum Efficiency: 96%
  • Zero Load Power: 60 W
  • Zero Load Power in AES Mode: 40 W
  • Zero Load Power in Search Mode: 15 W

Battery Charger

  • Nominal Battery Voltage: 48 V
  • Charge Voltage 'Absorption': 57.6 VDC
  • Charge Voltage 'Float': 55.2 VDC
  • Storage Mode: 52.8 VDC
  • Charge Current House Battery: 140 A
  • Battery Temperature Sensor: Included
  • Lithium-Ion Compatible: Yes

Transfer Switch & AC Inputs/Outputs

  • Integrated Transfer Switch: Yes
  • AC Inputs: 2x independent inputs
  • Input Voltage Range: 187 – 250 VAC
  • Input Frequency Range: 50/60 Hz
  • Maximum Feed Through Current: 2 x 100 A
  • AC Outputs: 2x outputs
  • No-Break Main Output: Less than 20ms transfer time for uninterrupted electronics operation
  • Auxiliary Output Current: 50 A (Switches off when no external AC source is available)

Key Features

  • PowerControl & PowerAssist: Limits AC input current to prevent overloading a generator or shore supply and supplements capacity from the battery when peak power is required.
  • Three Phase Capability: Up to three units can be configured for three-phase output.
  • Parallel Operation: Up to six units can be paralleled to increase total power output and charging capacity.
  • Programmable Relays: 3x relays that can be set for general alarms, DC under-voltage, or generator start/stop functions.
  • Remote Monitoring: Compatible with Cerbo GX and other GX devices for monitoring via the VRM Portal and VictronConnect app.

Mechanical Specifications

  • Enclosure Category: IP20
  • Enclosure Material & Colour: Aluminium (Blue RAL 5012)
  • Dimensions (H x W x D): 470 x 350 x 280 mm
  • Weight: 51 kg
  • Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
  • 230V AC Connection: M6 Bolts
  • Operating Temperature Range: -20 to +60°C
  • Humidity: Max. 95% (non-condensing)

Standards & Compliance

  • Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
  • Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3

Victron Quattro 48/10000/140-100/100 230V VE.Bus – Manual

Victron Quattro 48/10000/140-100/100 230V VE.Bus – Data Sheet

Inverter Rating 10000VA
