Victron Quattro 24/8000/200-100/100 230V VE.Bus

Victron Quattro 24/8000/200-100/100 230V VE.Bus

QUA248020010

Brand: Victron

Dual AC input capability – allows connection to two independent power sources (e.g., shore and generator) and automatic switching. PowerAssist function – boosts limited AC supply by drawing on the battery, avoiding overloads on your generator or mains. High output capacity – with 8 kVA continuous plus ~16 kW peak, it handles heavy-load applications with ease. Flexible system integration – supports split-phase, three-phase and parallel operation, perfect for scalable or complex setups. Remote monitoring & control – integrated VE.Bus communications and VRM portal access provide full system visibility and management. Dimensions: 470 x 350 x 280mm Weight: 45kg

In stock

This is pre-order - Available in 7 – 10 days

£2,345.00 GBP
£2,345.00 GBP
Sale Sold out

Product Details

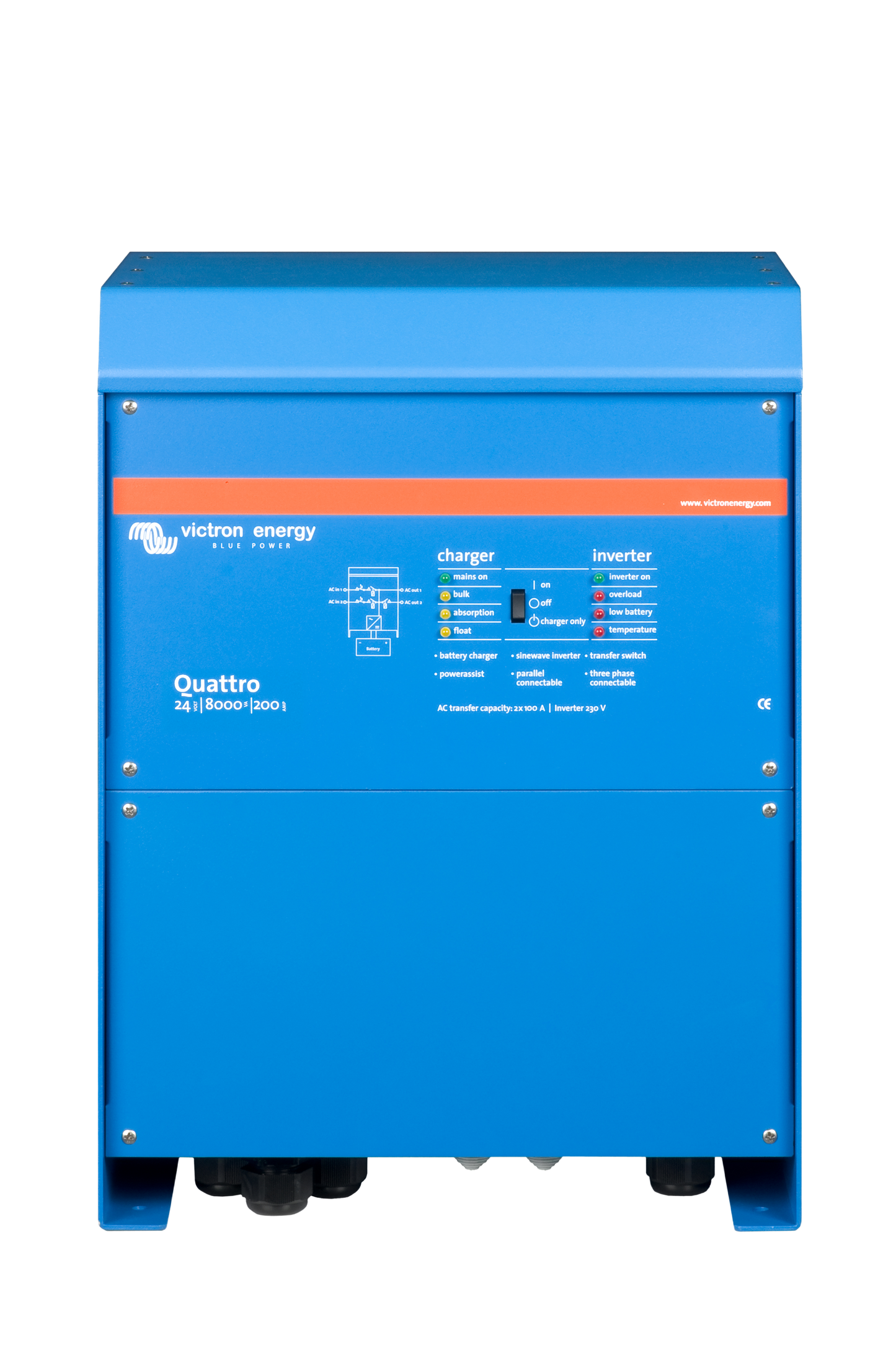

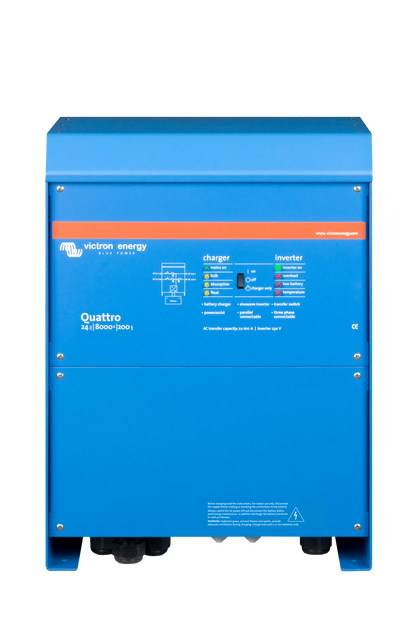

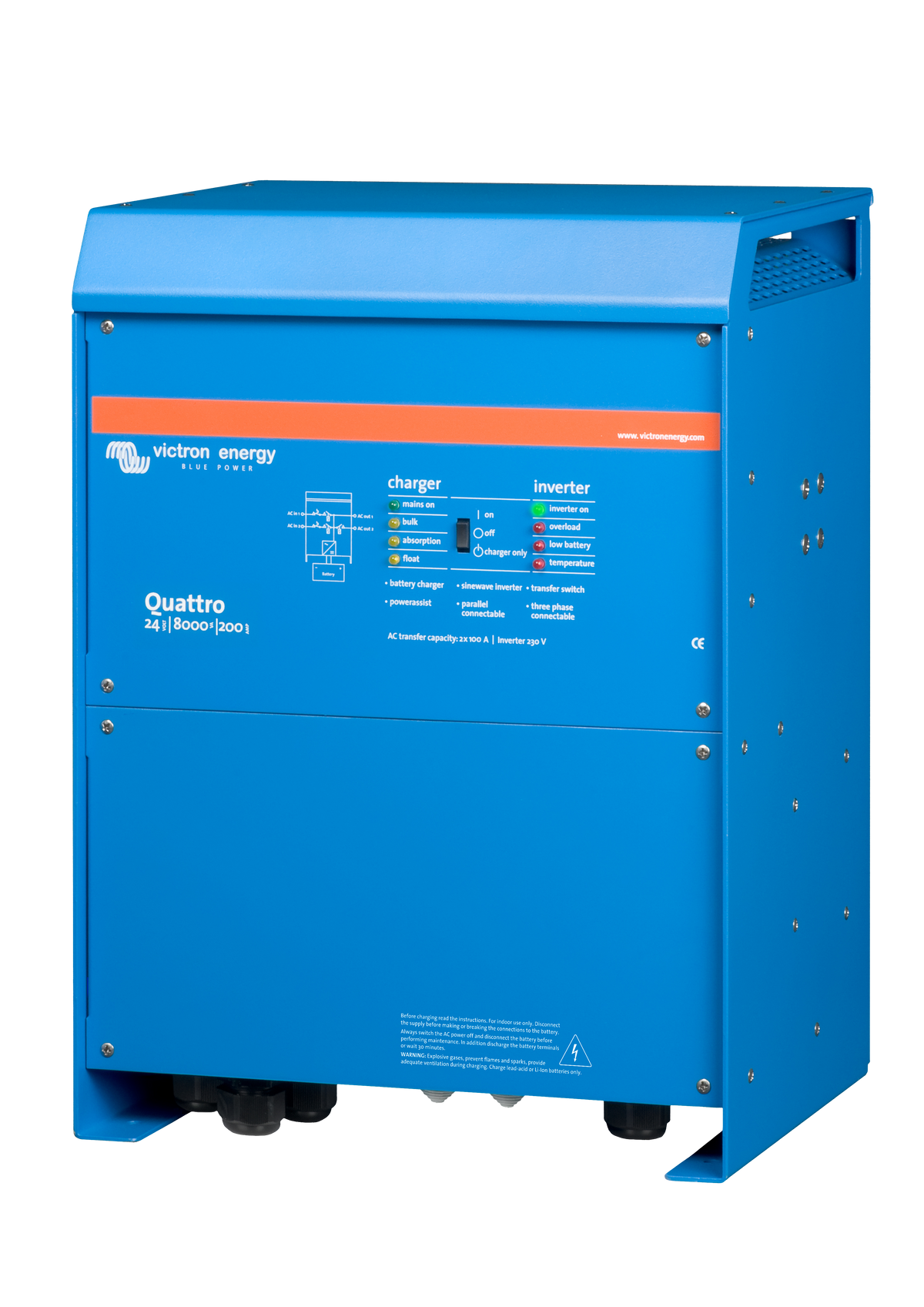

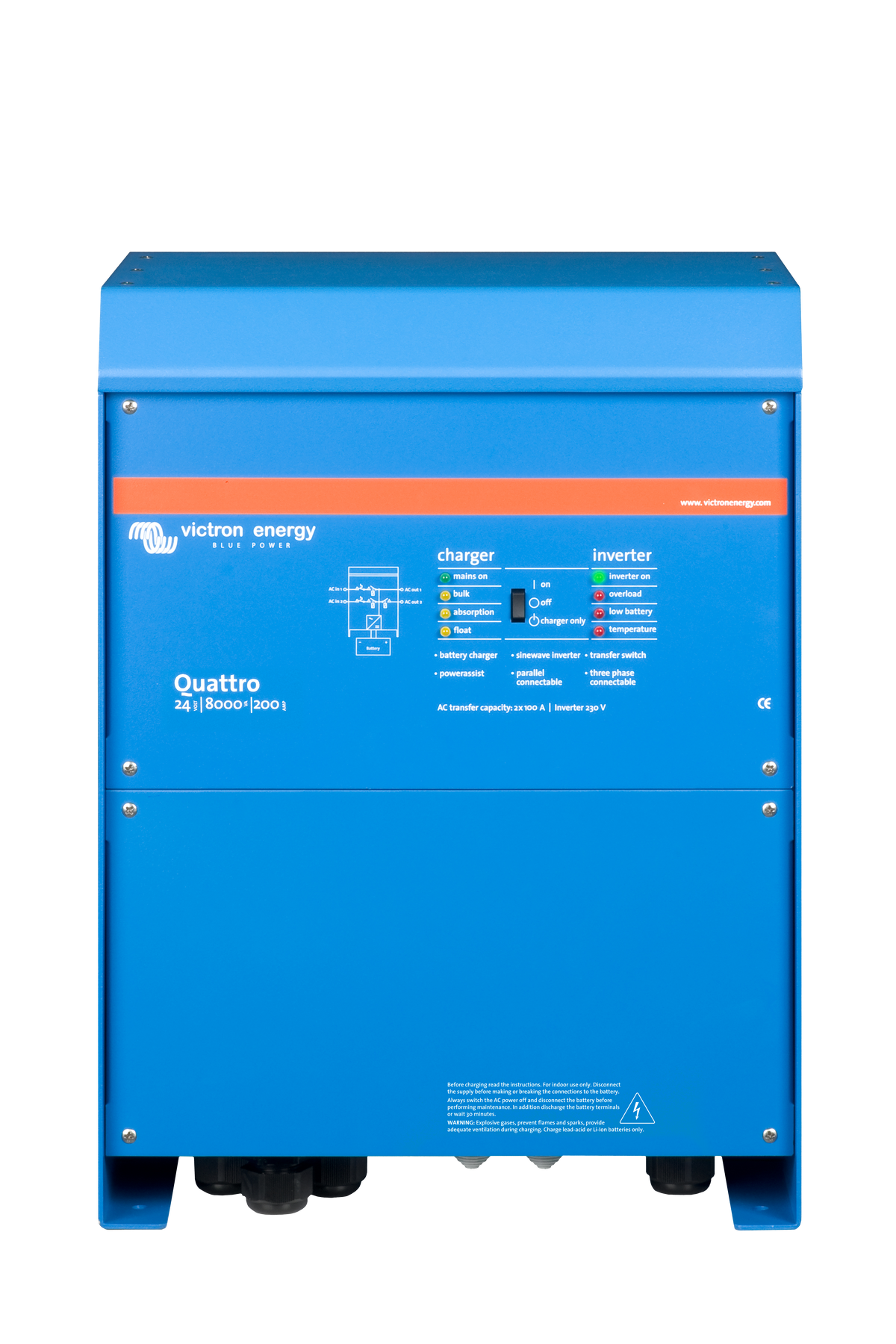

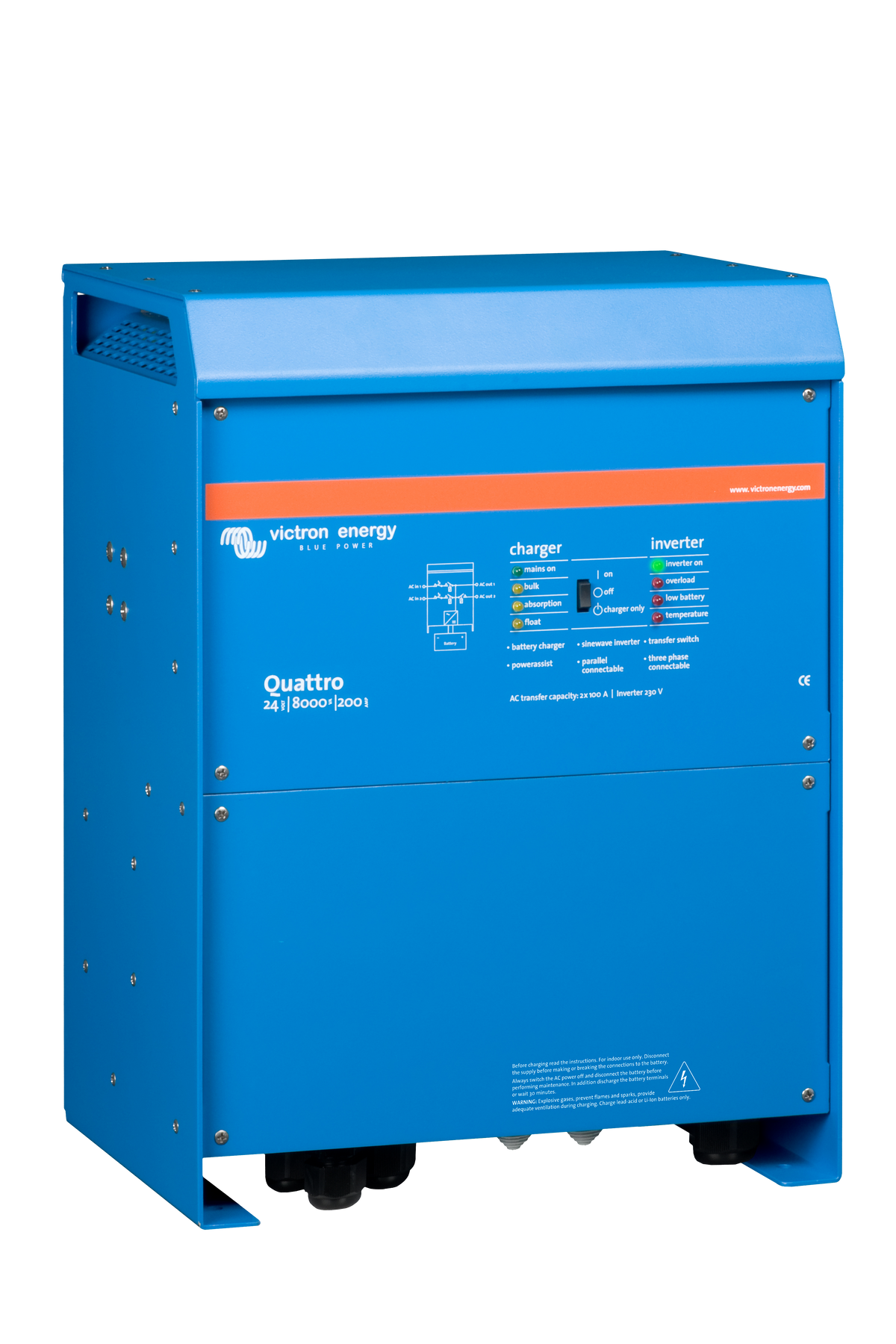

The Victron Energy Quattro 24/8000/200-100/100 230 V VE.Bus is a robust all-in-one inverter/charger designed for trade and commercial applications where reliability and flexibility are essential. With a 24 V battery input and a continuous AC output of 8 000 VA, plus a peak capacity of around 16 000 W, this unit effortlessly supports demanding loads. Housed in a blue aluminium enclosure, it brings both durability and a professional finish.

Engineered with dual AC inputs and integrated transfer switching, the Quattro automatically selects the active source - whether shore power, generator or grid - ensuring uninterrupted supply to connected loads in under 20 milliseconds. Thanks to the PowerAssist capability, the unit can supplement a weak incoming AC source by drawing on the battery, giving you peak power when needed without oversizing the generator or mains supply.

As a true sine-wave inverter/charger, it offers adaptive charging profiles and supports parallel, split-phase or three-phase configurations, making it highly adaptable for installations in leisure vehicles, commercial mobile operations, marine or standby power systems. Remote monitoring and control are built in via the VE.Bus communications port and VRM portal, enabling complete system oversight from a laptop or smartphone. With the metal housing and IP20 rating, the build quality matches the performance.

For contractors, system integrators or installers working in off-grid, grid-interactive or hybrid systems, this model provides the flexibility to handle heavy loads, complex power sources and remote management. It is ideal for companies specifying resilient power systems in vehicles, commercial trailers, industrial backup or renewable-energy storage solutions.

Product Specifications

Inverter Specifications

  • Nominal Battery Voltage: 24 V
  • Input Voltage Range: 19 – 33 VDC
  • Output Voltage: 230 VAC ± 2%
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Continuous Output Power at 25°C: 8000 VA
  • Continuous Output Power at 25°C: 6400 W
  • Continuous Output Power at 40°C: 5500 W
  • Continuous Output Power at 65°C: 3600 W
  • Peak Power: 16000 W
  • Maximum Efficiency: 94%
  • Zero-Load Power: 60 W
  • Zero-Load Power (AES Mode): 40 W
  • Zero-Load Power (Search Mode): 15 W
  • Maximum Continuous Output Current: 30 A
  • Maximum Output Fault Current: 100 A peak (1 sec)

Charger Specifications

  • AC Input Voltage Range: 187 – 250 VAC
  • AC Input Frequency: 50/60 Hz
  • Charge Voltage 'Absorption': 28.8 VDC
  • Charge Voltage 'Float': 27.6 VDC
  • Storage Mode: 26.4 VDC
  • Charge Current House Battery: 200 A (at 25°C ambient)
  • Charge Current Starter Battery: 4 A
  • Battery Temperature Sensor: Yes

Key Features & Connectivity

  • Two AC Inputs: Integrated transfer switch for dual power sources (e.g., Grid and Generator).
  • Integrated Transfer Switch: Yes (2x 100 A)
  • Maximum Feed-Through Current: 2x 100 A
  • PowerControl & PowerAssist: Yes (Prevents source overload by setting current limits and supplements source power with battery energy during peak loads).
  • Two AC Outputs: Main output (no-break) and a secondary output (active only when AC is available on an input, ideal for loads like water heaters).
  • Auxiliary Output: 50 A (Switches off when no external AC source is available).
  • Programmable Relays: 3x (Can be set for general alarm, DC under-voltage, or generator start/stop function).
  • VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration.
  • General Purpose COM Ports: 2x
  • Three-Phase & Parallel Capability: Up to 6 units can be connected in parallel; compatible with 3-phase configurations.

Mechanical Specifications

  • Dimensions (H x W x D): 470 x 350 x 280 mm
  • Weight: 45 kg
  • Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP20
  • Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
  • 230V AC Connection: M6 bolts
  • Remote On-Off: Yes

Environmental & Standards

  • Operating Temperature Range: -20 to +60°C
  • Humidity (Non-condensing): Max 95%
  • Maximum Altitude: 2000 m
  • Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
  • Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
  • Road Vehicles: ECE R10-4
  • Internal Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.

Victron Quattro 24/8000/200-100/100 230V VE.Bus – Manual

Victron Quattro 24/8000/200-100/100 230V VE.Bus – Data Sheet

Inverter Rating 8000VA
