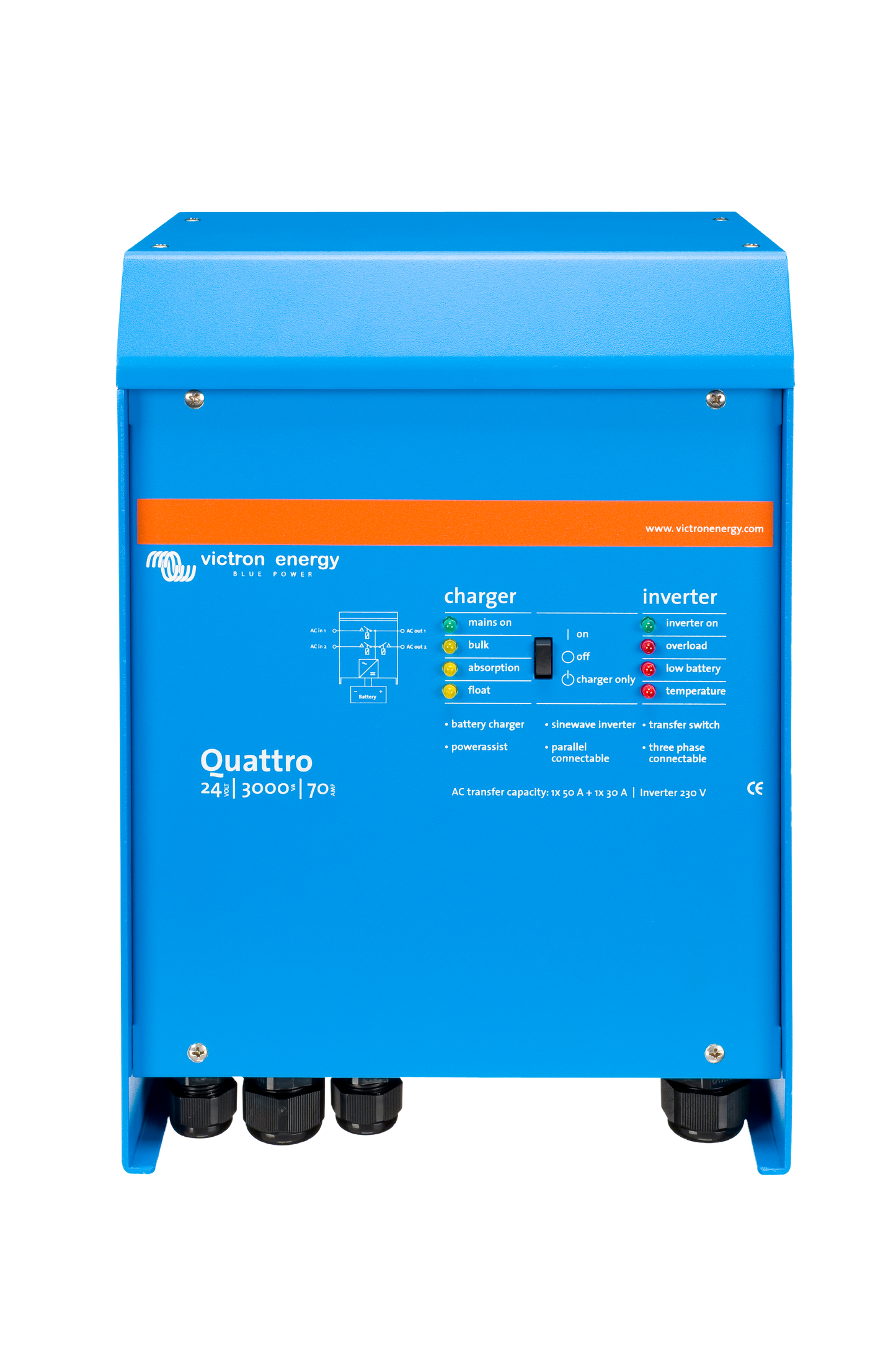

Victron Quattro 24/3000/70-50/50 230V VE.Bus
Victron Quattro 24/3000/70-50/50 230V VE.Bus
SKU:QUA243020010
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Quattro 24/3000/70‑50/50 230V VE.Bus is a high‑performance inverter/charger designed for demanding off‑grid, marine, and backup power applications. It features:
- Dual AC Inputs: Connects to two independent AC sources (e.g., shore power and generator) and automatically switches to the active source.
- No‑Break Operation: Provides uninterrupted power to connected loads during AC supply interruptions.
- PowerAssist Technology: Prevents overload of limited AC sources by supplementing with battery power.
- Parallel and Three‑Phase Capabilities: Up to six units can operate in parallel or in three‑phase configurations to achieve higher power output.
- Advanced Battery Charging: Adaptive charging algorithms optimise battery life and performance.
Dimensions: 362 x 258 x 218 mm
These dimensions make the unit relatively compact for its capacity, facilitating mounting in plant rooms, AC compartments, or large battery enclosures.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: QUA243020010
AC Input Voltage Range: [187, 250] V
AC Output Frequency: 50 Hz
AC Output Voltage: 230 VAC
Anti Islanding Standard: See our website
Automotive Directive: ECE R10-4
Auxiliary Output: Yes
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Battery Voltage Nominal: 24 V
Charge Algorithm: Adaptive, 4-stage
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Colour: Blue (RAL 5012)
Communication Port: VE.Bus
Communication Port General: Yes
Continuous Power (VA, 25°C): 3,000 VA
Continuous Power (W, 25°C): 2,400 W
Continuous Power (W, 40°C): 2,200 W
Continuous Power (W, 65°C): 1,700 W
D CInput Current: 250 A
DC Input Voltage Range: [19, 33] VDC
Depth: 218 mm
Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Fan Assist Cooling: Yes
Frequency Select: 50Hz or 60Hz
Height: 362 mm
Icw: 10,000 A
Integrated Transfer Switch: Yes
Material: Aluminium
Max Altitude: 2,000 m
Max Efficiency: 94 %
Max Feed Trough Current: 2x 100A
Max Humidity: 95 %
Max Output Ac Current: 93 A
Max Output Ac Current Fault: 32 A
Maximum Battery Charge Current: 70 A
Number Ac Inputs: 2
Ovciii Icw: Yes
Parallel Operation: Yes
Peak Power Rating: 6,000 W
Pollution Degree: 2
Power Assist: Yes
Power Control: Yes
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protection Category: IP20
Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
Relay Terminal: Screw terminal 3-pole
Remote Terminal: On / Off / Charger only
Remote Terminal Type: Screw terminal two pole
Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Three-phase Operation: Yes
VE.Bus Terminal Type: Two RJ45 terminals
Weight: 19 kg
Width: 258 mm
Zero Load Power: 20 W
Zero Load Power (AES): 15 W
Zero Load Power (Search): 10 W
Source: Victron
Technical Specifications
Technical Specifications
| Inverter Rating | 3000VA |
|---|
