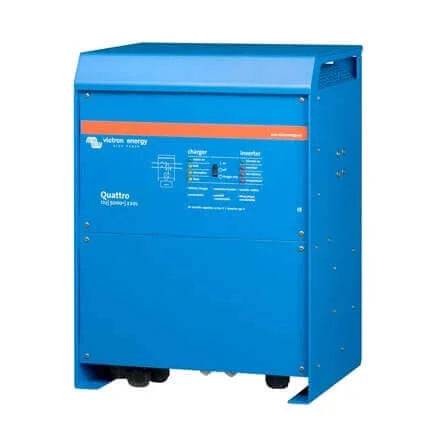

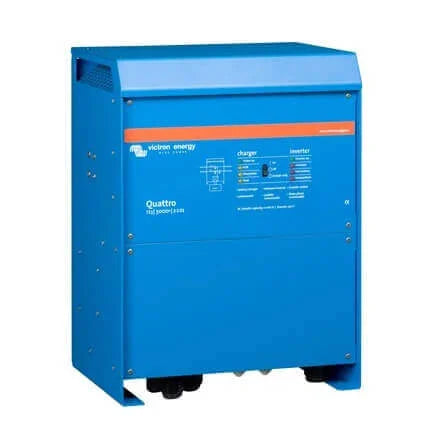

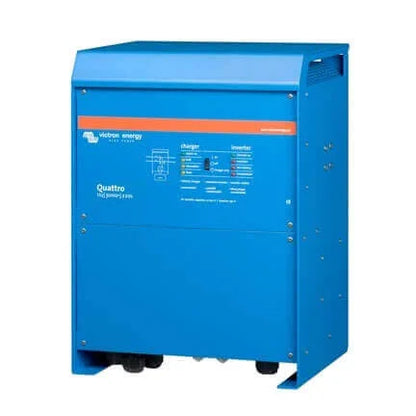

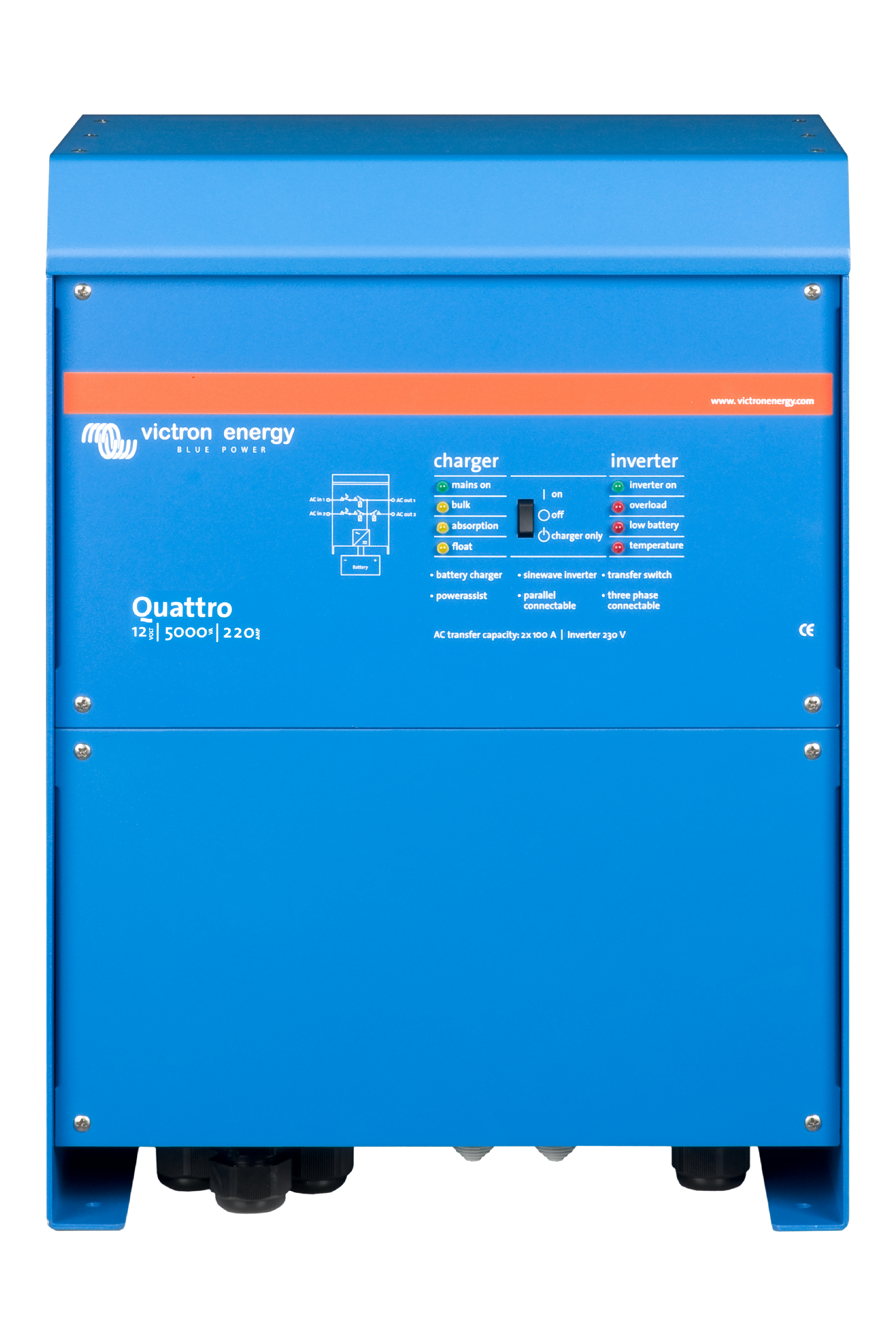

Victron Quattro 12/5000/220-100/100 – 12V 5000VA Inverter/Charger
Victron Quattro 12/5000/220-100/100 – 12V 5000VA Inverter/Charger
SKU:QUA125020000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Quattro 12/5000/220-100/100 is a high performance inverter and battery charger designed for dependable power management in mobile, off grid, and backup installations. Built for 12 volt systems, it delivers a continuous 5000VA output, ideal for running demanding equipment where a stable and reliable supply is essential. Its pure sine wave output protects sensitive electronics, giving users confidence when powering tools, appliances, or communications equipment.
A stand out feature of this model is its dual AC input capability. The unit can connect to two independent power sources, for example shore power and a generator, automatically selecting the most suitable input. If either source drops, the Quattro reacts in under 20 milliseconds, keeping critical loads running without interruption. It also offers two AC outputs, allowing priority loads to remain powered, while secondary loads are supplied only when AC input is available.
The built in battery charger provides an impressive 220A charging capacity when connected to a suitable supply, helping batteries recover quickly and reducing downtime. For users with limited generator or hook up capacity, the PowerAssist function helps prevent overload by balancing demand, and can draw additional power from the battery bank to support peak loads.
As systems grow, flexibility becomes crucial. The Quattro can be installed in parallel with up to five additional units, increasing total output. Support for three phase and split phase configurations enables use in a wide range of industrial and commercial environments. This makes it a strong choice for workshops, service vehicles, and resilient backup systems.
Remote monitoring and control capabilities further expand the appeal. When paired with a GX device such as the Cerbo GX, users can access detailed status information locally or remotely through the Victron Remote Management portal. From automatic generator start to settings adjustments, all functions can be viewed and controlled using a phone, tablet, or computer.
Victron is known for reliability, and the Quattro continues that reputation with robust construction and smart power handling. For installers and fleet managers looking for an integrated inverter and charger that supports complex power demands, offers rapid response to supply loss, and provides advanced monitoring options, this model delivers a versatile and dependable solution. Whether used for off grid living, marine applications, professional vehicles, or backup power, it provides clean, stable energy with prioritised load protection and efficient battery charging.
Product Specifications
Product Specifications
Inverter Specifications
- Nominal Battery Voltage: 12 VDC
- Input Voltage Range: 9.5 – 17 VDC
- Continuous Output Power at 25°C: 5000 VA
- Continuous Output Power at 25°C: 4000 W
- Continuous Output Power at 40°C: 3700 W
- Continuous Output Power at 65°C: 3000 W
- Peak Power: 10000 W
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Maximum Efficiency: 94%
- Zero Load Power: 30 W
- Zero Load Power in AES Mode: 20 W
- Zero Load Power in Search Mode: 10 W
- Maximum Continuous Output Current: 19 A
- Maximum Output Fault Current: 53 A peak (1 sec)
Charger Specifications
- AC Input Voltage Range: 187 – 250 VAC
- Input Frequency: 50/60 Hz
- Charge Voltage 'Absorption': 14.4 VDC
- Charge Voltage 'Float': 13.8 VDC
- Storage Mode: 13.2 VDC
- Charge Current House Battery: 220 A
- Charge Current Starter Battery: 4 A
- Battery Temperature Sensor: Yes
Key Features & Connectivity
- Two AC Inputs: Integrated transfer switch for automatic connection to the active source.
- Two AC Outputs: Main output (no-break) and a second output that is only live when AC is available on one of the inputs (ideal for heavy loads like water heaters).
- Maximum Feed-Through Current: 2x 100 A
- PowerControl & PowerAssist: Allows for setting a current limit on AC inputs to prevent overloading generators or shore power, and supplements the capacity of the alternative source with battery power during peak loads.
- Parallel Operation: Up to 6 units can be parallel connected to achieve higher power output.
- Three-Phase Capability: Three units can be configured for three-phase output.
- Programmable Relays: 3x (Can be set for general alarm, DC under-voltage, or generator start/stop functions).
- Auxiliary Output: 50 A (Switches off when no external AC source is available).
- Communication Ports: VE.Bus for parallel/three-phase operation and remote monitoring; 2x general purpose COM ports.
- Remote Monitoring and Control: Compatible with Cerbo GX, smartphone or tablet (Bluetooth Smart), and PC (USB or RS232).
Mechanical Specifications
- Dimensions (H x W x D): 470 x 350 x 280 mm
- Weight: 34 kg
- Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP20
- Battery Connection: Four M8 bolts (2 positive and 2 negative)
- 230V AC Connection: M6 Bolts
- Operating Temperature Range: -20 to +60°C
- Humidity: Max 95% (non-condensing)
Standards & Protections
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Road Vehicles: ECE R10-4
- Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
Technical Specifications
Technical Specifications
| Inverter Rating | 5000VA |
|---|
