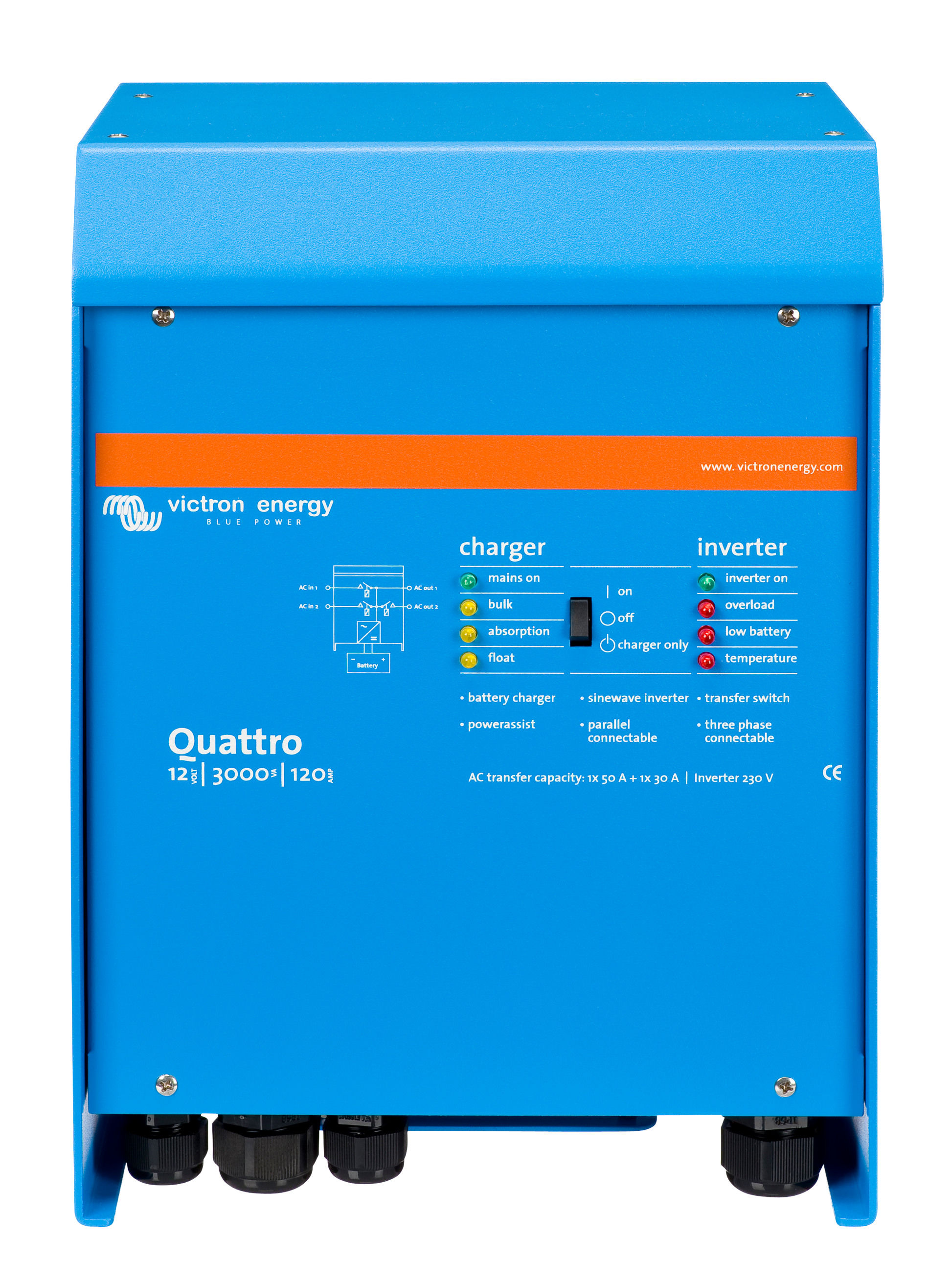

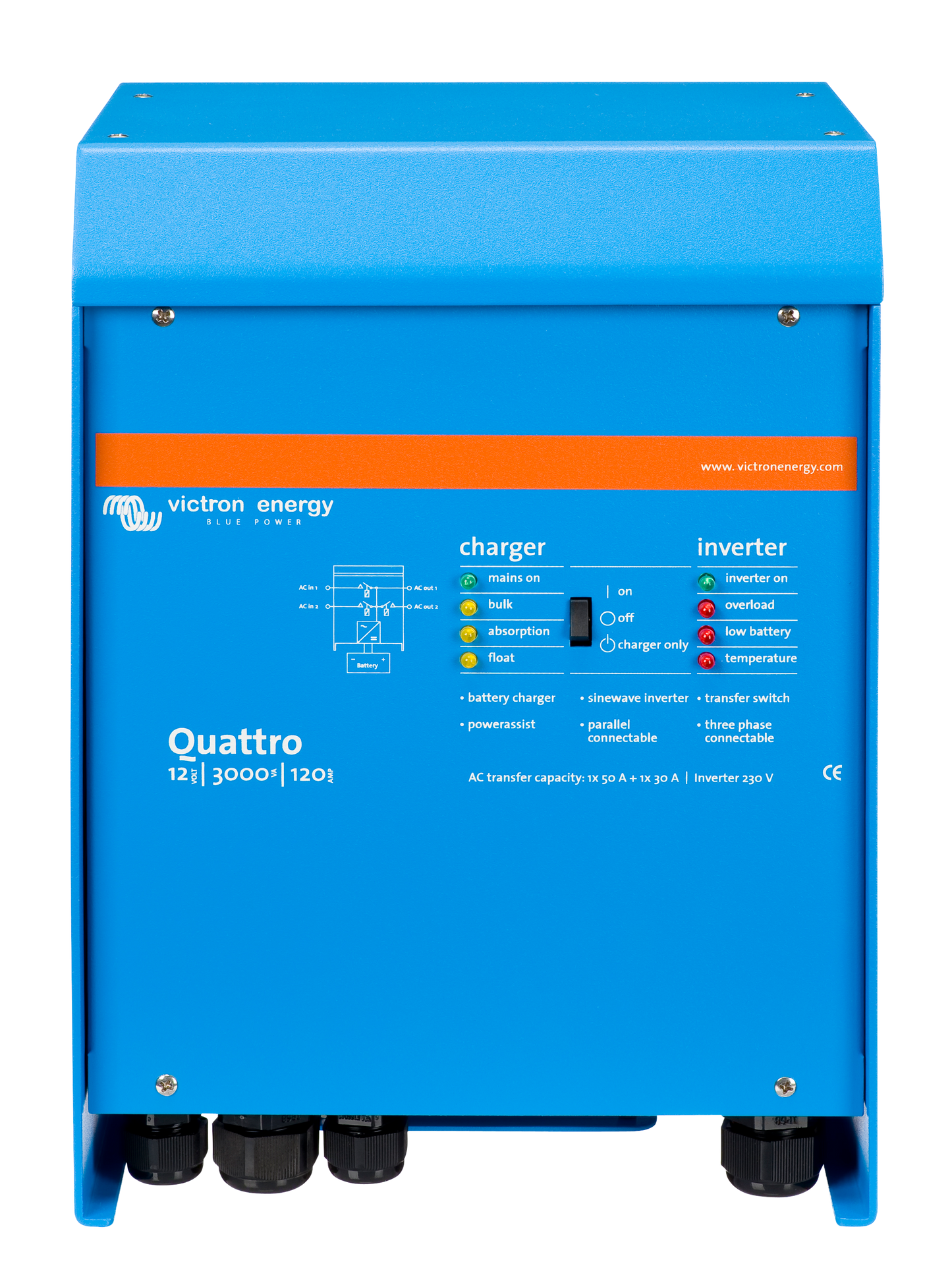

Victron Quattro 12/3000/120-50/50 230V VE.Bus

Victron Quattro 12/3000/120-50/50 230V VE.Bus

QUA123020010

Brand: Victron

Dual AC inputs automatically select the best available power source 120 A charger replenishes batteries rapidly to reduce downtime PowerAssist prevents overloads on limited supplies Scalable design allows parallel and three phase configurations Prioritised AC outputs keep critical equipment powered Dimensions: 362 x 258 x 218mm Weight: 19kg

In stock

This is pre-order - Available in 7 – 10 days

£1,574.00 GBP
£1,574.00 GBP
Sale Sold out

Product Details

The Victron Quattro 12/3000/120 50/50 230V VE.Bus is a premium inverter and charger designed for demanding off grid, commercial, marine, and mobile power applications. It provides reliable power conversion from a 12 volt battery bank, delivering 3000 VA of continuous output. Built by Victron Energy, a respected manufacturer of power electronics, the Quattro is engineered for dependable operation where power continuity matters.

A key advantage of the Quattro is its dual AC input capability. It can accept power from two independent sources, such as shore power and a generator, switching automatically to the best available supply to keep your systems running. Dual AC outputs allow you to prioritise critical circuits, ensuring important equipment remains powered even when supply is limited. This makes the unit suitable for service vehicles, vessels, off grid cabins, and industrial backup systems.

The integrated charger provides up to 120 A of charge current, replenishing battery banks quickly to reduce downtime. PowerAssist technology helps prevent overloading by supporting the incoming AC supply with battery power during periods of high demand. When loads ease, the charger replenishes the batteries. This optimises generator and grid usage while maintaining performance.

Advanced VE.Bus communication allows the Quattro to be configured for single, split, or three phase systems. Up to six units can operate in parallel for increased power, offering excellent scalability. Flexible control and monitoring options are available through accessories and remote tools, allowing businesses to track performance and adjust settings to suit their environment.

Safety features include automatic voltage regulation, short circuit protection, and heat management designed for long service life. Installation is straightforward for qualified installers, and the robust housing is designed for professional environments such as workshops, industrial facilities, and commercial boats.

For businesses that depend on reliable electrical infrastructure, the Victron Quattro offers reliable power continuity, efficient charging, and scalable system design. It protects equipment, reduces generator runtime, and minimises power related downtime, making it a smart investment for professional operations.

Product Specifications

Inverter Specifications

  • Nominal Battery Voltage: 12 V
  • Input Voltage Range (VDC): 9.5 – 17 V
  • Output Voltage: 230 VAC ± 2%
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Continuous Output Power at 25°C: 3000 VA
  • Continuous Output Power at 25°C: 2400 W
  • Continuous Output Power at 40°C: 2200 W
  • Continuous Output Power at 65°C: 1700 W
  • Peak Power: 6000 W
  • Maximum Efficiency: 93%
  • Zero-Load Power: 20 W
  • Zero-Load Power (AES Mode): 15 W
  • Zero-Load Power (Search Mode): 8 W
  • Maximum Continuous Output Current: 11 A
  • Maximum Output Fault Current: 32 A peak (1 sec)

Charger Specifications

  • AC Input Voltage Range: 187 – 250 VAC
  • AC Input Frequency: 50/60 Hz
  • Charge Voltage 'Absorption': 14.4 VDC
  • Charge Voltage 'Float': 13.8 VDC
  • Storage Mode: 13.2 VDC
  • Charge Current House Battery: 120 A (at 25°C ambient)
  • Charge Current Starter Battery: 4 A
  • Battery Temperature Sensor: Yes

Key Features & Connectivity

  • PowerControl & PowerAssist: Yes (Allows current limits on AC inputs and supplements source power with battery power during peak loads)
  • Integrated Transfer Switch: Yes (Dual AC inputs)
  • Maximum Feed-Through Current: 2x 50 A
  • Two AC Outputs: Main output (no-break) and a secondary output (active only when AC is available on an input)
  • Auxiliary Output: 25 A (Switches off when no external AC source is available)
  • Programmable Relays: 3x (Can be set for general alarm, DC under voltage, or generator start/stop)
  • VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration
  • General Purpose COM Ports: 2x
  • Three-Phase & Parallel Capability: Up to 6 units can be connected in parallel; compatible with 3-phase configurations.

Mechanical Specifications

  • Dimensions (H x W x D): 364 x 295 x 221 mm
  • Weight: 19 kg
  • Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP21
  • Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
  • 230V AC Connection: Screw terminals (13 mm² / 6 AWG)

Environmental & Standards

  • Operating Temperature Range: -20 to +60°C
  • Humidity (Non-condensing): Max 95%
  • Maximum Altitude: 2000 m
  • Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
  • Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
  • Road Vehicles: ECE R10-4
  • Internal Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.

Victron Quattro 12/3000/120-50/50 230V VE.Bus – Manual

Victron Quattro 12/3000/120-50/50 230V VE.Bus – Data Sheet

Inverter Rating 3000VA
