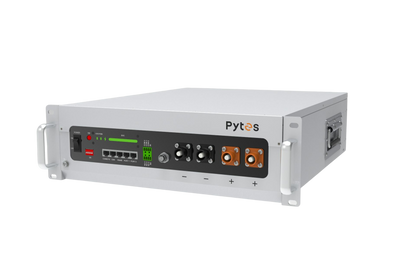

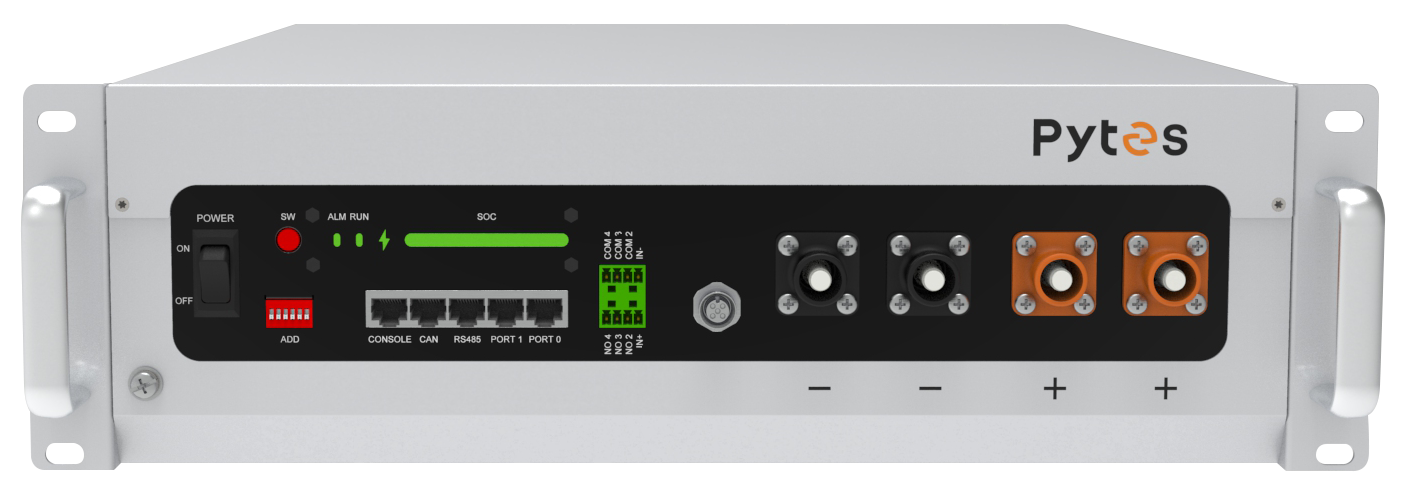

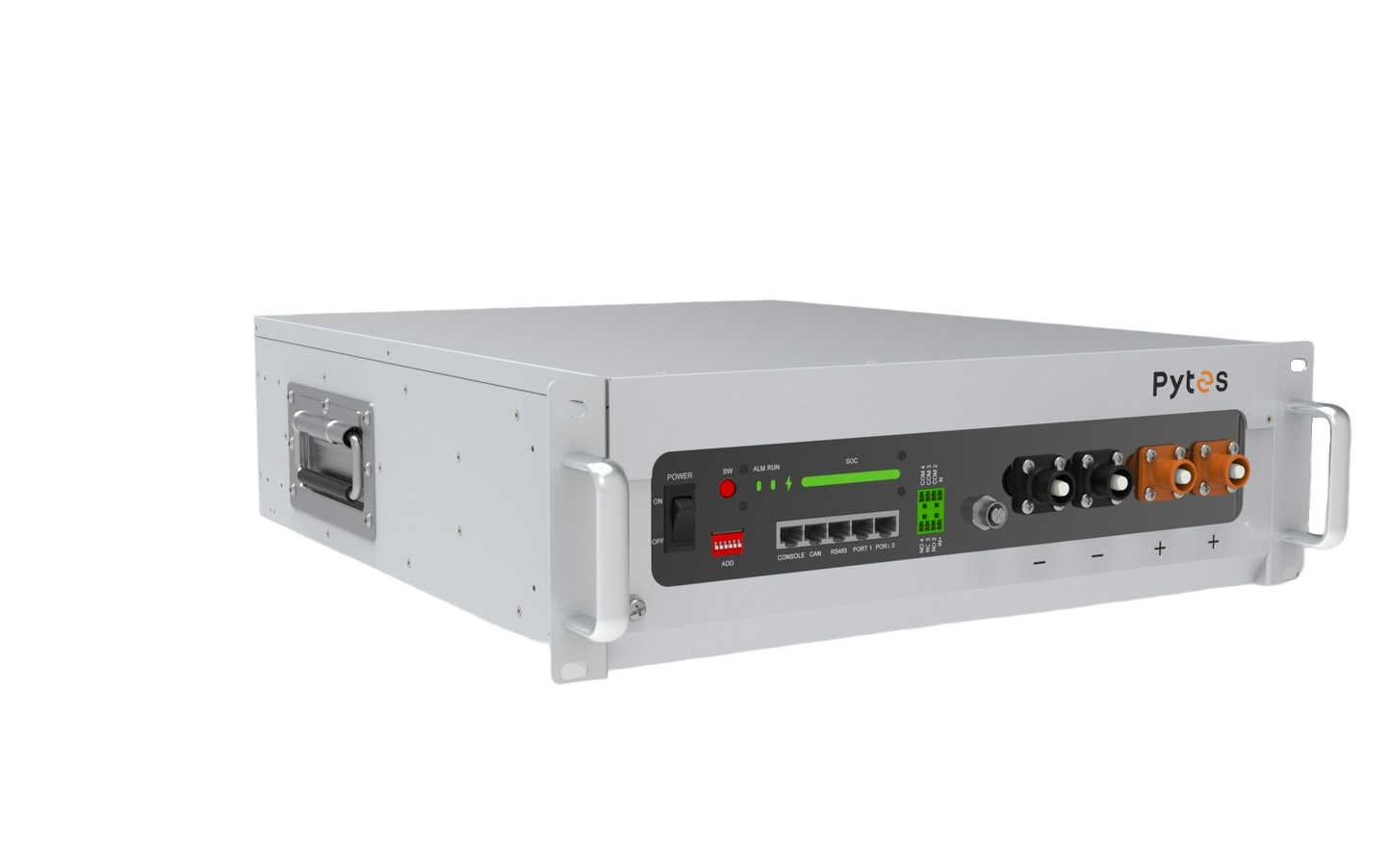

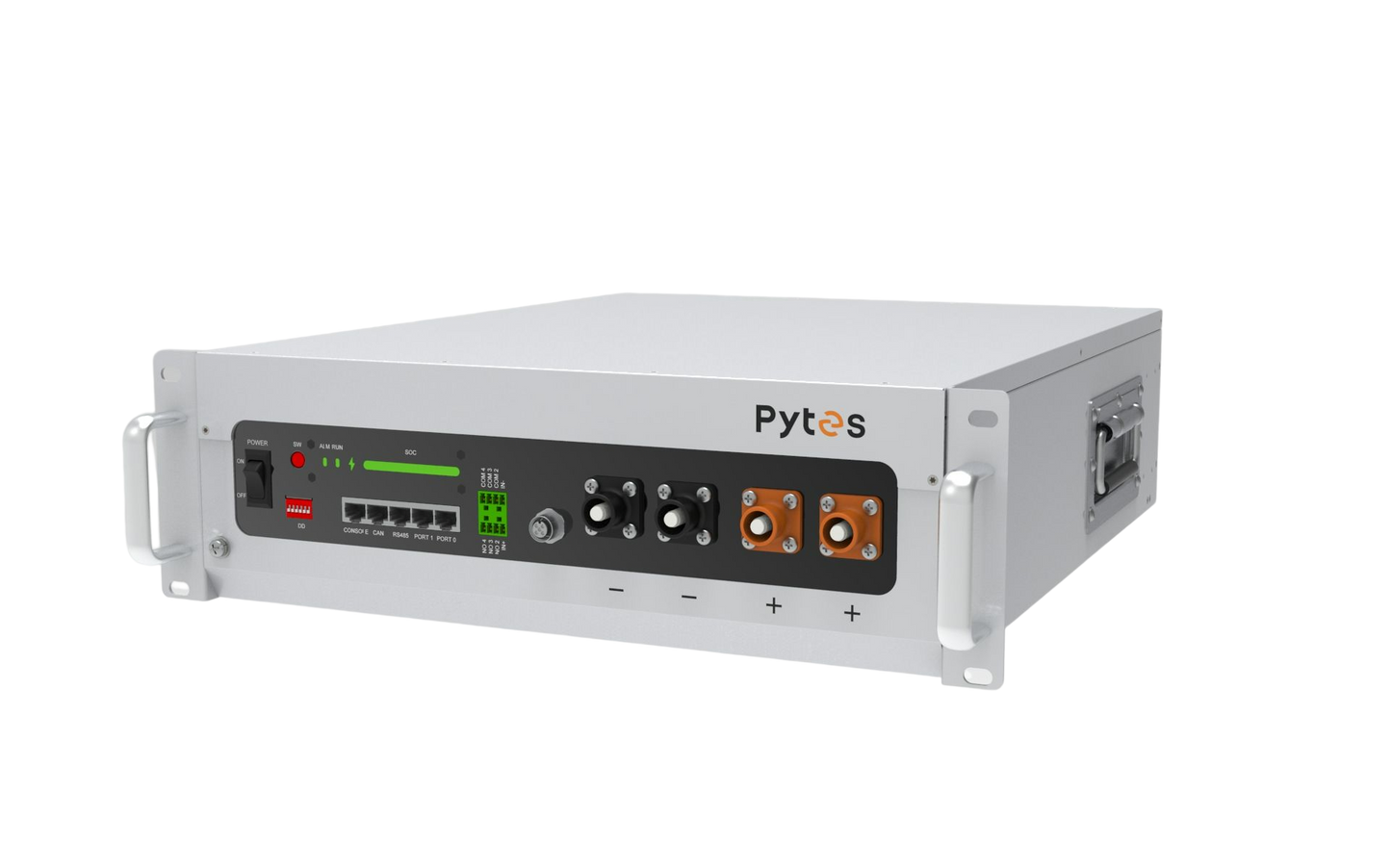

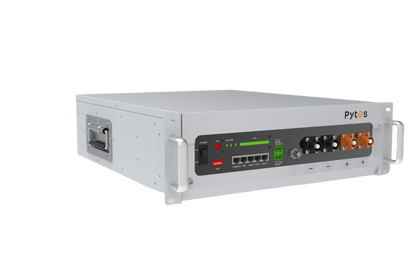

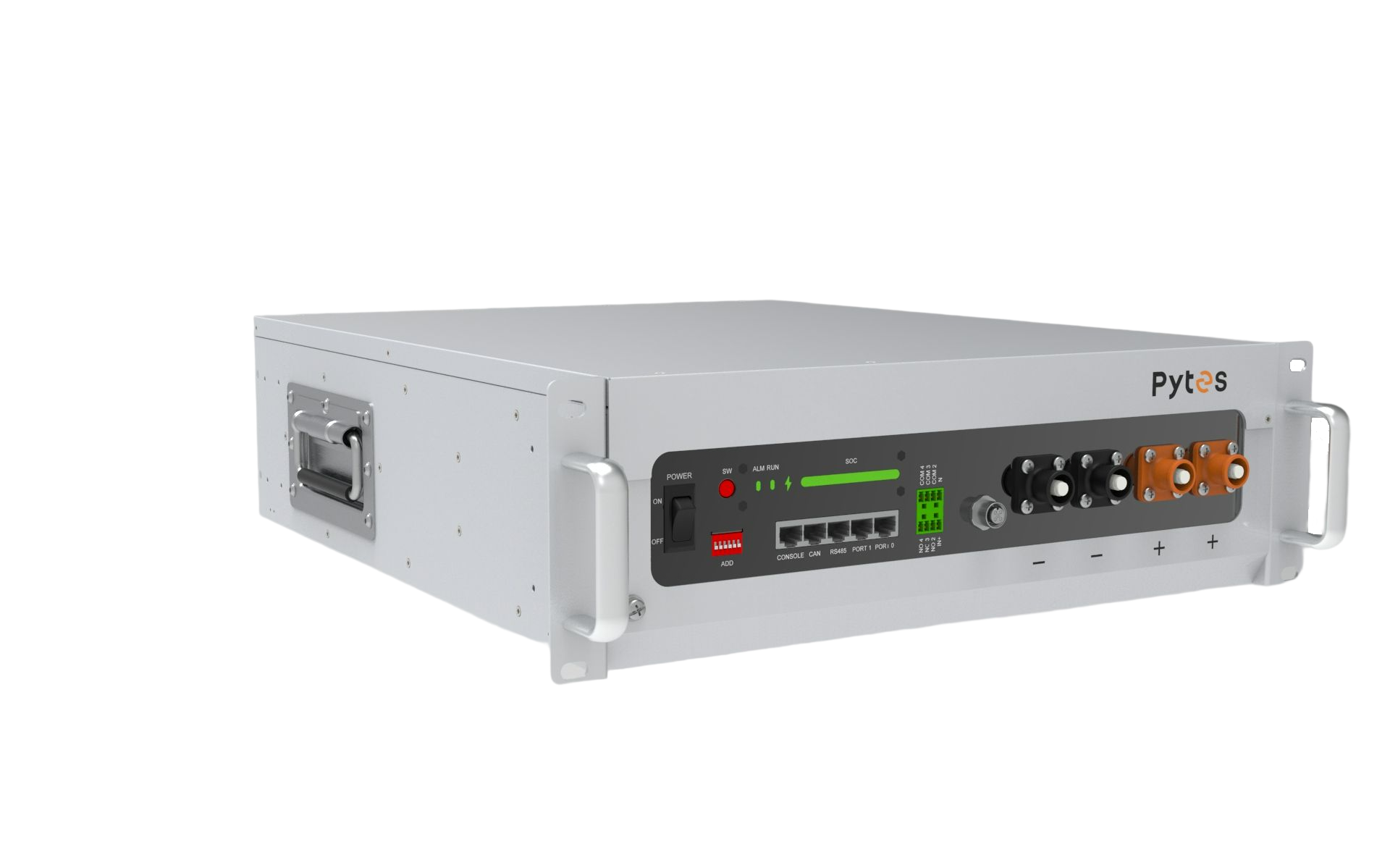

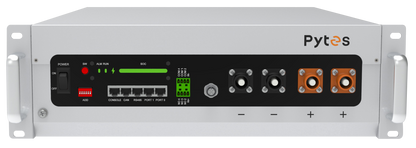

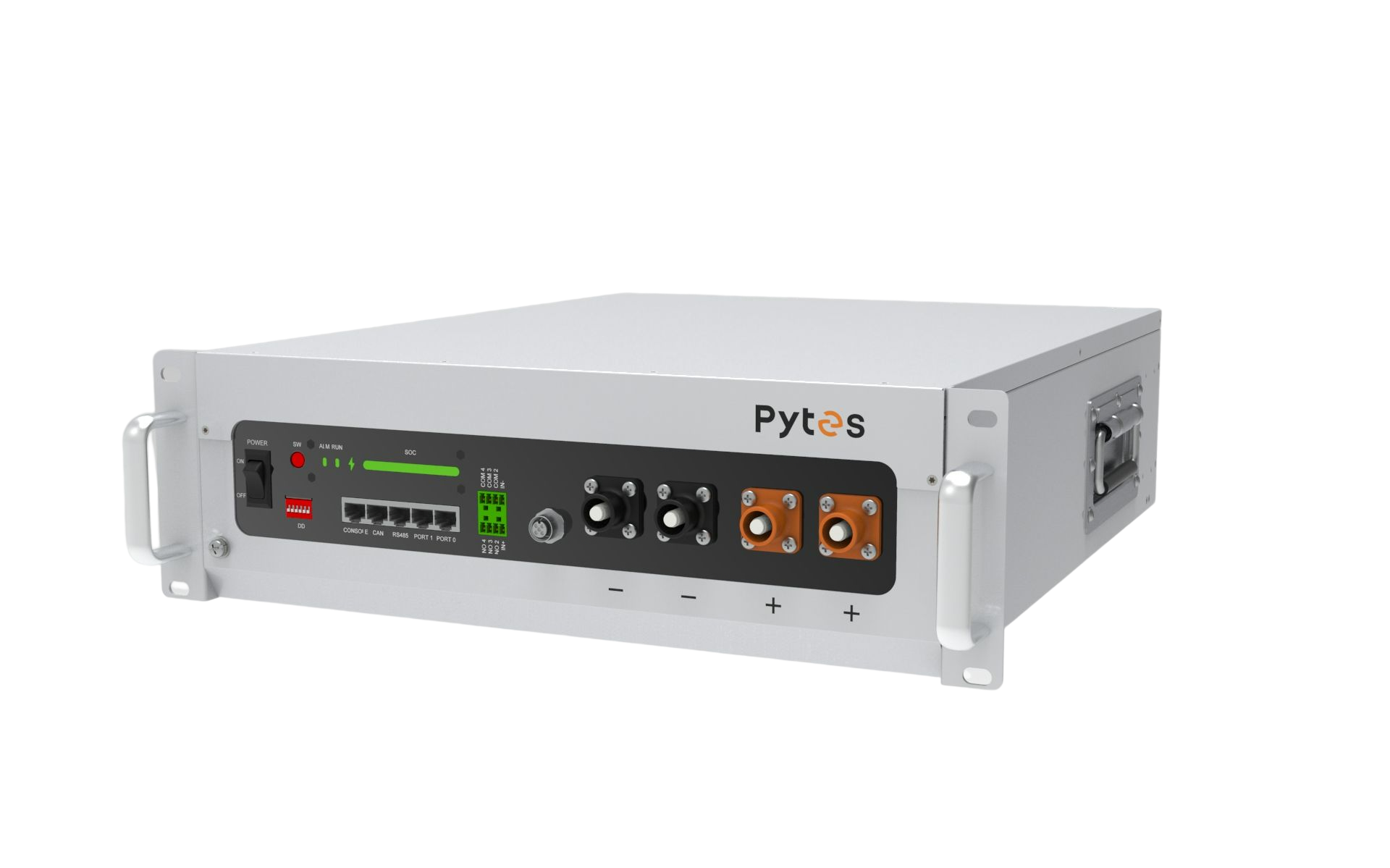

Pytes V5A – 5.12kWh Residential Solar Battery
Reliable. Scalable. Smart Energy Storage.
Key Features
- High Performance: 5.12kWh capacity with 100A continuous charge/discharge rate and up to 180A peak power output.
- Advanced Battery Chemistry: Safe, long-life Lithium Iron Phosphate (LFP) technology.
- Greater Flexibility: Scalable up to 491.52kWh using groups of 16 units per Hub.
- Smart Connectivity: Optional Wi-Fi module enables remote monitoring and firmware upgrades.
- Built to Endure: Operates from -10°C to 50°C and includes optional heating pad for colder climates.
- 10-Year Warranty: Peace of mind with a decade-long performance guarantee.
- Global Certifications: UL9540, UL1973, IEC62619, UN38.3, CE, SGIP, and more in progress.
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Energy | 5.12kWh |
| Nominal Voltage | 51.2V |
| Capacity | 100Ah |
| Round-Trip Efficiency | ≥95% |
| Cycle Life | ≥6000 cycles (90% DoD @ 25°C) |
| Charge/Discharge Current | 75A (recommended), 100A (max) |
| Peak Current | 180A (15 sec), 120A (3 min) |
| Operating Temp | -10°C to 50°C |

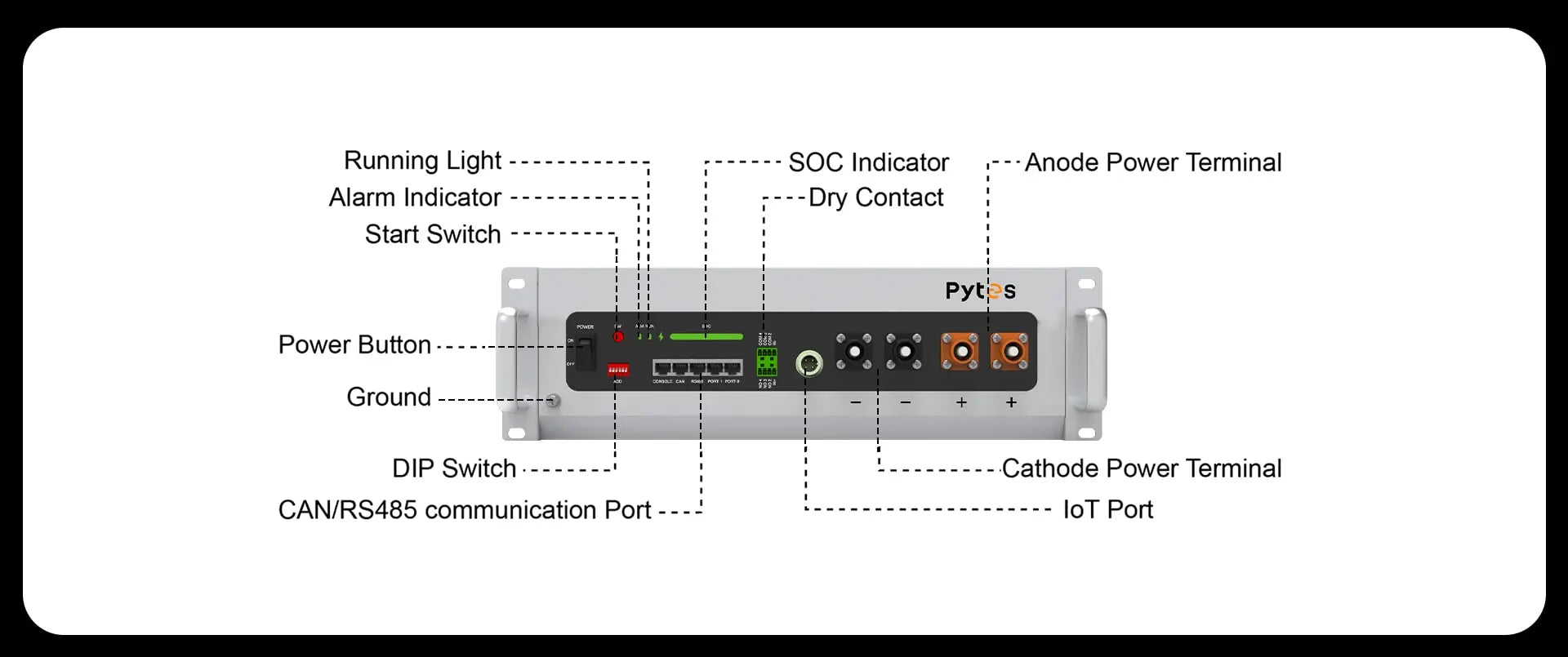

| Communication Ports | RS485, CAN, Dry Contact, RS232, Wi-Fi |
| Dimensions (L x W x H) | 442 x 530 x 140 mm / 17.4 x 20.87 x 5.5 in |
| Weight | 44 kg / 97 lbs |
| Enclosure Protection | IP20 |
Installation and Expandability
- Connect up to 16 units per group (81.92kWh total).
- Link up to 6 groups (491.52kWh total) using a system Hub.
- Flexible connection types: Phoenix M6 bolt or Amphenol SurLok Plus.
Smart & Future-Ready
With its optional Wi-Fi module, users can access remote diagnostics, monitoring, and upgrades, ensuring peak performance over time, all from the comfort of your home.
Highly compatible and will work with most Inverters on the market from the following brands and more:
Afore Aisle, Anern, AP Systems, Courtois Energy, Deye, EASUN power, Goodwe, Growatt, Hoymiles, Livoltek, Luxpower, Megarevo, MPP Solar, MUST, Phocos, PowMr, Pylontech, Ruian Enchi, Sacolar, Senergy, SMA, SMT, Sol-Ark, Solis, SRNE, Studer, Sunmart, Sunsynk, Victron, Voltronic
If your inverter is not on the list please get in touch and our team will double check whether this is compatible with your system
