Pytes V5 Wall Bracket Set - BK1

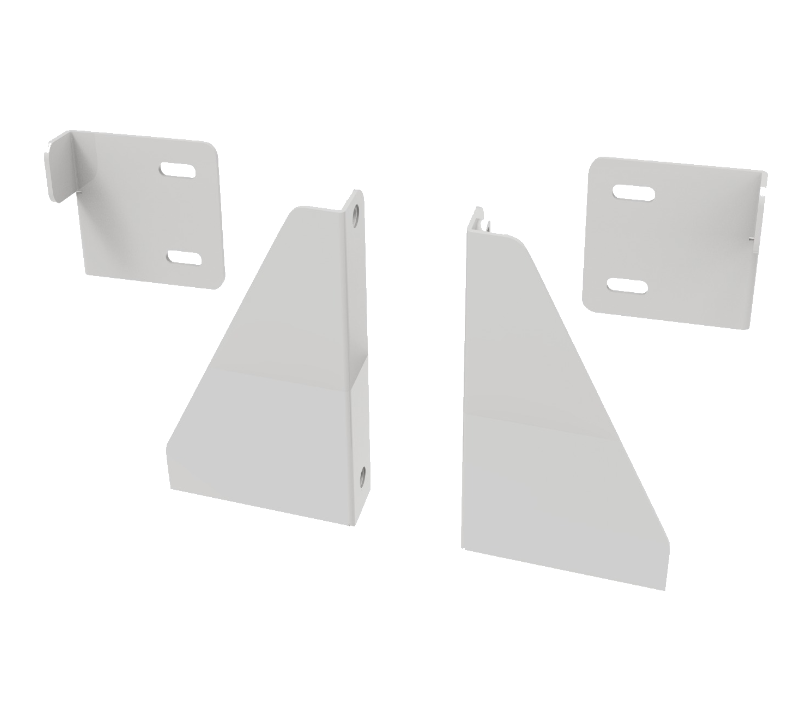

The Pytes V5 Wall Bracket Set BK1 provides a secure and space‑efficient solution to mount a single Pytes V5° or V5°α LiFePO₄ battery to a wall. The set includes two upper brackets and two lower auxiliary brackets, engineered specifically for the Pytes V5 series to offer reliable structural support without consuming extra floor space.

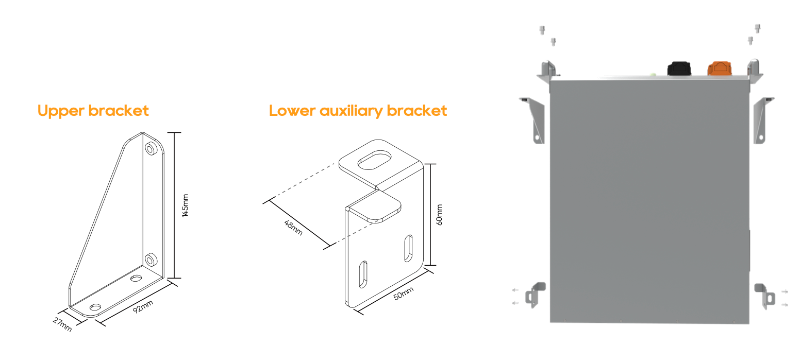

Manufactured from SGCC galvanised steel, these brackets are built for long-term durability and corrosion resistance. The upper brackets measure 145 × 92 × 27 mm, while the lower auxiliary brackets are 60 × 50 × 48 mm, making them compact yet strong enough to support the battery safely. The full set weighs approximately 0.59 kg, which is light enough for straightforward installation but robust in use.

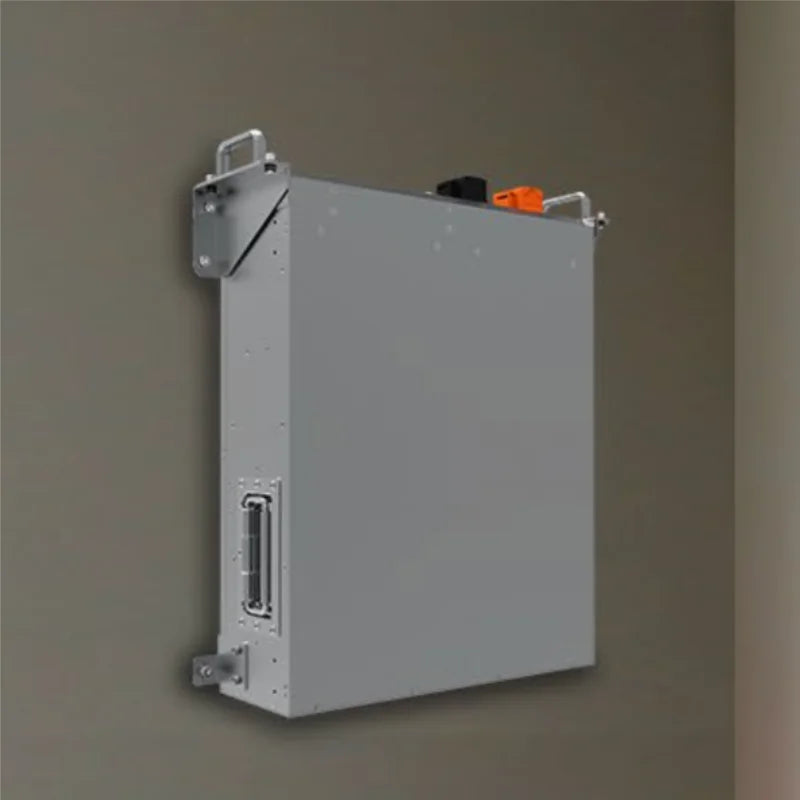

These brackets enable secure wall fixation of one Pytes V5 or V5α module, helping installers to optimise system layout, especially in domestic or confined commercial environments. With the bracket set fitted, the battery remains firmly in place, reducing risk of movement or vibration. This is particularly useful in installations where floor space is limited or where stacking on racks is not preferred.

The BK1 bracket set is intended for indoor applications and performs reliably when mounted on standard walls. Installation is simple: the design allows for easy alignment and fixing, reducing both installation time and labour cost for trade customers. Once mounted, the battery is held in a stable position and can be serviced or replaced easily when required.

By using these brackets, you help ensure compliance with safe mounting practices, reduce potential strain on battery terminals, and create a cleaner, more professional-looking installation. This accessory is essential if you want a tidy, reliable, and installer-friendly mounting solution for Pytes V5 battery systems.
